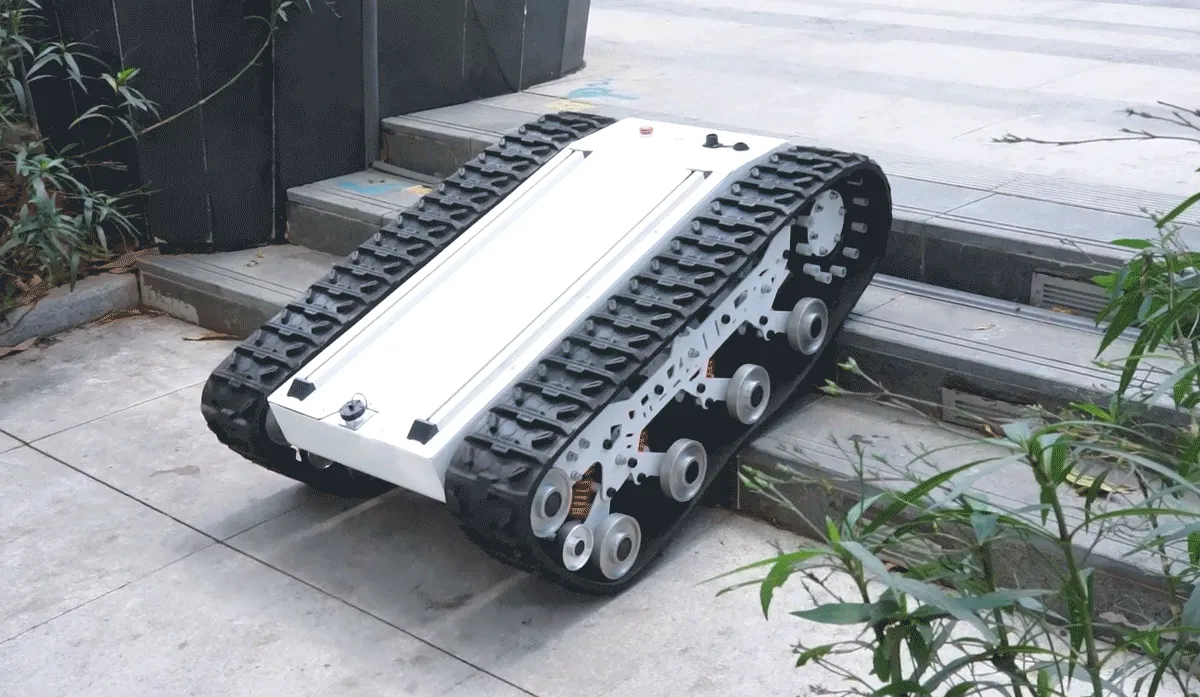

Viewpro TK224 is a crawler-type UGV (Unmanned Ground Vehicle) featuring independent drive and robust all-terrain adaptability. Equipped with a custom Christie suspension system and eight reinforced shock absorbers on each side, TK224 is capable of handling a wide range of complex surfaces such as mud, gravel, slope, and low obstacles.
Key Features
1. Excellent All-terrain Performance
- Custom Christie suspension system
- 8 independent shock absorbers per side
- 150mm obstacle clearance
- 20° climbing capability
- 103mm ground clearance
2. Precise Control with Strong Load Capacity
- Dual 1000W brushless DC motors
- 80kg max payload
- Motor-based braking and parking system
- Max speed: 4 km/h
- Max range: 20km
3. VCU Comprehensive Safety System
- Built-in 20 safety strategies
- By-wire high-precision operation
- System stability is 30% higher than comparable platforms
4. Modular Expansion
- Equipped with payload mounting plates
- Open CAN2.0B interface and accessible power/comm ports
- Supports a wide range of sensor and robotic integration
Specifications
Product Size: 1070*700*345mm
Weight: 140kg
Shock-absorbing System: 8 independent absorbers on each side
Suspension: Christie Suspension
Material: Q235
Ground Clearance: 103mm
Wheel Track: 550mm
Wheel Outer Diameter: 212mm
Motor: 1000W*2 DC Brushless Motor
Battery: 48V/40AH
Charging Time: 4-5h
Charging Mode: 48V/10A Manual Charger External power supply: 24V/15A-12V/15A-5V/4A
Braking: Motor Brake
Parking: Motor Parking
Payload: 80kg
Speed: 4km/h
Mileage: 20km
Wading Depth: 100mm
Climbing Capacity: 20°
Span Width: 250mm
Obstacle Height: 150mm
Protection Level: IP64
Communication Interface: CAN 2.0B
Applications
- Field patrol and inspection
- Environmental exploration
- Robotics development platform
- Outdoor obstacle handling and manipulation support
