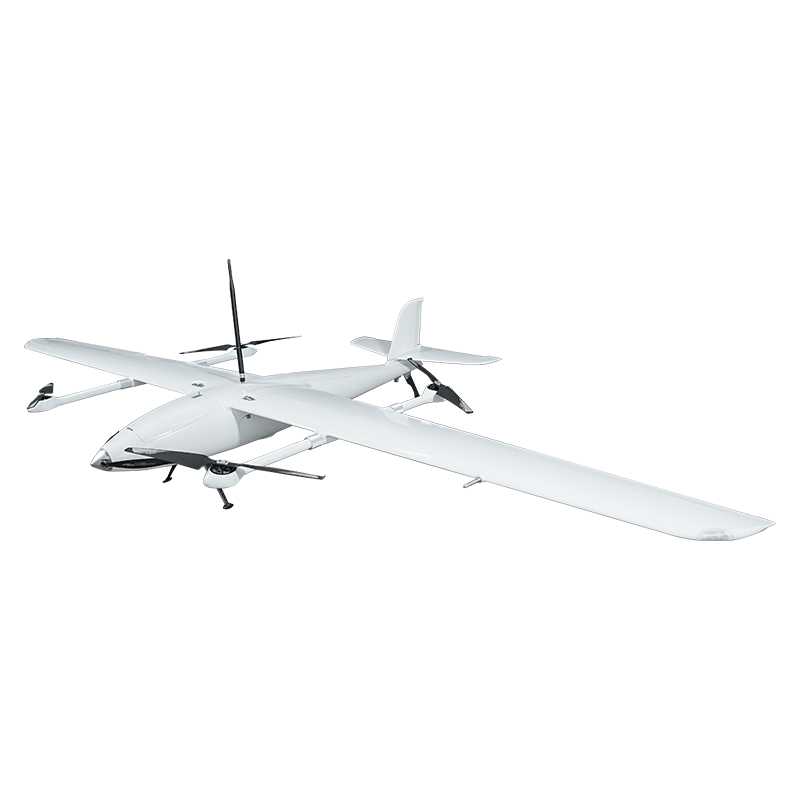

F240 is a portable vertical take-off and landing fixed wing UAV with flexible assembly, quick response, inverted T-tail design, widely used in terrain mapping, border patrol, ground reconnaissance, lightweight material transport and other fields
F240 UAV is a brand-new model, specially designed for aerial surveying and aerial photography applications. This is a light aircraft with 7kg total weight. According to the characteristics of surveying and mapping and usage scenarios, the details are continuously optimized and the efficiency of the power system is improved. The endurance finally reached 160 minutes, with a flying range of 190km. Equipped modular design, the scene can be quickly deployed in 1 minute, and users can get a better working experience. Detachable load compartment design can realize fast switching, users select the load according to mission needs.
Packing List for Different Versions:
| Version | CUAV V5+ RTF | Cube Orange RTF | CUAV X7+ RTF |
| Flight Controller | CUAV v5+ Flight Controller | 1x Cube Orange Standard Set | CUAV X7+ Flight Controller |
| GPS | NEO3 Pro | Here 3 | NEO3 Pro |
| VTOL Airframe | √ | √ | √ |
| VTOL Motor | 4pcs | 4pcs | 4pcs |
| VTOL ESC | 4pcs | 4pcs | 4pcs |
| Airplane Motor | 1pc | 1pc | 1pc |
| Airplane ESC | 1pc | 1pc | 1pc |
| VTOL Propeller | 2Pairs | 2Pairs | 2Pairs |
| Airplane Propeller | 1pc | 1pc | 1pc |
| Servo | 4pcs | 4pcs | 4pcs |
| UBEC | 1pc | 1pc | 1pc |
| Airspeed meter | 1pc | 1pc | 1pc |
| Night Light | 1pc | 1pc | 1pc |
| RC&Ground Station | 1x FT24 14Channels RC | 1x DK32SE | 1x DK32SE |
| Video Transmitter | / | / | / |
| Battery | / | / | / |
| Battery Charger | / | / | / |
| Flight Case | √ | √ | √ |
| Assembling, tuning and flight test service | √ | √ | √ |
Recommended options:
Data and image link: 15km, 30km, 50km, 100km
Battery charger: PC1080, AC/DC dual, UP1200
Specification:
| Model No. | Mako F240 |
| Type | VTOL Fixed Wing |
| Color | White as default (Support customization) |
| Wingspan | 2400mm |
| Length | 1150mm |
| Belly to Ground | 100mm |
| Battery Cabin | 13×10×6cm |
| Material | Carbon fiber + glass fiber +PVC |
| Airframe Weight | 3.7kg (contains the power) |
| MTOW | 7kg |
| Max Payload | 1.2kg |
| Suggested Load | 1kg |
| Flight Time | 130min with 1kg payload, 120min with 1.2kg payload |
| Max Cruising Speed | 100km/h |
| Stall Speed | 54km/h (15m/s) |
| Max Flight Altitude | 4000m |
| Max Wind Resistance | 12m/s (fixed wing), 8m/s (VTOL) |
| Battery (Recommended) | 1*6S 27000mAH Li-ion |
| Working Temperature | -10-60°с |
| IP Grade | IP45 |
| Package Chargeable Size | 115×40×35cm |
