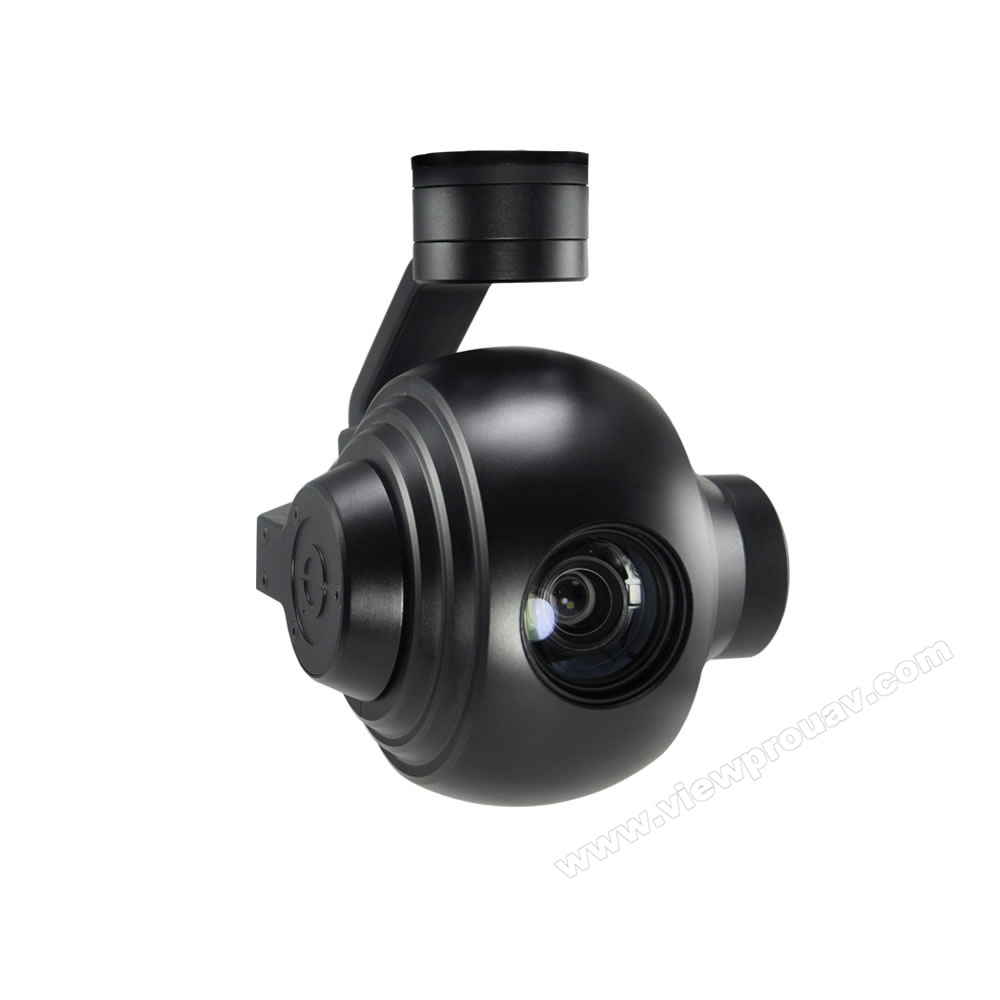

Q10T features 10x optical zoom and auto tracking function. It is a 3-axis gimbal camera for UAV, especially for small drones which require light weight payloads. Alluminum alloy hosing is ideal for light weight meanwhile keeping perfectly anti-interference and cooling. It outputs and records FHD 1080p video with OSD. Connected to GPS module it has geo tagging funcion. Combining with high-precise stabilisation system and automatic thermal compensation algorithm, the gimbal can fulfill high level stablization requirements without thermal drifting.
10x Time Optical Zoom EO Camera
Powered by 10x optical zoom high resolution camera module, Q10T can recognize cars in 1000 meters, which can meet the application requirements of various domains.
For more information about Viewport, please check below video instruction:
Built-in Auto-tracking Function
Build-in normalization, cross-correlation and tracking algorithm, combining with object missing recapture algorithm, achieve stable track of the target. Support custom characters of user OSD, adaptive gate, cross cursor, trace information display. The tracking speed is up to 32pixel/frame, object size range is from 16*16 pixel to 160*160 pixel, with the minimal signal-to-noise ratio (SNR) 4db, the mean square root values of pulse noise in the object position <0.5 pixel, which greatly improve the accuracy and tracking effect.
Defualt PWM and Serial port TTL control, SBUS is optional, IP output version also support TCP control via ethernet cable. With Viewpro software Viewlink you can fulfill IP output, TTL control and TCP contorl.
Multi Output Methods Optional
Q10T support both HDMI output, Ethernet/IP output and SDI output. HDMI and output are 1080p, Ethernet output defualt as 720p and record is 1080p. IP output and SDI output versions will support 360degree enless pan.
Compatible with Viewport
Q10T is compatible with Viewpro quick release connector Viewport. Viewport is an option known as easy assembly, plug and play.
Applications
Mainly supply in law enforcement, fire-fighting, power tower and pipeline inspection, search and rescue etc. A wide range of monitoring and searching is required in an emergency to quickly transfer the situation, improve response efficiency and reduce casualties
Dimensions
Specification
| Hardware Parameter | |
| Working voltage | 16V |
| Input voltage | 4S ~ 6S |
| Output voltage | 5V (connect with PWM) |
| Dynamic current | 530~1200mA @ 16V |
| Working environment temp. | -20℃ ~ +60℃ |
| Output | micro HDMI(1080P 60fps) / IP (RTSP/UDP 720p/1080p 25fps/30fps) / SDI (1080P 30fps) |
| Local-storage | SD card (Up to 512G,class 10, FAT32 format) |
| Photo storage format | JPG(1920*1080) |
| Video storage format | MP4 (1080P 30fps) |
| Card reading online | SMB read/ HTTP read |
| Control method | PWM / TTL / S.BUS/ TCP(IP output version)/UDP(IP output version) |
| Geotagging | Support, display time and GPS coordinate in picture exif |
| Gimbal Spec | |
| Angle scope of structure design | Pitch/Tilt: -125°～125°, Roll: ±70°, Yaw/Pan: ±300° / ±360°*N (IP / SDI output version) |
| Angle scope of software design | Pitch/Tilt: -45°～120°, Yaw/Pan: ±290° / ±360°*N (IP / SDI output version) |
| Vibration angle | Pitch/Roll: ±0.02°, Yaw：±0.02° |
| One-key to center | √ |
| Camera Spec | |
| Imager Sensor | 1/3" Panasonic CMOS Sensor |
| Total pixel | 2.48M |
| Picture quality | Full HD 1080 (1920*1080) |
| Optical zoom | 10x, f = 5.1mm ~ 51mm |
| Digital zoom | 32x |
| Angle of View (D, H, V) | D: 68°(Wide end) ~ 6.7° (Tele end) |
| H: 54°(wide end) ~ 4.9°(tele end) | |
| V: 31°(wide end) ~ 4.0°(tele end) | |
| Sync system | Progressive Scan |
| Sync. System Internal | Internal |
| S/N ratio | more than 50dB |
| Min illumination | Color : 0.5 lux , BW : 0.1lux Color DSS : 0.125 lux , BW DSS : 0.025 lux |
| Gain Control (AGC) | Off / On |
| White balance | Auto / One Push / Manual / Indoor / Outdoor |
| Shutter speed | 1/30(25) ~ 1/30,000 sec |
| Focus | Auto / One Push / Manual |
| Iris | 0 ~ 20 steps |
| Exposure | Mode / AGC / Shut Speed / Iris / DSS / Flickerless / Brightness / WDR/BLC / D&N |
| Defog | Yes |
| OSD | Yes |
| Camera Object Tracking | |
| Update rate of deviation pixel | 50Hz |
| Output delay of deviation pixel | 5ms |
| Minimum object contrast | 5% |
| SNR | 4 |
| Minimum object size | 32*32 pixel |
| Maximum object size | 128*128 pixel |
| Tracking speed | ±48 pixel/frame |
| Object memory time | 100 frames (4s) |
| The mean square root values of pulse noise in the object position | < 0.5 pixel |
| Packing Information | |
| N.W. | 550g / 642g(Viewport version) |
| Product meas. | 126.1*91.2*158.8mm / 126.1*91.2*164.5mm(Viewport Version) |
| Accessories | 1pc gimbal camera device, screws, USB to TTL cable / Hight quality plastic box with foam cushion |
| G.W. | 1934g |
| Package meas. | 300*250*200mm |
