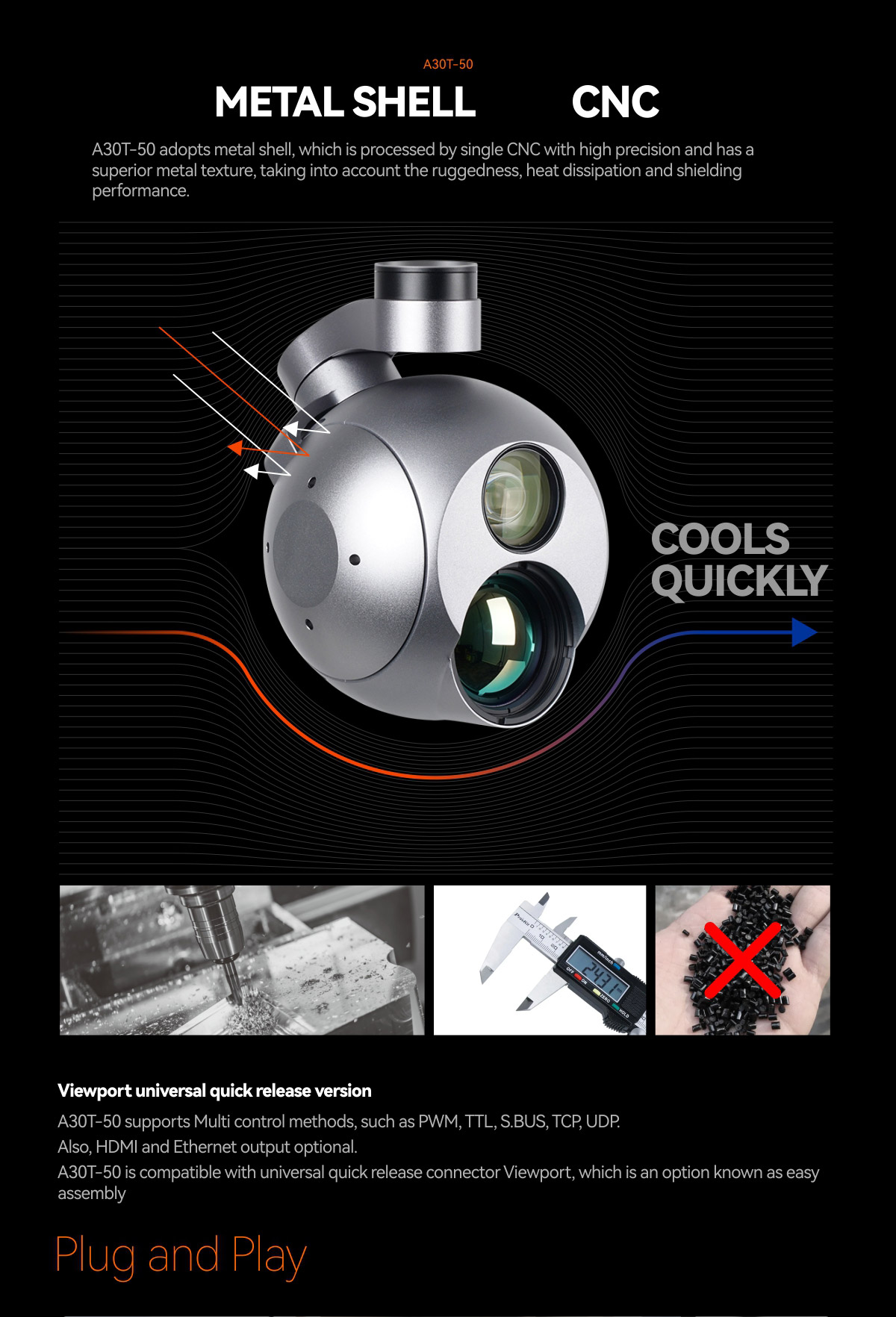

Product Introduction
Specification

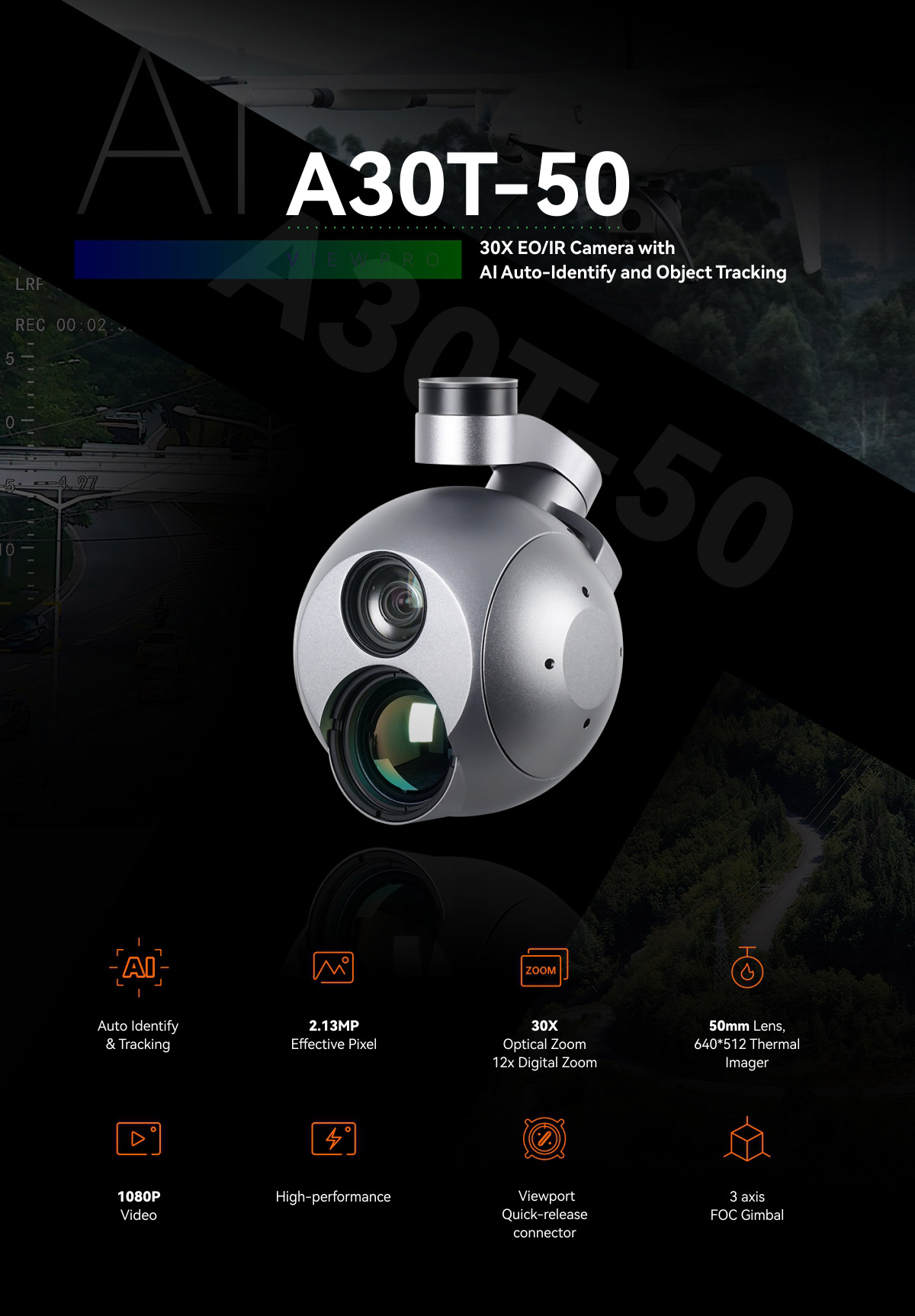

A30T-50 Specification
Hardware Parameter | |
Working voltage | 16V |
Input voltage | 4S ~ 6S(16V~24V ) |
Output voltage | 5V (connect with PWM) |
Dynamic current | 850~1800mA @ 16V |
Working environment temp. | -20℃ ~ +60℃ |
Output | micro HDMI(1080P 30/60fps) / IP (RTSP/UDP 1080p/720p 30fps) |
Local-storage | TF card (Up to 128G, class 10, FAT32 or ex FAT format) |
Photo storage format | JPG(1920*1080) |
Video storage format | MP4 (1080P 30fps) |

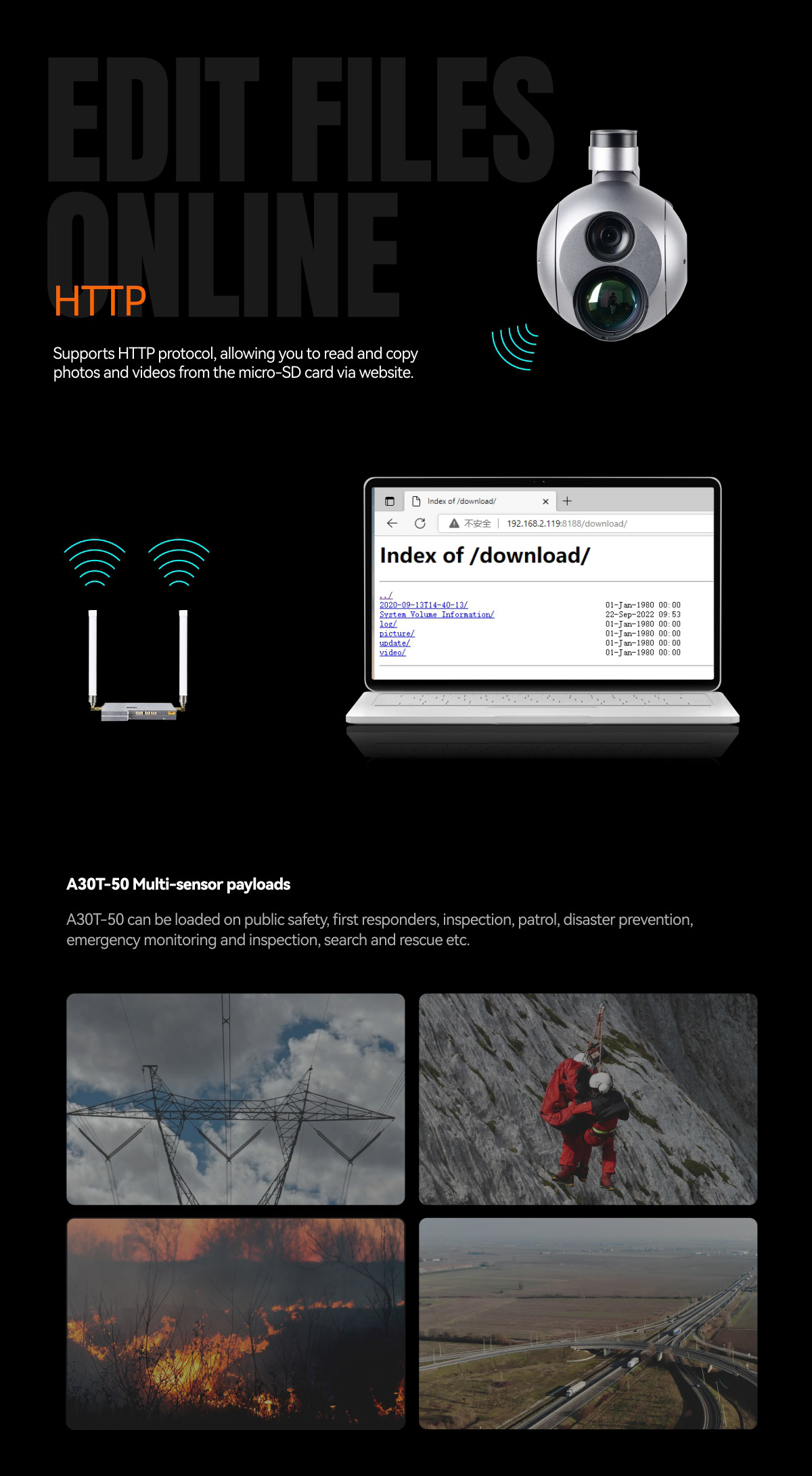

Card reading online | HTTP read pictures |

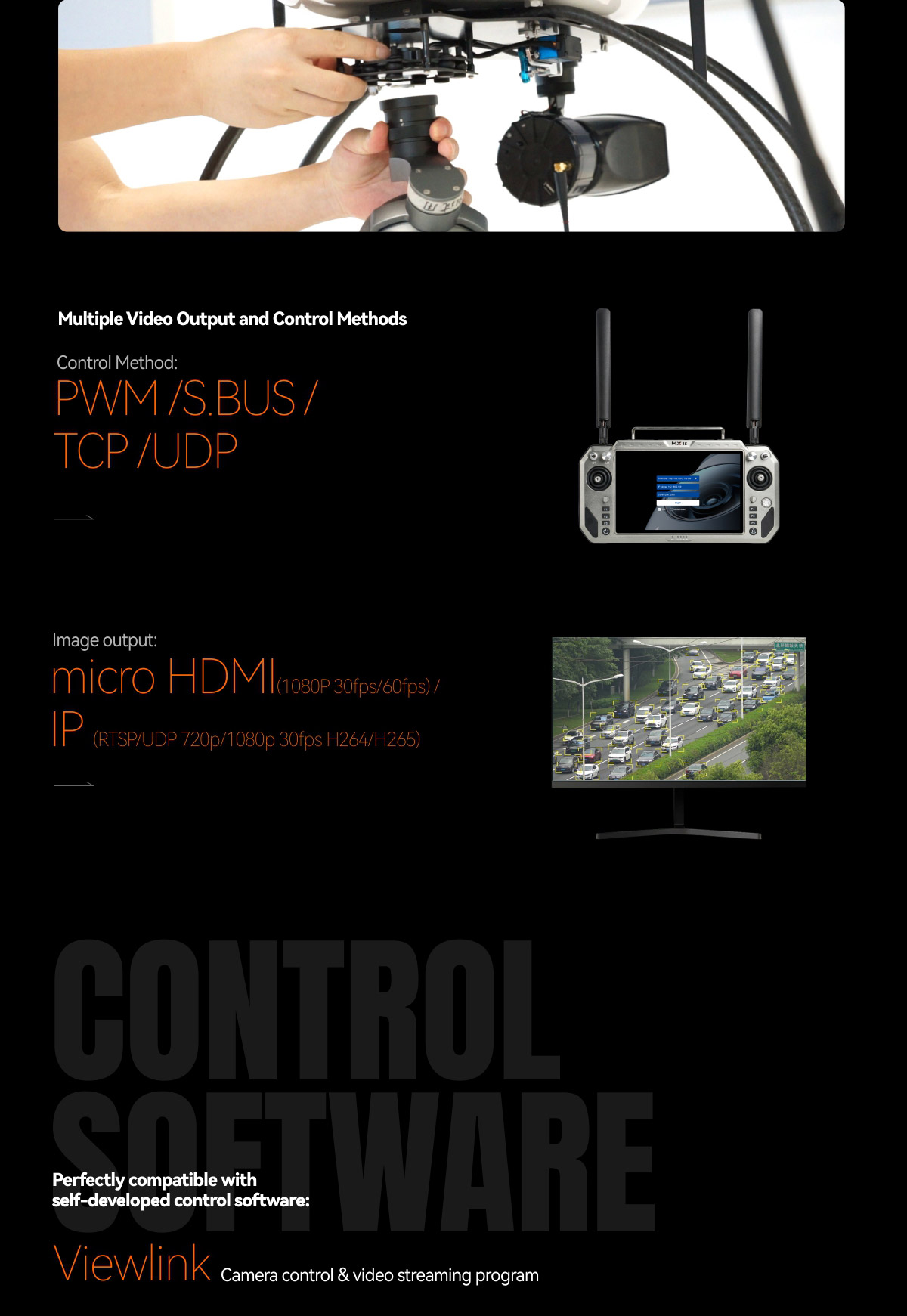

Control method | PWM / TTL / S.BUS / TCP(IP output)/UDP(IP output version) |
Geotagging | Support, display time and GPS coordinate in picture exif |

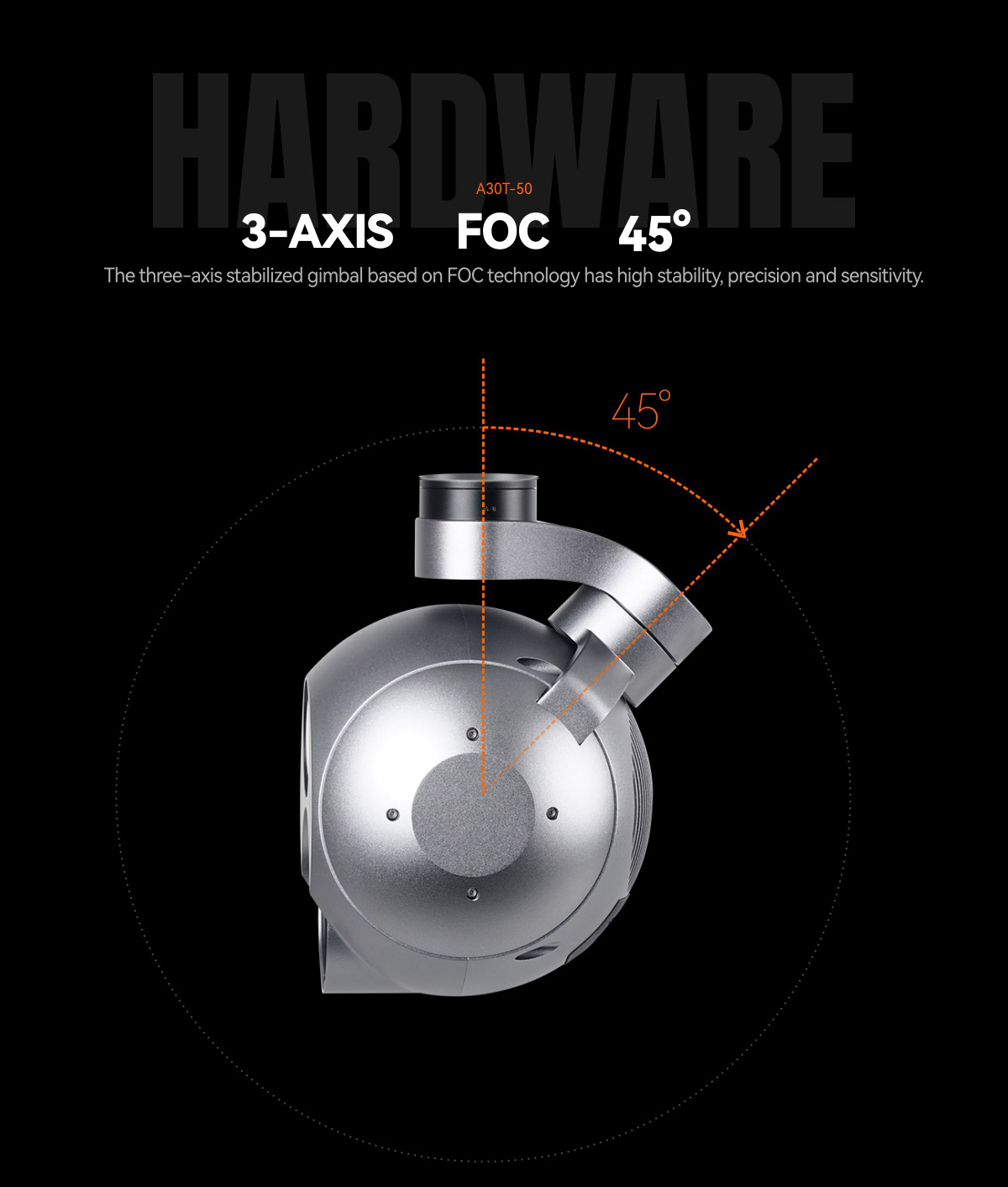

Gimbal Spec | |
Mechanical Range | Pitch/Tilt: -55°~125°, Roll: ±40°, Yaw/Pan: ±300° / ±360°*N (IP output version) |
Controllable Range | Pitch/Tilt: -45°~120°, Yaw/Pan: ±290° / ±360°*N (IP output version) |
Vibration angle | Pitch/Roll: ±0.02°, Yaw:±0.02° |
One-key to center | √ |
Camera spec | |

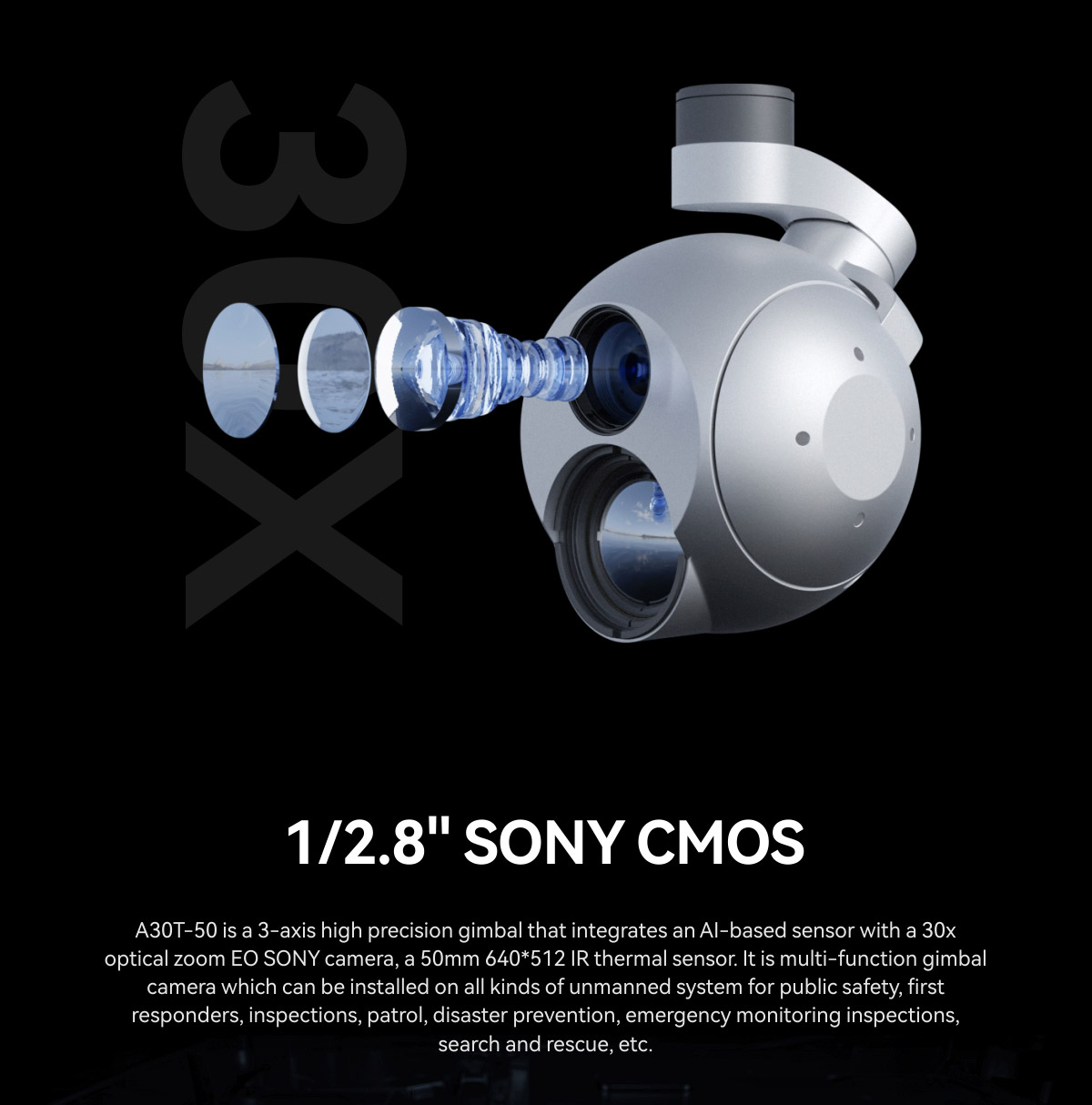

Imager Sensor | SONY 1/2.8" "Exmor R" CMOS |
Picture quality | Full HD 1080 (1920*1080) |
Effective pixel | 2.13MP |

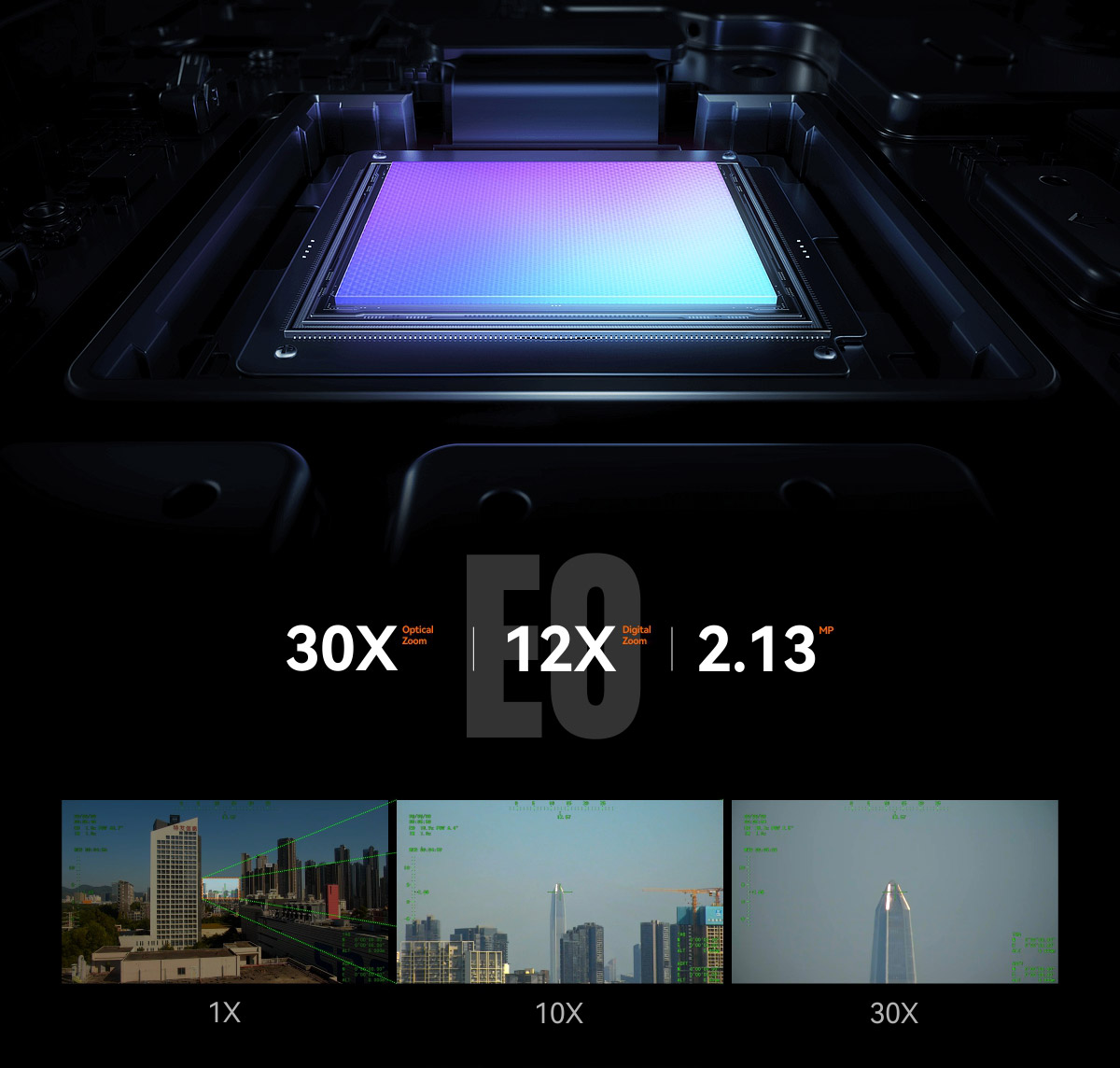

Lens optical zoom | 30x, F=4.3~129mm |
Digital zoom | 12x (360x with optical zoom) |
Min object distance | 10mm(wide end) to 1200mm(tele end). Default 300mm |
Horizontal viewing angle | 1080p mode: 63.7°(wide end) ~ 2.3°(tele end) |
Sync system | Internal |
S/N ratio | more than 50dB |
Min illumination | Color 0.01lux@F1.6 |
Exposure control | Auto, Manual, Priority mode(shutter priority & iris priority), Bright, EV compensation, Slow AE |
Gain | Auto/Manual 0dB to 50.0dB(0 to 28 steps + 2 setep/ total 15 steps) Max.Gain Limit 10.7 dB to 50.0dB (6 to 28 steps + 2 step/ total 12 steps) |
White balance | Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto) |
Shutter speed | 1/1s to 1/10,000s, 22 steps |
Backlight compensation | Yes |
Aperture control | 16 steps |
Defog | Yes |
OSD | Yes |

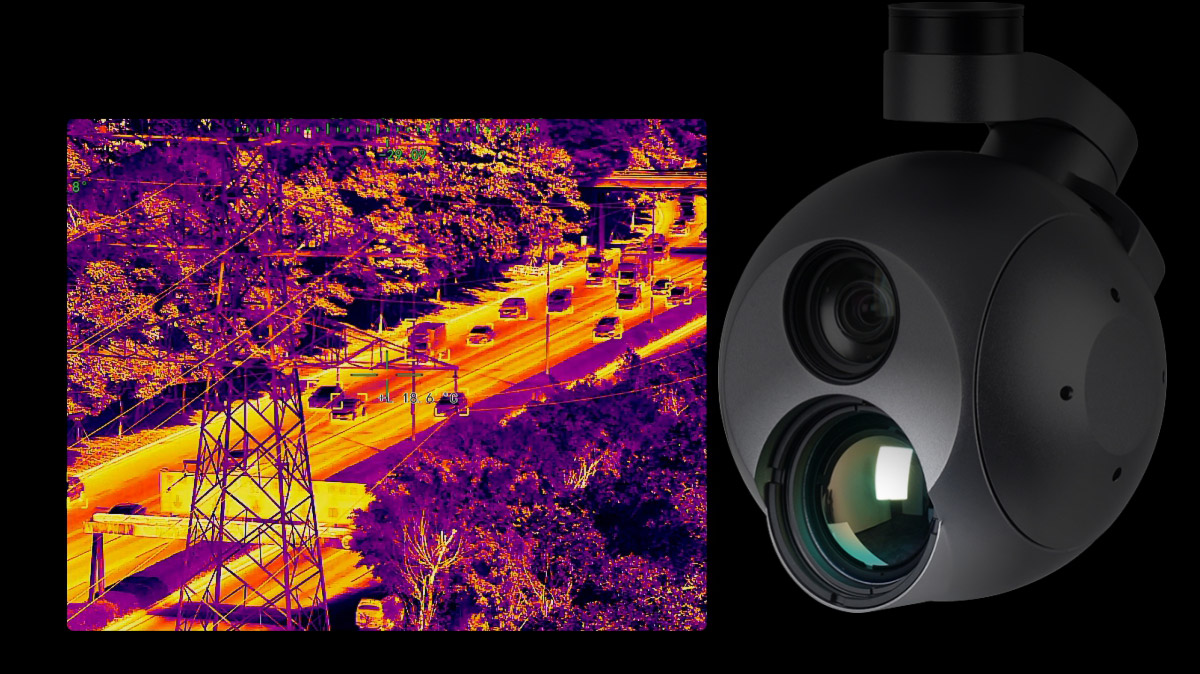

IR Thermal Imager Spec | |
Focus Length | 50mm |
Coating Film | DLC |
Horizontal FOV | 8.8° |
Vertical FOV | 7.0° |
Diagonal FOV | 11.2° |

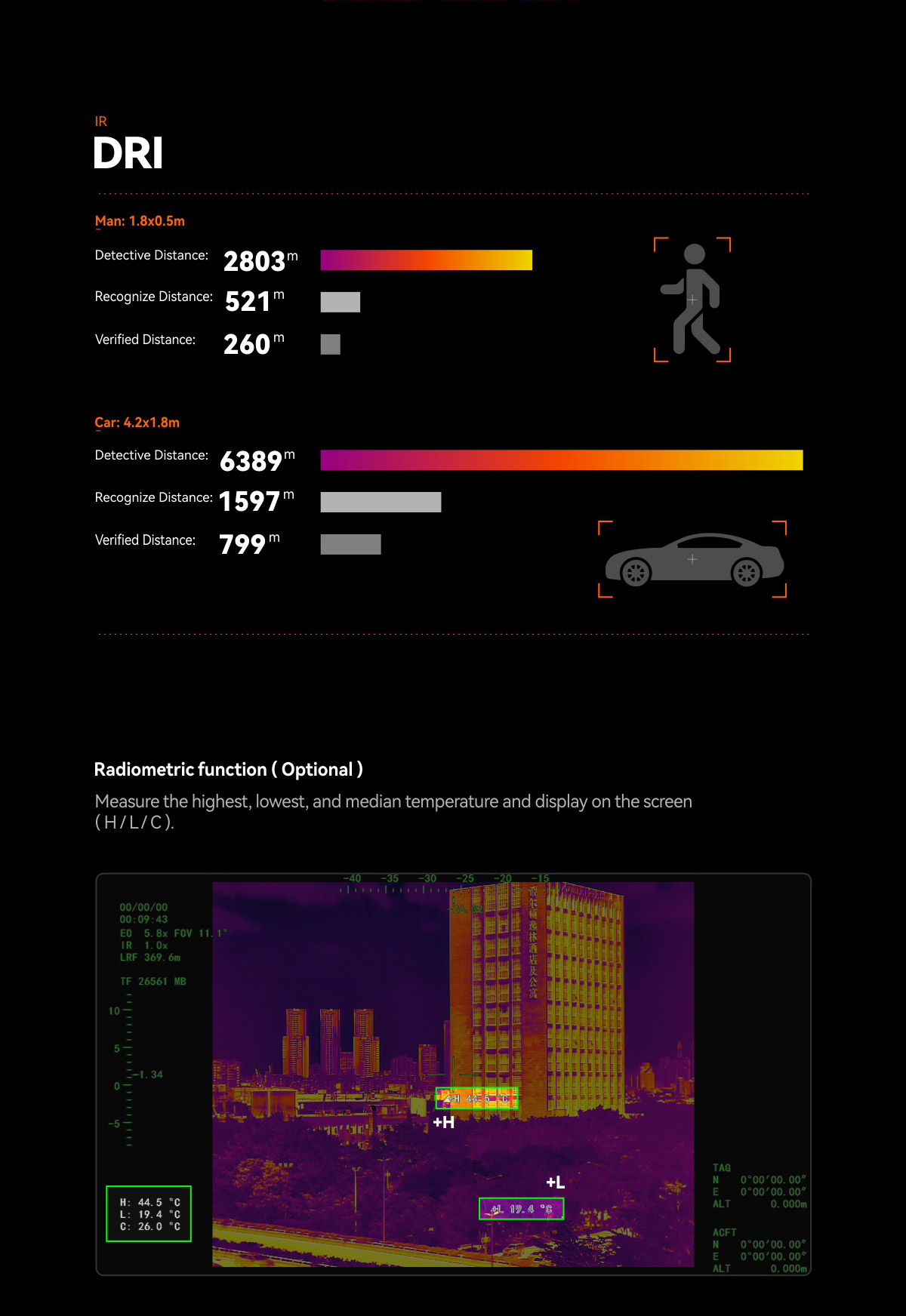

Detective Distance (Man: 1.8x0.5m) | 2083 meters |
Recognize Distance (Man: 1.8x0.5m) | 521 meters |
Verified Distance (Man: 1.8x0.5m) | 260 meters |
Detective Distance (Car: 4.2x1.8m) | 6389 meters |
Recognize Distance (Car: 4.2x1.8m) | 1597 meters |
Verified Distance (Car: 4.2x1.8m) | 799 meters |
Working mode | Uncooled VOx long wave (8μm~14μm) thermal imager |
Detector pixel | 640*512 |
Pixel pitch | 12μm |
Focusing method | Athermal prime lens |
NETD | ≤50mK@F.0 @25℃ |

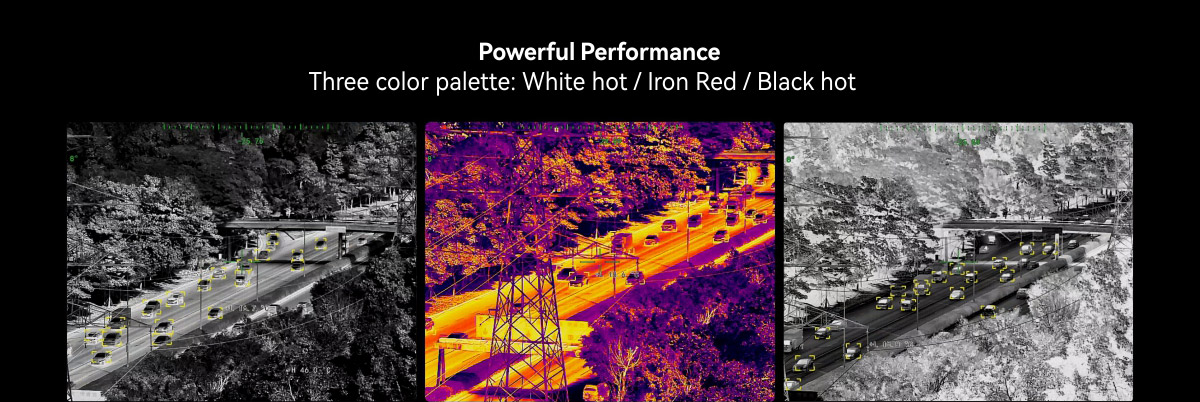

Color palette | White hot, black hot, pseudo color |
Digital zoom | 1x ~ 8x |
Sync correct time | Yes |

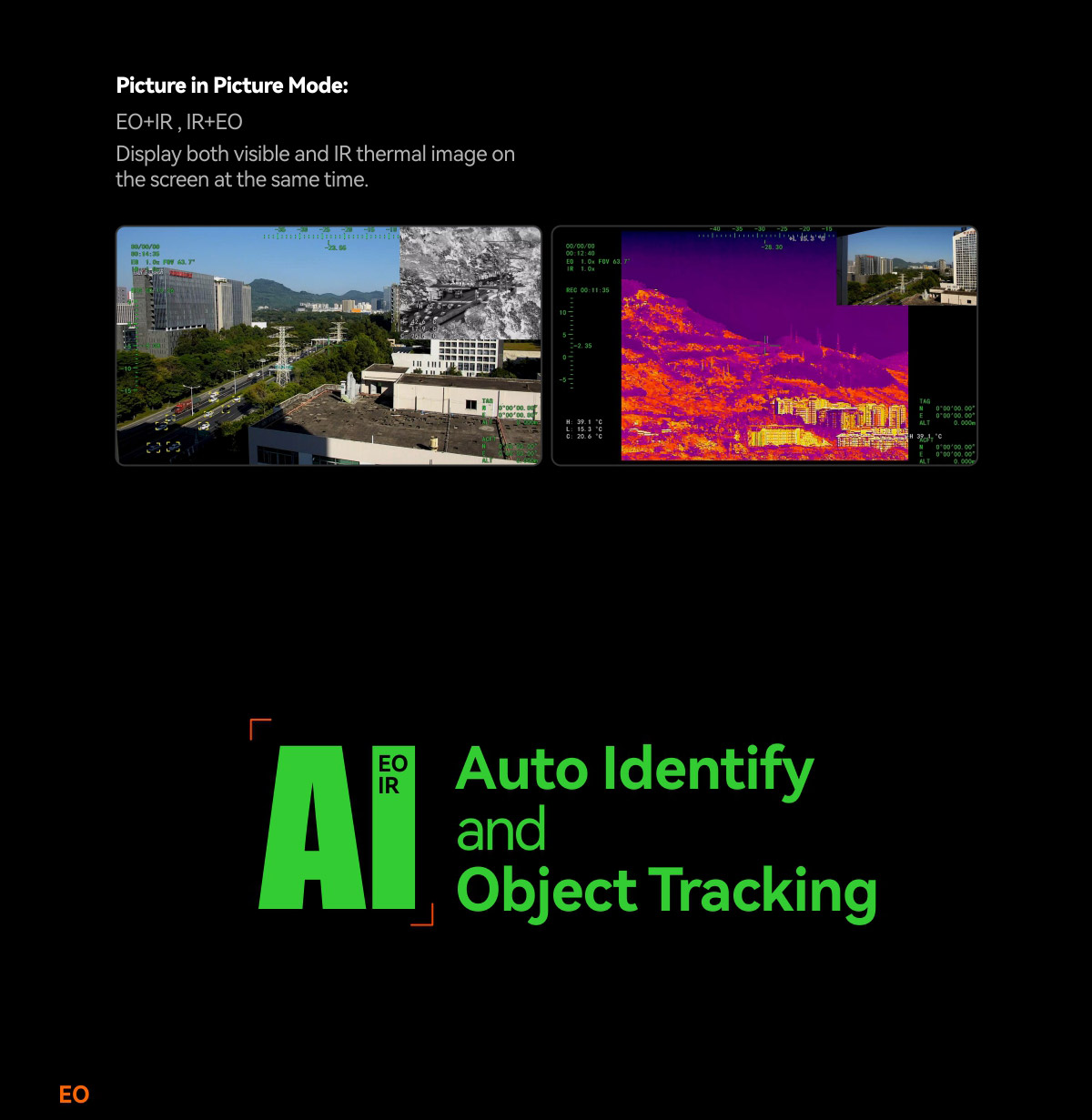

EO / IR Camera Object Tracking | |
Update rate of deviation pixel | 30Hz |
Output delay of deviation pixel | <30ms |
Minimum object contrast | 5% |
SNR | 4 |
Minimum object size | 16*16 pixel |
Maximum object size | 256*256 pixel |
Tracking speed | ±48 pixel/frame |
Object memory time | 100 frames |

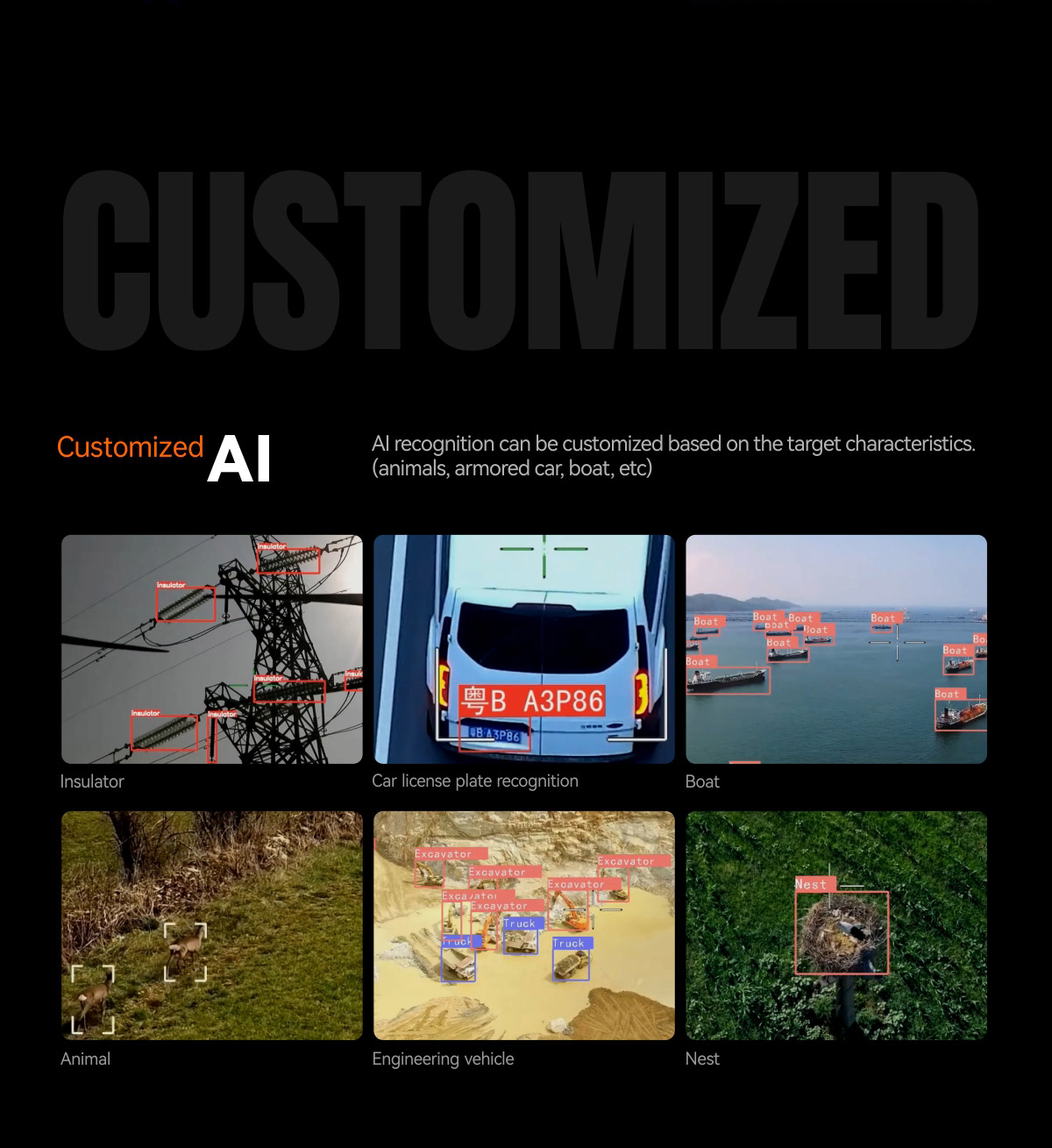

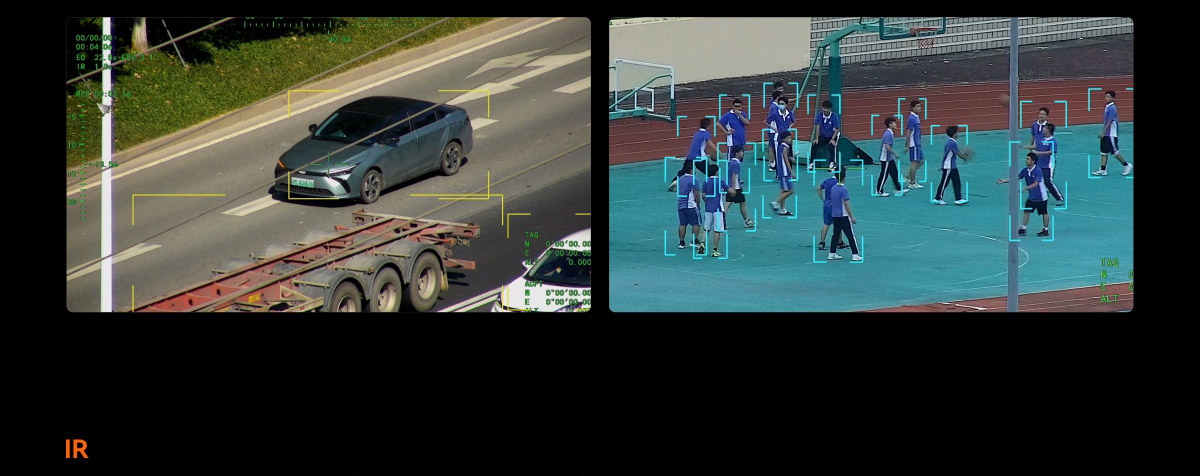

EO Camera AI Performance | |
Targets type | Car and human |
Simultaneous detection quantity | ≥ 10 targets |
Min contrast ratio | 5% |
Min target size | 5×5 pixel |
Car detection rate | ≥85% |
False alarm rate | ≤10% |

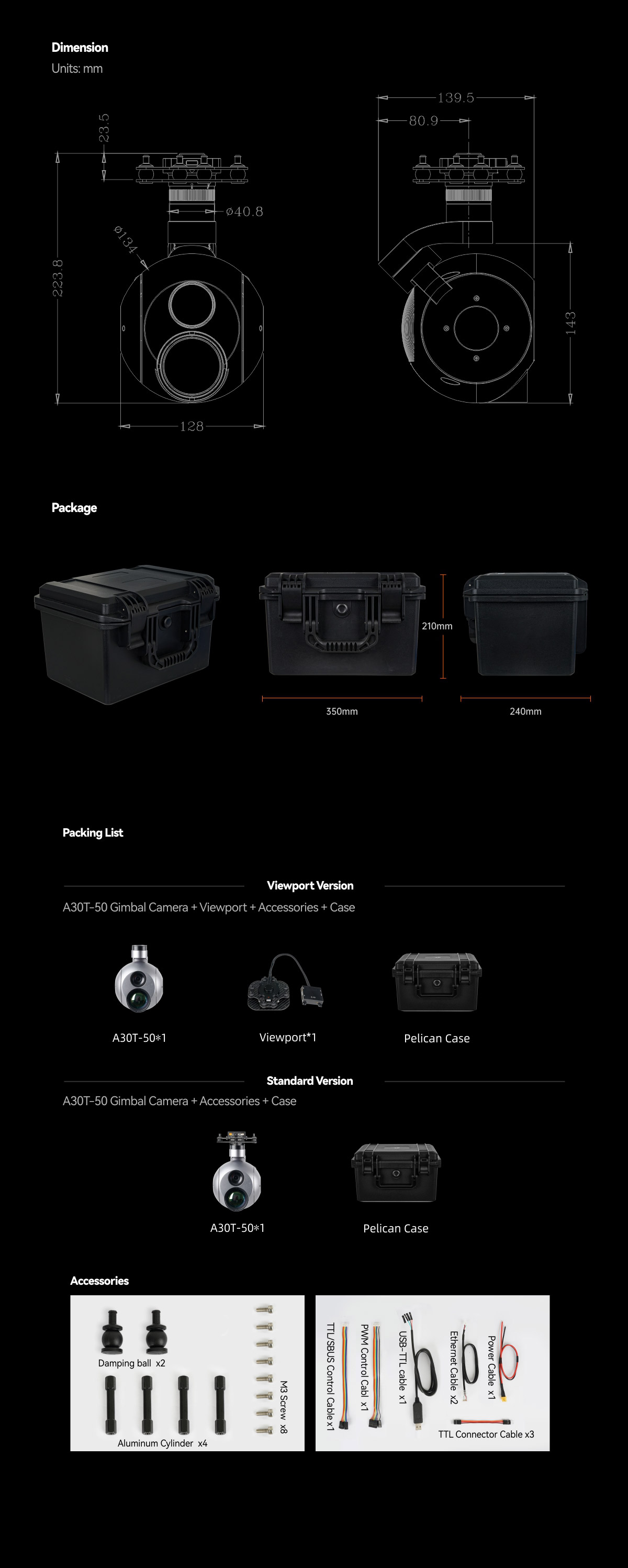

Packing Information | |
N.W. | 1352g (Viewport version) |
Product meas. | 139.5*128*218.1mm (Standard version) / 139.5*128*223.8mm (Viewport version) |
Accessories | 1pc gimbal camera device, screws, copper cylinders, damping balls,1pc USB to TTL cable / Hight quality plastic box with foam cushion |
G.W. | 3321g |
Package meas. | 350*300*250mm |
For more details, please visit A30T-50 30X EO/IR Gimbal Camera with AI Auto-Identification and Object Tracking
-
