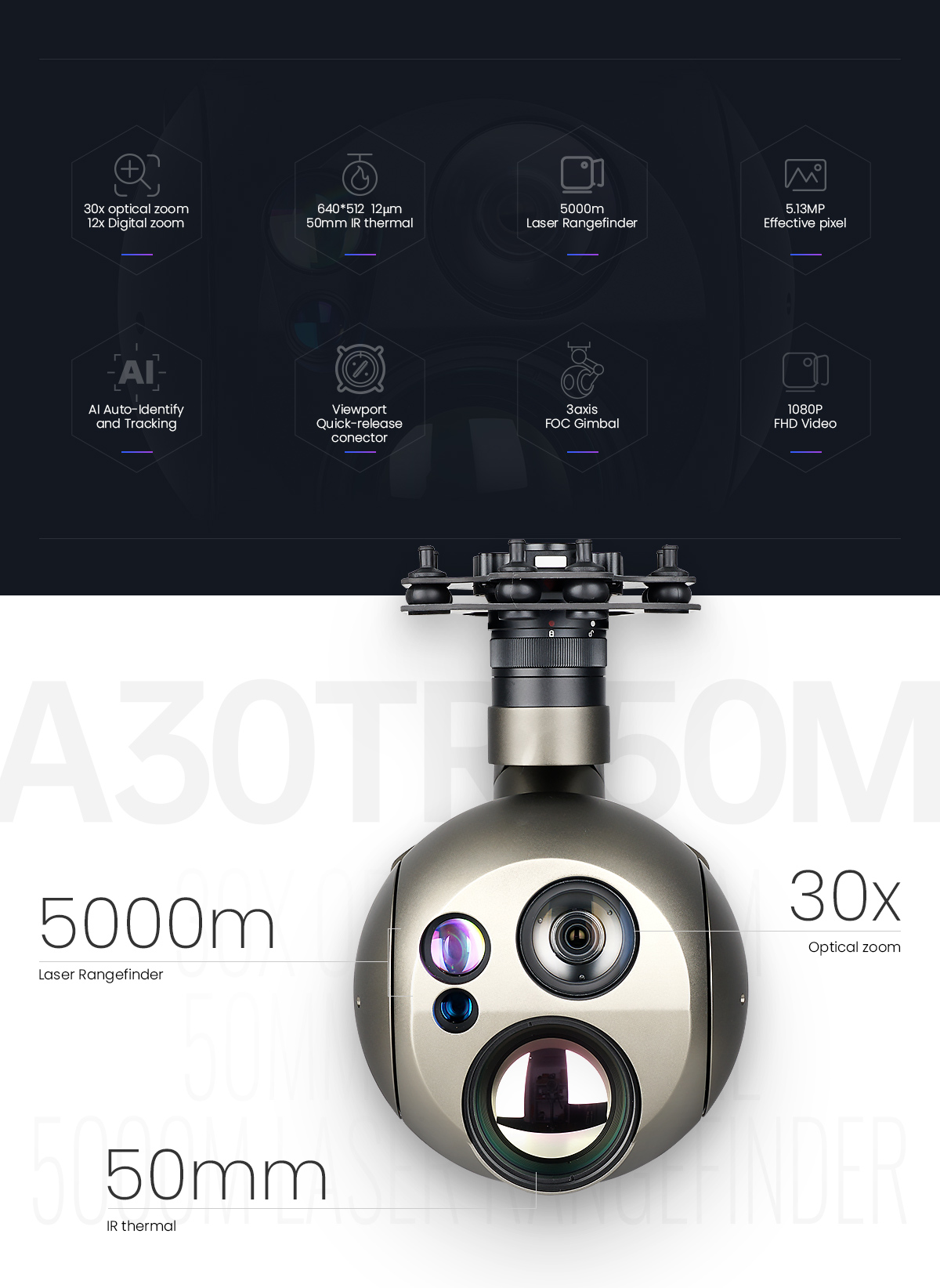

Product Introduction
Specification
A30TR-50M Specification
| Hardware Parameter | |
| Working voltage | 16V |
| Input voltage | 4S ~ 6S (14.8V~25.2V) |
| Output voltage | 5V (connect with PWM) |
| Dynamic current | 660~1250mA @ 16V |
| Power consumption | Average 10.6W, Max 20W |
| Working environment temp. | -20℃ ~ +50℃ |
| Output | Micro HDMI(1080P 30fps/60fps) / IP (RTSP/UDP 720p/1080p 30fps H264/H265) |

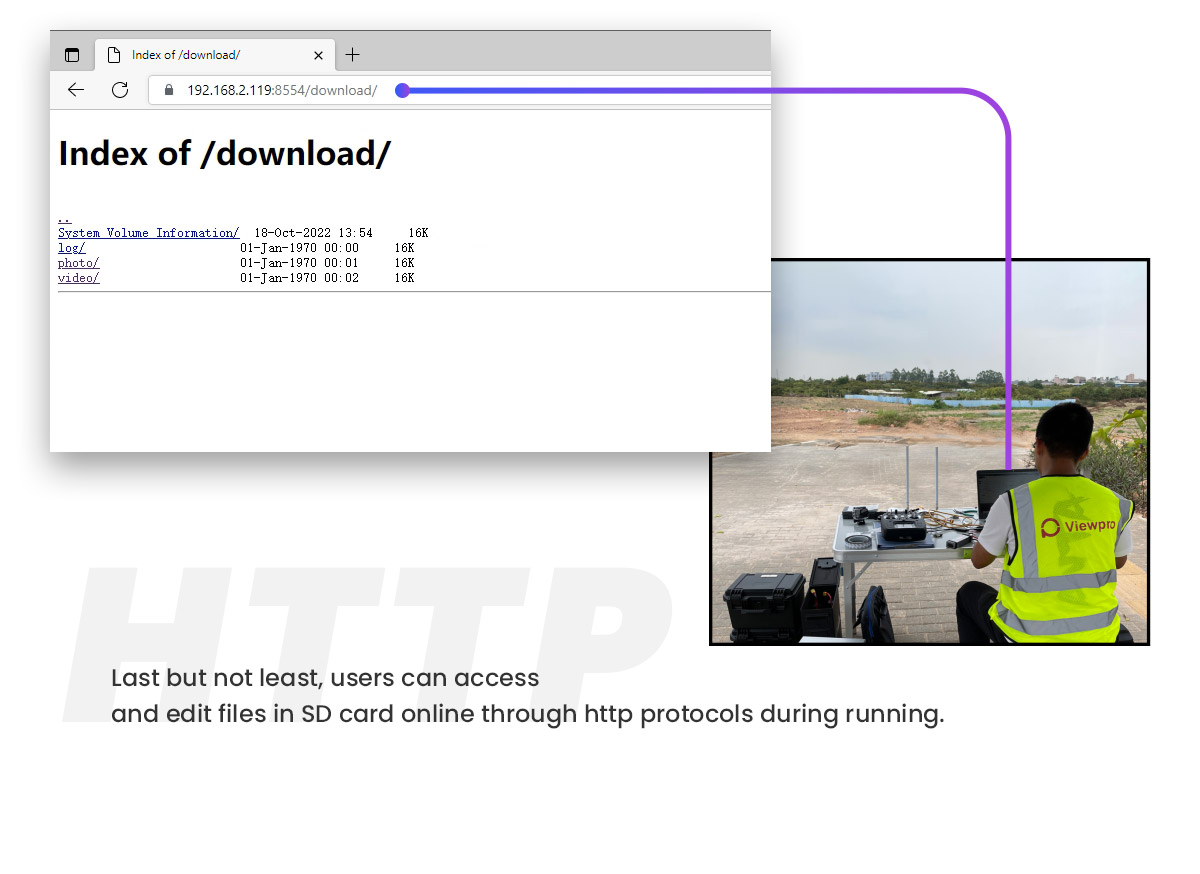

| Local-storage | TF card (Up to 256G, class 10, FAT32 format) |
| Photo storage format | JPG(1920*1080) |
| Video storage format | MP4(1080P 30fps) |

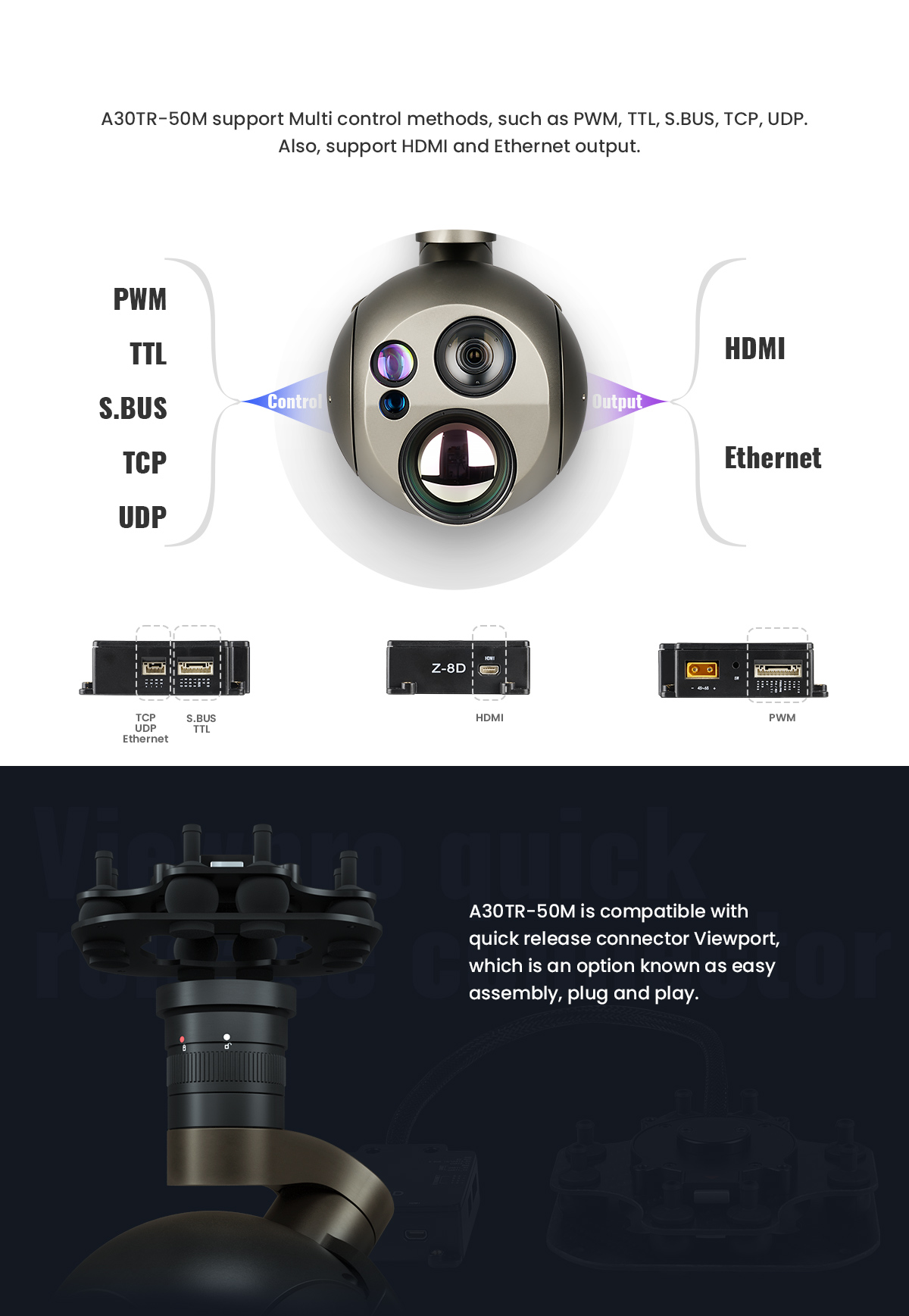

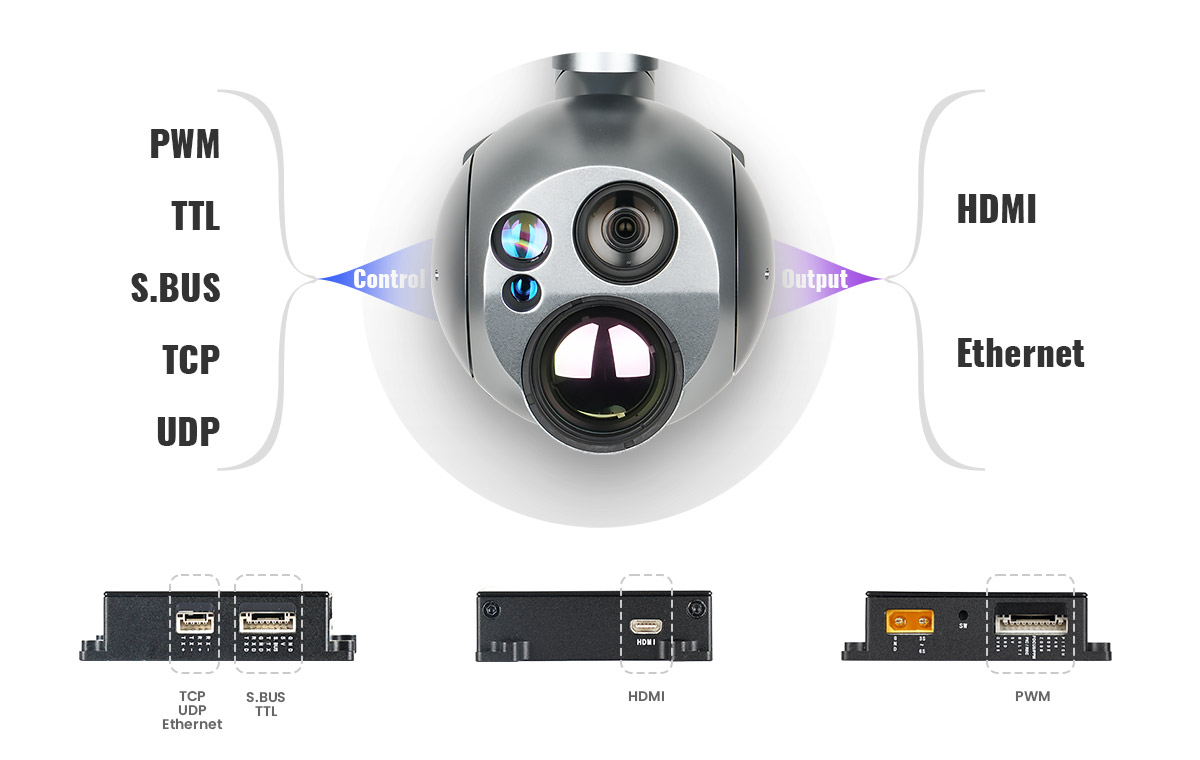

| Control method | PWM / TTL / S.BUS / TCP / UDP |

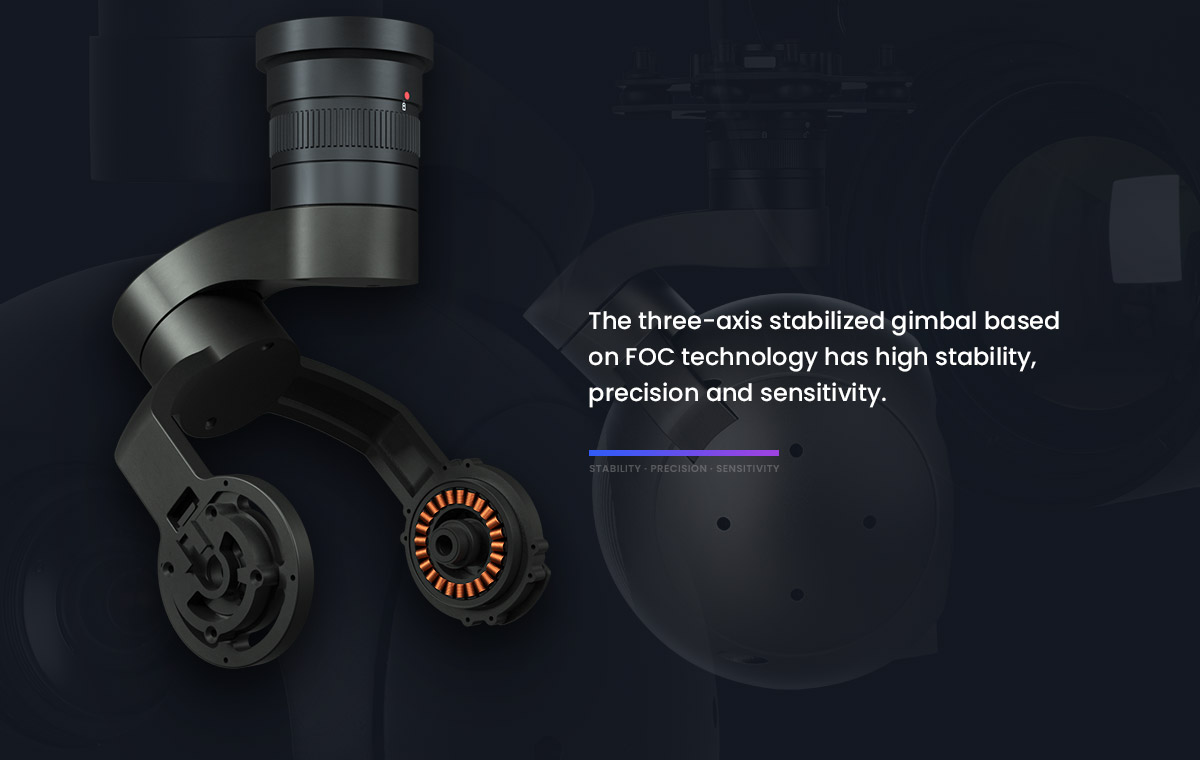

| Gimbal Spec | |
| Mechanical Range | Pitch/Tilt: -55°(Up)～125°(Down), Roll: ±45°, Yaw/Pan: ±300° / ±360°*N (IP output version) |
| Controllable Range | Pitch/Tilt: -45°～120°, Yaw/Pan: ±290° / ±360°*N (IP output version) |
| Vibration angle | Pitch/Roll/Yaw: ±0.02° |
| One-key to center | √ |
| Camera spec | |
| Imager Sensor | 1/2.8 Type STARVIS2 CMOS Sensor |
| Picture quality | Full HD 1080 (1920*1080) |
| Effective pixel | 2.13MP |

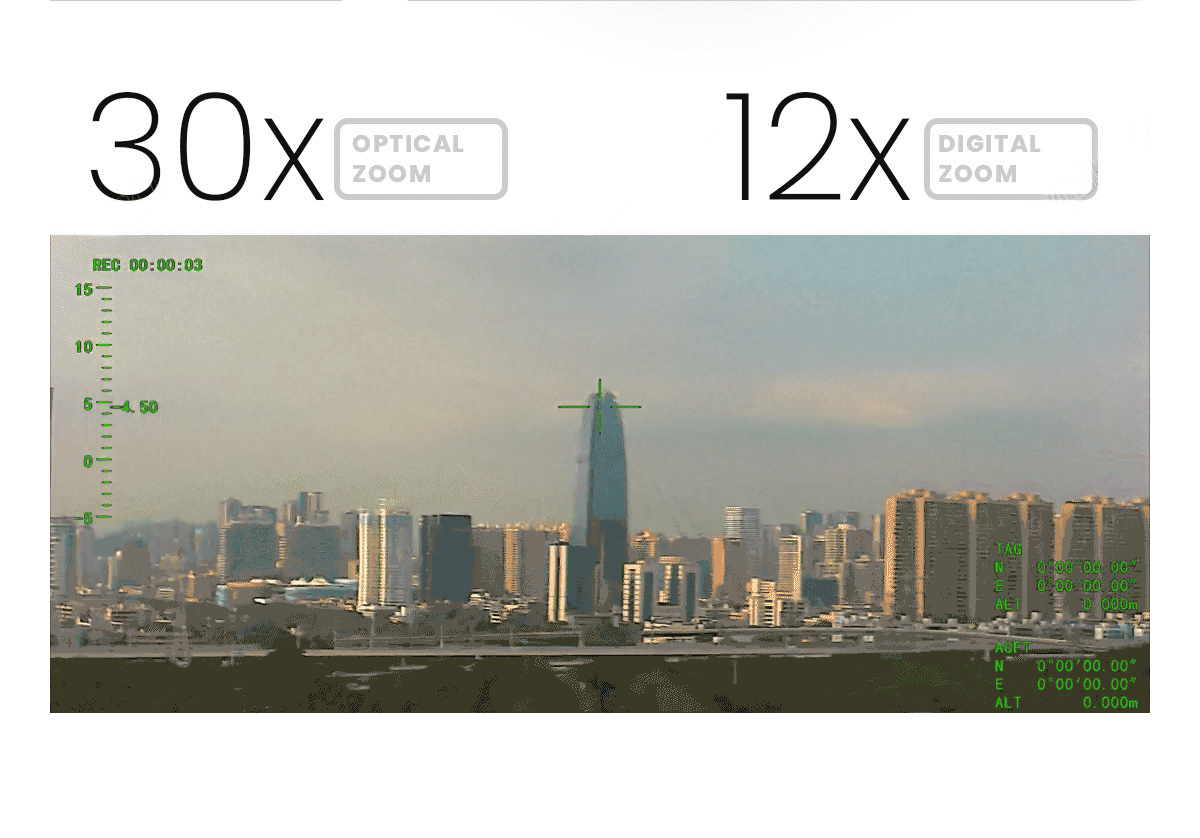

| Lens optical zoom | 30x, F=4.3~129mm |
| Digital zoom | 12x (360x with optical zoom) |
| Min object distance | 10mm(wide end) to 1200mm(tele end) |
| Horizontal viewing angle | 64.0°(wide end) ~ 2.4°(tele end) |
| S/N ratio | more than 50dB |
| Min illumination | Color 0.009 lux (1/30 sec, 50%, High Sensitivity mode On) |
| Color 0.09 lux (1/30 sec, 50%, High Sensitivity mode Off ) | |
| Exposure control | Auto, Manual, Priority mode(shutter priority & iris priority), EV compensation, Slow AE |
| Gain | Auto/Manual 0dB to 50.0dB(0 to 28 steps) Max.Gain Limit 10.7 dB to 50.0dB (6 to 28 steps) |
| White balance | Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto) |
| Shutter speed | 1/1s to 1/10,000s, 22 steps |
| Back light compensation | On/Off |
| Noise reduction | On/Off |
| Image stabilization | On/Off |
| Defog | On/Off |

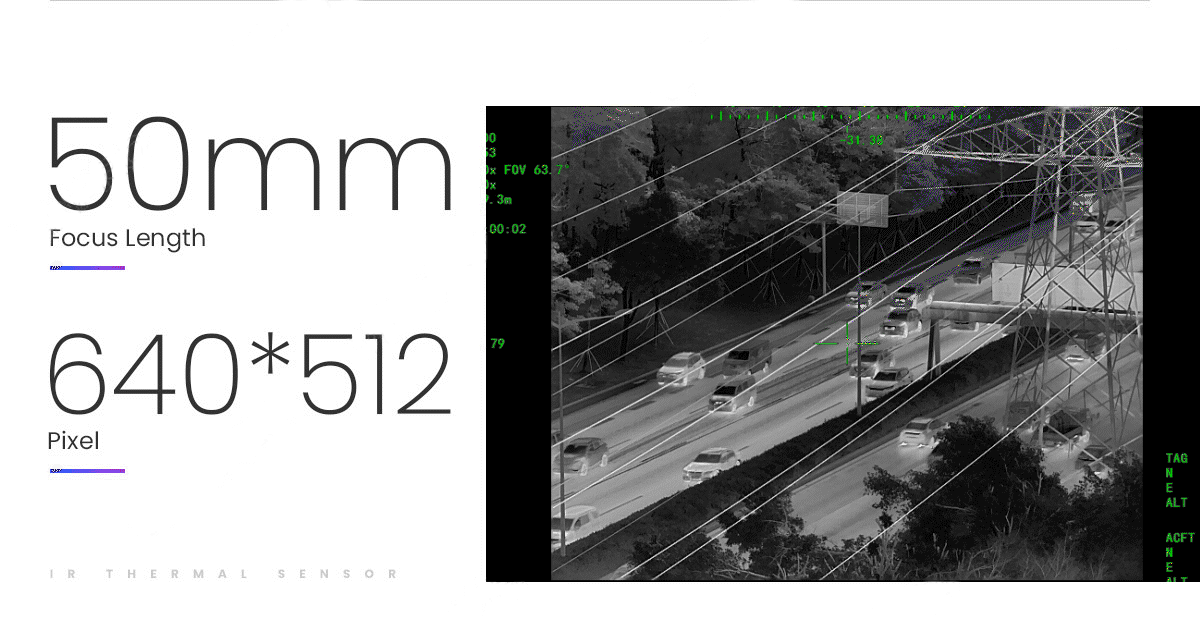

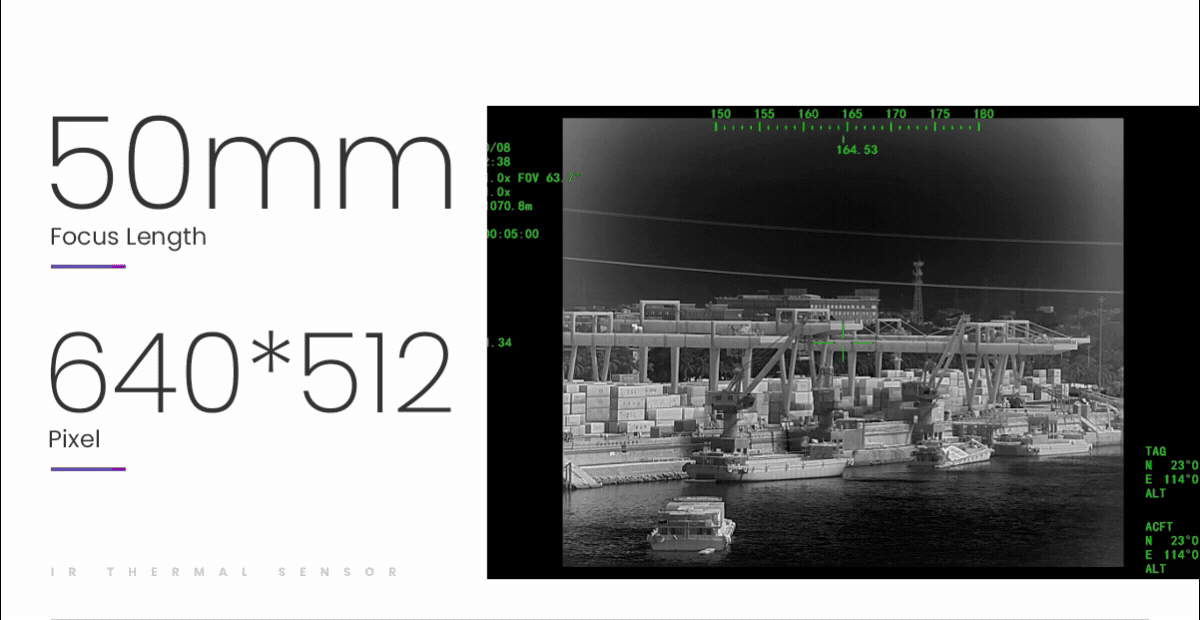

| IR Thermal Imager Spec | |
| Focus Length | 50mm |
| Horizontal FOV | 8.8° |
| Vertical FOV | 7.0° |
| Diagonal FOV | 11.2° |
| Detective Distance (Man: 1.8x0.5m) | 2083 meters |
| Recognize Distance (Man: 1.8x0.5m) | 521 meters |
| Verified Distance (Man: 1.8x0.5m) | 260 meters |
| Detective Distance (Car: 4.2x1.8m) | 6389 meters |
| Recognize Distance (Car: 4.2x1.8m) | 1597 meters |
| Verified Distance (Car: 4.2x1.8m) | 799 meters |
| Working mode | Uncooled VOx long wave (8μm~14μm) thermal imager |
| Detector pixel | 640*512 |
| Pixel size | 12μm |
| Focusing method | Athermal prime lens |
| NETD | ≤40mK@25℃, F#1.0 |

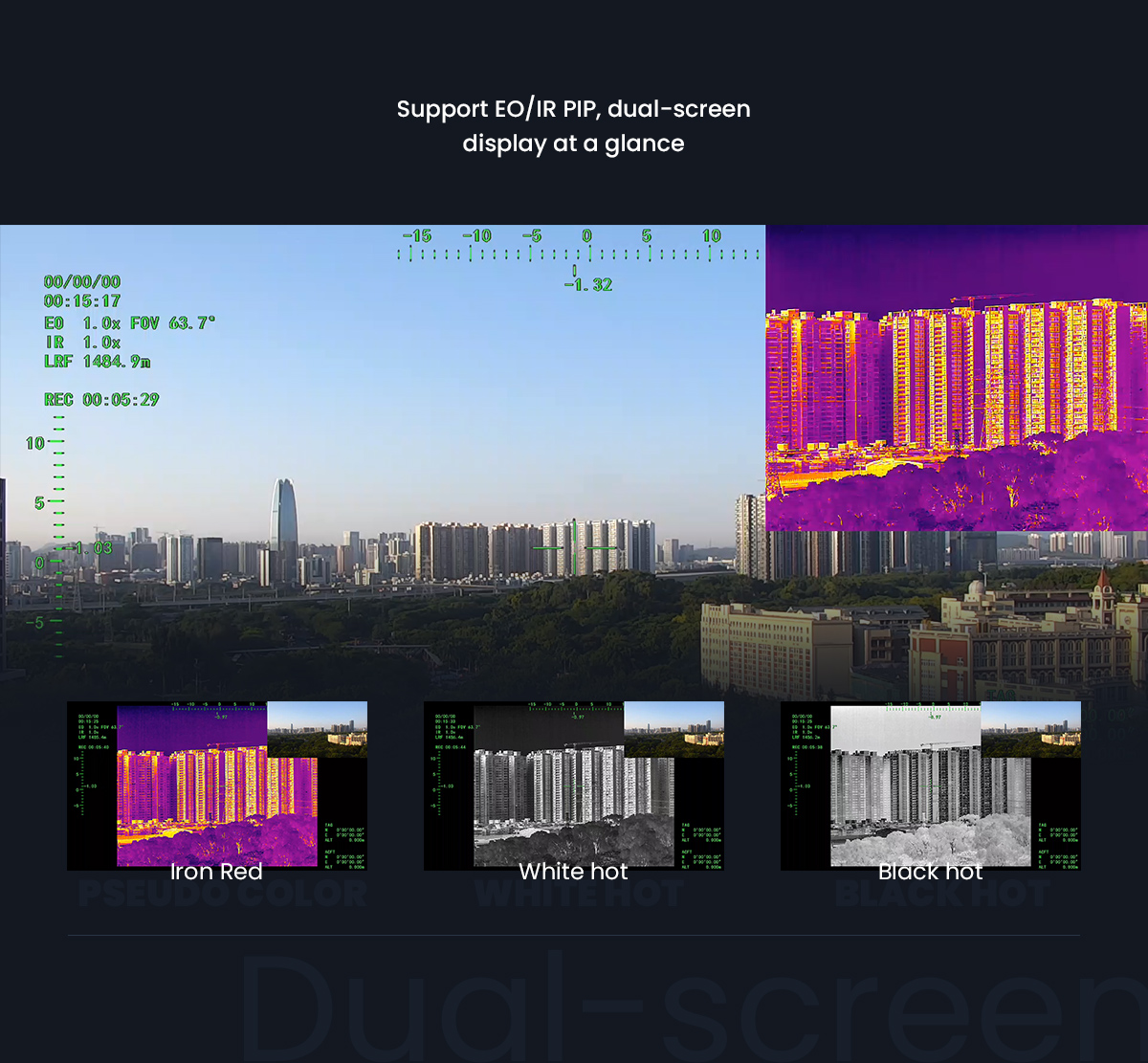

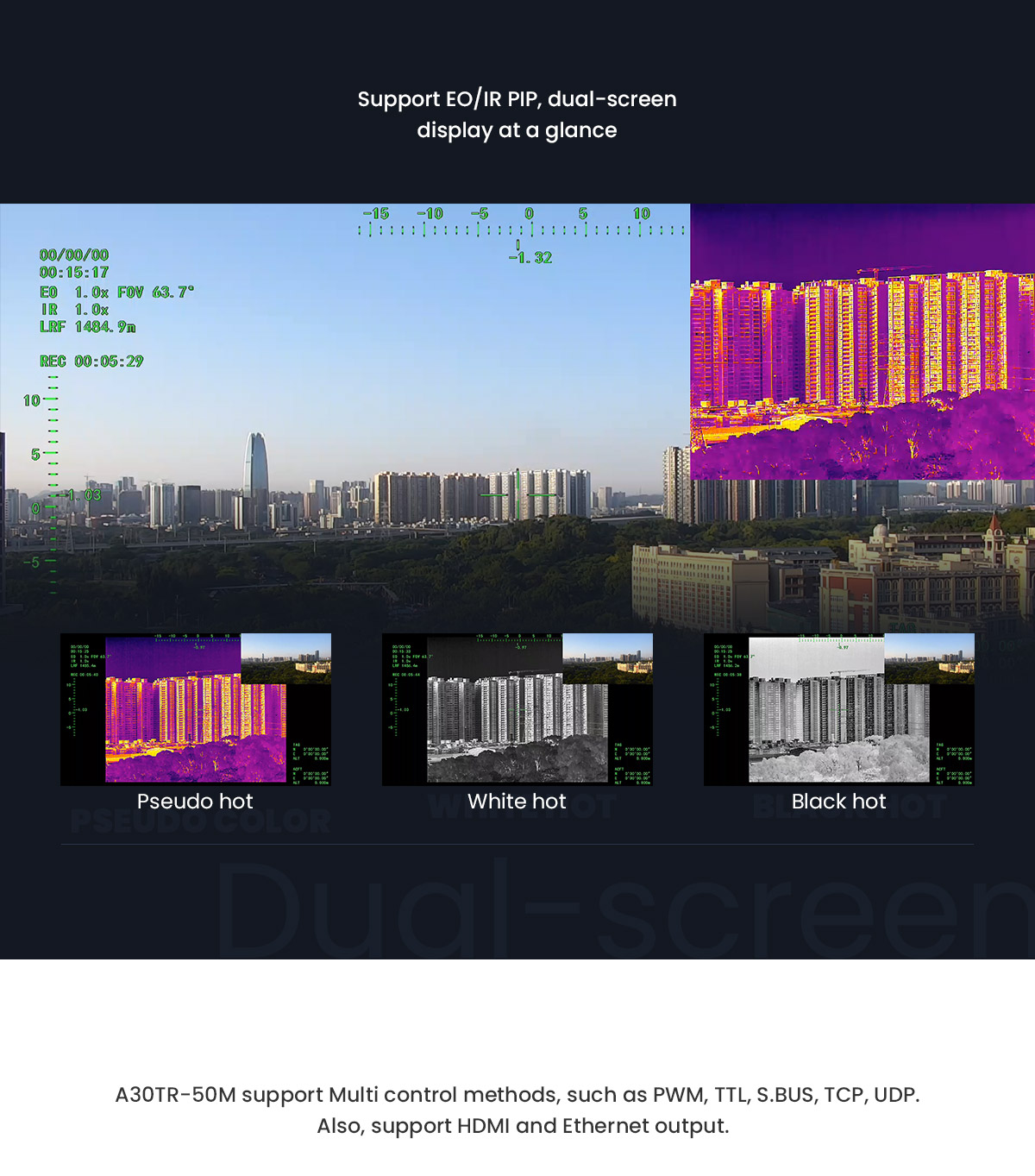

| Color palette | white hot, black hot, pseudo color |
| Digital zoom | 1x~8x |

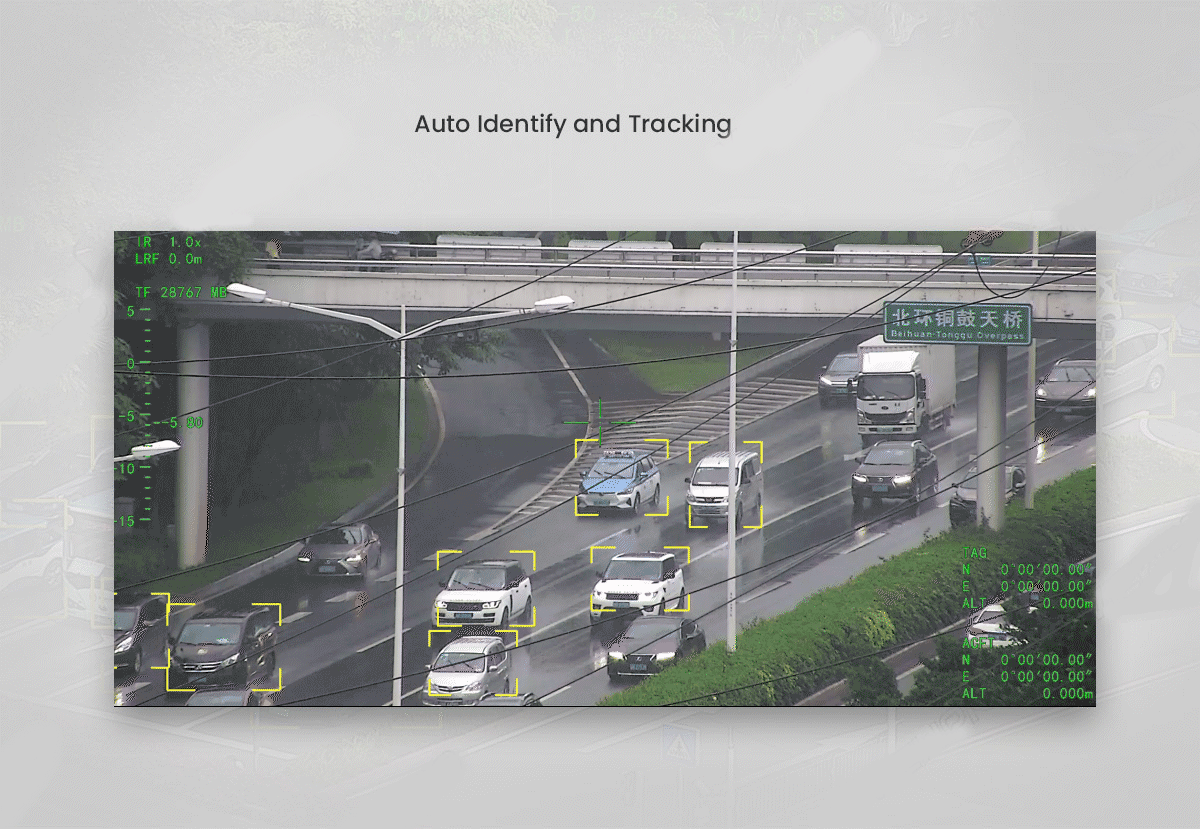

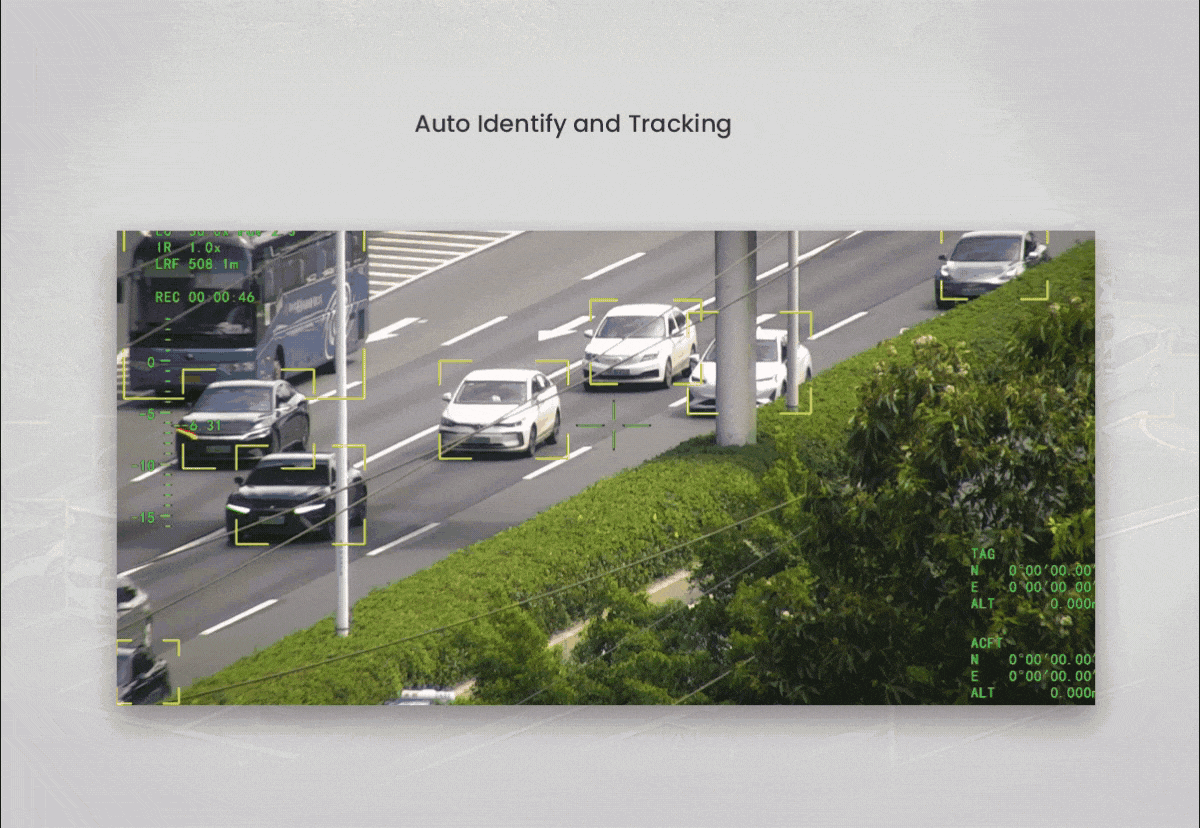

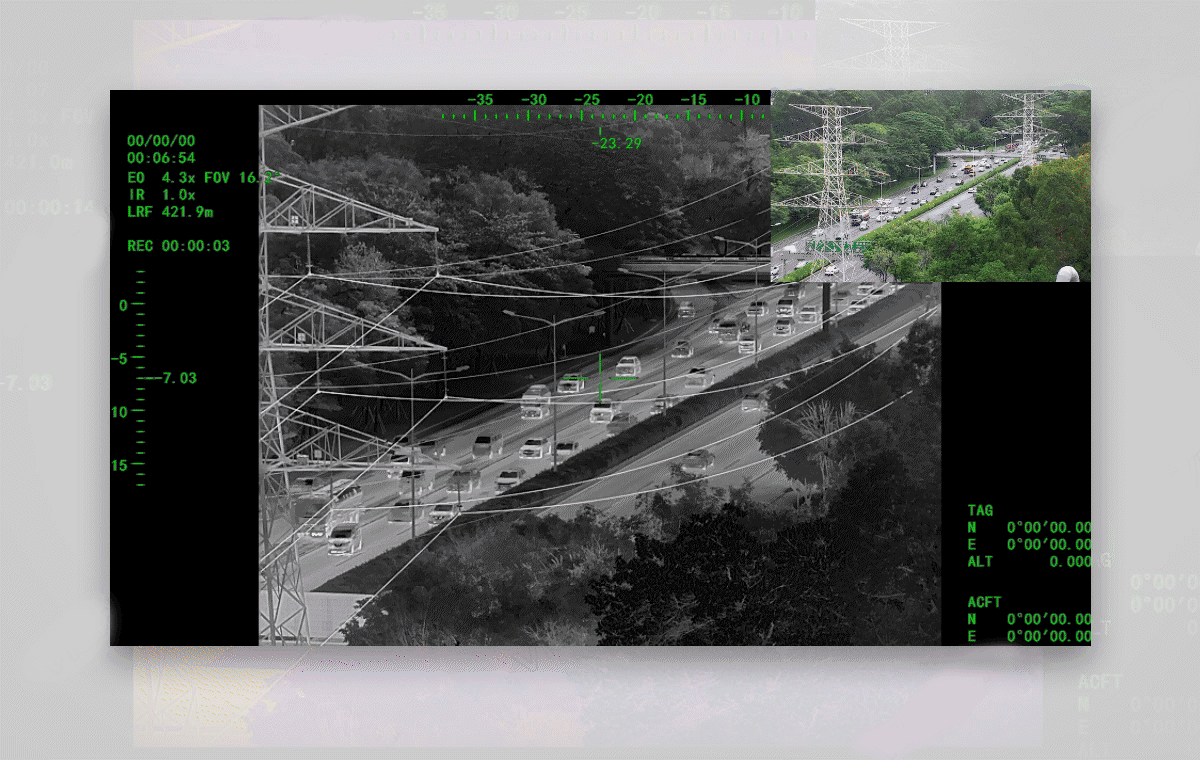

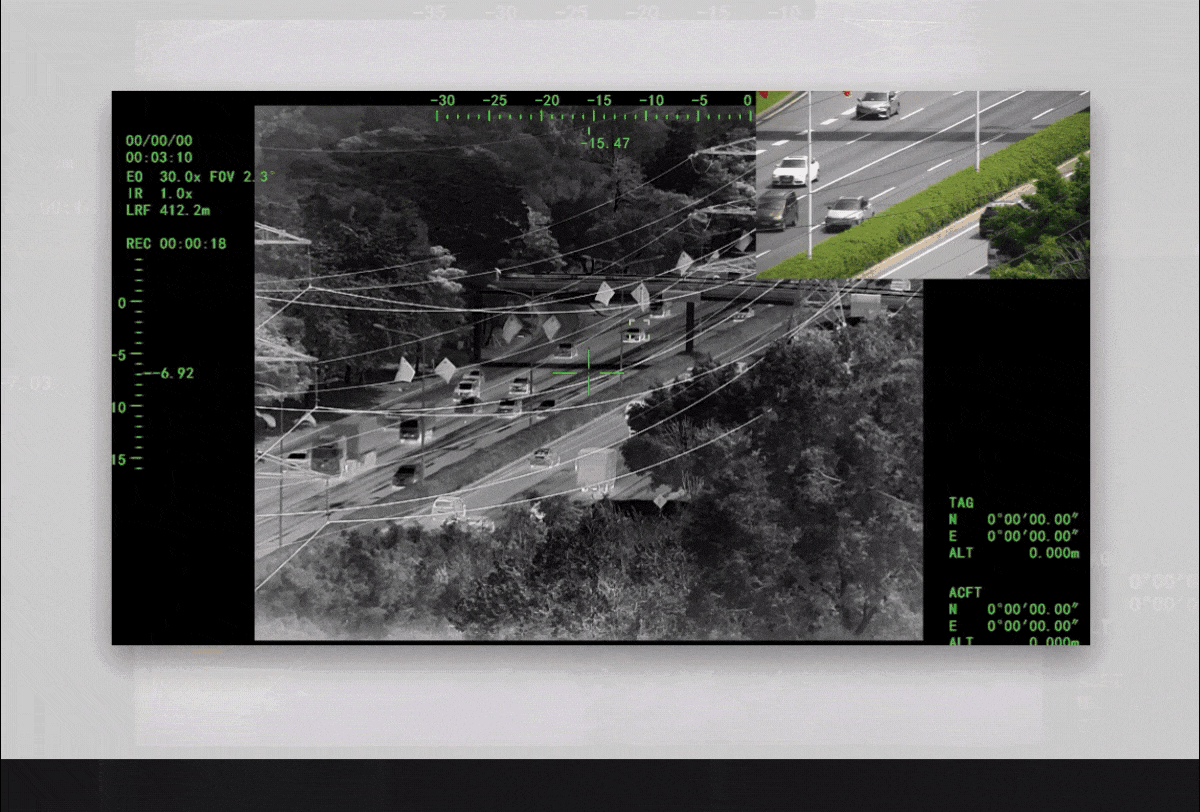

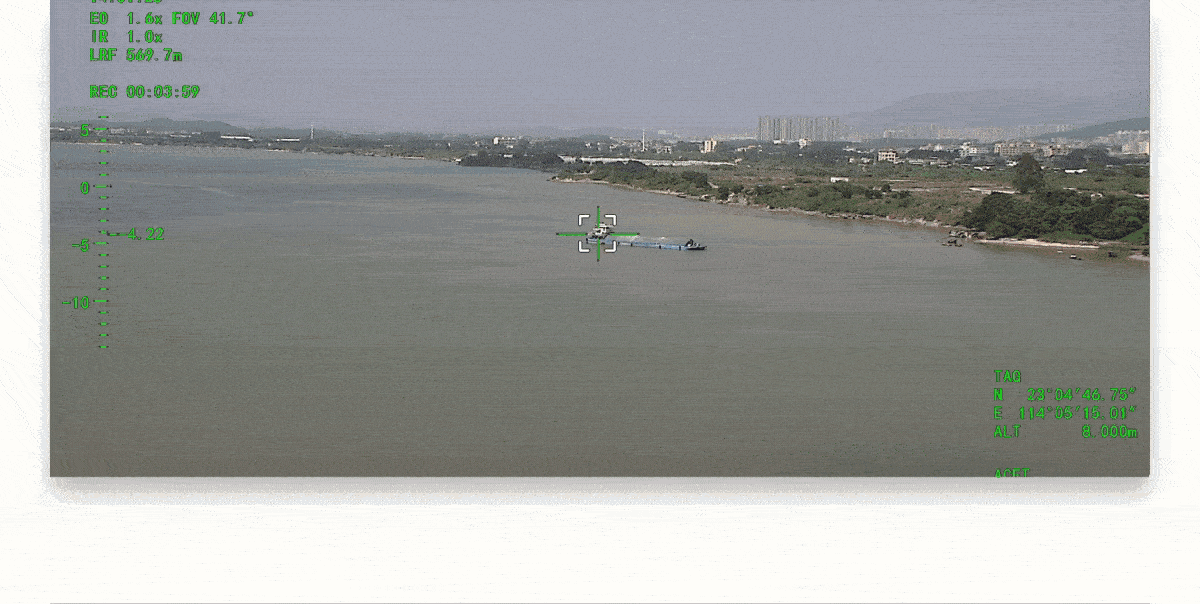

| EO / IR Camera Object Tracking | |
| Update rate of deviation pixel | 30Hz |
| Output delay of deviation pixel | <30ms |
| Minimum object contrast | 5% |
| SNR | 4 |
| Minimum object size | 16*16 pixel |
| Maximum object size | 256*256 pixel |
| Tracking speed | ±48 pixel/frame |
| Object memory time | 100 frames |

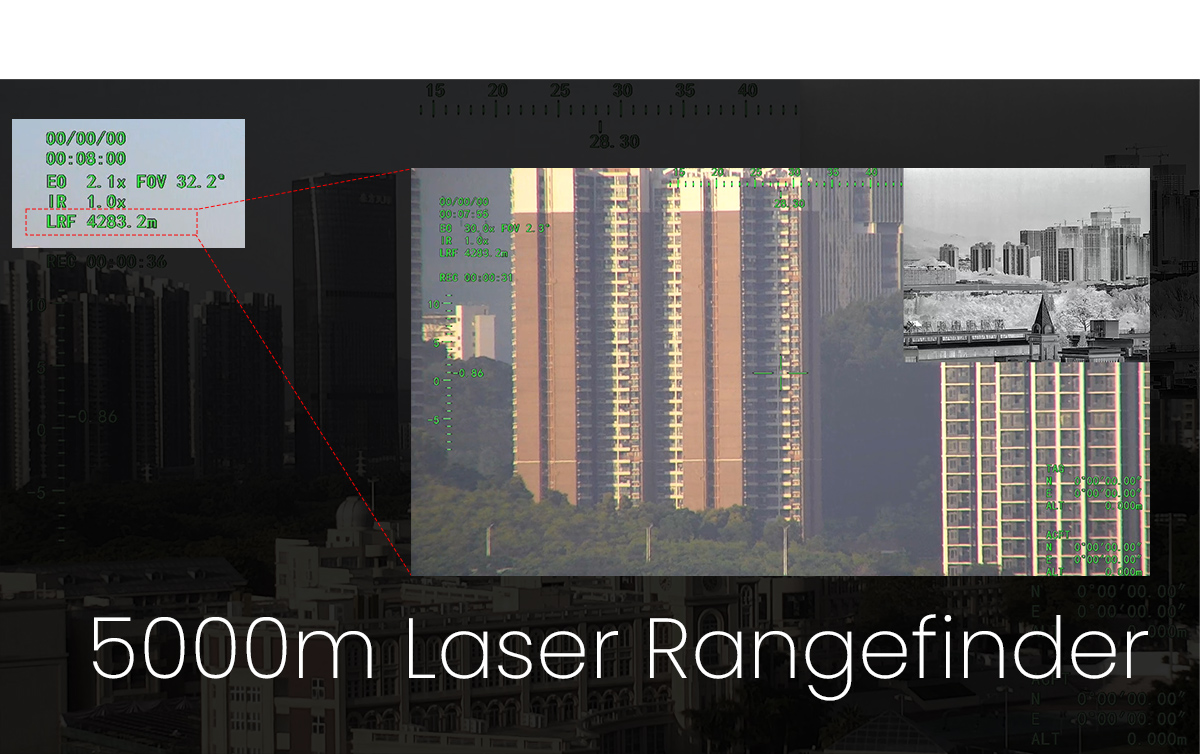

| IR Laser Rangefinder | |
| Measure ability | ≥5km for big target (eg. building) ≥3km for car（2.3m×2.3m ） ≥1.5km for people（1.75m×0.75m ） (Based on typical value: LOS visibiligy: ≥8km Diffuse reflection rate: ≥0.3 Humility: ≤80%) |
| Accuracy (Typical value) | ≤ ±1m (RMS) |
| Wave length | 1535nm pulse laser |
| Divergent Angle | ≤ 0.5mrad |
| Measurement frequency | 1~10HZ |
| Location Resolving | Latitude and longitude of target |
| Ranefinder | Measure the distance between the object at the center of screen and the laser rangefinder |
| EO Camera AI Performance | |
| TOPS | 1T |
| Targets type | Car and human |
| Simultaneous detection quantity | ≥ 10 targets |
| Min contrast ratio | 5% |
| Min target size | 5×5 pixel |
| Car detection rate | ≥85% |
| False alarm rate | ≤10% |

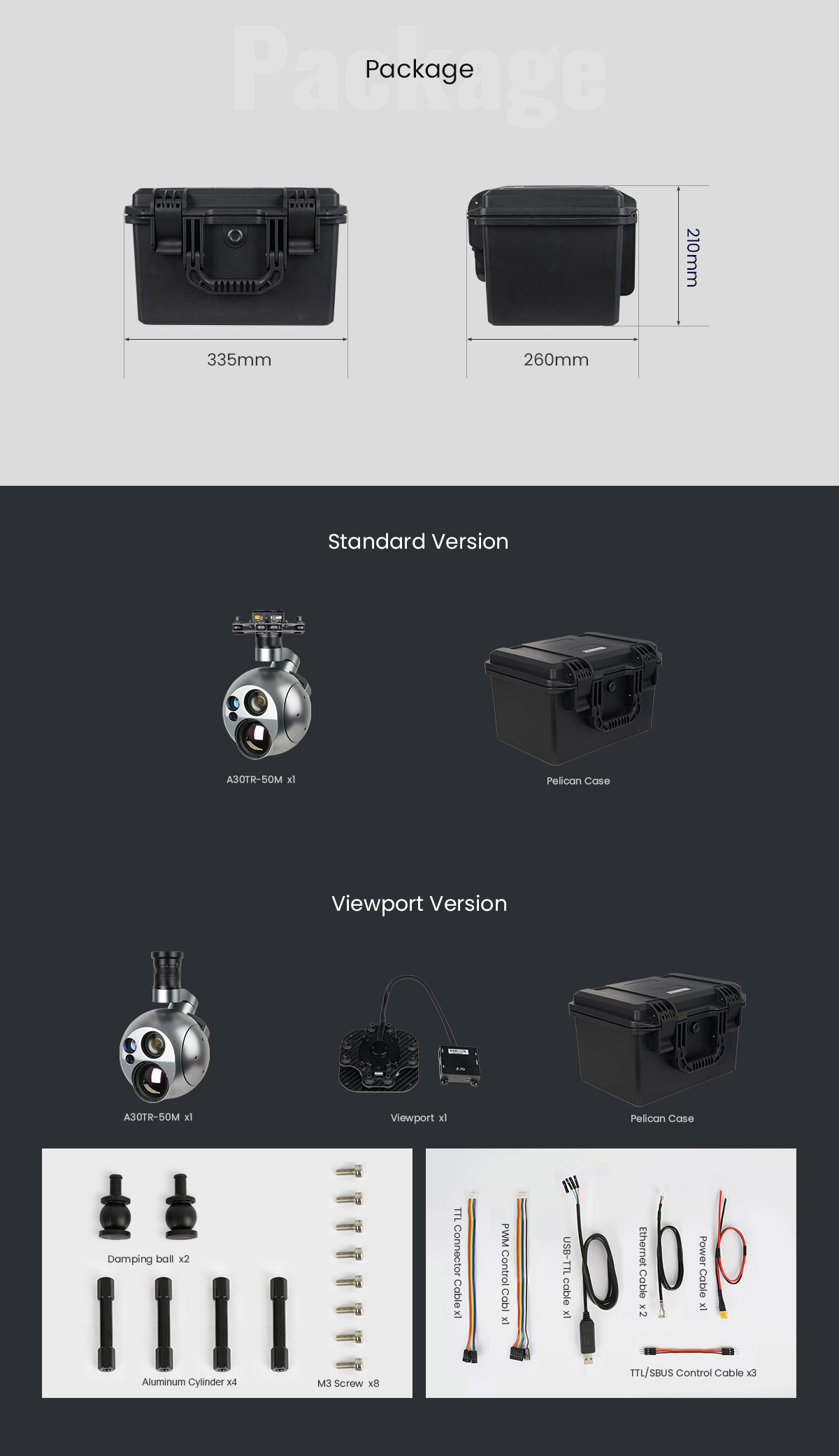

| Packing Information | |
| N.W. | 1411±10g (Viewport version) |

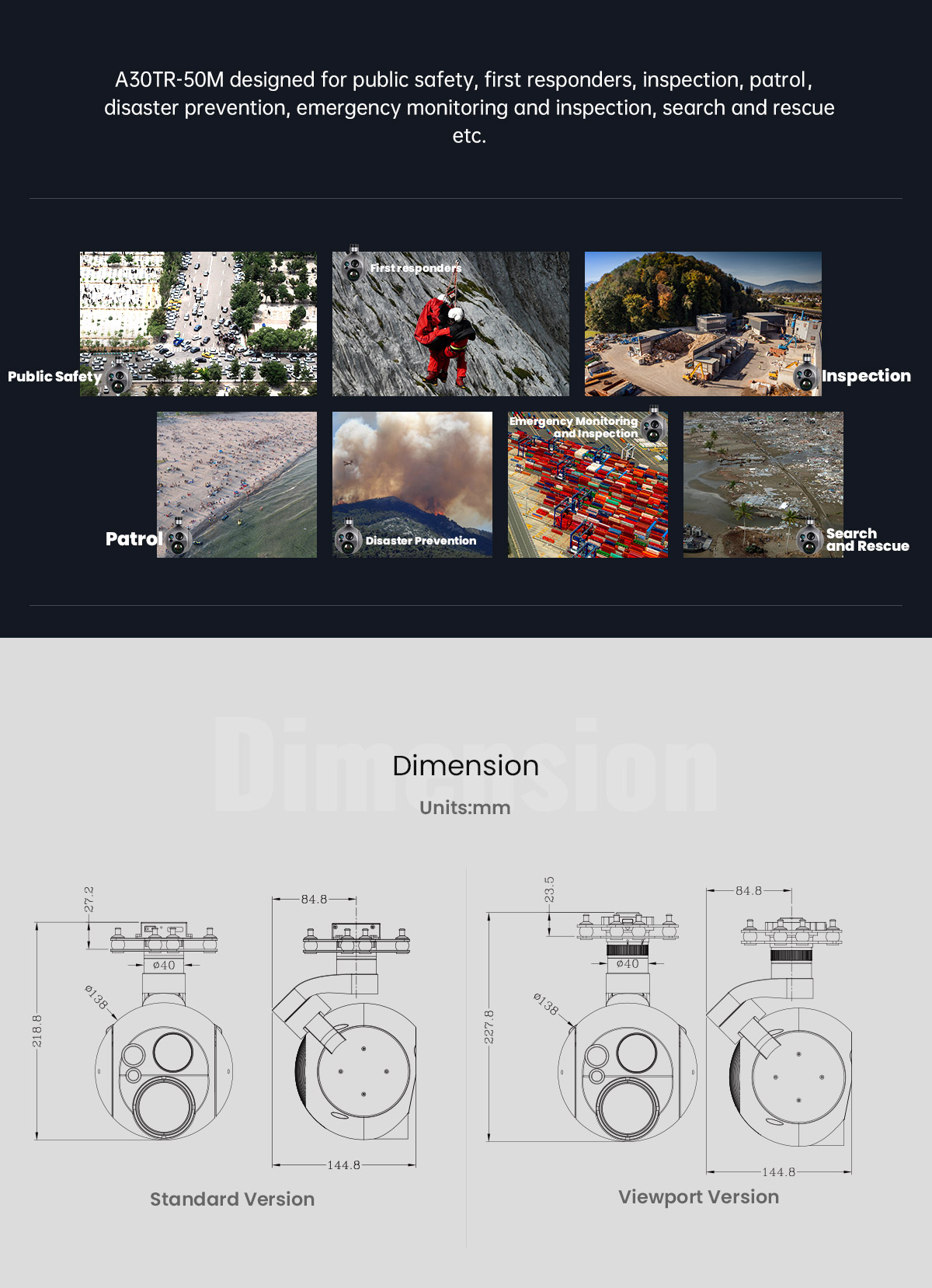

| Product meas. | 145.8*138*222.1mm (Standard version) / 145.8*138*227.8mm (Viewport version) |
| Accessories | 1pc gimbal camera device, screws, copper cylinders, damping balls,1pc USB to TTL cable / Hight quality plastic box with foam cushion |
| G.W. | 3138g |
| Package meas. | 350*300*250mm |
For more details, please visit A30TR-50M Laser Rangefinder EO/IR Camera with Al Auto-ldentify and Tracking
-
