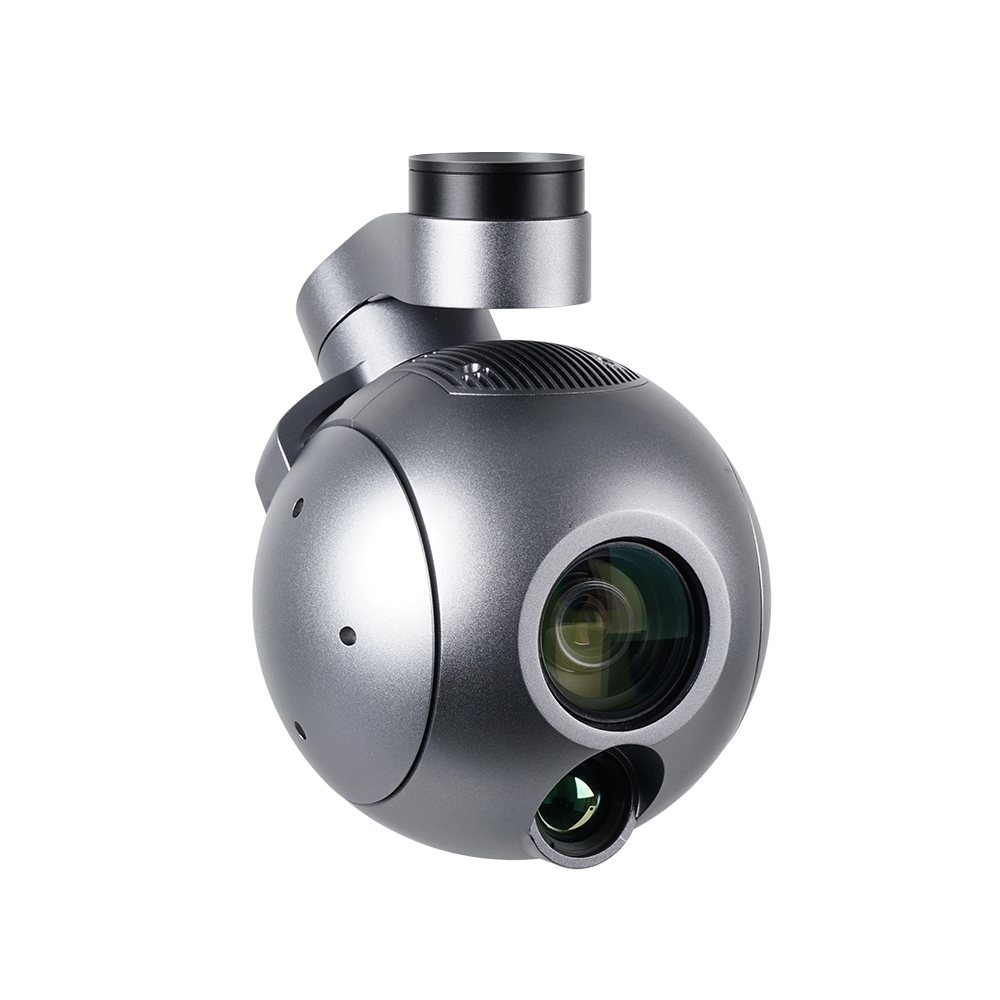

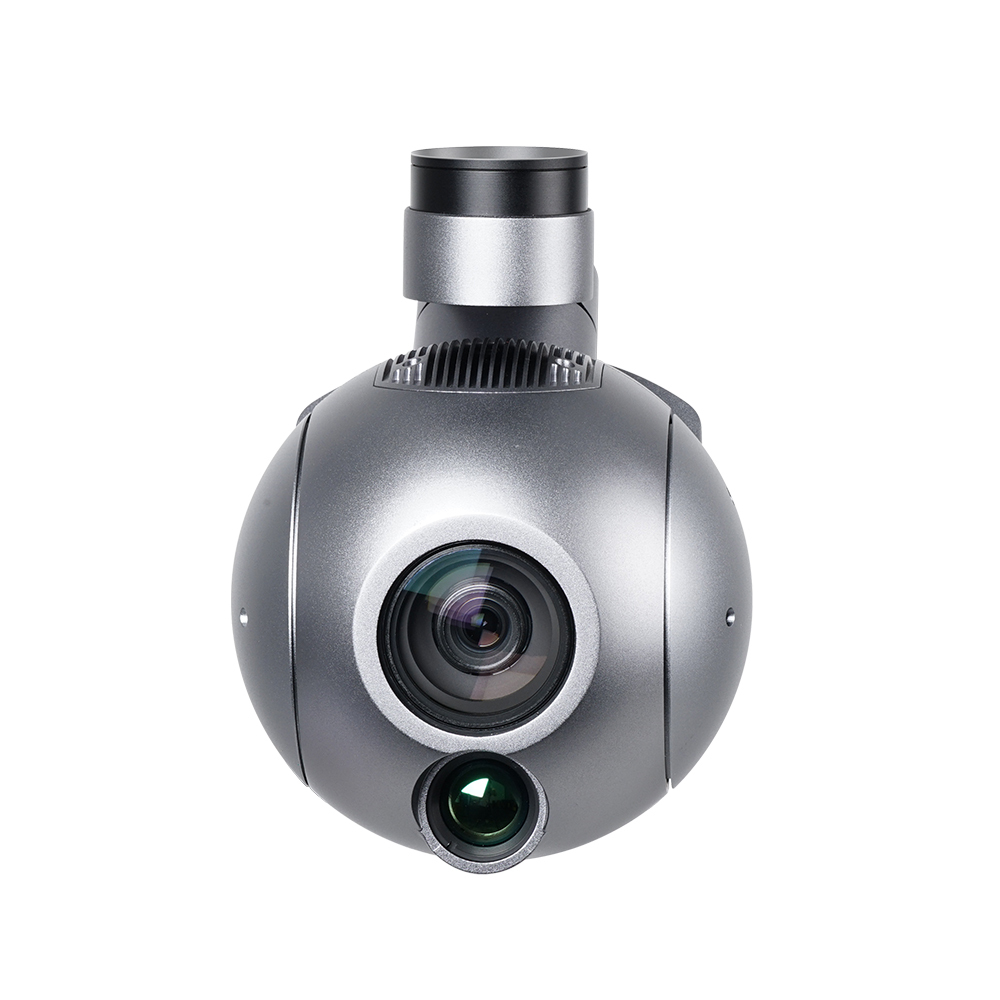

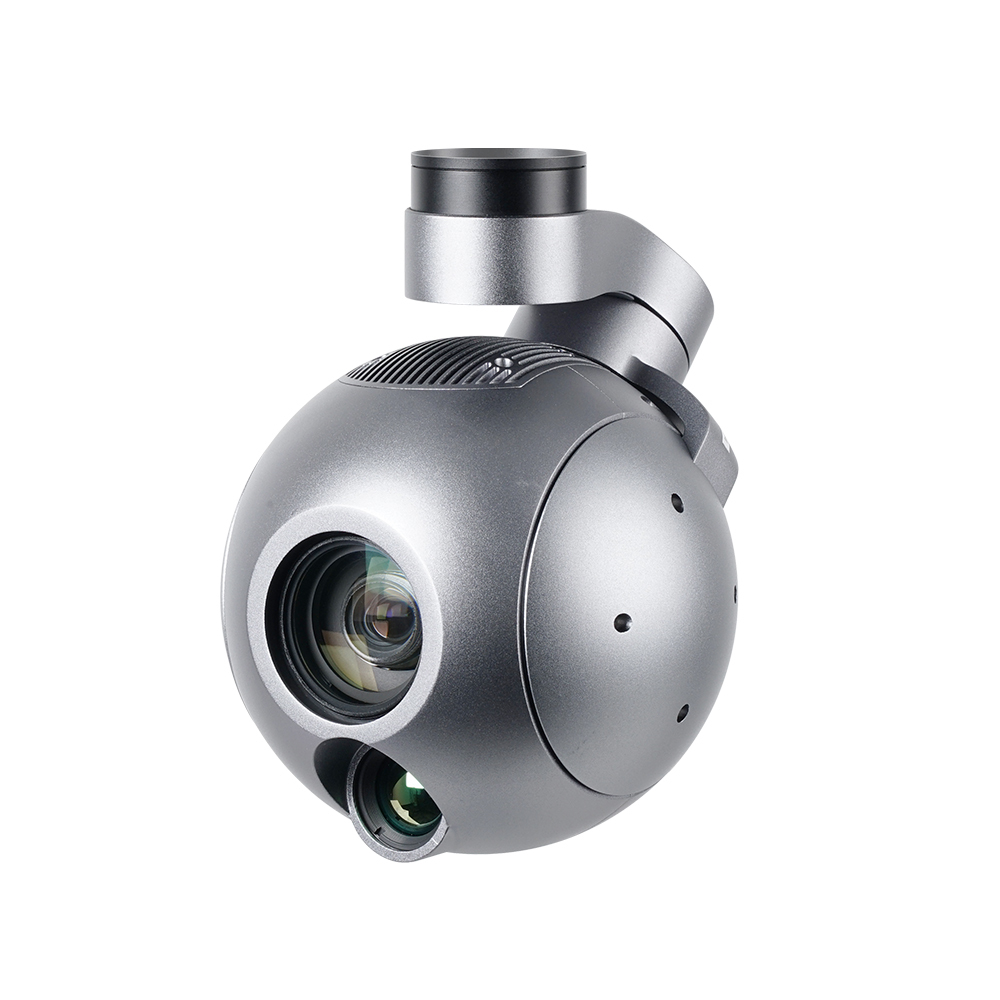

Professional 3-axis High-precise FOC Program

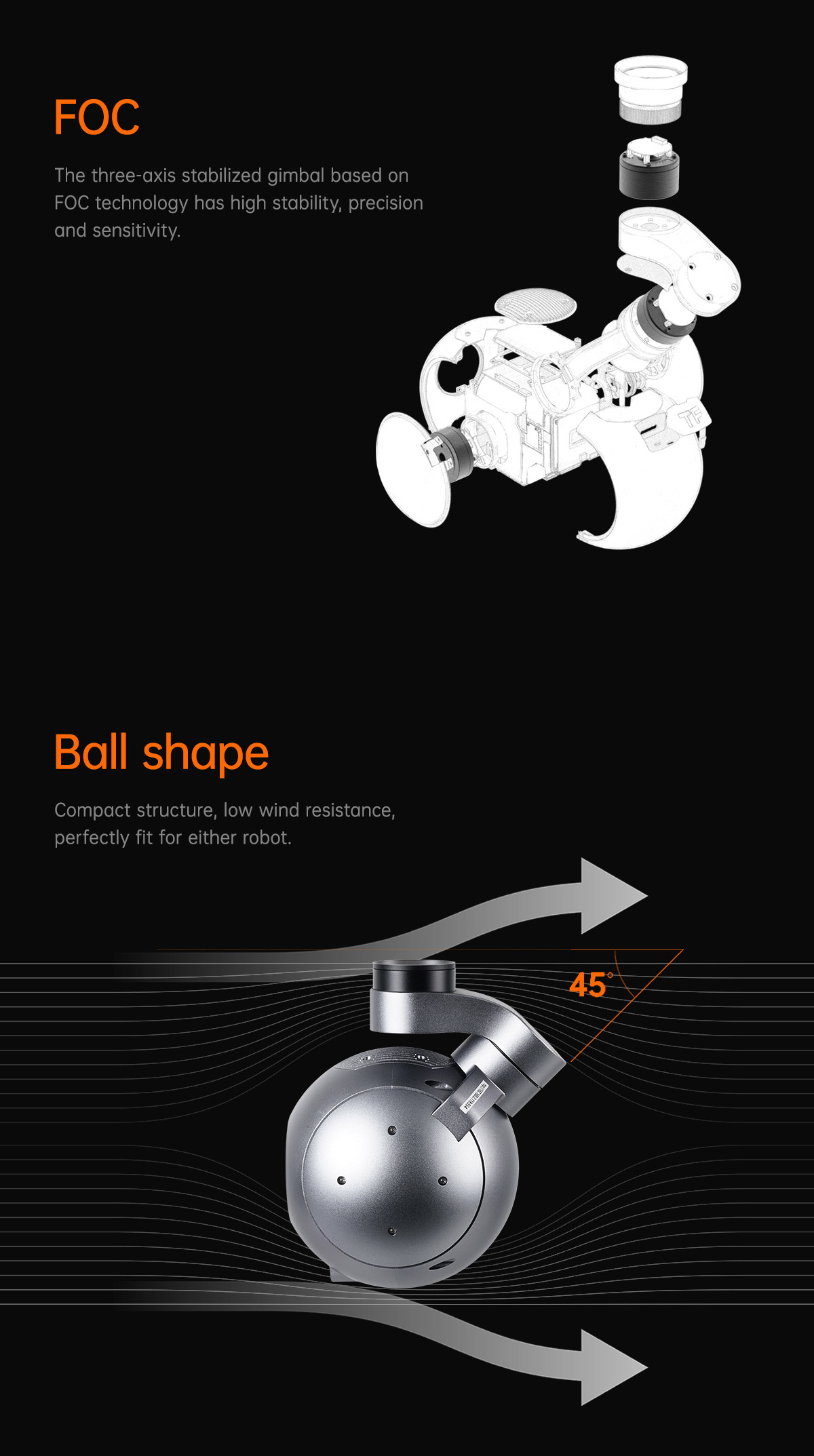

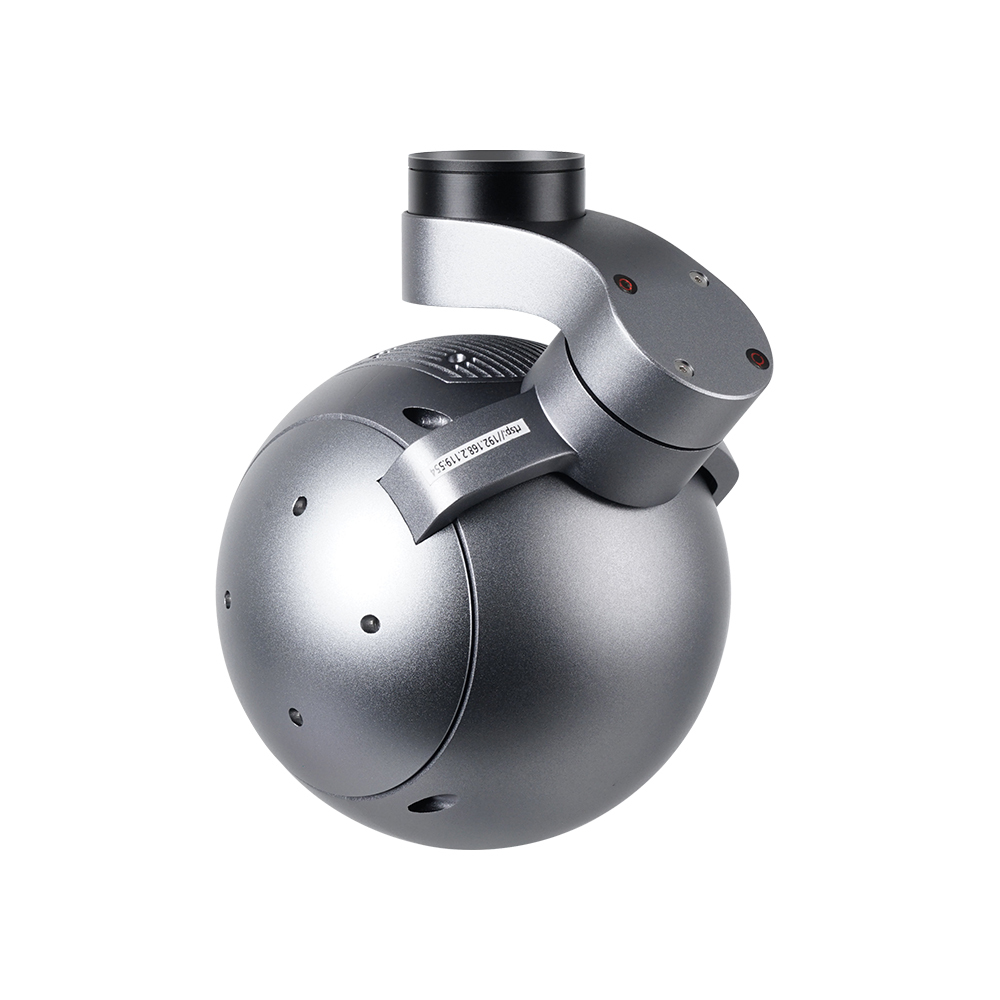

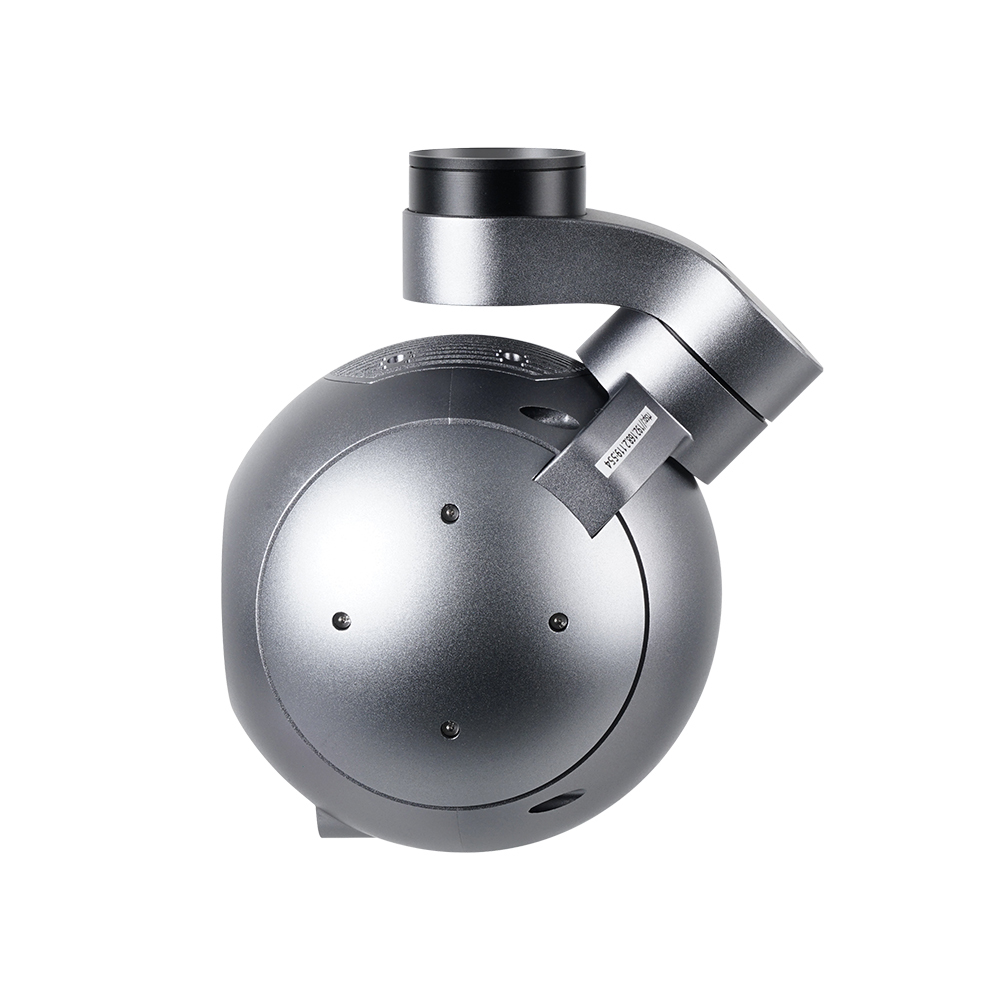

Stabilized the A40T Pro is a highly optimized 3-axis gimbal integrated with AI object identifcation and target tracking module, which with pinpoint-precise motor rotation with a control accuracy of ±0.01° powered by a dedicated processor. Rather than rely on electrical slip rings - as is common with many gimbals - the A40T uses a unique mechanically limited design and concealed wires to ensure more stable data transmission and greater durability. Vibration is eliminated using four damping balls and a lightweight damping board, creating seamlessly smooth video. 360° infinite rotation remains possible through gimbal rotation. The 3-axis gimbal developed base on FOC technology features high stability, accuracy and sensitivity.
High Resolution SONY 40x Zoom Camera

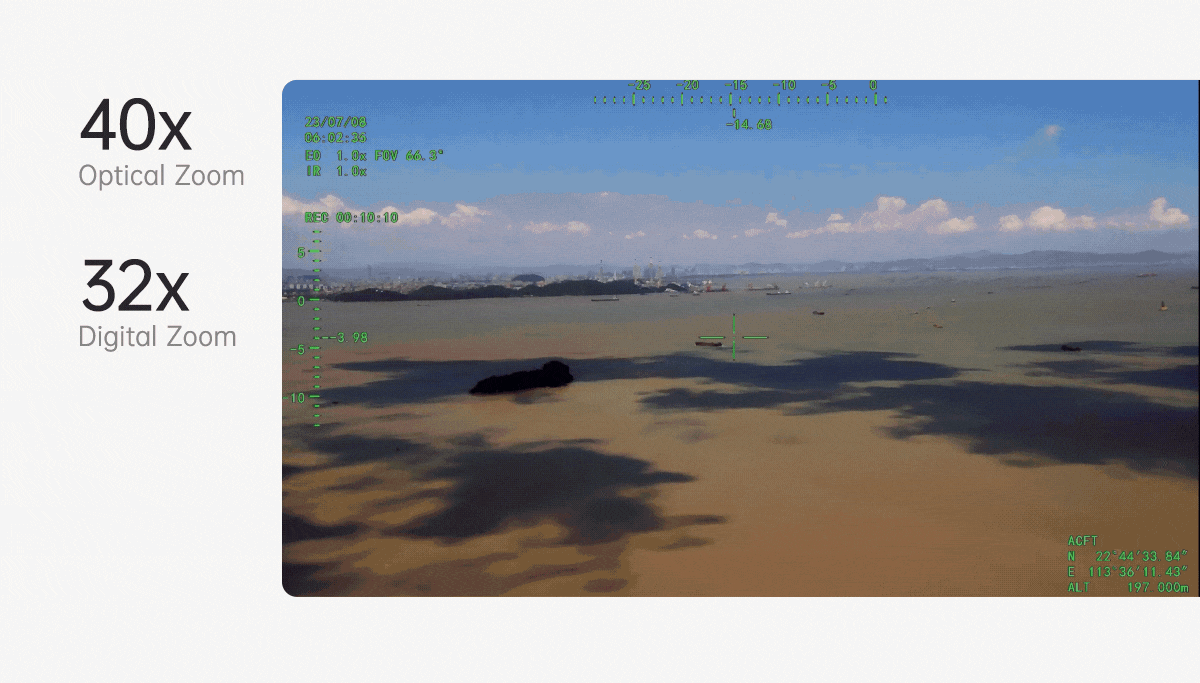

Powered by SONY 1/2.8" IMX462LQR CMOS module, 2.13 mega effective pixel, combined with 40x advanced optical zoom technology, the observation range is up to 3000 meters, which can meet the application requirements of various domains.

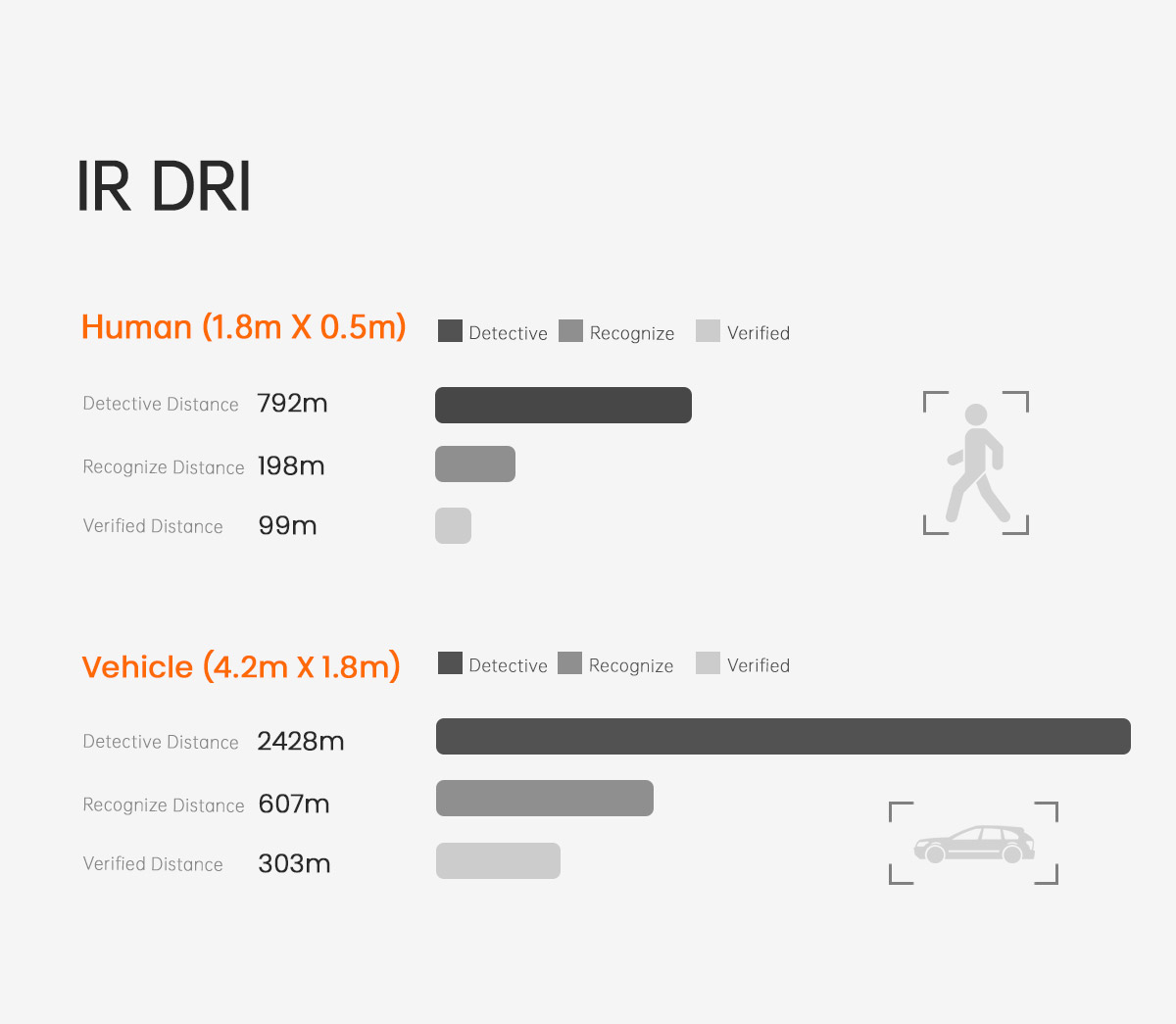

Advanced IR Thermal Imager

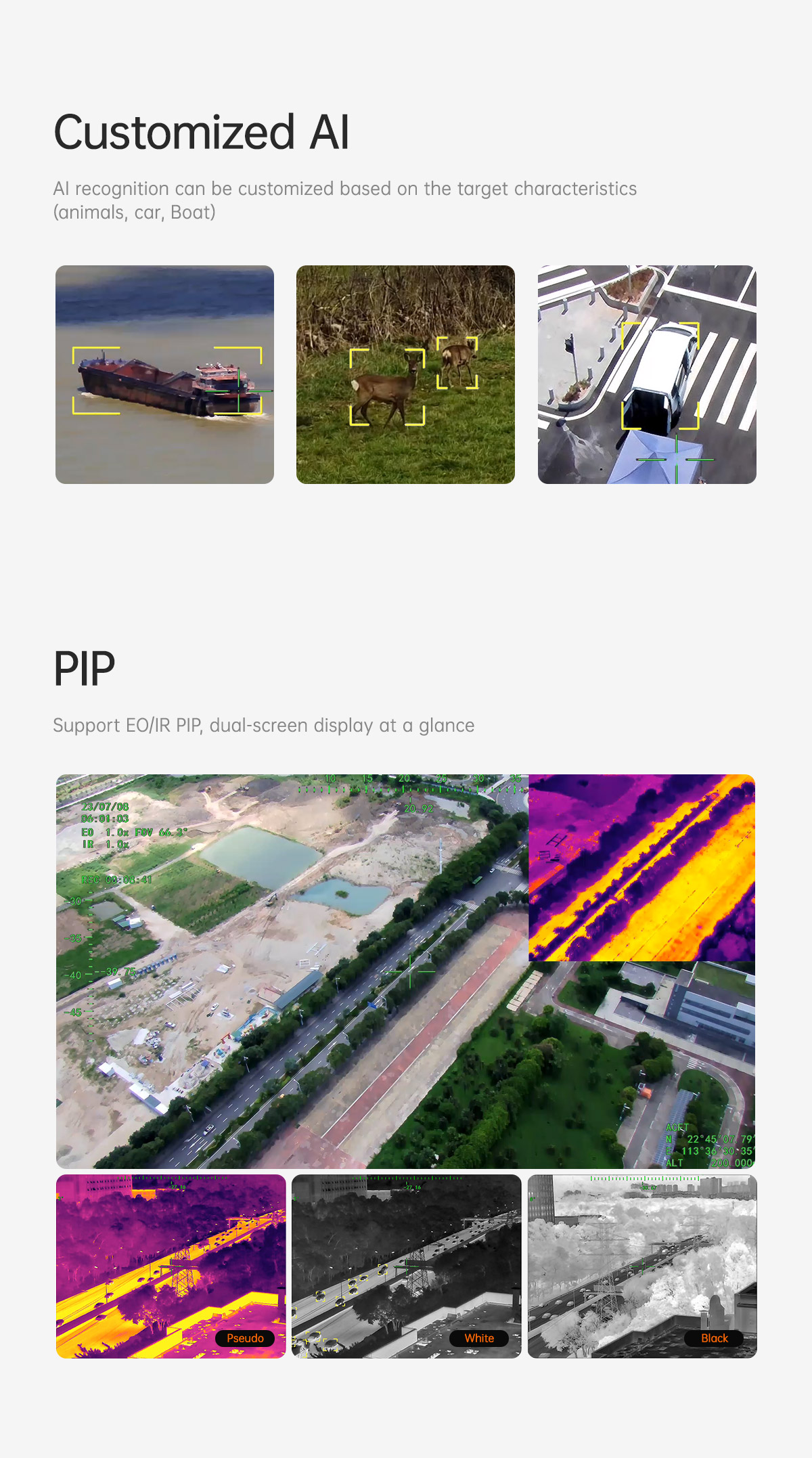

Integrated French ULIS high-precision uncooled long wave (8μm ~14μm ) 19mm thermal image sensor with 640*512 detector pixel, A40T can record and transmit thermal image and visible images at the same time in PIP format. Optional thermometry version: With temperature measuring sensor, it could accurately attain the temperature of objects and individuals. The thermal sensor allows three points’ temperature ranging between 0℃~120℃ to be measured and displayed on screen. Adjust the different colors applied to the thermal data based on the needs of specific scenarios.

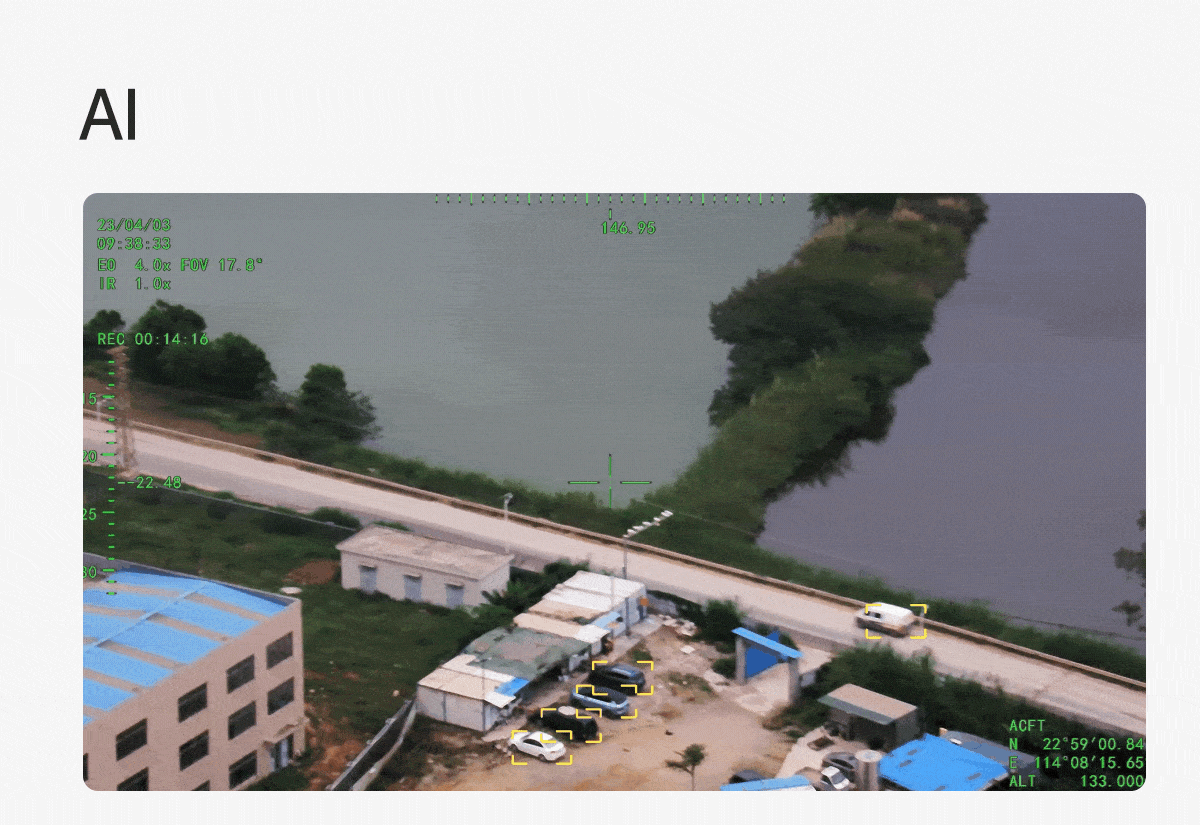

Visible Light and Thermal Imager Dual Sensors Object Tracking
Build-in normalization, cross-correlation and tracking algorithm, combining with object missing recapture algorithm, achieve stable track of the target. Support custom characters of user OSD, adaptive gate, cross cursor, trace information display. The tracking speed is up to 32pixel/frame,object size range is from 16*16 pixel to 160*160 pixel, with the minimal signal-to-noise ratio (SNR) 4dB, the mean square root values of pulse noise in the object position < 0.5 pixel, which greatly improve the accuracy and tracking effect.
Multi Output Methods Optional
A40T supports both HDMI output and Ethernet/IP output. HDMI and output are 1080p, Ethernet output defualt as 1080p and record is 4K. IP output versions will support 360 degree endless pan.
Multi Control Methods
Defualt PWM and Serial port TTL control, SBUS is optional. IP output version also support TCP control via ethernet cable. With Viewpro software Viewlink you can fulfill IP output, TTL control and TCP control.
Control box signal interfaces:

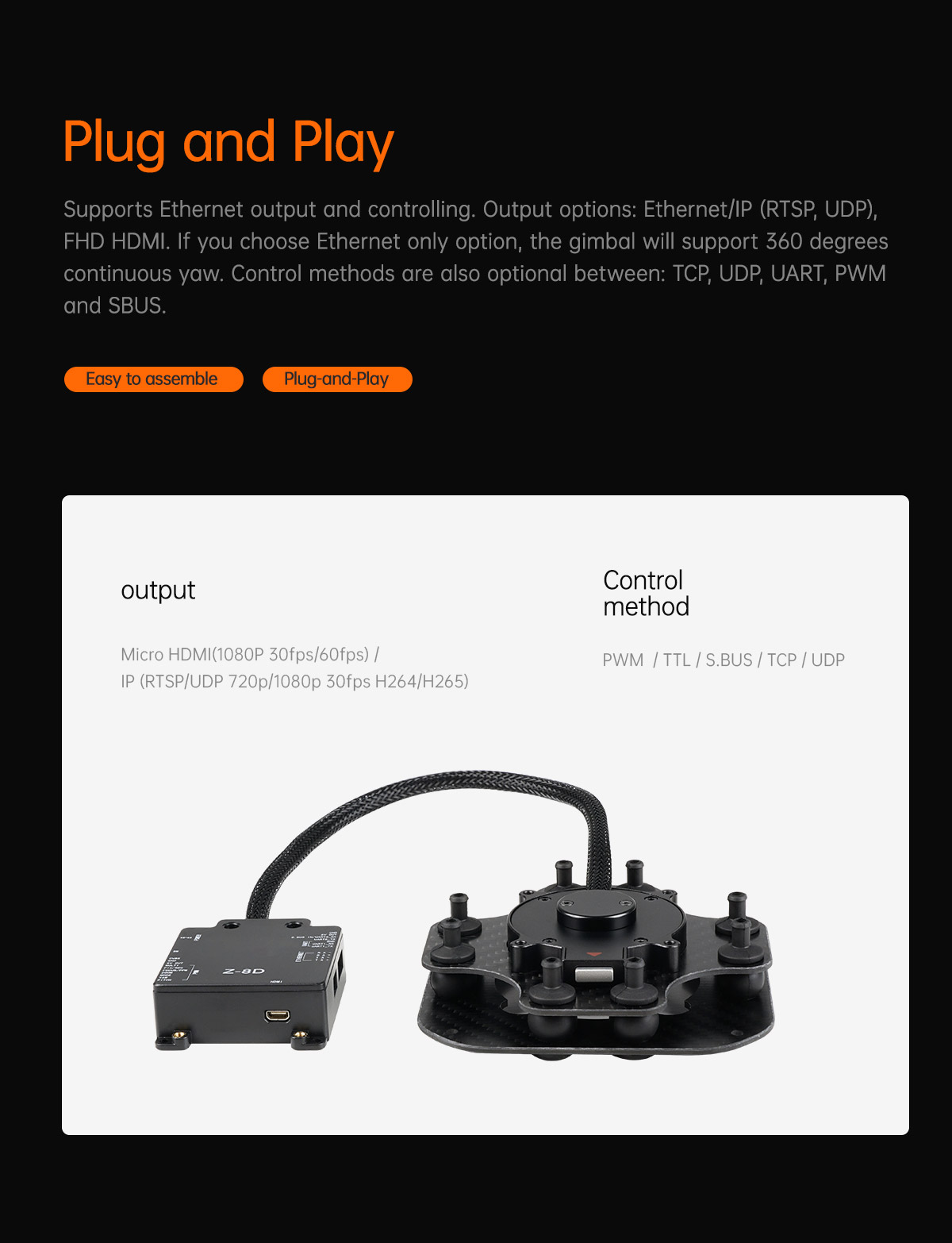

Compatible with Viewport
A40T Pro is compatible with Viewpro quick release connector Viewport. Viewport is an option known as easy assembly, plug and play.
For more information about Viewport, please check below video instruction:
Application
Mainly supply in law enforcement, fire-fighting, power tower and pipeline inspection, search and rescue etc. A wide range of monitoring and searching is required in an emergency to quickly transfer the situation, improve response efficiency and reduce casualties.

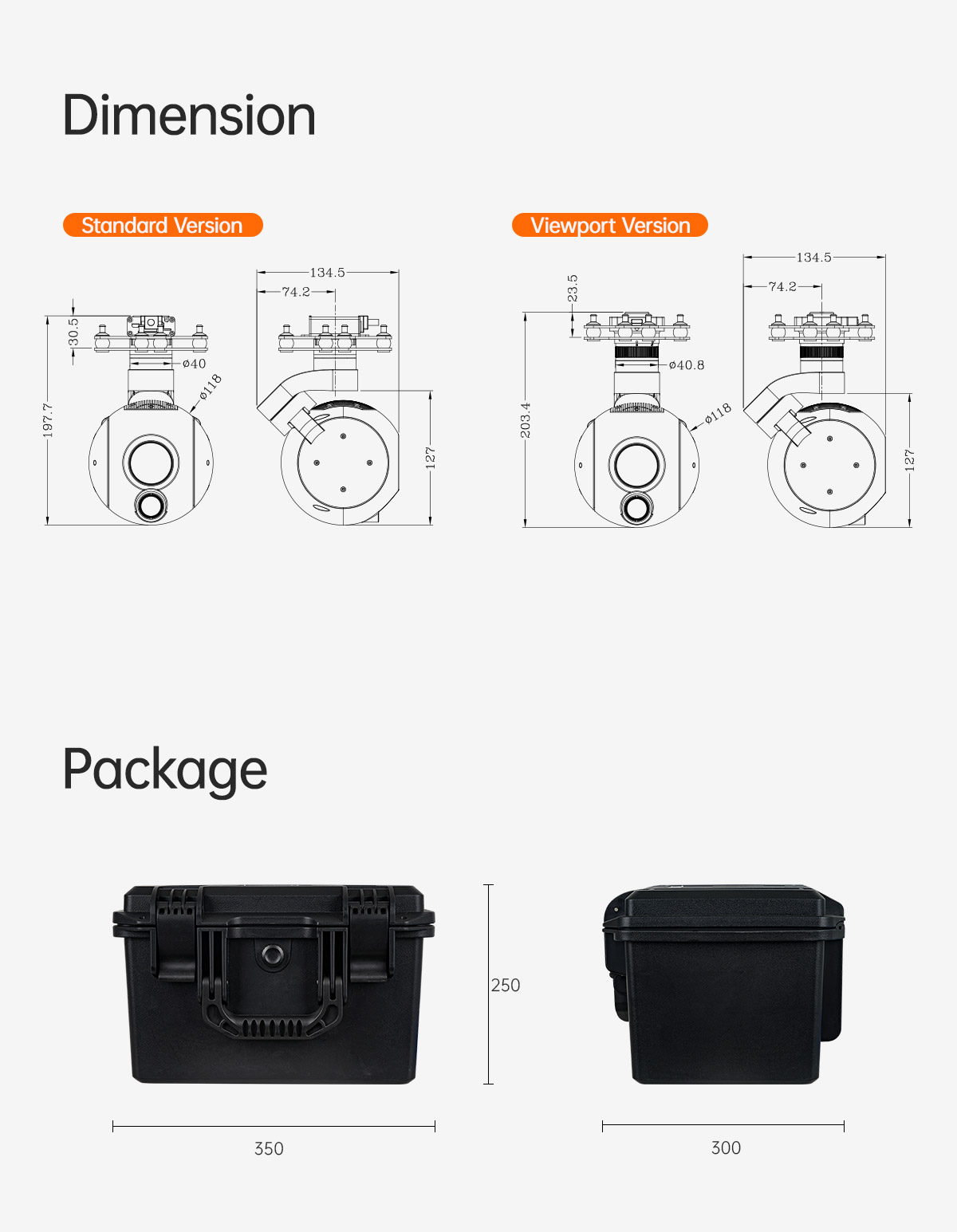

Dimensions
