Centimeter-level positioning
Cm-level positioning, meet the demand of industry and high pre-cision positioning RTK static positioning accuracy up to 1 cm, un-manned aerial vehicle (uav) measured dynamic accuracy of about 6 cm.
Better GPS
Can be used as a GPS when used alone, and better than other GPS positioning
Double-ended switching
Type-C interface is adopted on both the mobile end and the ground end, and both ends are freely switched.
10s switch RTK mode
With the highest RTK refresh rate, up to 20Hz, faster reduction of positioning error Less than 10s convergence time, can switch RTK mode instantly within 10s
C-RTK 9P V5+/Nano/X7/Nora USL
Version Packing list
C-RTK 9P Pixhack Version Packing list
C-RTK SP Pixhawk Version Packing list
C-RTK 9P V5+/Nano/X7/Nora Version Packing list
Specification
|
Prd |
|
|
Satellite receiver type |
184 channel Ubox F9P |
|
Navigation satellite system |
Beidou, Galileo, GLONASS, GPS / QZSS |
|
Satellite frequency band |
GPS L1C/A L2C, GLONASS L1OF L2OF, GALILEO E1B/C E5b, BDS B1I B2I, QZSS L1C/A L2C |
|
Navigation refresh rate |
RTK up to 20 Hz |
|
Positioning accuracy |
RTK 0.01M+1ppm CEP |
|
Convergence time |
RTK is less than 10s |
|
Capture satellite |
Cold start 24s |
|
Auxiliary start 2s |
|
|
Capture again 1s |
|
|
Sensitivity |
Tracking and navigation –167 dBm |
|
Cold start –148 dBm |
|
|
Hot Start –157 dBm |
|
|
Reacquisition –160 dBm |
|
|
Anti-jamming |
Active CW detection and removal Onboard band pass flter |
|
Anti-spoofng |
Advanced anti-spoofng algorithms |
|
Interfaces |
|
|
Serial interfaces |
UART x2 |
|
USB |
1 |
|

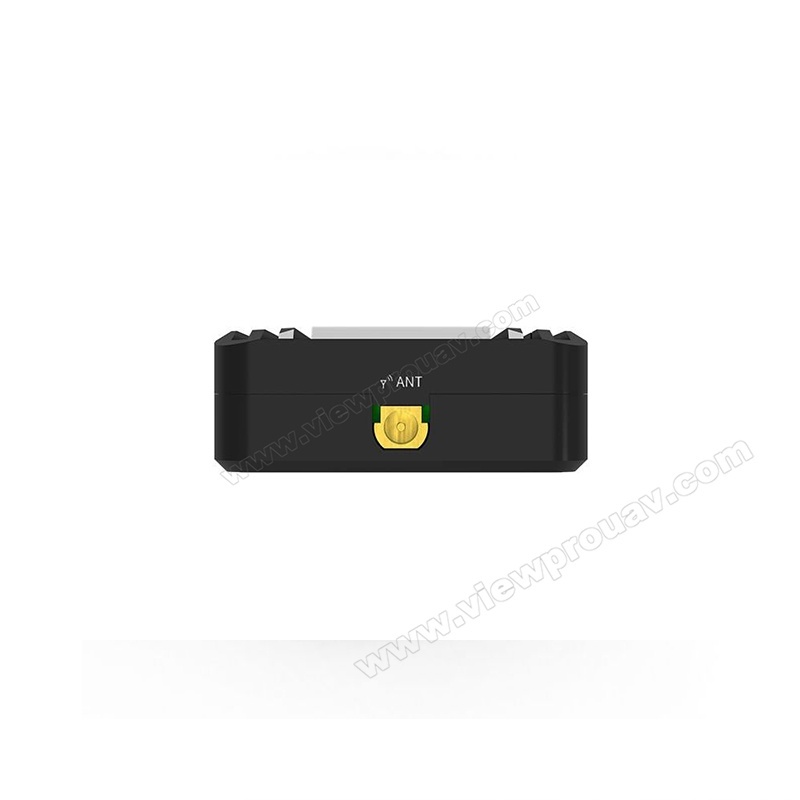

Antenna |
Multi-satellite and multi-frequency antenna |
|
Timepulse |
Confgurable: 0.25 Hz to 10 MHz |
|
Protocols |
NMEA、UBX binary、RTCM version 3.3 |
|
working environment |
|
|
Voltage |
5V |
|
Temperature |
–20 °C to +85 °C |
|
Dimensions and weight |
|
|
Size |
31.5mmX48mmX12mm |
|
Weight |
21g |
