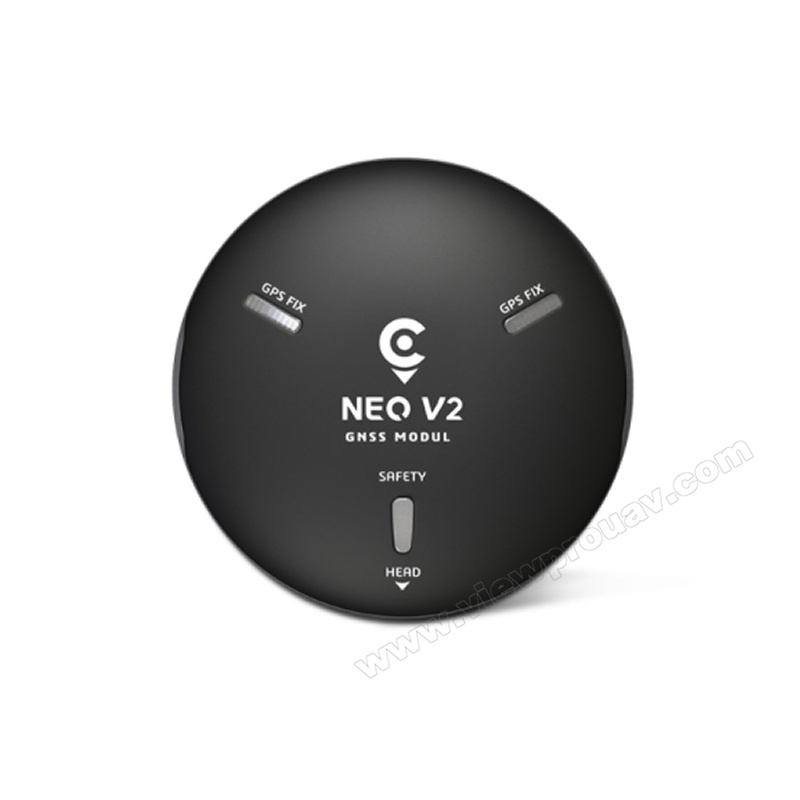

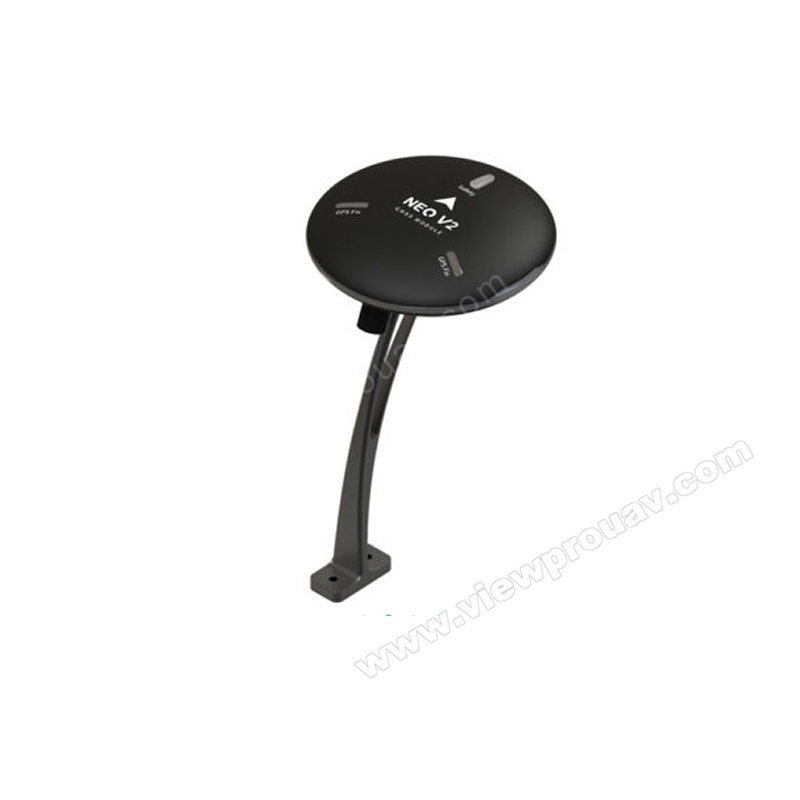

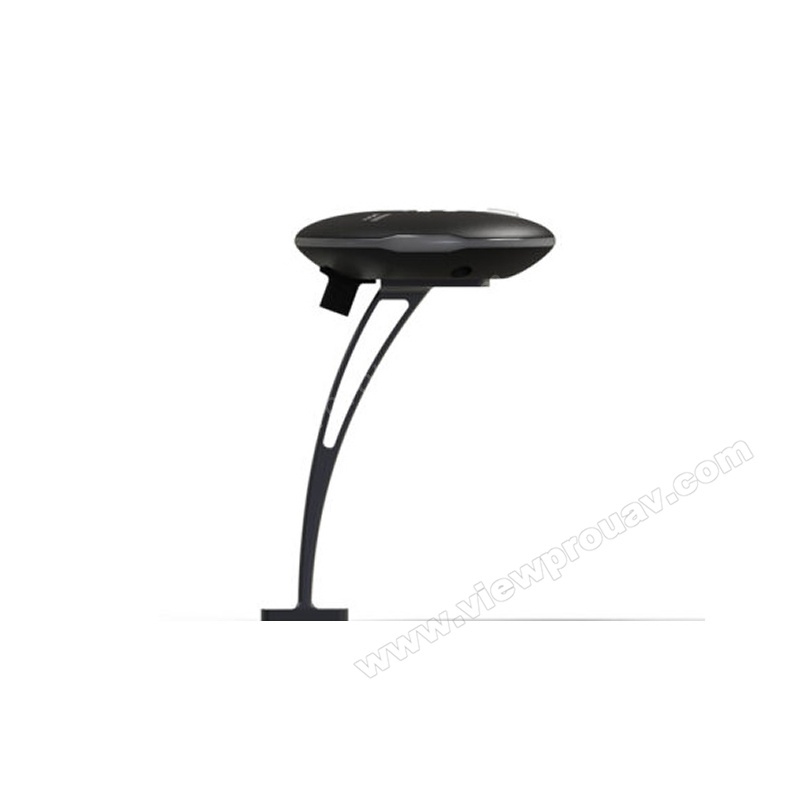

Product Introduction
Product Features
GPS positioning: provide accurate positioning information for unmanned system equipment
Electronic compass: provide accurate heading and attitude information
FC status reminder: circular RGB display flight control status
Alarm function: Provide an alarm when the drone has information that threatens safe flight
Safety protection: Provide physical buttons to avoid accidental motor rotation and protect you and the equipment
Specification
CUAV NEO V2 GPS Module Specification
| Chip Type | |
| GPS Location | UBLOX M8N |
| RGB Status light | NCP5623C |
| Compass | IST8310 |
| Buzzer | Passive buzzer |
| Buzzer | Physical buttons |
| Positioning Performance | |
| Accuracy | 3D Fix |
| Update rate | 10Hz(Max) |
| Acquisition | Cold Start 26S | Host Start 1.5S | Aided Start 2S | Reacquisition 1S |
| Receiver type | 72 Channels GPS/QZSS L1 C/A, GLONASS L10F BeiDou B1I, Galileo E1B/C SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGAN |
| Sensitivity | Tracking & Navigation -167dBm | Cold Start -148dBm | Hot Start -156dBm | Reacquisition -160dBm |
| Functional | 1. Advanced jamming 2. Fast search satellite speed Security and integrity protection 3. Receiving up to three GNSS at the same time |
| Working Conditions | |
| Input voltage | 5V |
| Temperature | -10 – 70°C |
For more details, please visit CUAV NEO V2 GPS Module PIX V5 H7 UAV Autopilot GPS
