Product Introduction
Specification

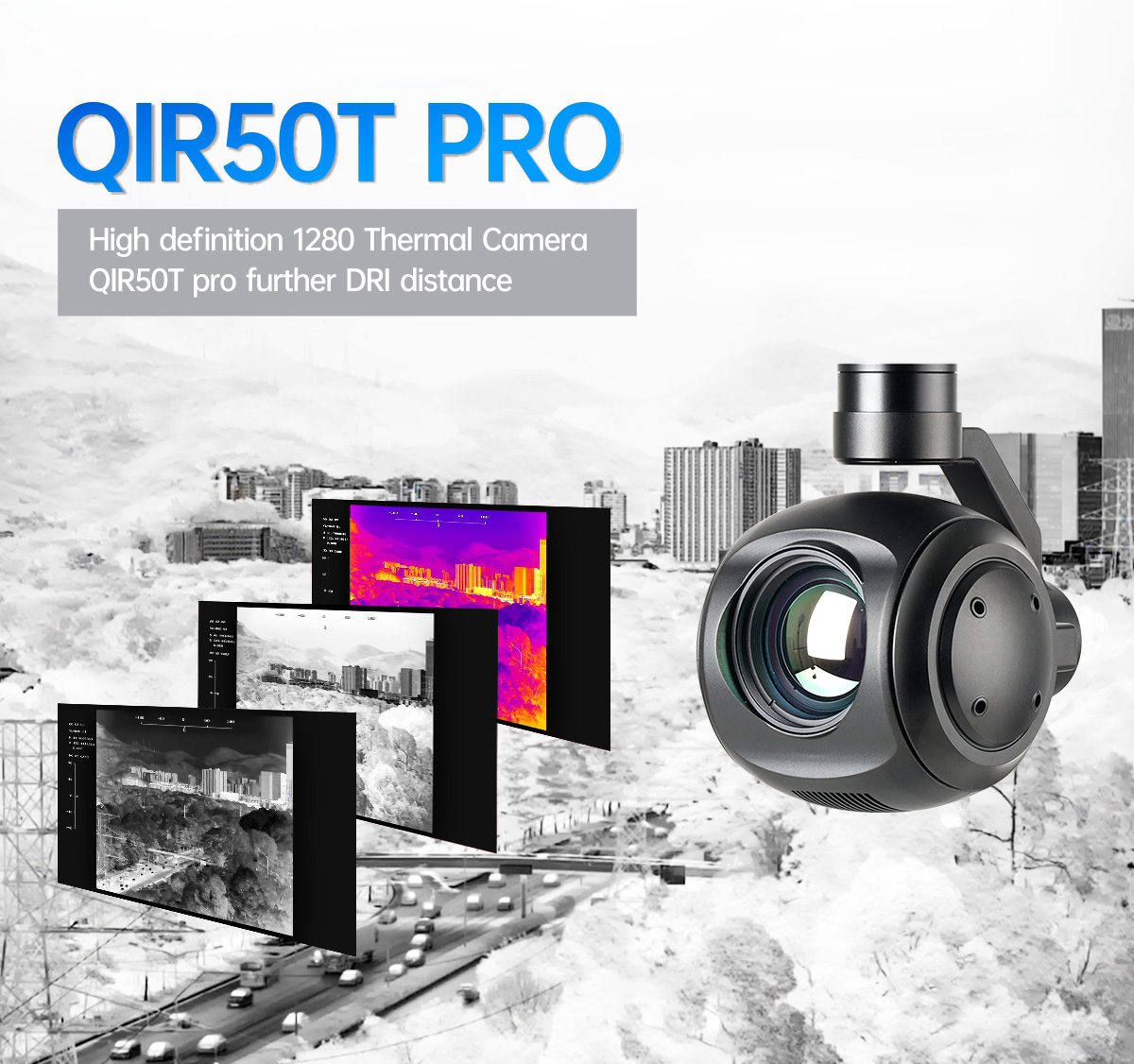

QIR50T Pro High Resolution IR Thermal Gimbal Camera Specification
| Hardware Parameter | ||
| Working voltage | 16V | |
| Input voltage | 4S ~ 6S | |
| Output voltage | 5V (connect with PWM) | |
| Dynamic current | 500mA~1000mA @ 16V | |
| Working environment temp. | -20℃ ~ +60℃ | |

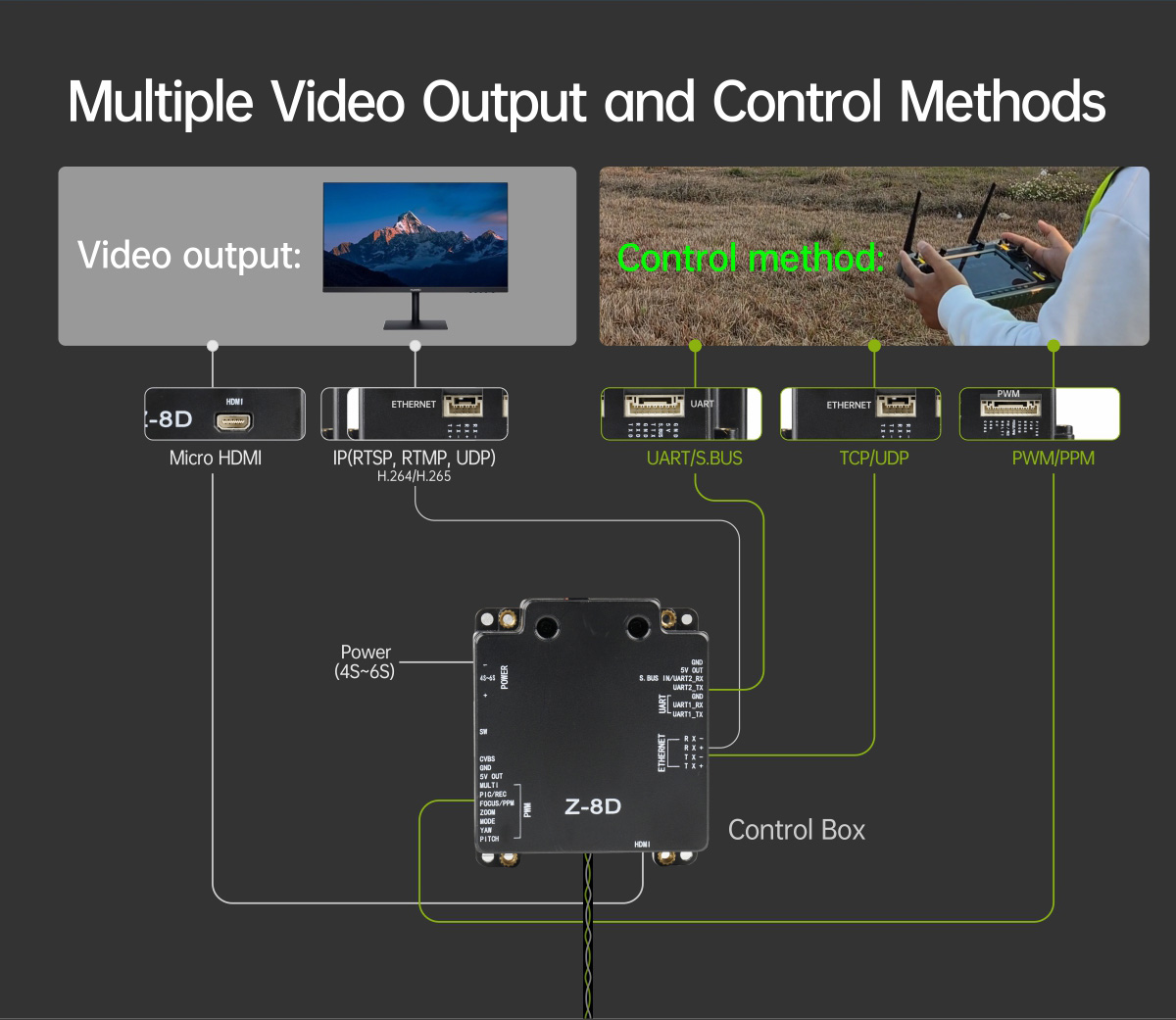

| Output | micro HDMI(1080P 60fps) / IP (RTSP/UDP 720p/1080p 25fps/30fps) / SDI (1080P 30fps) | |
| Local-storage | SD card (Up to 512G,class 10, FAT32 format) | |
| Picture storage format in TF card | JPG(1920*1080) | |
| Video storage format in TF card | MP4 (1080P 30fps) | |

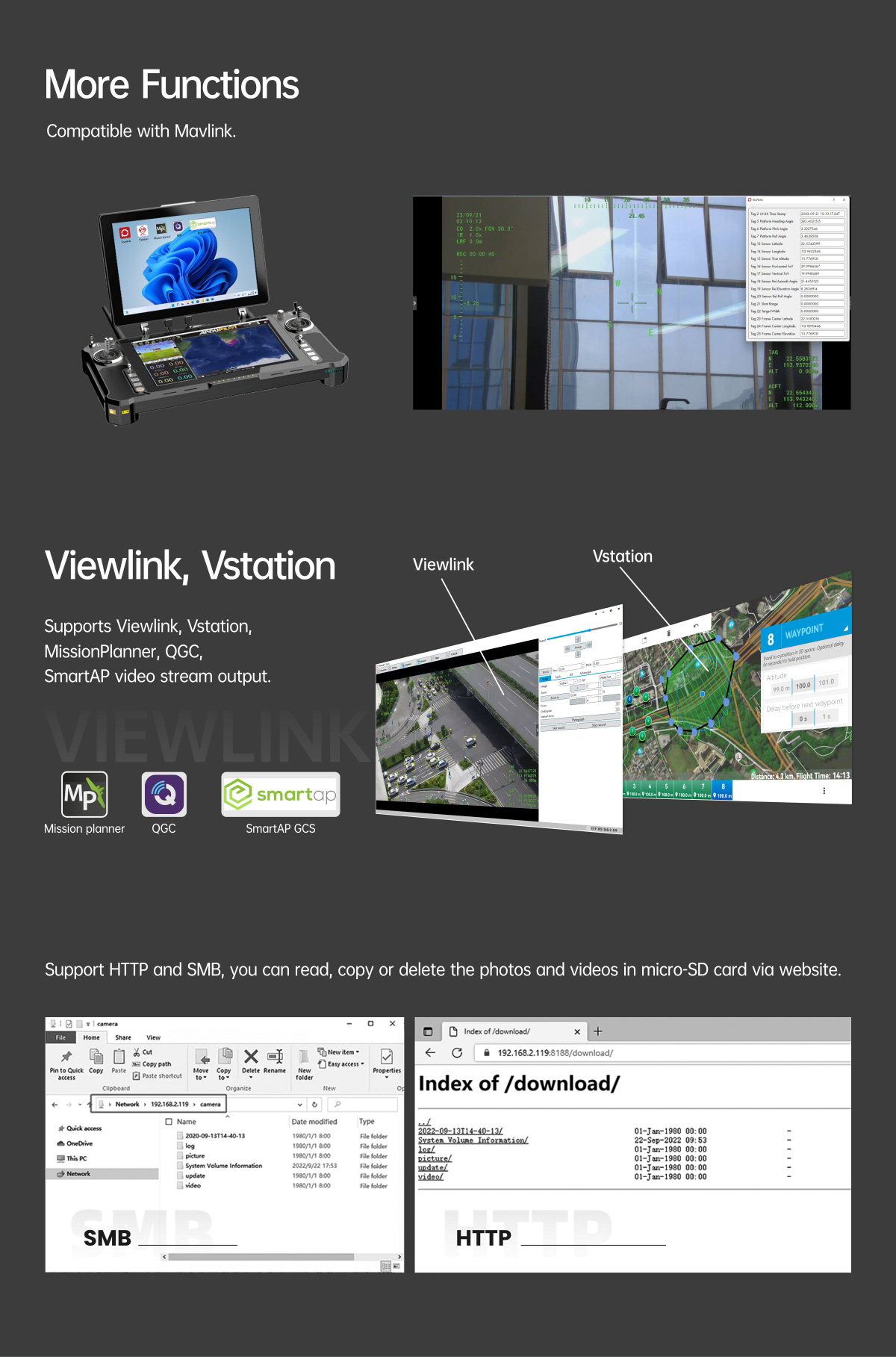

| Card reading online | SMB read / HTTP read | |
| Control method | PWM / TTL / S.BUS / TCP(IP output)/UDP(IP output version) | |
| Geotagging | Support, display time and GPS coordinate in picture exif | |
| Gimbal Spec | ||

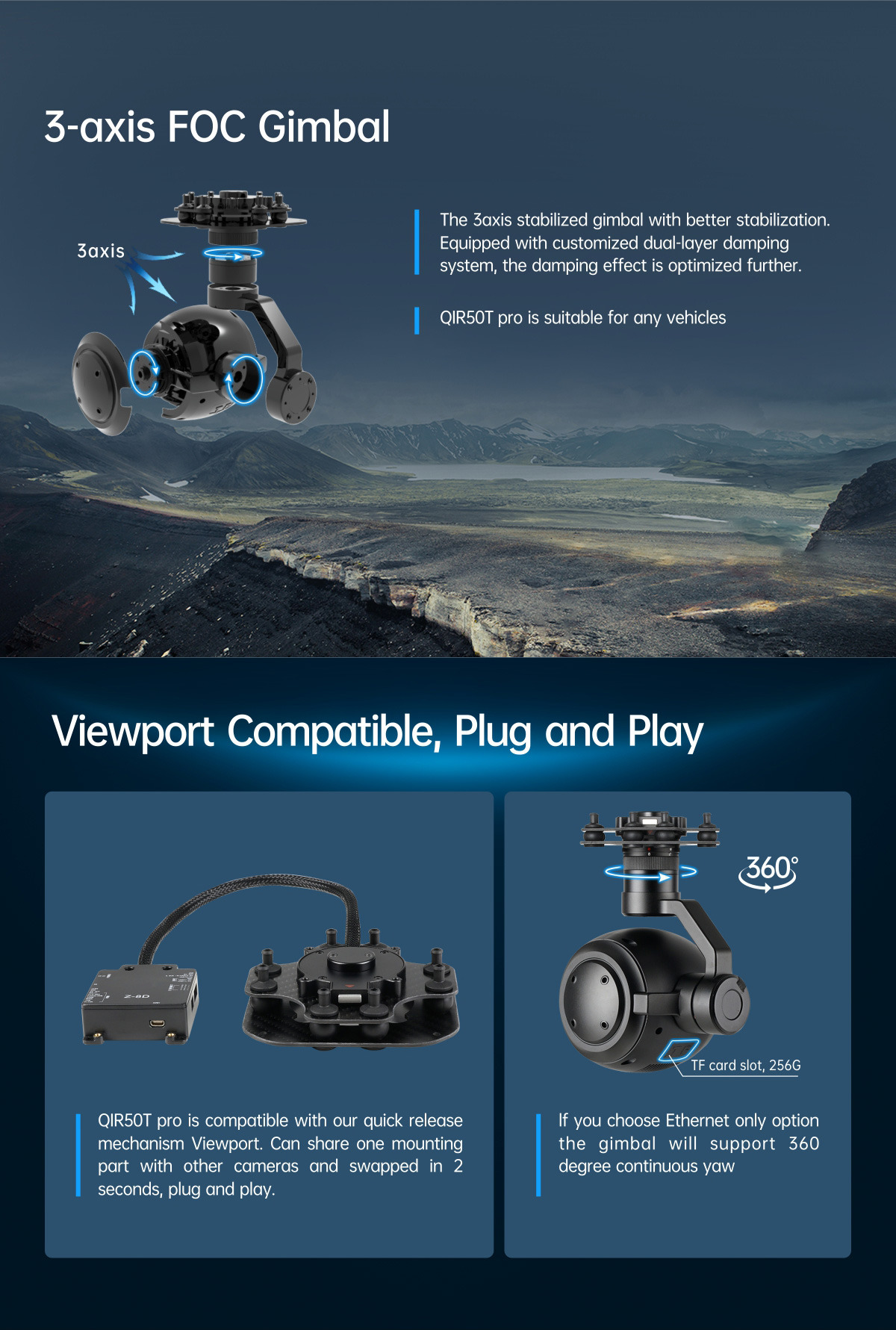

| Mechanical Range | Pitch/Tilt: -90~125° , Roll: ±35°, Yaw/Pan: ±300° / ±360°*N (IP / SDI output version) | |
| Controllable Range | Pitch/Tilt: -45°~120° , Yaw/Pan: ±290° / ±360°*N (IP / SDI output version) | |
| Vibration angle | Pitch/Roll: ±0.02° , Yaw：±0.02° | |
| One-key to center | √ | |
| IR Thermal Imager Spec | ||
| Focus Length | 50mm | |
| Horizontal FOV | 17.5 | |
| Vertical FOV | 14 | |
| Diagonal FOV | 22.3 | |

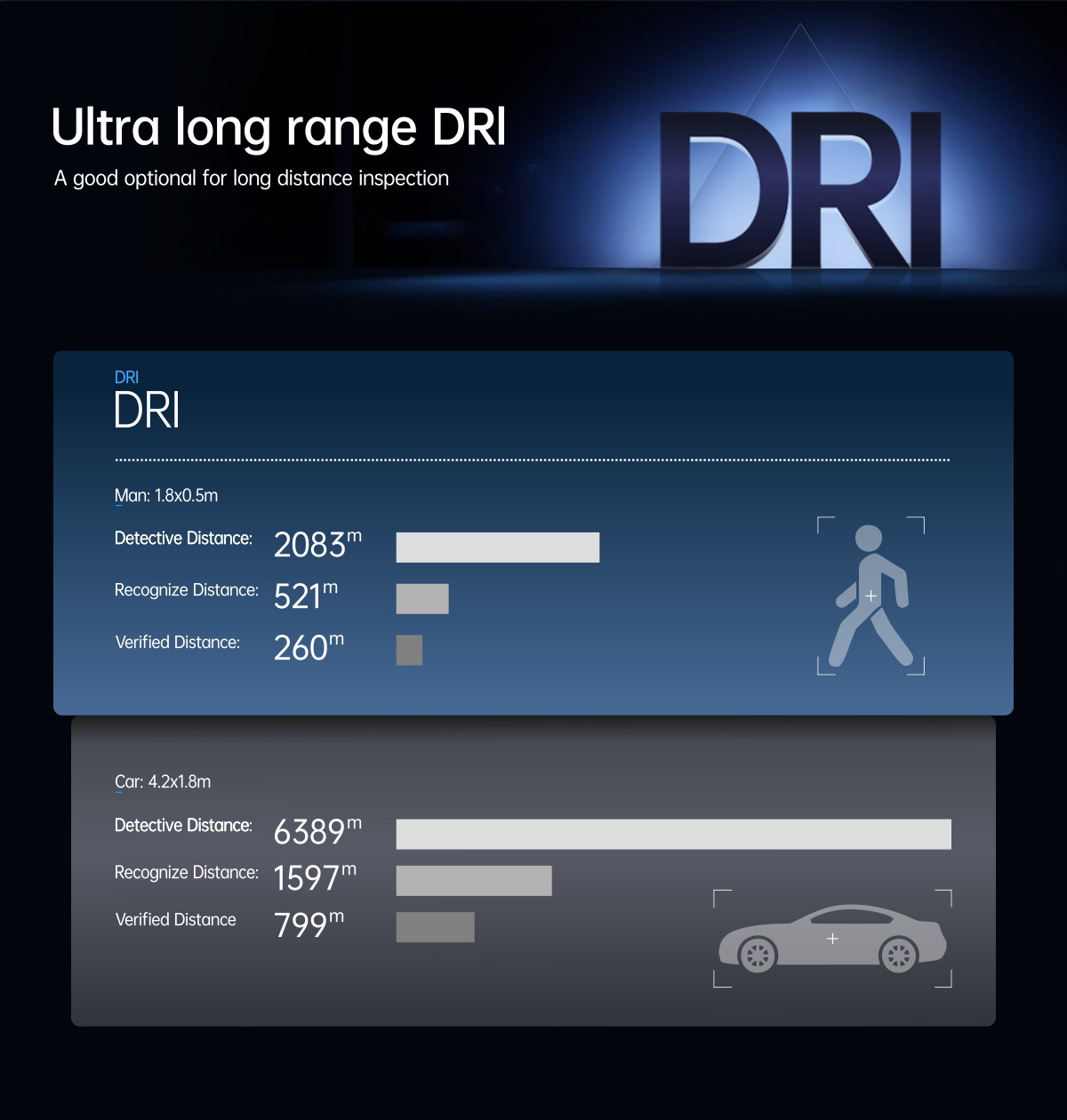

| Detective Distance (Man: 1.8x0.5m) | 2083 meters | |
| Recognize Distance (Man: 1.8x0.5m) | 521 meters | |
| Verified Distance (Man: 1.8x0.5m) | 260 meters | |
| Detective Distance (Car: 4.2x1.8m) | 6389 meters | |
| Recognize Distance (Car: 4.2x1.8m) | 1597 meters | |
| Verified Distance (Car: 4.2x1.8m) | 799 meters | |
| Working mode | Uncooled long wave (8μm~14μm) thermal imager | |
| Detector pixel | 1280*1024 | |
| Pixel pitch | 12μm | |
| Focusing method | Athermal prime lens | |
| Emissivity correction | 0.01~1 | |
| NETD | ≤50mK (@25℃) | |
| MRTD | ≤650mK (@characteristic frequency) | |
| Image enhancement | Auto adjust image brightness and contrast ratio | |
| Color palette | White, black, pseudo color | |
| Auto Non-uniform correction | Yes (no shutter) | |
| Digital zoom | 1x ~ 4x | |
| Sync correct time | Yes | |

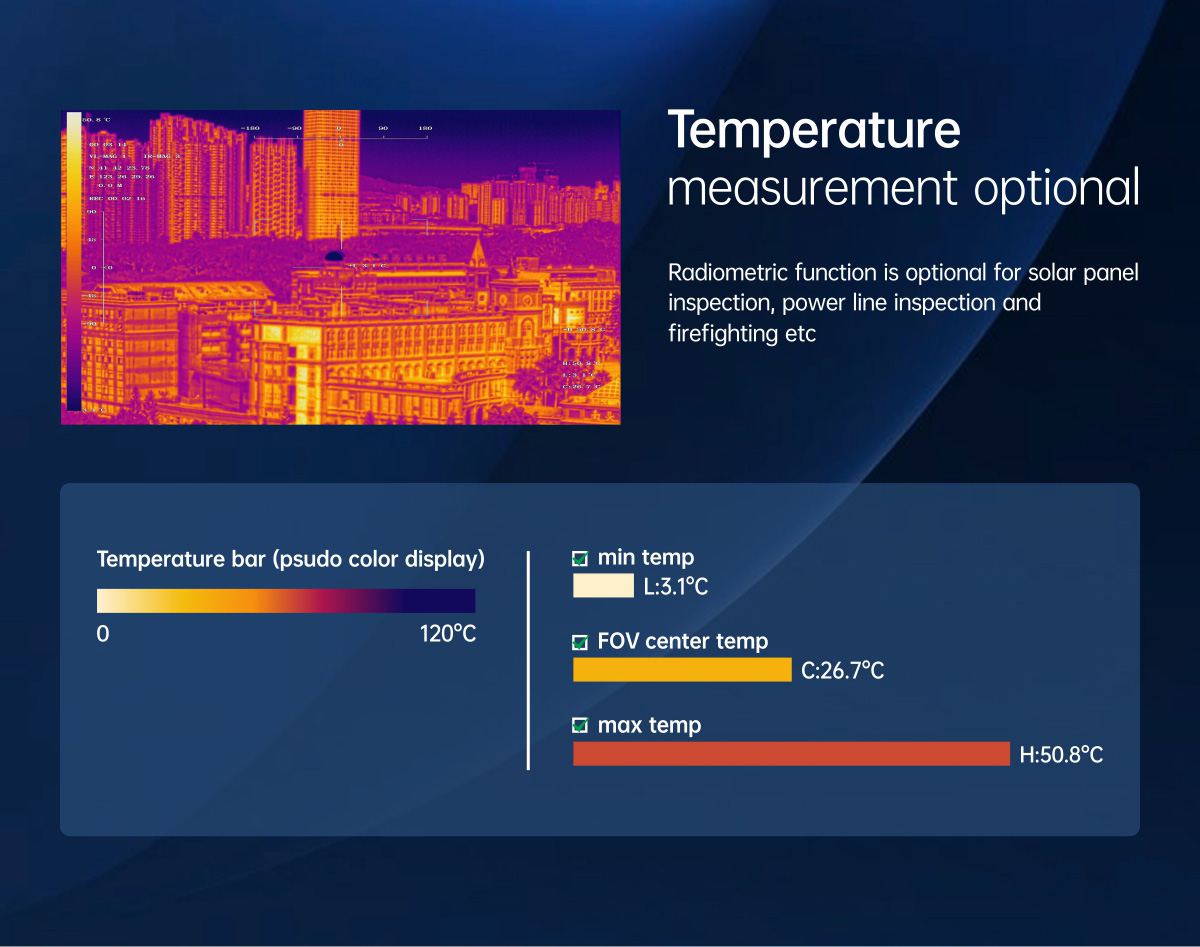

| Thermometry type | Temperature bar (psudo color display) max temp, min temp, FOV center temp (Optional) | |
| Temperature warning | 0℃~120℃ (For thermometry version only) | |
| IR Thermal Object Tracking | ||
| Update rate of deviation pixel | 50Hz | |
| Output delay of deviation pixel | 5ms | |
| Minimum object size | 32*32 pixel | |
| Maximum object size | 128*128 pixel | |
| Tracking speed | ±48 pixel/frame | |
| Object memory time | 100 frames (4s) | |
| Packing Information | ||
| N.W. | 1020g (Viewport version) | |
| Product meas. | 112*136*190.9mm | |

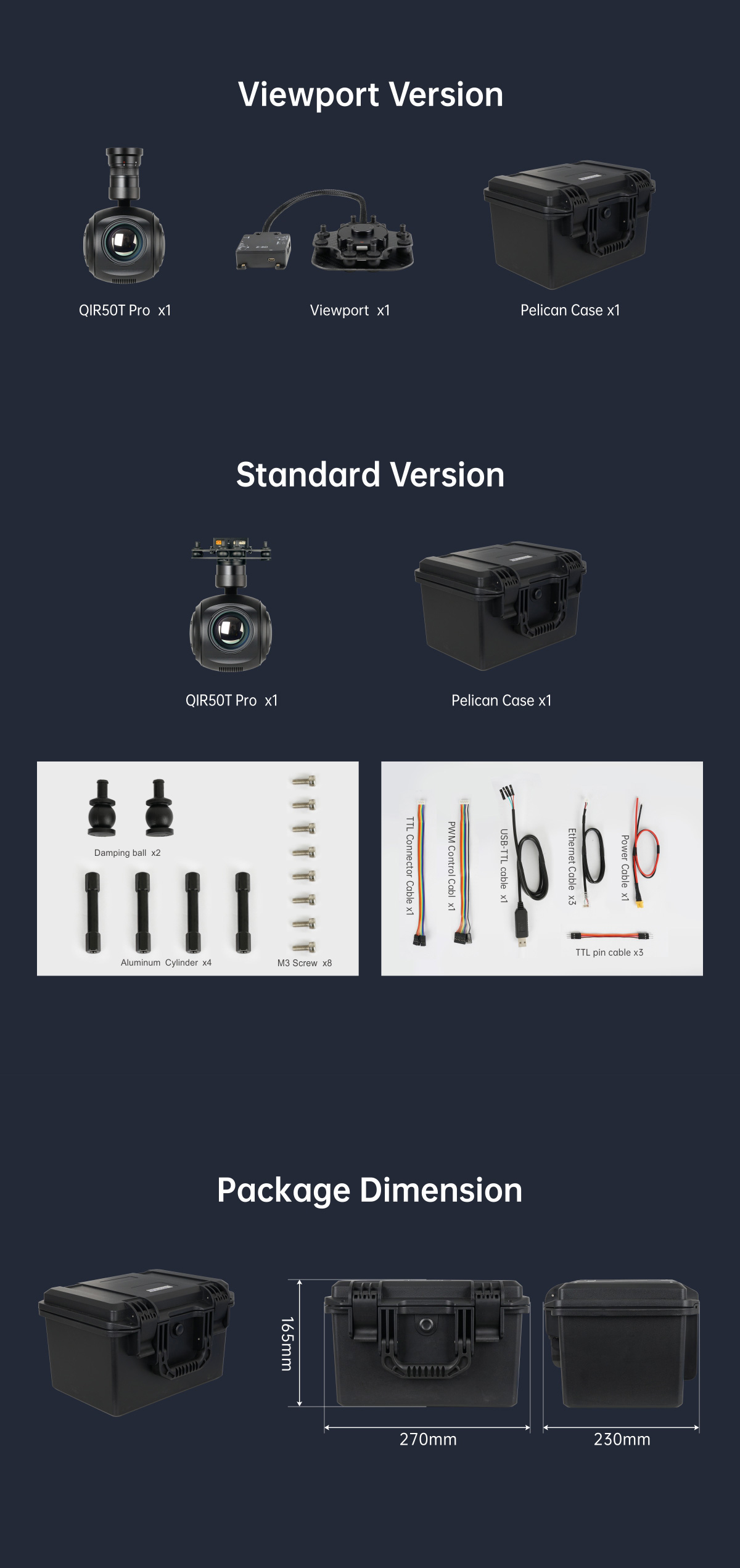

| Accessories | 1pc gimbal camera device, screws, copper cylinders, damping balls, damping boards, 1pc USB to TTL cable / Hight quality plastic box with foam cushion |
|
| G.W. | 2632g | |
| Package meas. | 300*250*200mm | |
For more details , Please visit QIR50T Pro High Definition Infrared Thermal Camera
-
