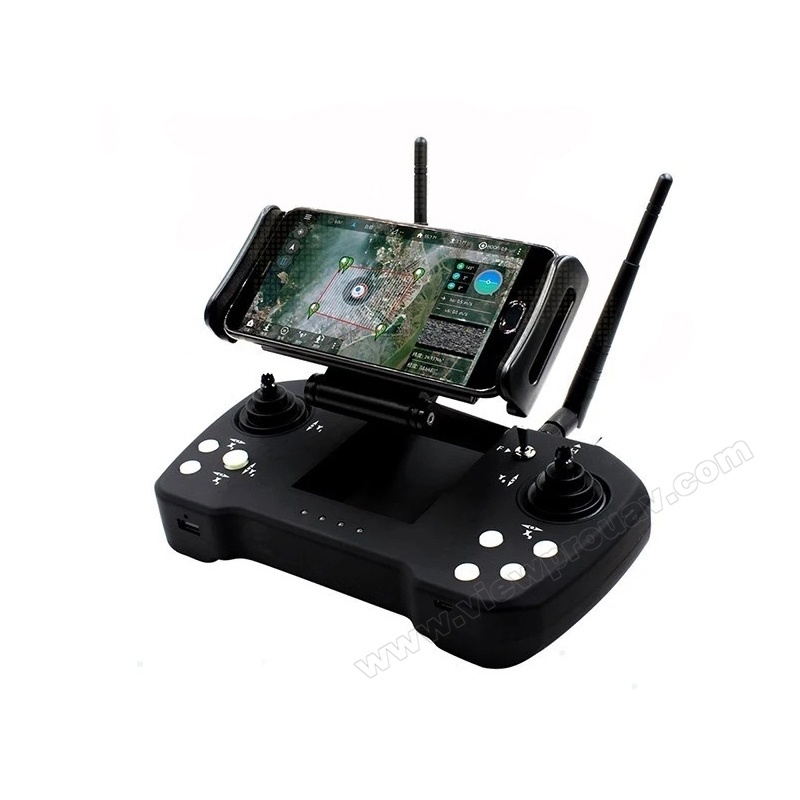

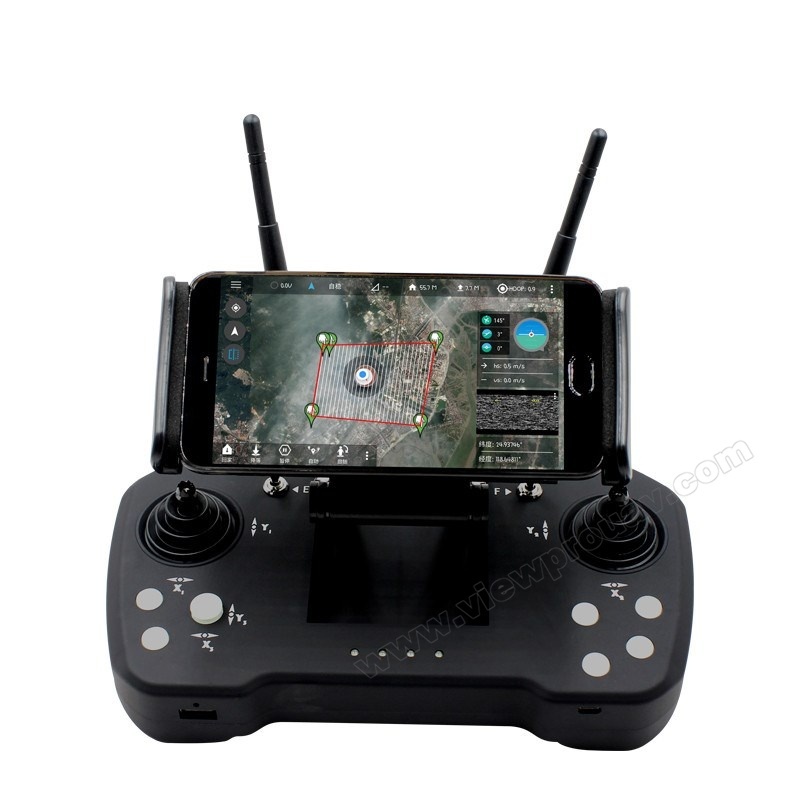

Ground Station APP
F-Tower, based on towers, presses ahead lots of optimization and better interactive interface which expand vision. It could control aircraft to realize the intelligent waypoint plan, automatic implementation and following.Returning by one key improves the professional work efficiency greatly.
SUPERSTRONG EXPANSIBIILITY
Bluetooth, USB connection methods,supporting S.BUS,PPM,PWM,12C, serial port and other ports as well as equipment expansibility.
DIGITAL GRAPH CONTROL LINK SYSTEM
Small volume, light and handy, easy to carry

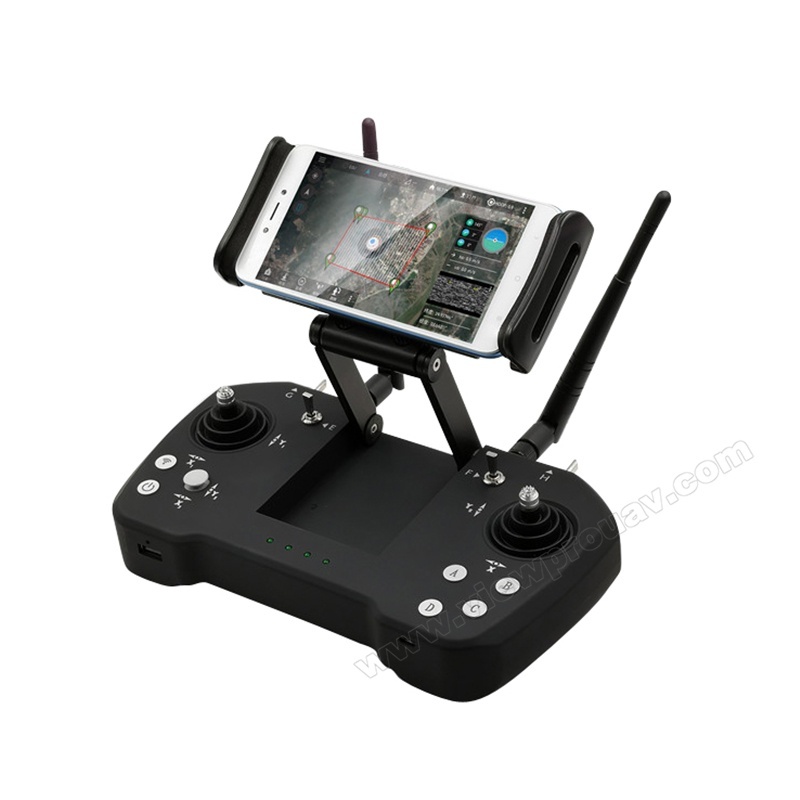

Metal Holder, Free Angle
Adopting aluminum alloy holder is steady and firm and easy to adjust the 360 degree rim lock and 180 degree angle, being easy to adjust.
Remote Control make fly being more intelligent and easier Smart & Speed Humanity Design
PRODUCT INFORMATION

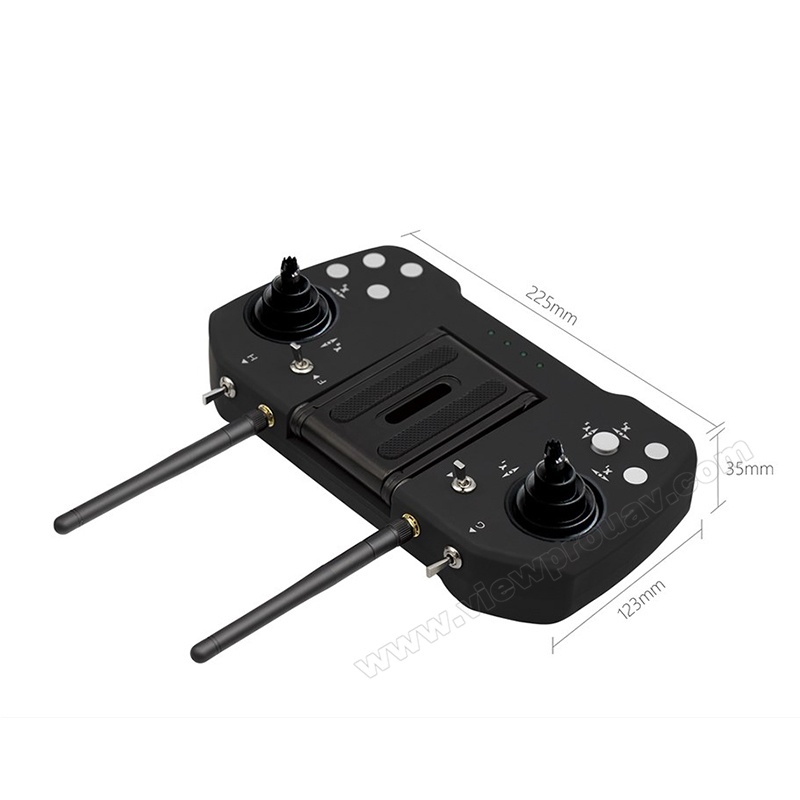

Light and Handy, easy to carry
Small volume, light and handy, easy to carry
Dual Reception and Send,High efficiency and Speed
Being able to independently receive the signal. The superstrong signal and distant realized the double redundancy technology.
Digital receiver for night navigation lights
T12 Advantages
> Build in high efficiency antenna to avoid delay in digital transmission.For safety flying
> Build in intelligent communication.Increase the stability oflong distance transmission.Dual antenna dual module
> supported by FHSS technology.The longer distance canreach 20km
> Hall sensor gimbal with permanent magnetic sensor makelonger life to 30 years.Military grade anti dust protectivegimbal cover
> Remote dimming camera with 8w LED can capture videoclearly at night
> Bluetooth plus USB wire provide reliable link up
> 24hrs continues working with one charge
> Legal 100mw output power comply with related certifcate for export
> Battery is MSDS certified so it is allowable to carry on the plane
POWERFUL TRANSMISSION LINKS
> Double antenna and model redundancy design matching algorithm control and step outalgorithm enhance the communication ability of the weak signals.
>When receiving remote control signals, it preserves TX RX and the flying data to the ground remote control which makes full use of 2.4G wireless broadband to alleviate the crowded space of 433 as well as the unstable frequency band and no interference of 915.
Mobile APP Parameter Adjust Software
Through Bluetooth, USB, OTG to connect mobile phone APP,quickly changing hand shape to adjust channel positive and negative direction, rudder amount, wild protection amount,SBUS, PPM output, data baud rate and so forth.
Providing parameter adjust by one key for different factories and machine types. After saving the function, you could adjust as you using.
Parameter adjust APP is upgraded over the air.
Specification
| M15 Agriculture vs.M15 Enterprise | ||
| M15 Agriculture |
M15 Enterprise |
|
| Transmitter HDMI Output |
N | Y |
| Receiver Video Input |
Viewpro Private Video Stream | Standard RTSP Video Stream (compatible with third-party lP cameras) |
| Range optimization |
Ground to Ground (Height 3 meters) 4+ kilometers |
Ground to Air (Height 120 meters) 15+ kilometers |
| Overall | ||
| Max Transmission Distance |
15 km(unobstructed, free of interference) | |
| AG Control Range | 3.5 km(flying at 3-meter height) | |
| channels | 13 | |
| Datalink supported Fc | PIX APM | |
| Videolink Supported Gcs (Standard RTSP video stream) |
QGroundControl MissionPlanner |
|
| Transmitter (Ground Unit) | ||
| Monitor | 5.5-inch High Definition and High BrightnessLCD Touchscreen |
|
| system | Android 9.0 2G RAM,16G ROM |
|
| Dimension (Antenna Foled) |
189x 138x 41 mm | |
| Weight | 850g | |
| Battery Capacity &Type | 10200 mAh7.4V 2S Li-on | |
| FastCharging Protocol | PD 30w | |
| Charging Time | 3 hours | |
| Battery Life | 15 hours | |
| lnterface & Ports | Charging: Type-C Firmware Upgrade: DATA(4-Pin) Mobile Network: SIM Card Slot External Storage: TF Card Slot Tripod Connect: 1/4-inch Screw Hole Video Output: Standard HDMI External RTK: DATA(4-Pin) Data Transfer: USB-A |
|
| Waterproof Level | lP53 | |
| Working Temperature | -10℃~55℃ | |
| Receiver (Air Unit) | ||
| Signal Output | 16 channels of S.BUS 5 channels of PWM |
|
| lnterface & Ports | S.BUS: 3-Pin Datalink (to FC): UART 4-Pin PwM Channel 1-5:6-Pin Video lnput: 8-Pin Firmware Upgrade: Type-c |
|
| Dimension (Antenna Excluded) |
70x 55x 16mm | |
| Weight (Antenna Excluded) |
100g | |
| Antenna Gain | 5dBi | |
| power Input | 25.2~58.8V (6s~14s) |
|
| Working Temperature | -10℃～55℃ | |
