Product Introduction
Specification

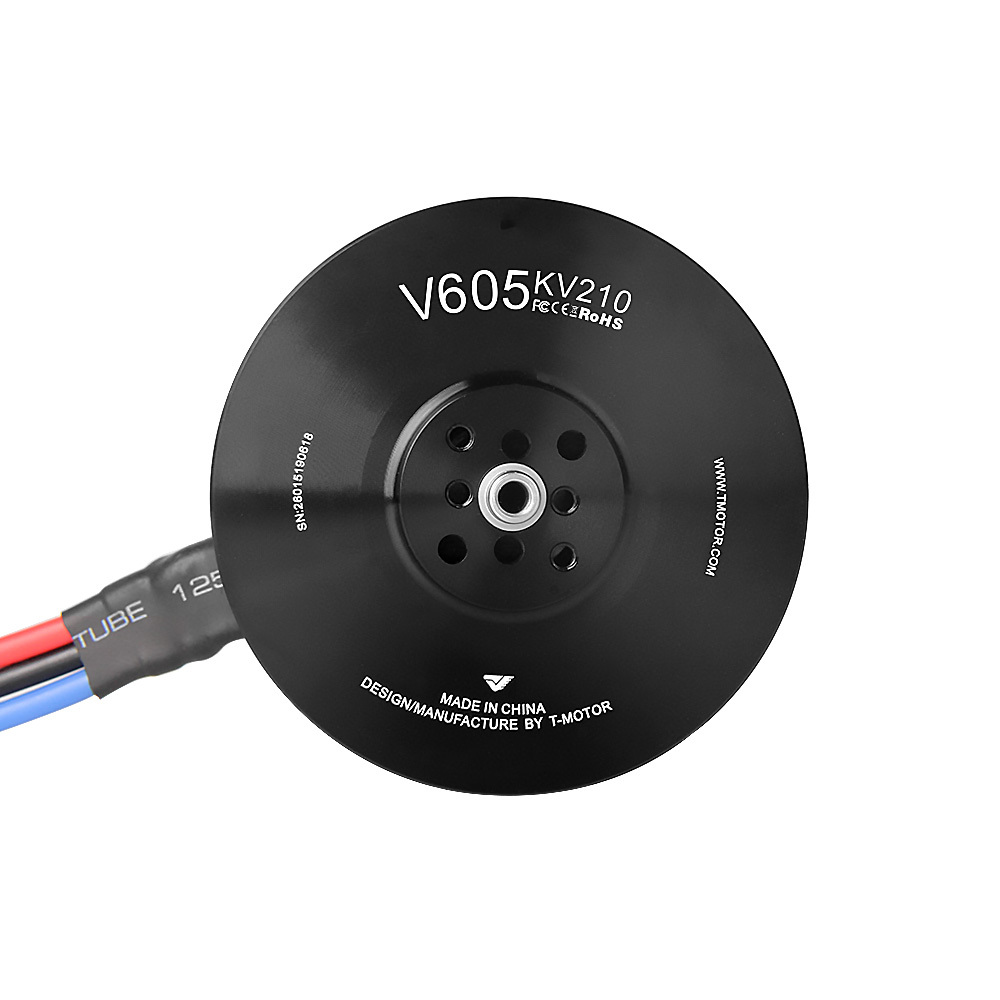

12S Vtol Brushless Drone Motor T-motor V605 KV210 Specification
| Model No./ Kv | V605 KV210 | Magnet Temperature | Class E 150℃ |
| Resistance Grade | |||
| Motor Size(mm) | Φ68.8*39.9 | Lead(mm) | 14AWG*600 |
| Stator Technology | Anti-rust treatment;180°C high | Enamelled Wires Temperature | Class C 220℃ |
| temperature-resisting coatings | Resistance Grade | ||
| Configuration | 24N28P | Coil Withdraw Voltage | 500V/5s |
| Shaft Diameter(mm) | IN:6 OUT:6 | Rotor Dynamic | ≤5mg |
| Balance Standard | |||
| Bearing | Imported 626ZZ | IP | IP45 |
| KV Value | KV210 | Battery (lipo)/Voltage |
12S(4.2V/Sl)/42-52V |
| Recommendation | |||
| Idle Current(18V) | 1.6A | ESC Recommendation | FLAME 80A 12S V2.0 |
| Peak Current(A) | 70A/Continuous 180s | Propeller Recommendation | V22*7.4 |
| Max. Power(W) | 3200W/Continuous 180s | Motor Weight(g) | 340g |
| (385g Weight (incl.cables)) | |||
| Internal Resistance(mΩ) | 48 | Package Weight(g) | 550g |
For more details, please visit 12S Vtol Brushless Drone Motor T-motor V605 KV210
-
