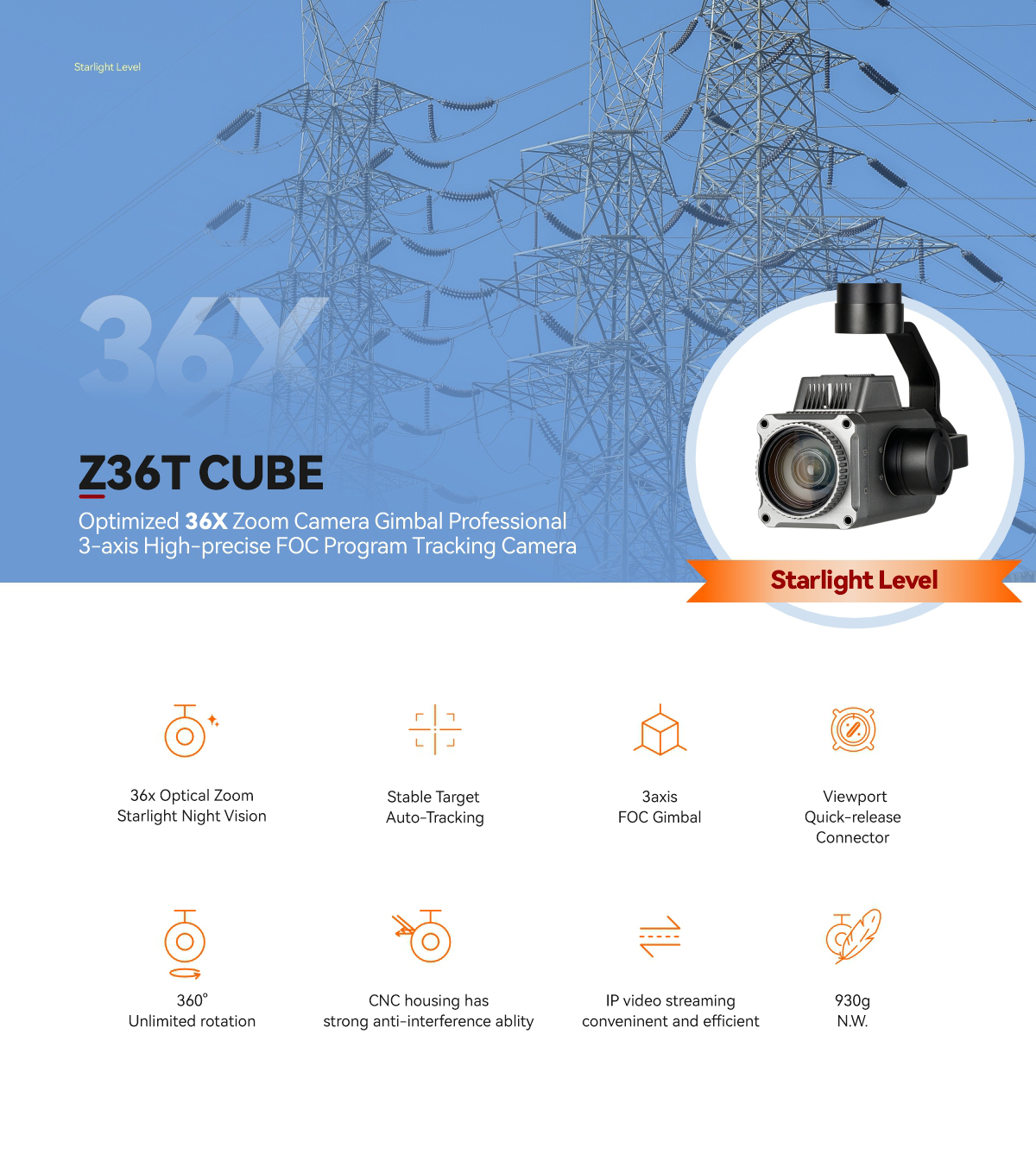

Z36T cube optimized 36times zoom camera gimbal Professional 3-axis High-precise FOC Program tracking camera

$4,499.00
Style
Z36T cube optimized 36times zoom camera gimbal Professional 3-axis High-precise FOC Program tracking camera Z36T cube optimized 36times zoom camera gimbal Professional 3-axis High-precise FOC Program tracking camera Z36T cube optimized 36times zoom camera gimbal Professional 3-axis High-precise FOC Program tracking camera Z36T cube optimized 36times zoom camera gimbal Professional 3-axis High-precise FOC Program tracking camera Z36T cube optimized 36times zoom camera gimbal Professional 3-axis High-precise FOC Program tracking camera Z36T cube optimized 36times zoom camera gimbal Professional 3-axis High-precise FOC Program tracking camera

Product Introduction

Hardware Parameter
Working voltage 16V
Input voltage 4S ~ 6S
Output voltage 5V (connect with PWM)
Dynamic current 580~1150mA @ 16V
Working environment temp. -20℃ ~ +60℃

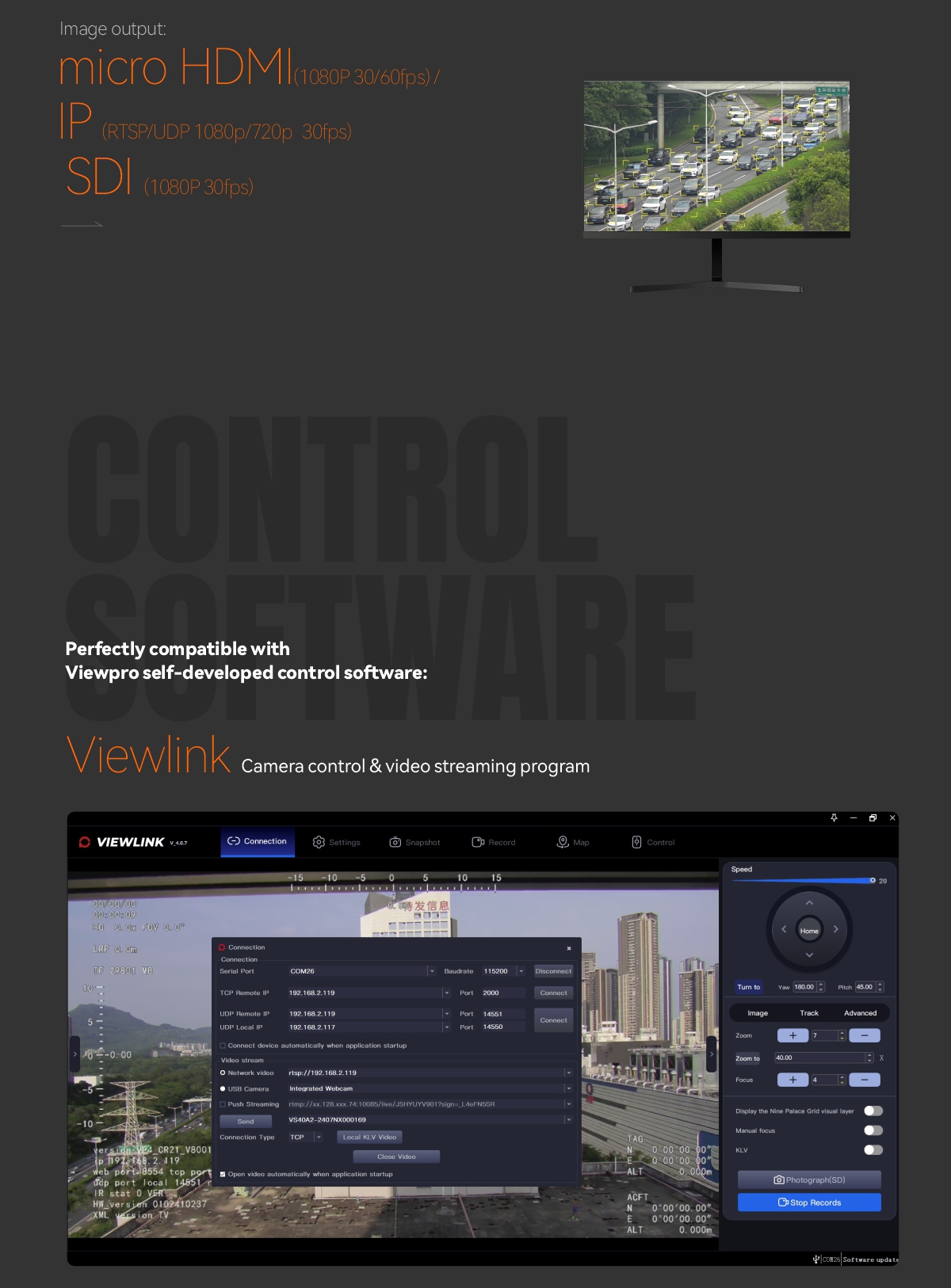

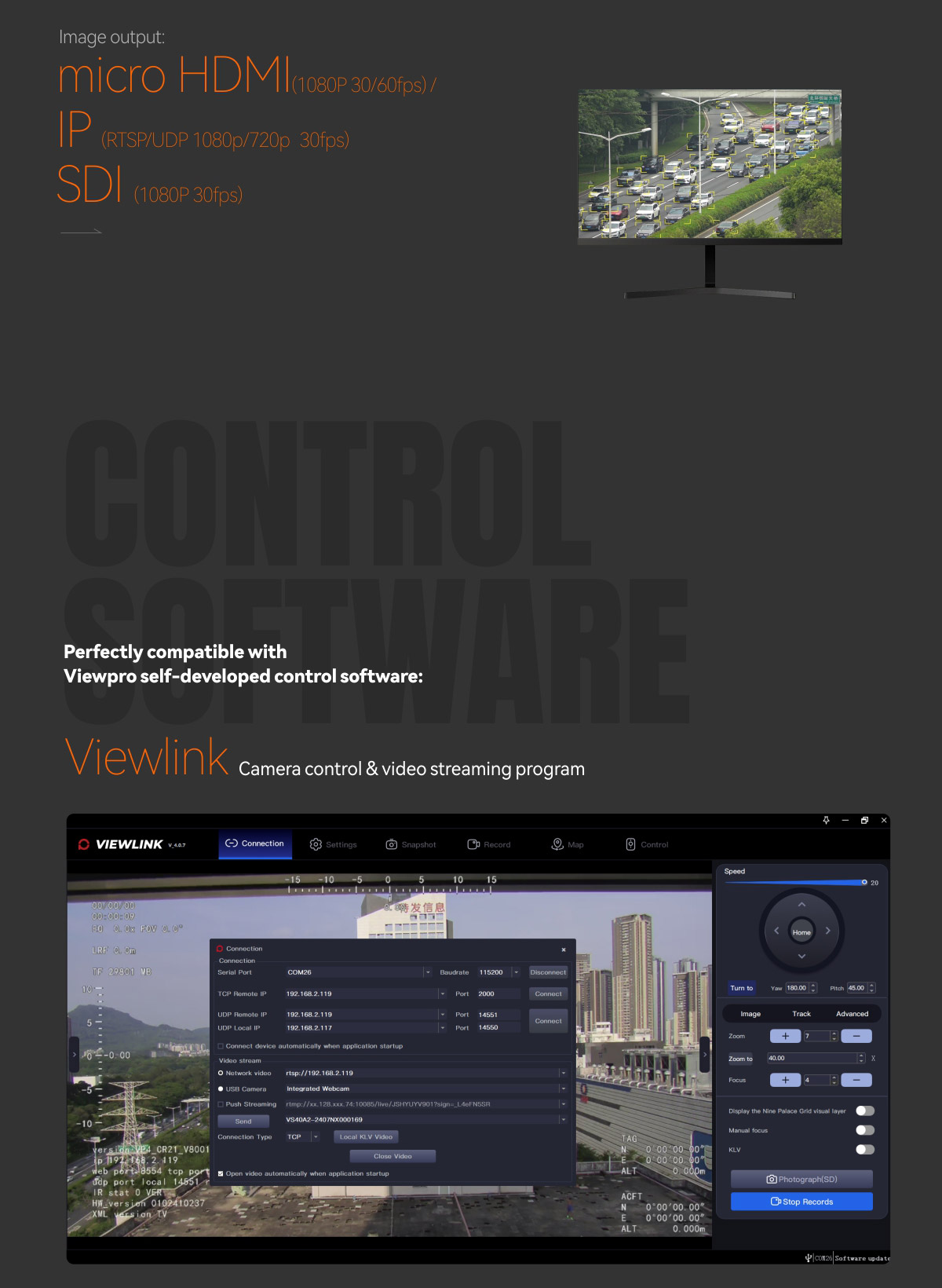

Output  micro HDMI(1080P 60fps) / IP (RTSP/UDP 720p/1080p  25fps/30fps) / SDI (1080P 30fps)
Local-storage SD card (Up to 512G,class 10, FAT32 format)
Photo storage format JPG(1920*1080)
Video storage format MP4  (1080P 30fps)

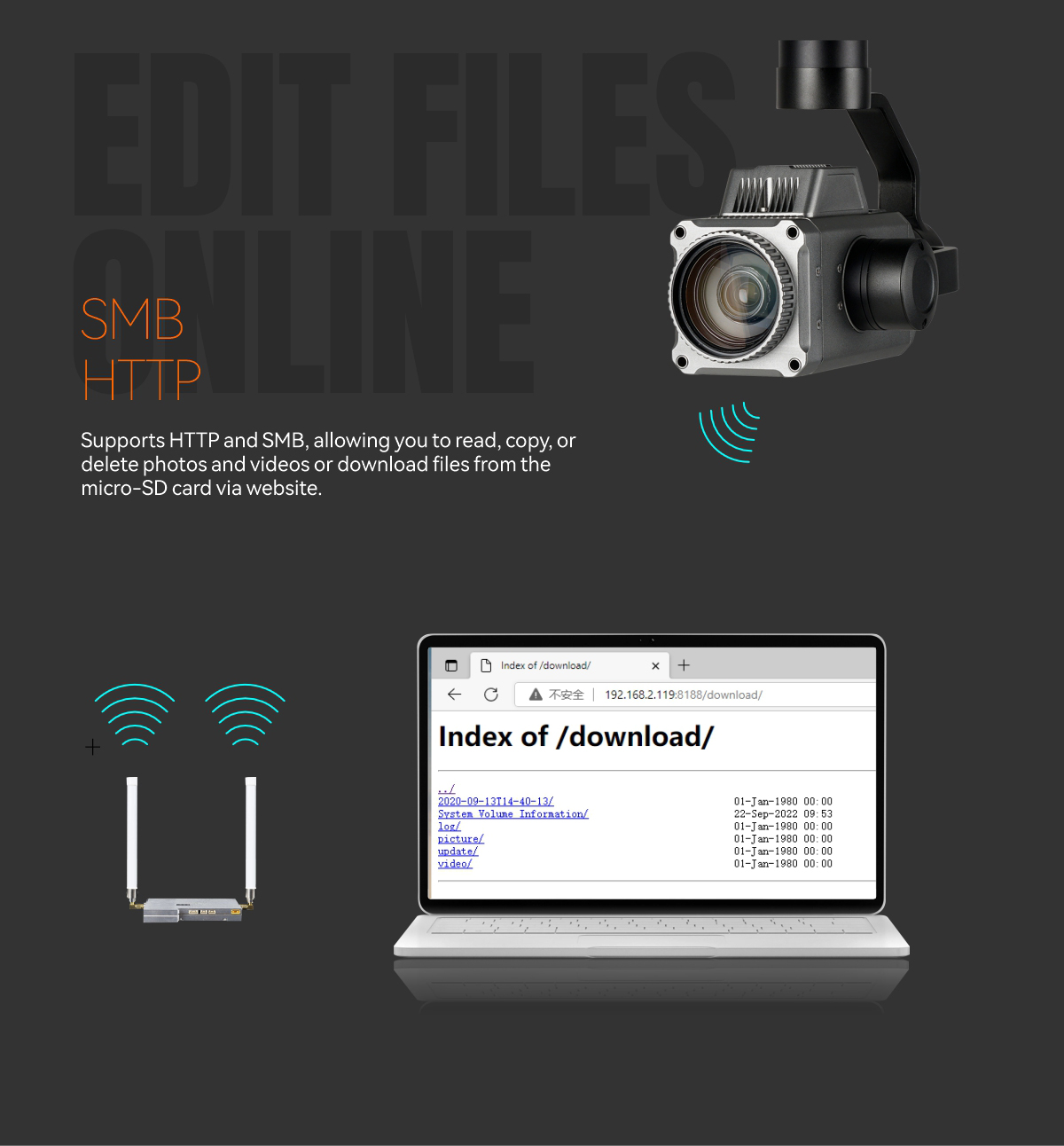

Card reading online SMB read /  HTTP read

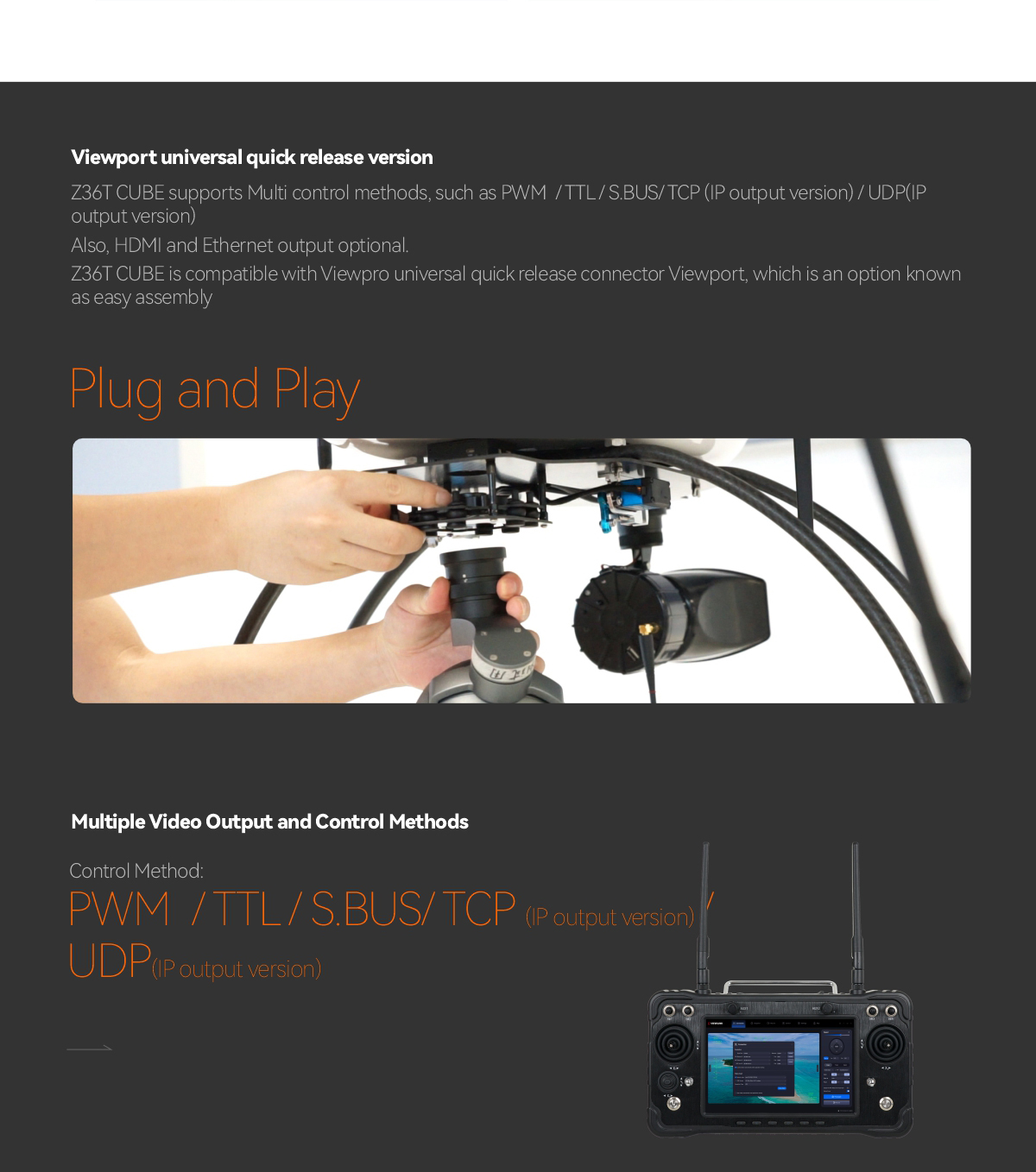

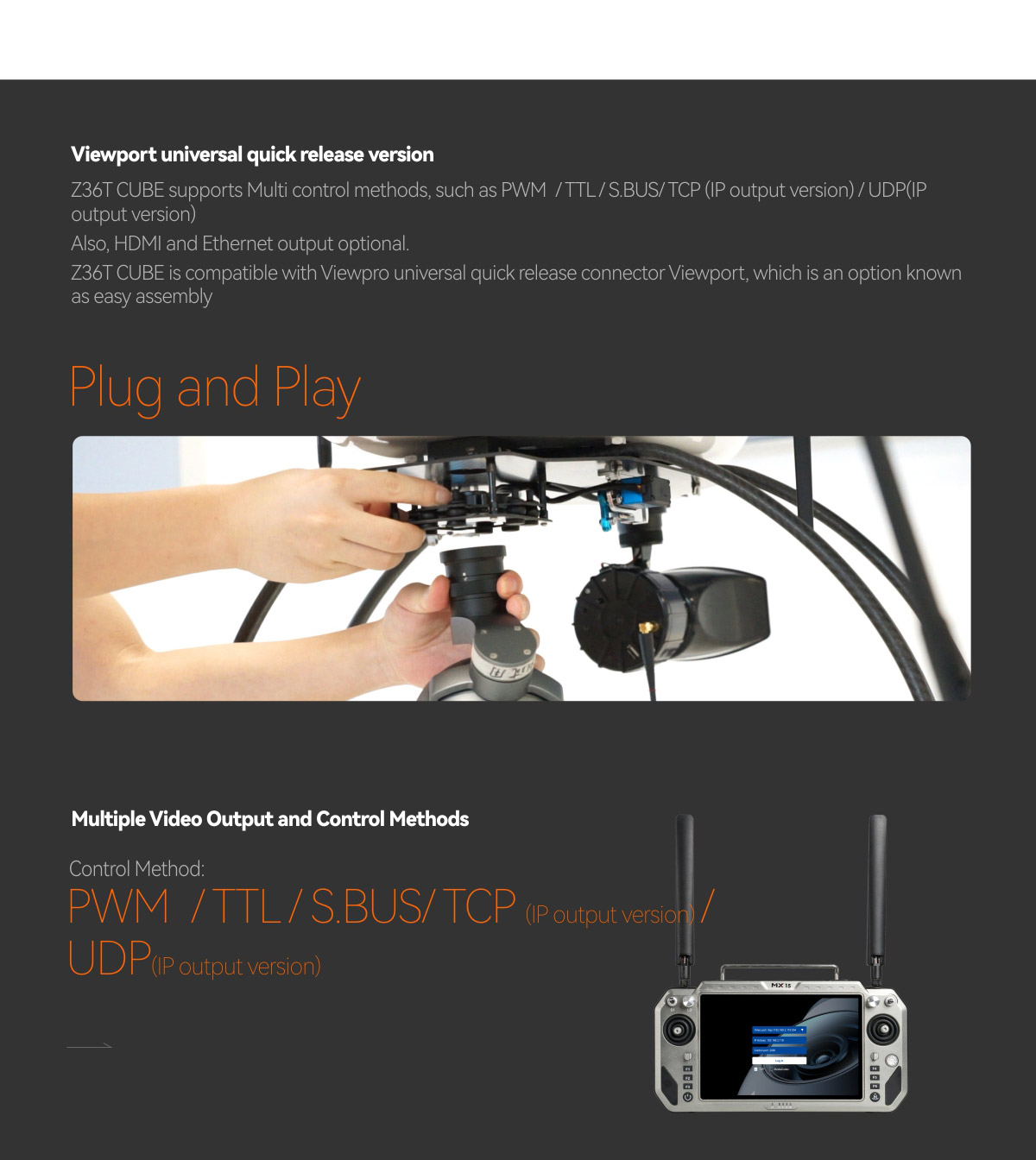

Control method PWM  / TTL / S.BUS/ TCP (IP output version) / UDP(IP output version)
Geotagging Support, display time and GPS coordinate in picture exif

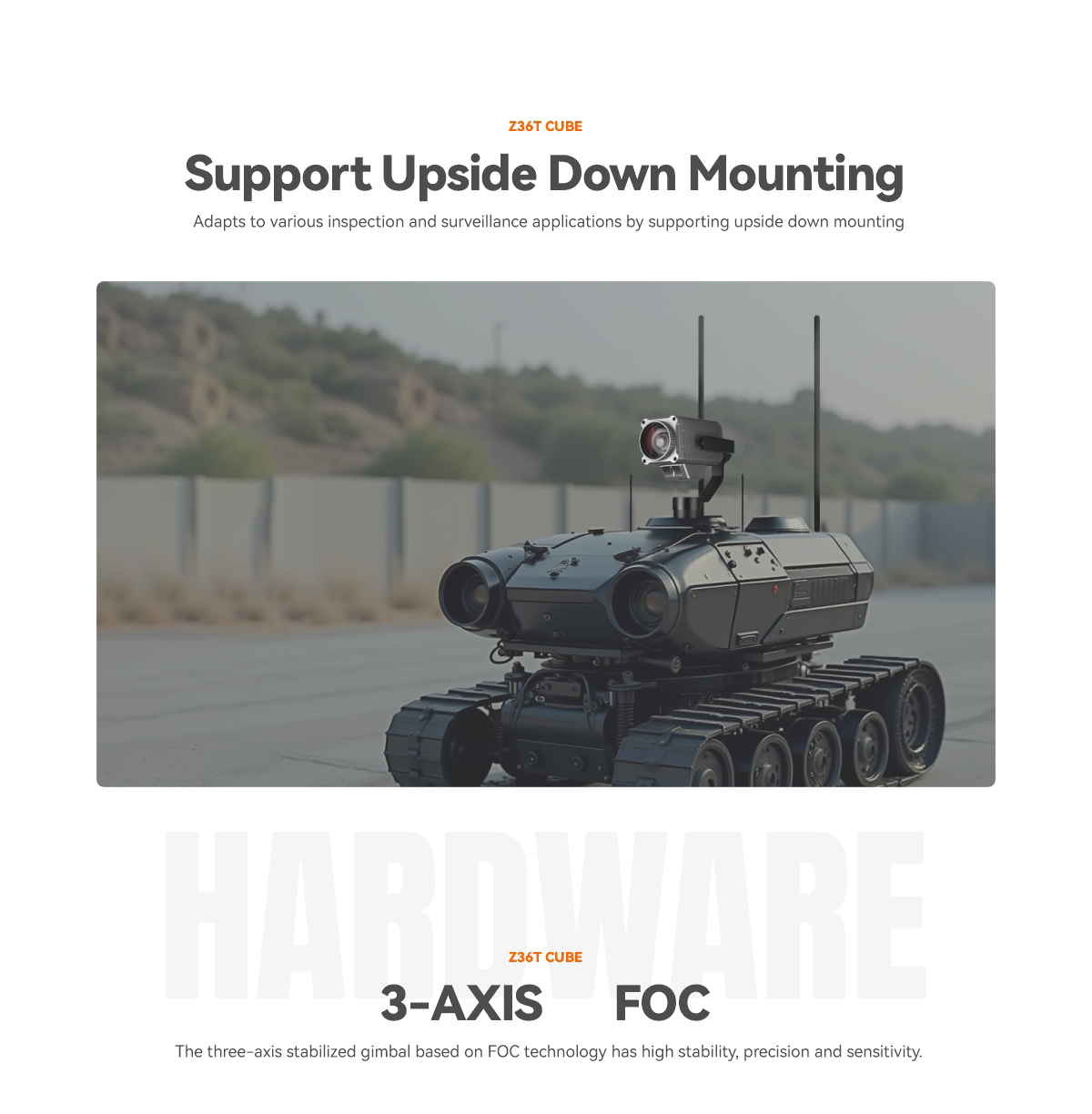

Gimbal Spec
Mechanical Range Pitch/Tilt: ±120°,      Roll: ±70°,    Yaw/Pan: ±300° / ±360°*N (IP  output version)
Controllable Range Pitch/Tilt: -45°~115°,   Yaw/Pan: ±290° / ±360°*N (IP  output version)
Vibration angle Pitch/Roll: ±0.02°, Yaw:±0.02°
One-key to center
Camera Spec
Imager Sensor 1/2" Sony IMX385LQR-C CMOS Sensor
Picture quality Full HD 1080 (1920*1080)
Effective pixel 2.13M pixels

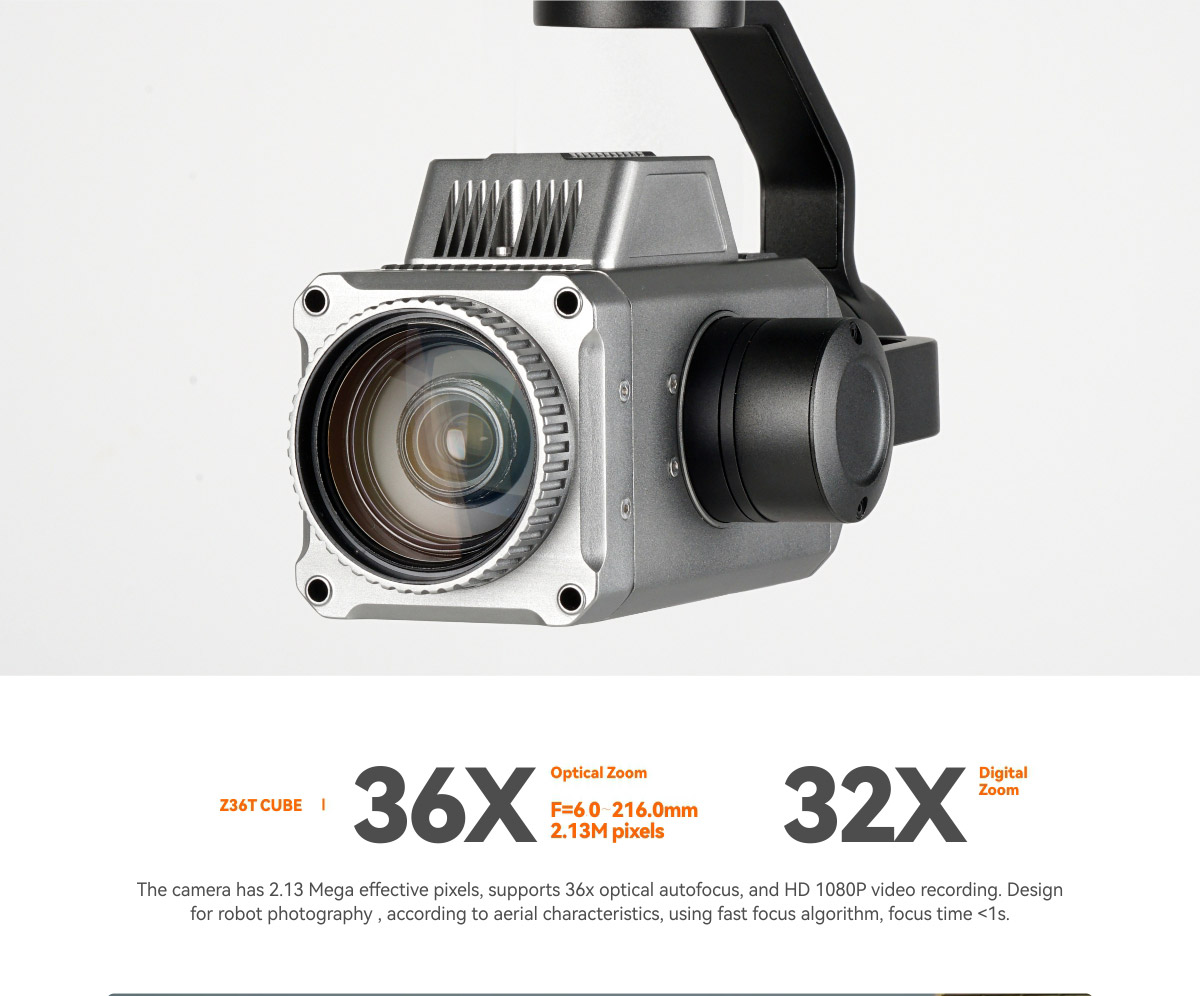

Lens optical zoom 36x, F= 6.0mm ~ 216.0mm
Digital zoom Digital x32 Zoom
Angle of View (D, H, V) Wide:  63.31°     56.5°     33.63°
Tele:    2.44°       2.12°     1.19°
Sync system Progressive scanning
S/N ratio more than 50dB (AGC off)
Min. illumination (50%) Color(1/30s, 77.7dB) : 0.01 lux , BW(1/30s, 77.7dB) : 0.002lux
Color DSS(1/1s, 77.7dB) : 0.001 lux , BW DSS(1/1s, 77.7dB) : 0.0002 lux
Gain Auto
White balance Auto / One Push / Manual / Indoor / Outdoor / Auto-Ext
Shutter speed 1/30(25) ~ 1/60,000 sec
Brightness 0 ~ 20 steps
Aperture control 0 ~ 20 steps
Defog Yes
OSD Yes

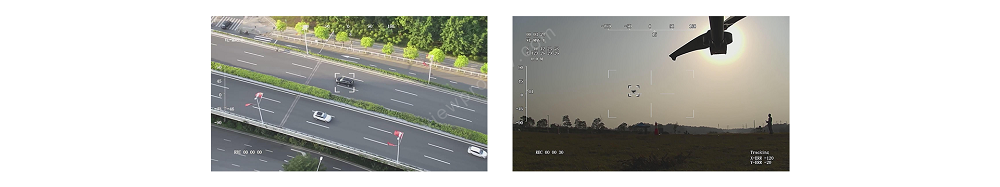

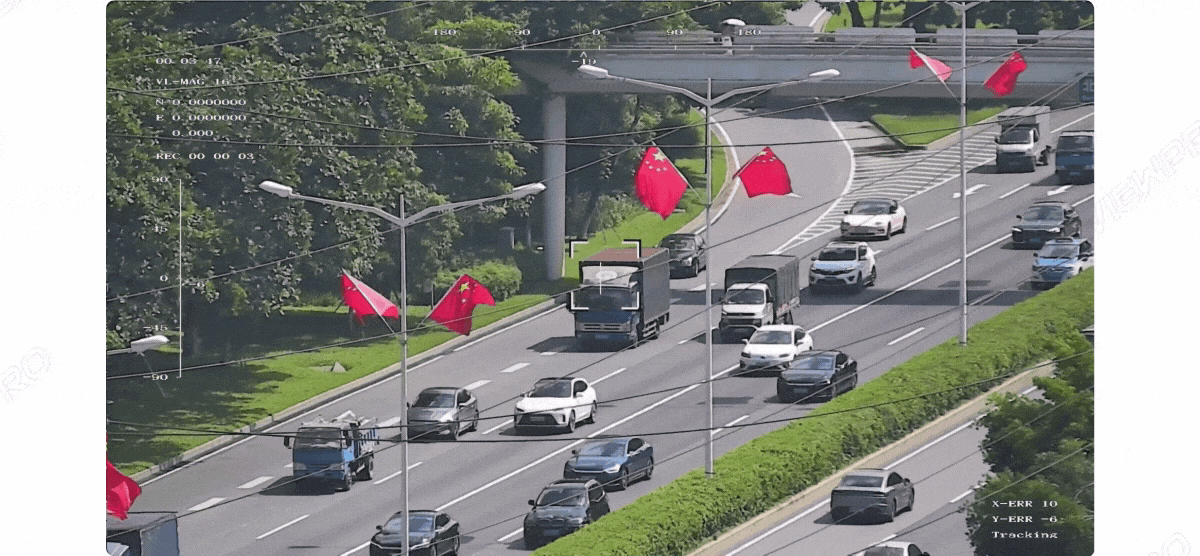

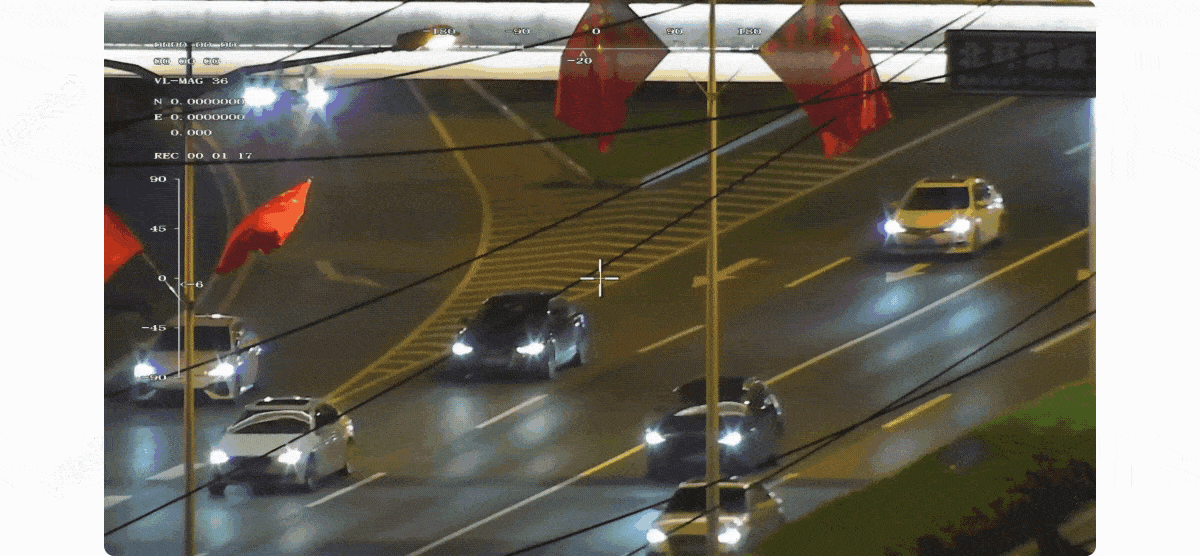

Camera Object Tracking
Update rate of deviation pixel 50Hz
Output delay of deviation pixel 5ms
Minimum object contrast 5%
SNR 4
Minimum object size 32*32 pixel
Maximum object size 128*128 pixel
Tracking speed ±48 pixel/frame
Object memory time 100 frames (4s)
The mean square root values of pulse noise in the object position < 0.5 pixel

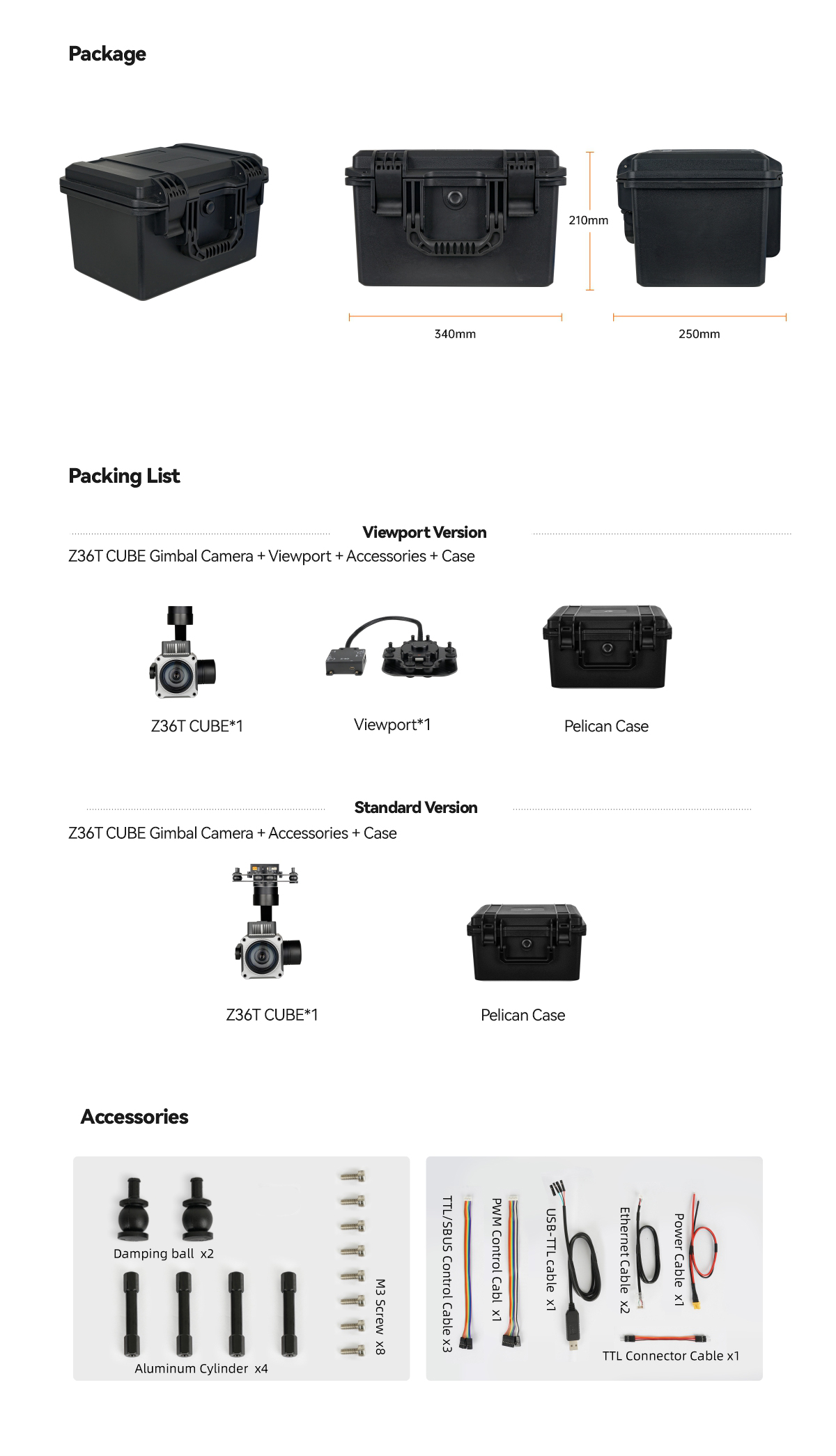

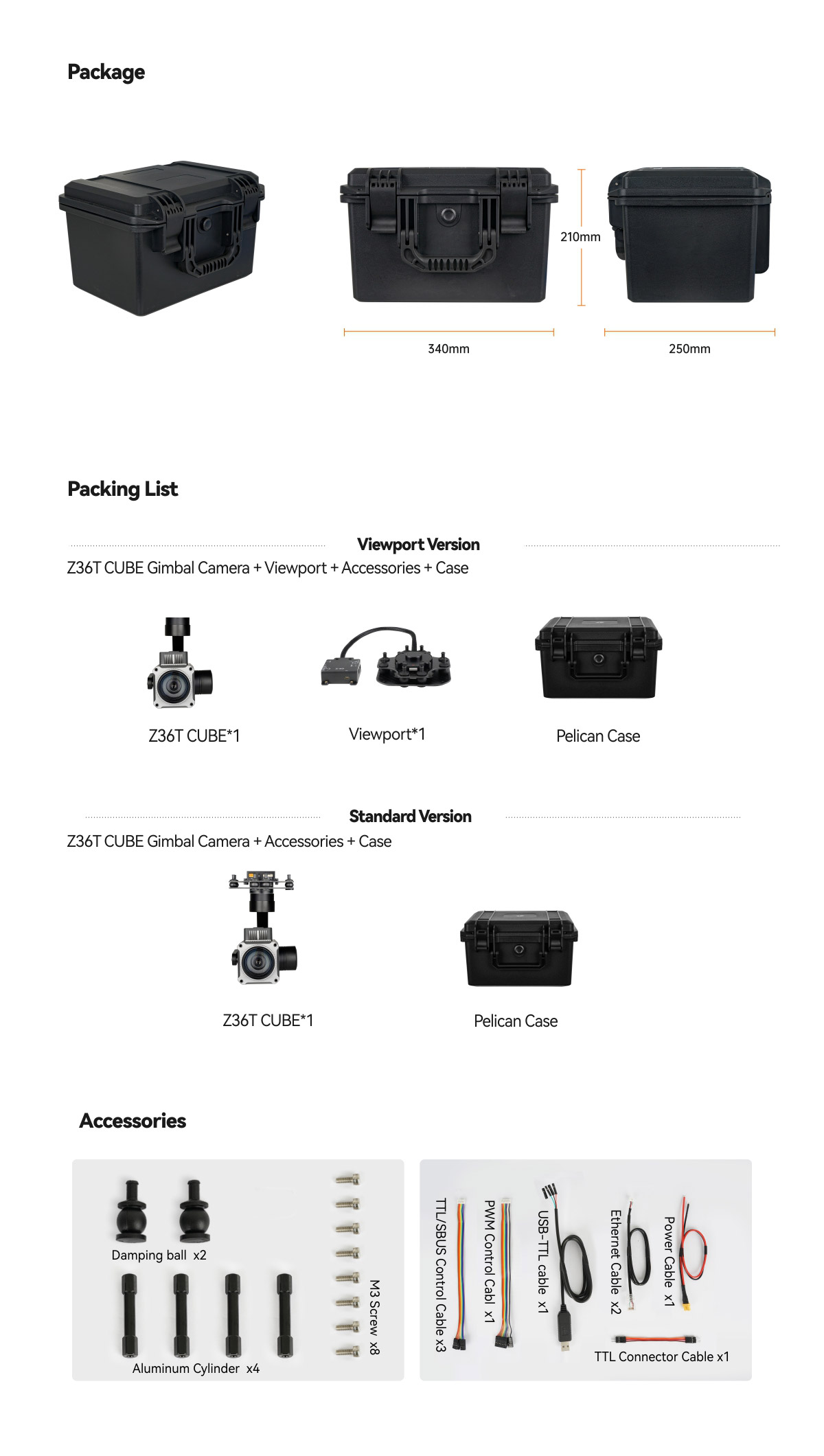

Packing Information
N.W. 930g / 992g(Viewport Version)

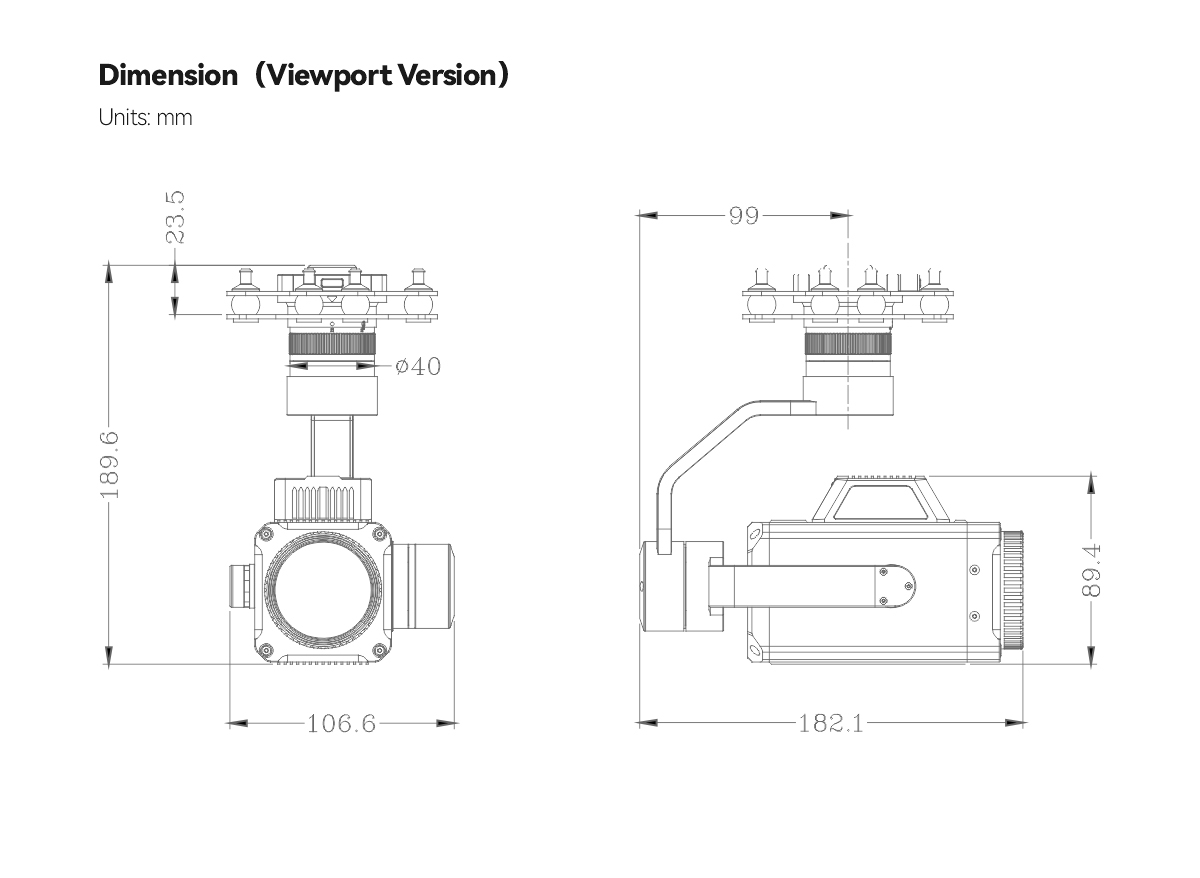

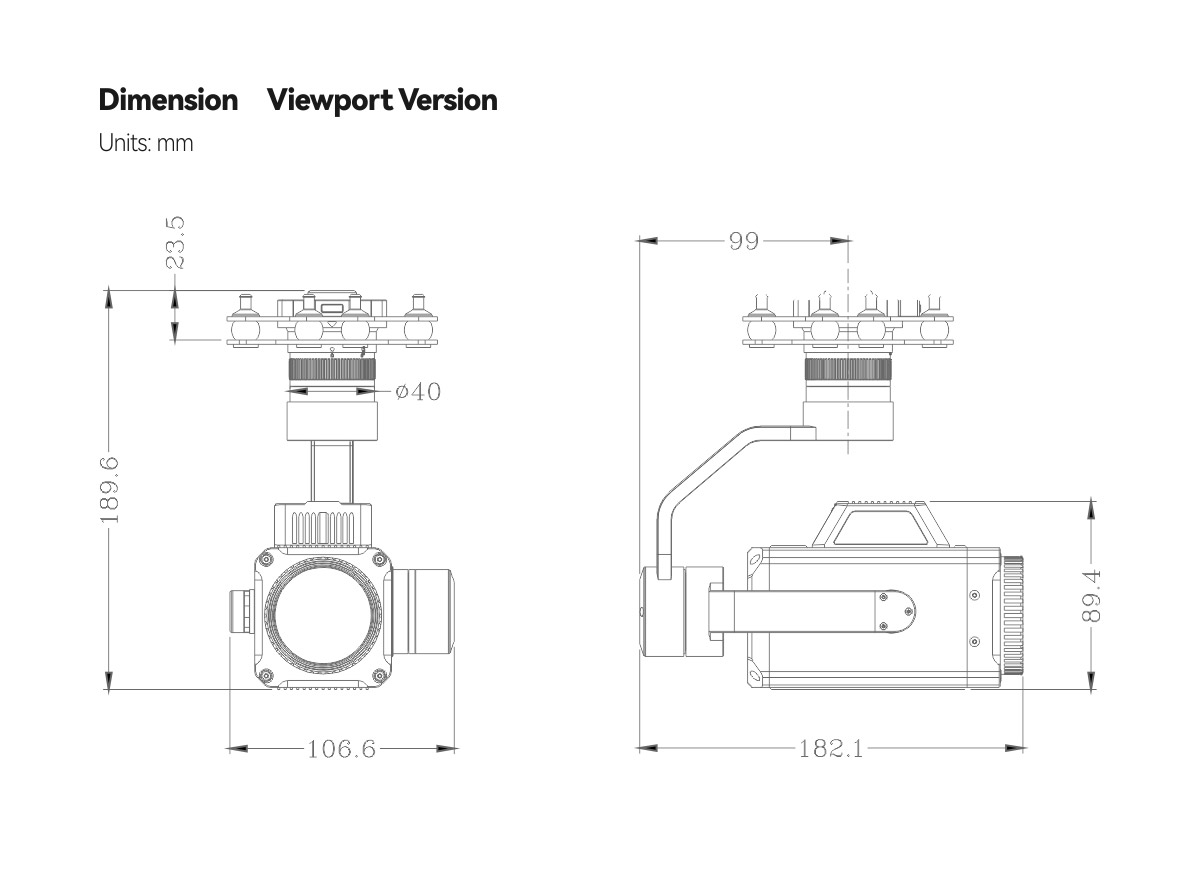

Product meas. 106.8*182.1*194.6mm
Accessories 1pc gimbal camera device, 16pcs screws,  4pcs copper cylinders, 12pcs damping balls, 4pcs damping boards / Hight quality plastic box with foam cushion
G.W. 3112g
Package meas. 360*300*250mm



Specification

  • Product Introduction

  • Specification

Hardware Parameter
Working voltage 16V
Input voltage 4S ~ 6S
Output voltage 5V (connect with PWM)
Dynamic current 580~1150mA @ 16V
Working environment temp. -20℃ ~ +60℃
Output  micro HDMI(1080P 60fps) / IP (RTSP/UDP 720p/1080p  25fps/30fps) / SDI (1080P 30fps)
Local-storage SD card (Up to 512G,class 10, FAT32 format)
Photo storage format JPG(1920*1080)
Video storage format MP4  (1080P 30fps)
Card reading online SMB read /  HTTP read
Control method PWM  / TTL / S.BUS/ TCP (IP output version) / UDP(IP output version)
Geotagging Support, display time and GPS coordinate in picture exif
Gimbal Spec
Mechanical Range Pitch/Tilt: ±120°,      Roll: ±70°,    Yaw/Pan: ±300° / ±360°*N (IP  output version)
Controllable Range Pitch/Tilt: -45°~115°,   Yaw/Pan: ±290° / ±360°*N (IP  output version)
Vibration angle Pitch/Roll: ±0.02°, Yaw:±0.02°
One-key to center
Camera Spec
Imager Sensor 1/2" Sony IMX385LQR-C CMOS Sensor
Picture quality Full HD 1080 (1920*1080)
Effective pixel 2.13M pixels
Lens optical zoom 36x, F= 6.0mm ~ 216.0mm
Digital zoom Digital x32 Zoom
Angle of View (D, H, V) Wide:  63.31°     56.5°     33.63°
Tele:    2.44°       2.12°     1.19°
Sync system Progressive scanning
S/N ratio more than 50dB (AGC off)
Min. illumination (50%) Color(1/30s, 77.7dB) : 0.01 lux , BW(1/30s, 77.7dB) : 0.002lux
Color DSS(1/1s, 77.7dB) : 0.001 lux , BW DSS(1/1s, 77.7dB) : 0.0002 lux
Gain Auto
White balance Auto / One Push / Manual / Indoor / Outdoor / Auto-Ext
Shutter speed 1/30(25) ~ 1/60,000 sec
Brightness 0 ~ 20 steps
Aperture control 0 ~ 20 steps
Defog Yes
OSD Yes
Camera Object Tracking
Update rate of deviation pixel 50Hz
Output delay of deviation pixel 5ms
Minimum object contrast 5%
SNR 4
Minimum object size 32*32 pixel
Maximum object size 128*128 pixel
Tracking speed ±48 pixel/frame
Object memory time 100 frames (4s)
The mean square root values of pulse noise in the object position < 0.5 pixel
Packing Information
N.W. 930g / 992g(Viewport Version)
Product meas. 106.8*182.1*194.6mm
Accessories 1pc gimbal camera device, 16pcs screws,  4pcs copper cylinders, 12pcs damping balls, 4pcs damping boards / Hight quality plastic box with foam cushion
G.W. 3112g
Package meas. 360*300*250mm
