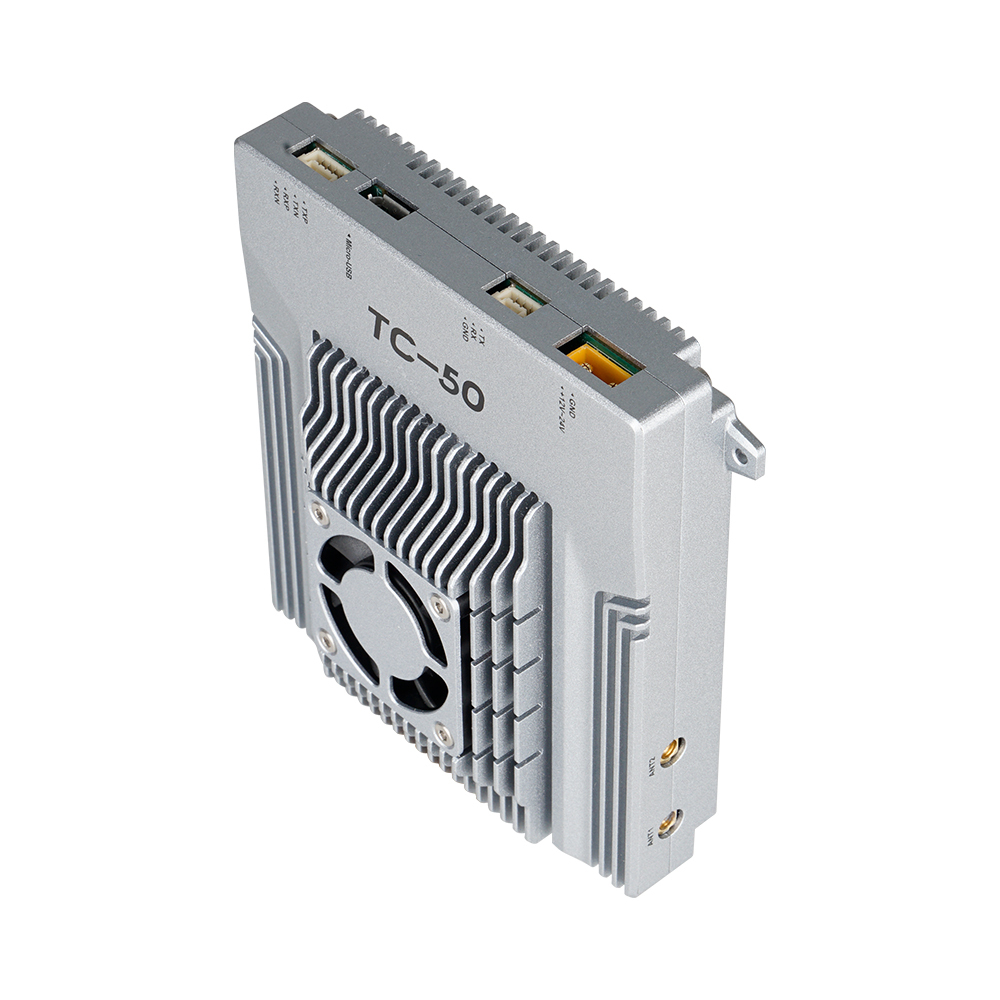

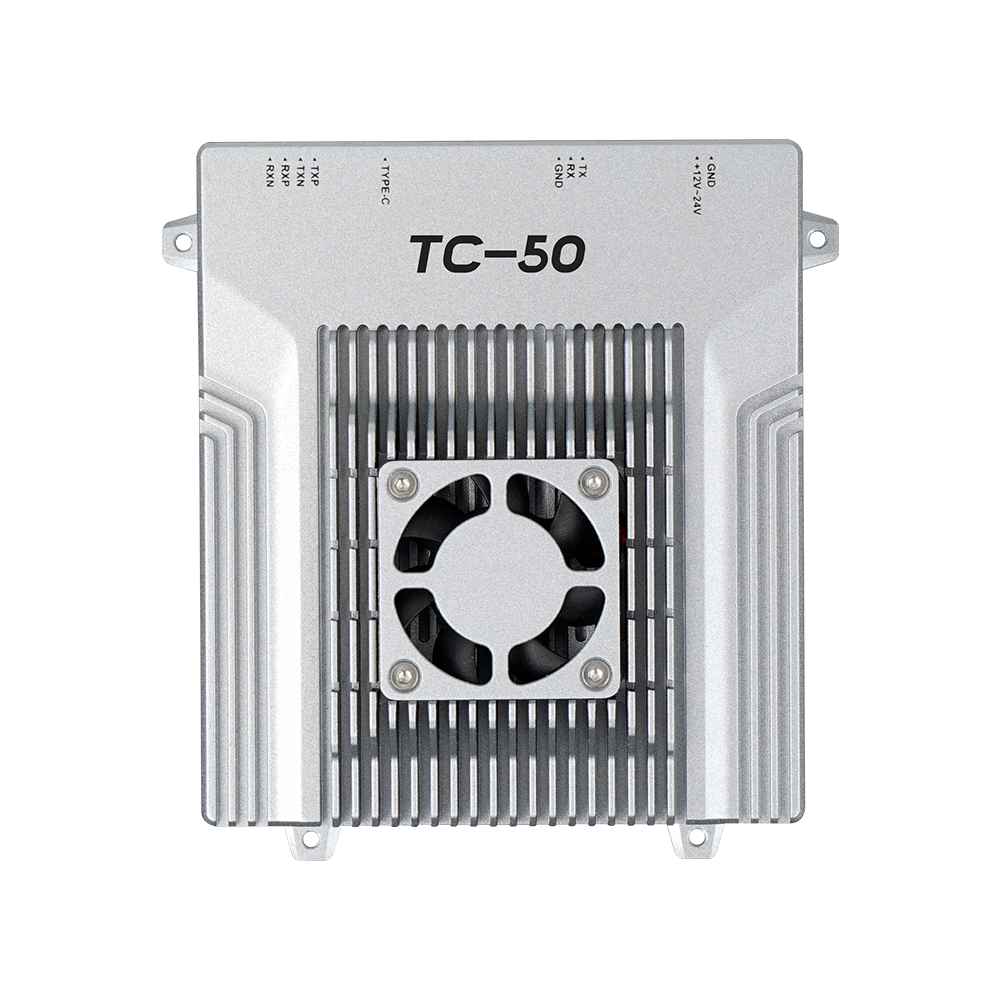

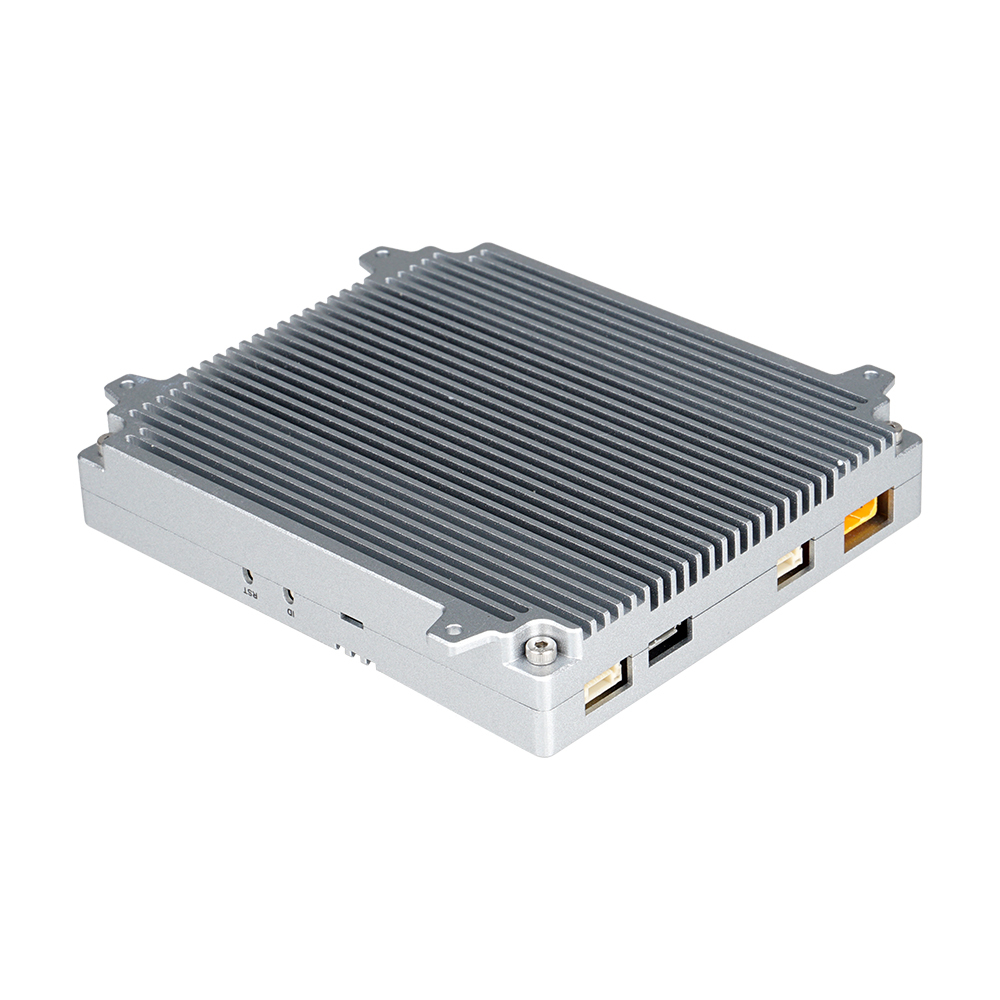

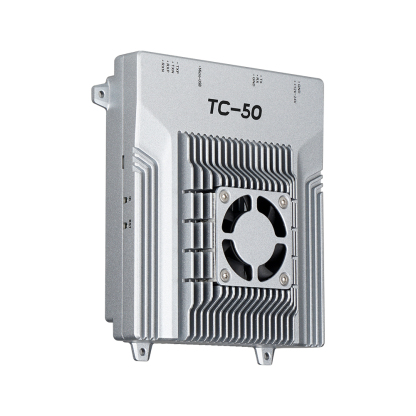

TC-50 | 50KM LTE-Based HD Data & Video Transmission System Specification
| Items | Technical Specification | Remarks |
| Working frequency | 1427.9-1447.9MHz | |
| RF channel | Supports single-transmit dual-receive (1T2R) | |
| Transmit power | 2W | |

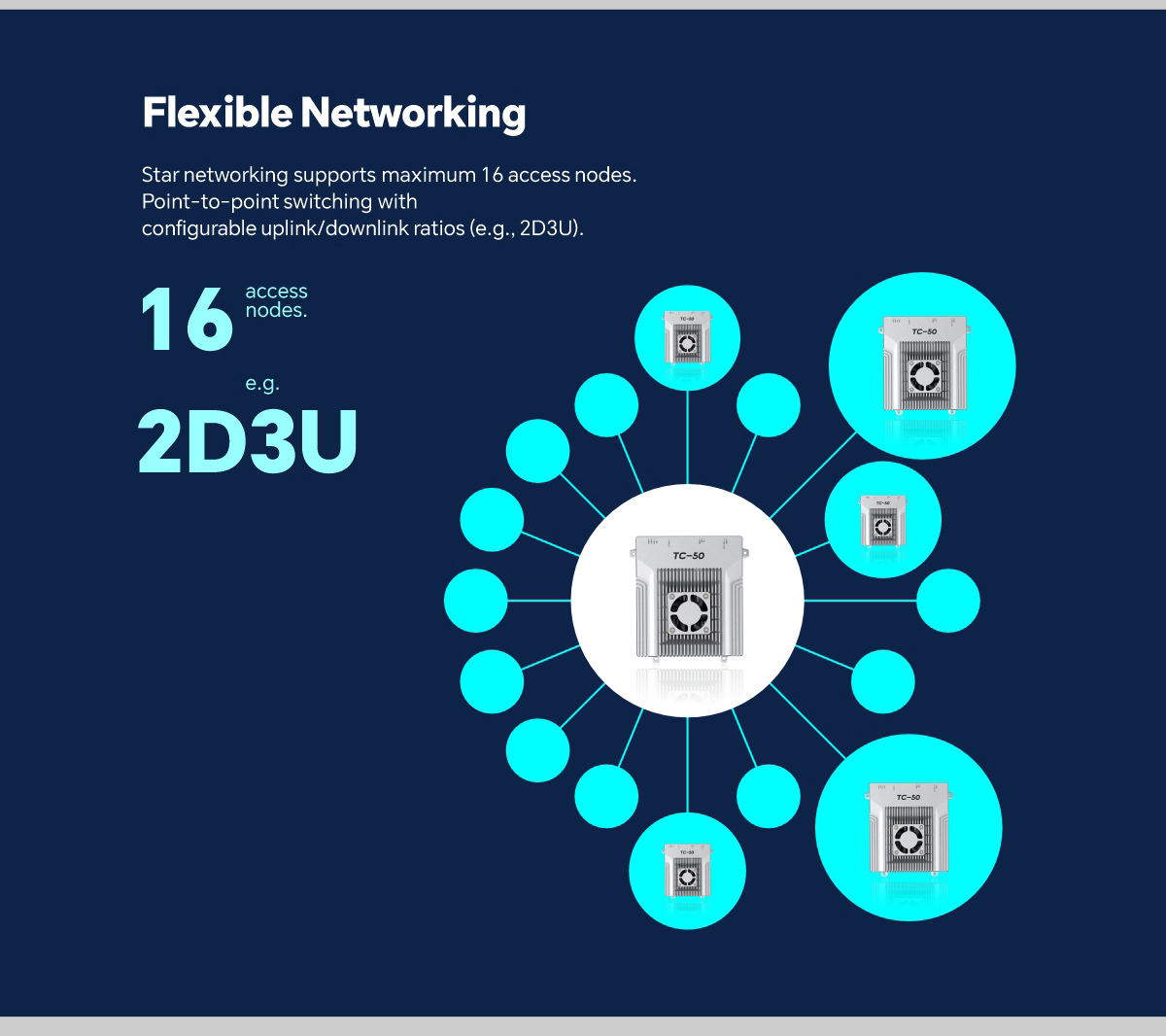

| Networking mode |
Star networking, maximum 1+16 nodes |
|
| Receiving sensitivity | 20MHz -99 dBm 10MHz -103 dBm |
Access sensitivity |
| 20MHz -97dBm (5Mbps) 10MHz -96dBm (5Mbps) | BLER<=3% Sensitivity |
|
| Transmission distance | Air-to-ground:10KM,30KM,50KM,150KM Select the corresponding model according to Table 1 |
|
| Signal channel bandwidth | 1.4MHz/3MHz/5MHz/10MHz/20MHz | |
| Modulation mode | QPSK/16QAM/64QAM | |

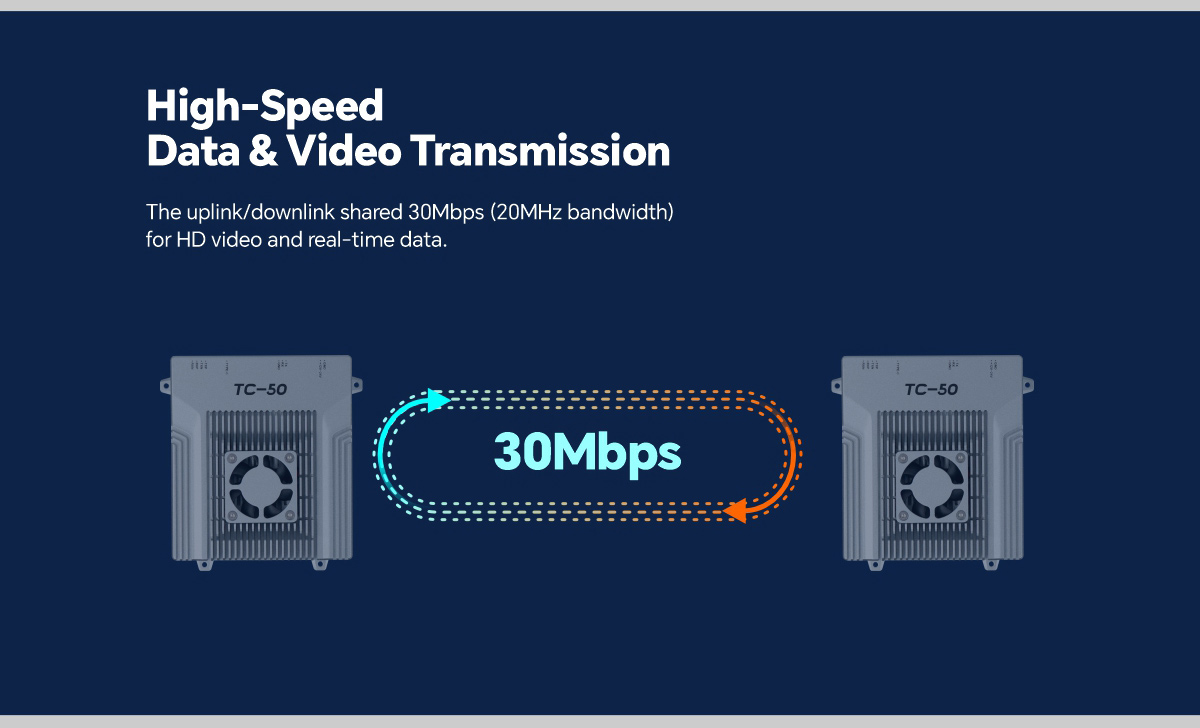

| Maximum rate | Uplink and downlink share 30Mbps | |
| Communication encryption | ZUC, SNOW3G and AES128 3 encryption methods are optional |
|
| Transmission mode | Supports unicast,multicast and broadcast | |
| Transmission delay | Boot delay 15s Average ping packet delay between two nodes <=15ms |
DRX Closed |

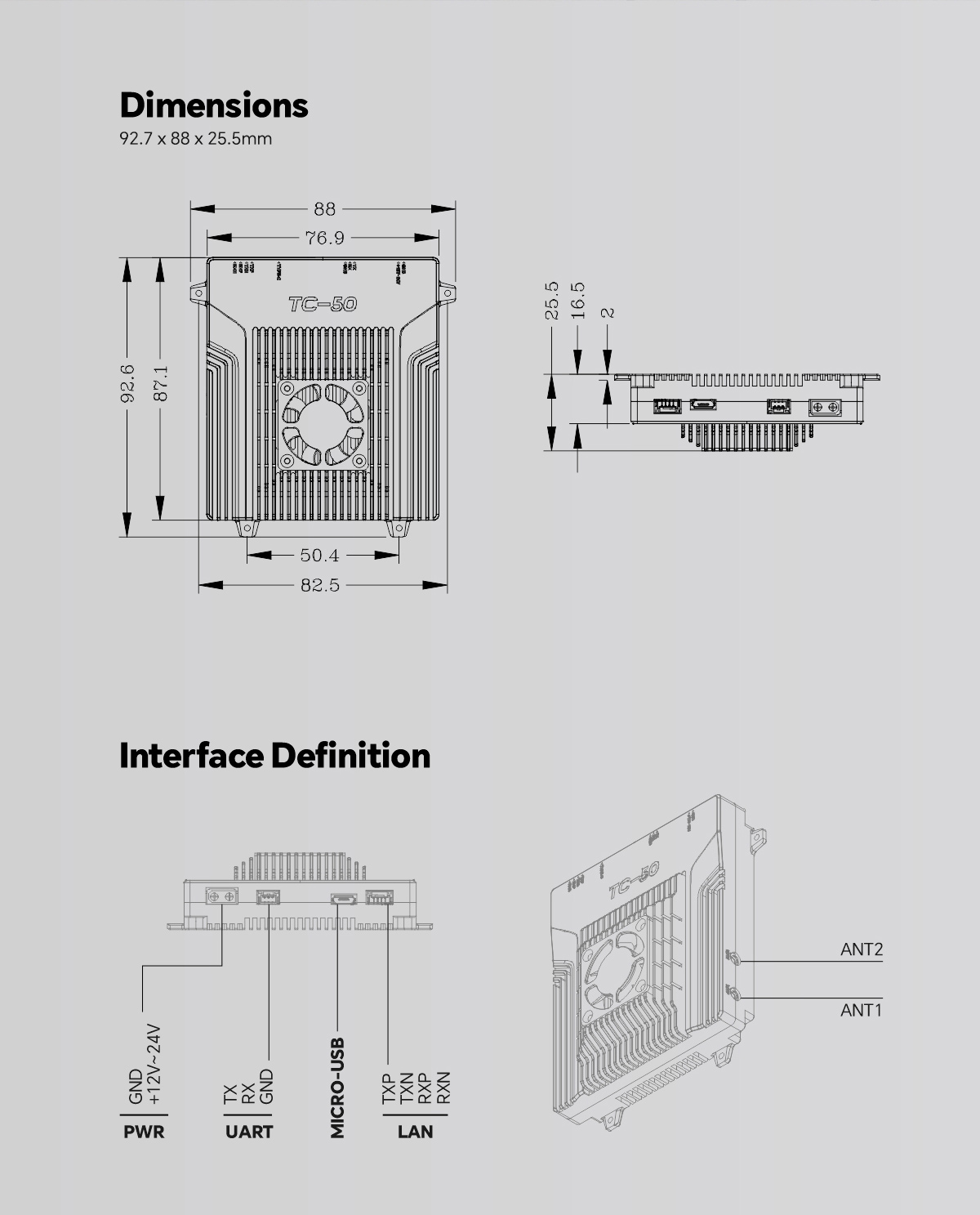

| Service interface | UART*1 | |
| 100M Ethernet interface | ||
| Antenna interface | MMCX*2 | |
| Power control | The slave node supports adaptive power control.The central node supports fixed power. | |
| Transmission mode | The central node supports 2D3U/3D2U/4D1U/1D4U uplink and downlink time slot rations. | Different models are distinguished |
| System control | Supports real-time changes in transmission power/frequency/bandwidth. | |
| Configuration management | Supports basic configuration/reporting/ query functions through WEBUI. | |

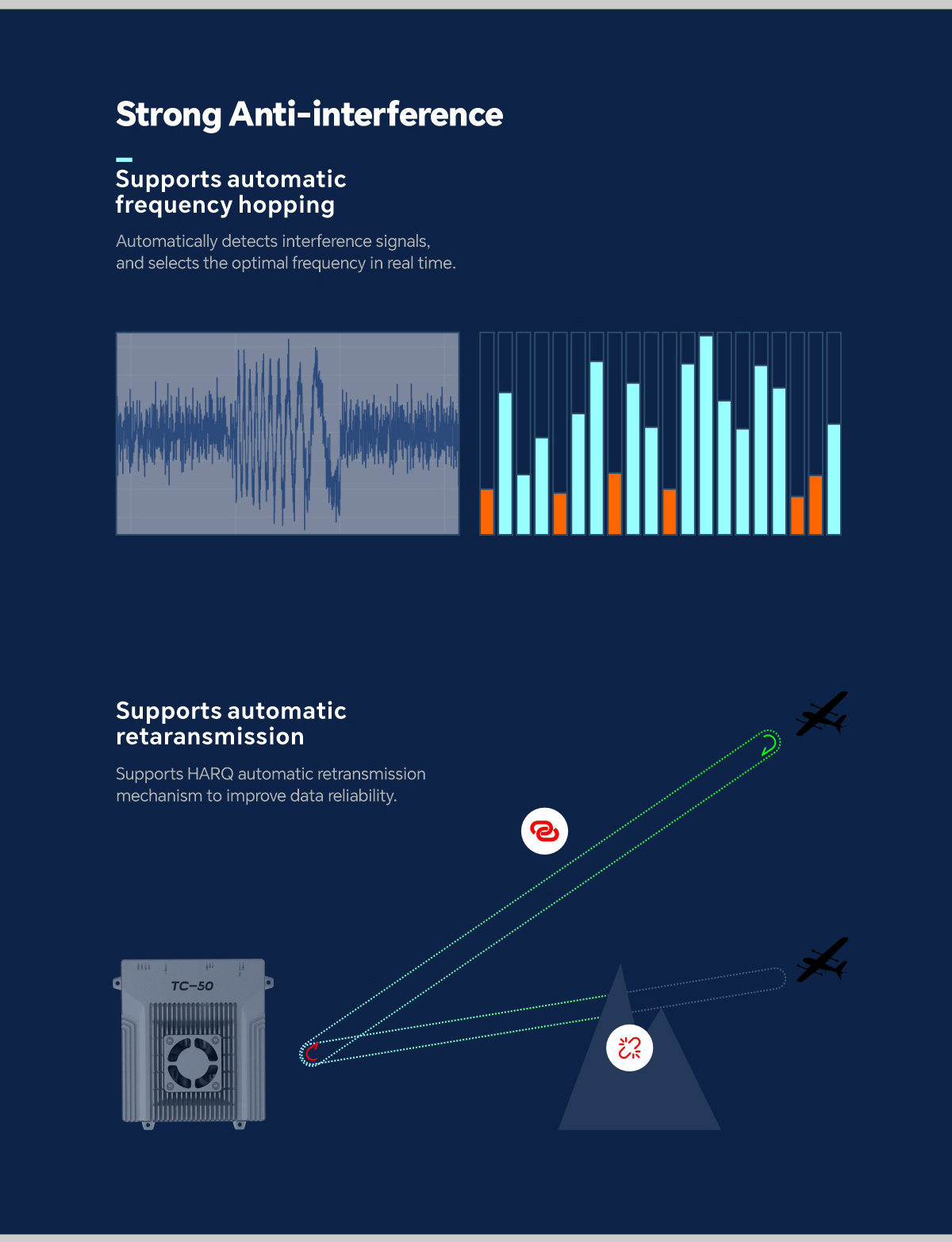

| Frequency hopping | Supports dynamic frequency hopping. | |
| Mode switching | Supports configuration of point-to-point and point-to-multipoint networking mode switching. |
