Product Introduction
Specification

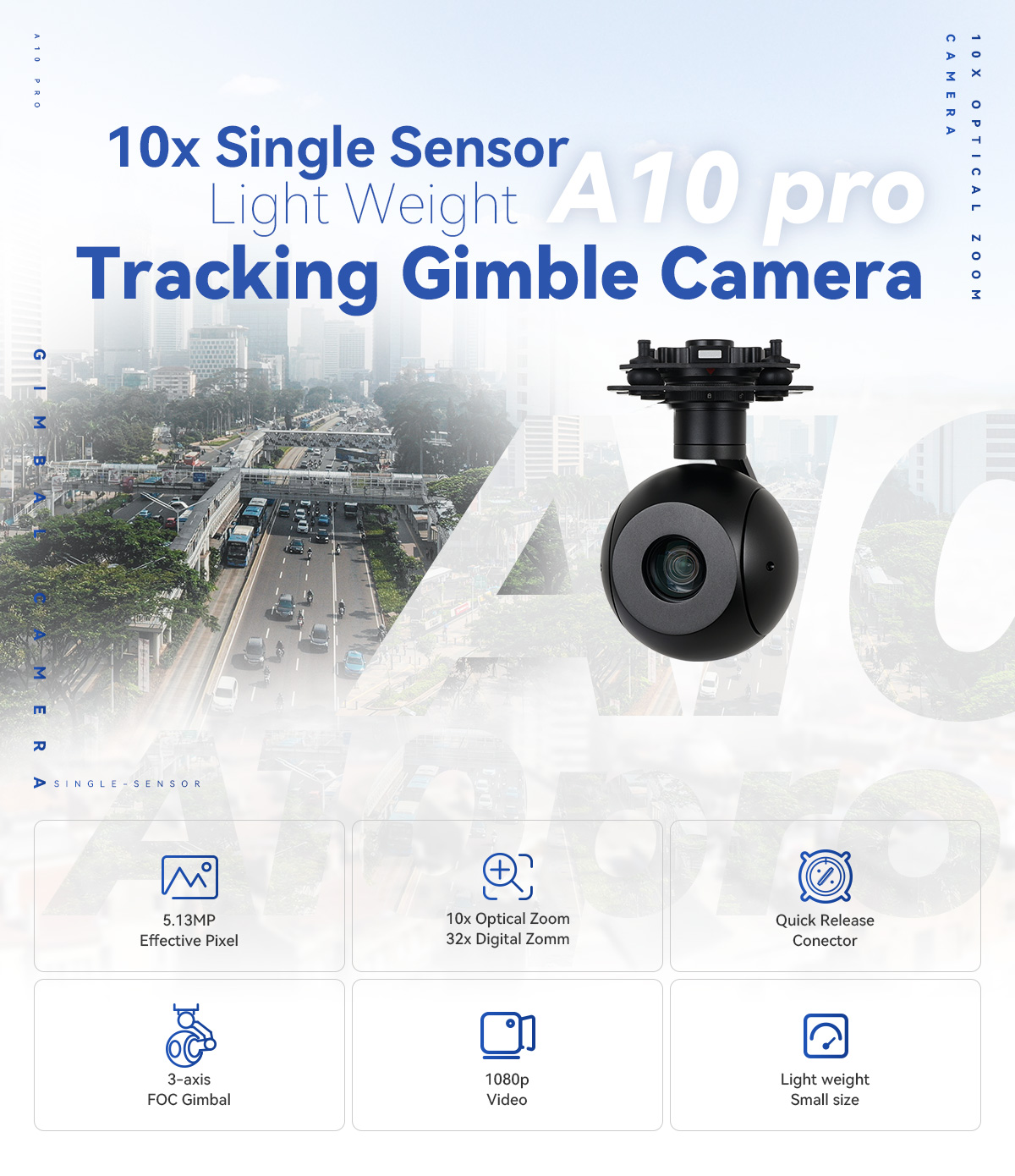

A10 Pro EO AI Object Tracking Gumbal Camera Specification
| Hardware Parameter | |
| Working voltage | 16V |
| Input voltage | 4S ~ 6S |
| Output voltage | 5V (connect with PWM) |
| Dynamic current | 520~1300mA @ 16V |
| Working environment temp. | -20℃ ~ +60℃ |
| Output | micro HDMI(1080P 30fps/60fps) / IP (RTSP/UDP 720p/1080p 30fps) |
| Local-storage | SD card (Up to 128G,class 10, FAT32 or ex FAT format) |
| Photo storage format | JPG(1920*1080) |
| Video storage format | MP4 (1080P 30fps) |

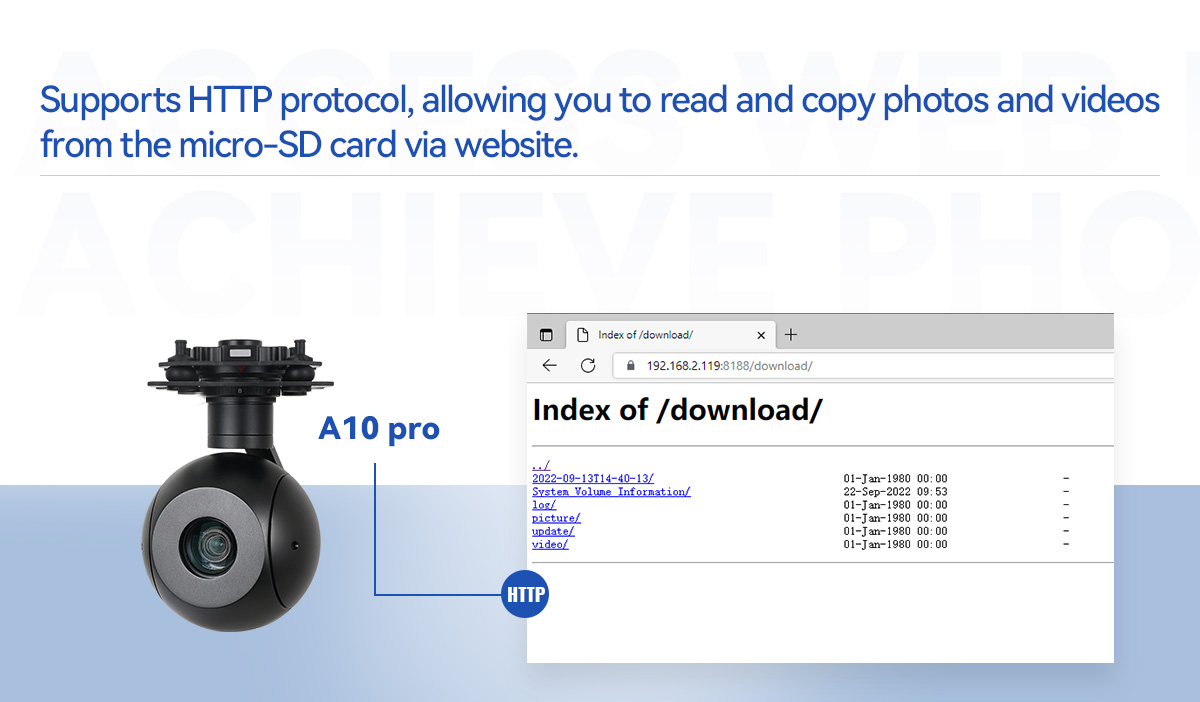

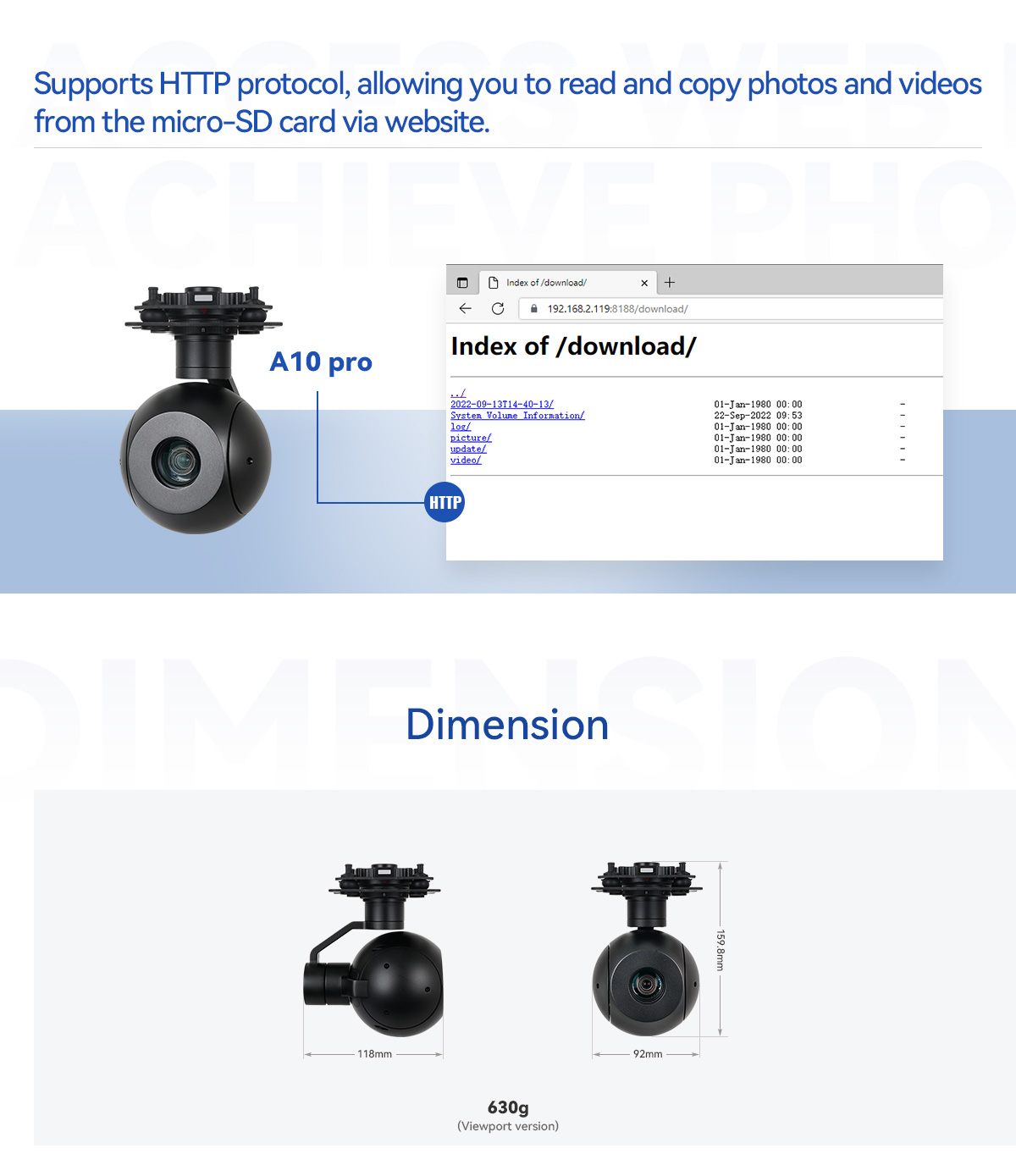

| Card reading online | HTTP read pictures |
| Geotagging | Support, display time and GPS coordinate in picture exif |

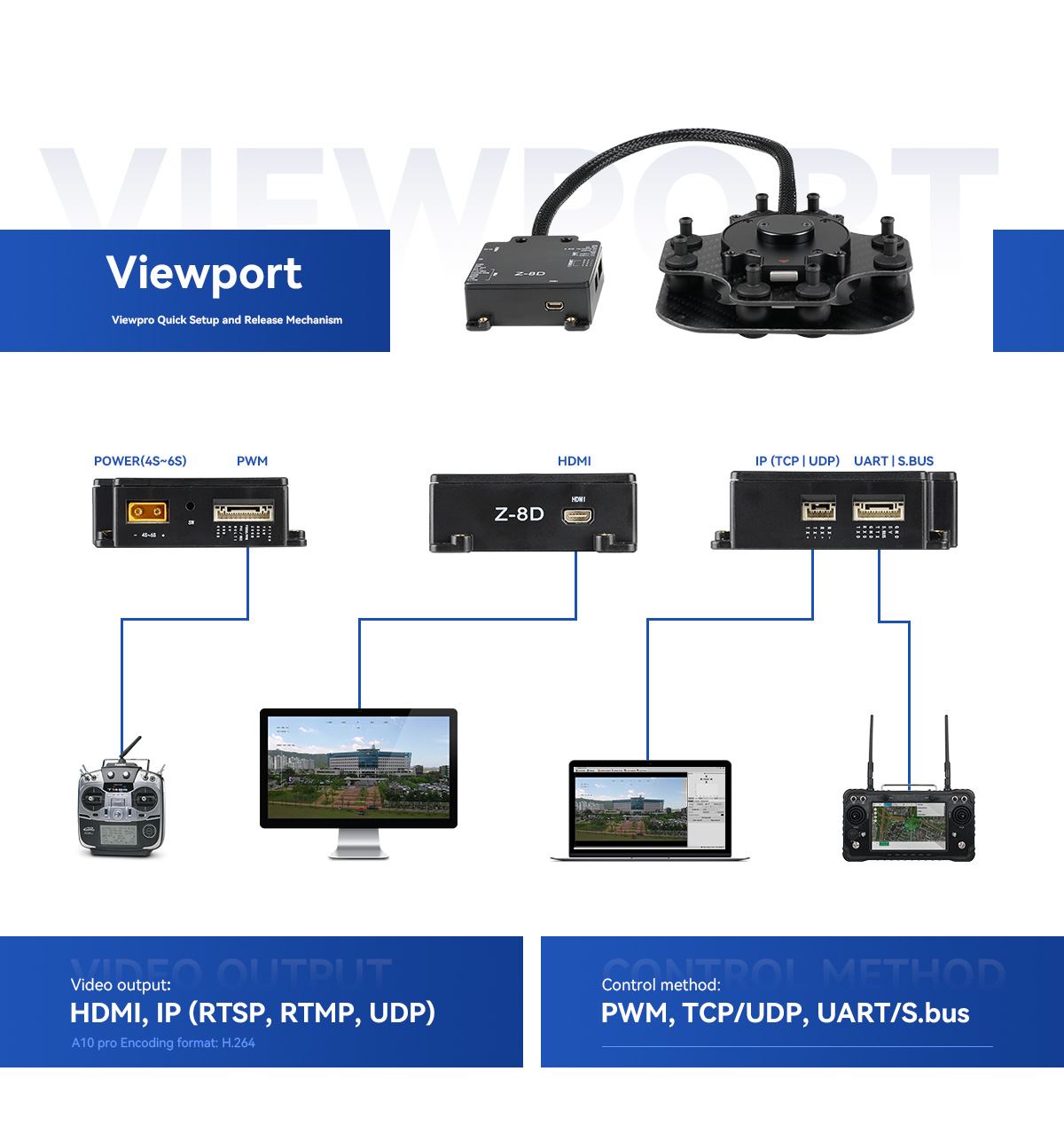

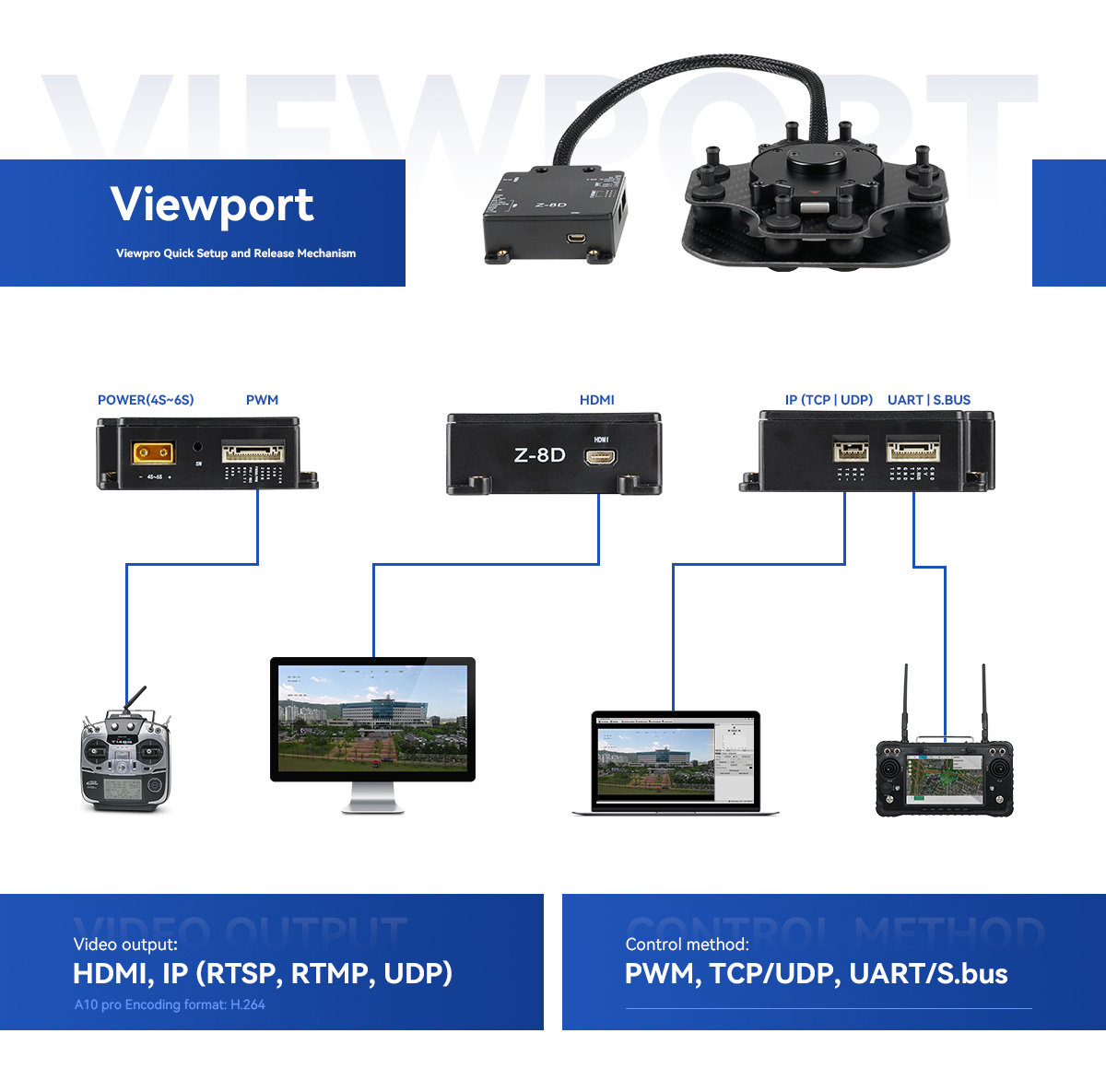

| Control method | PWM / TTL / S.BUS/ TCP(IP output version)/UDP(IP output version) |

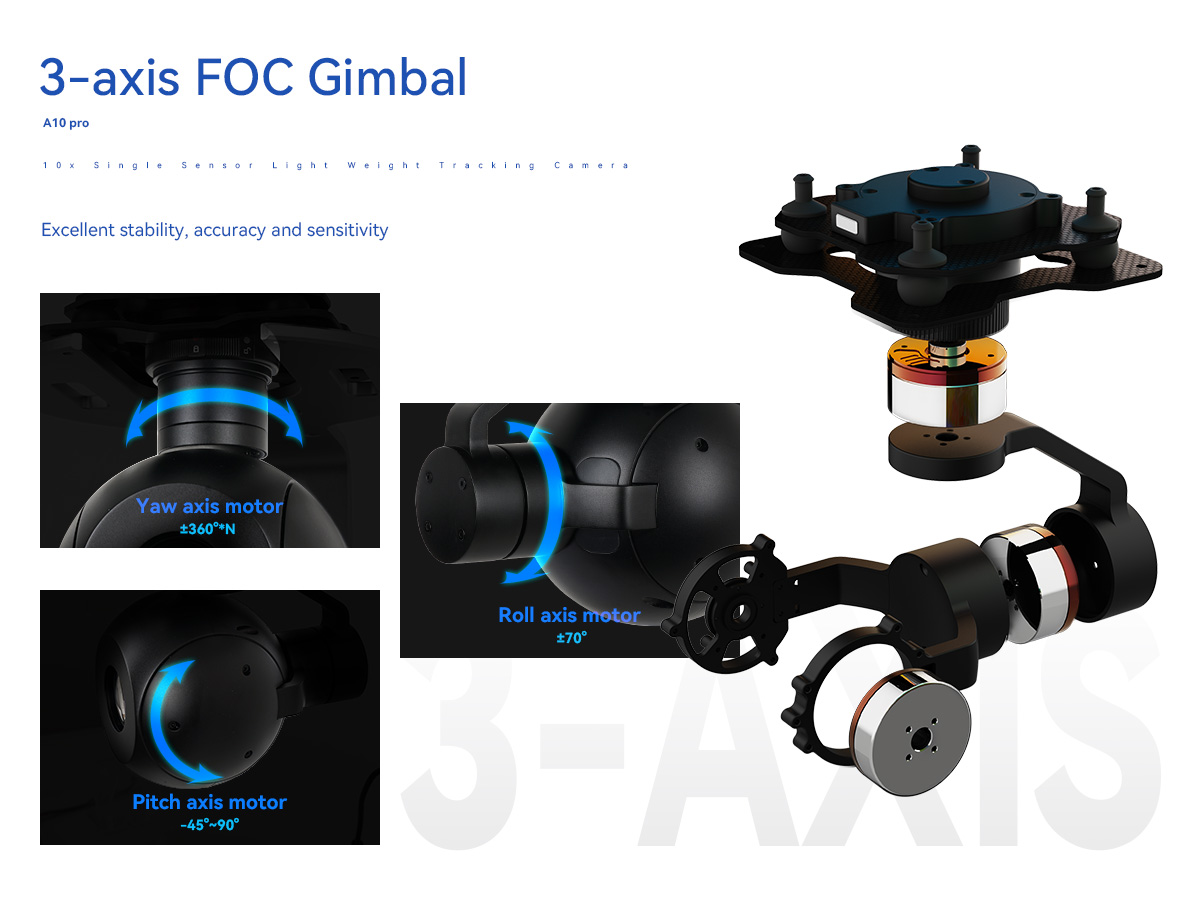

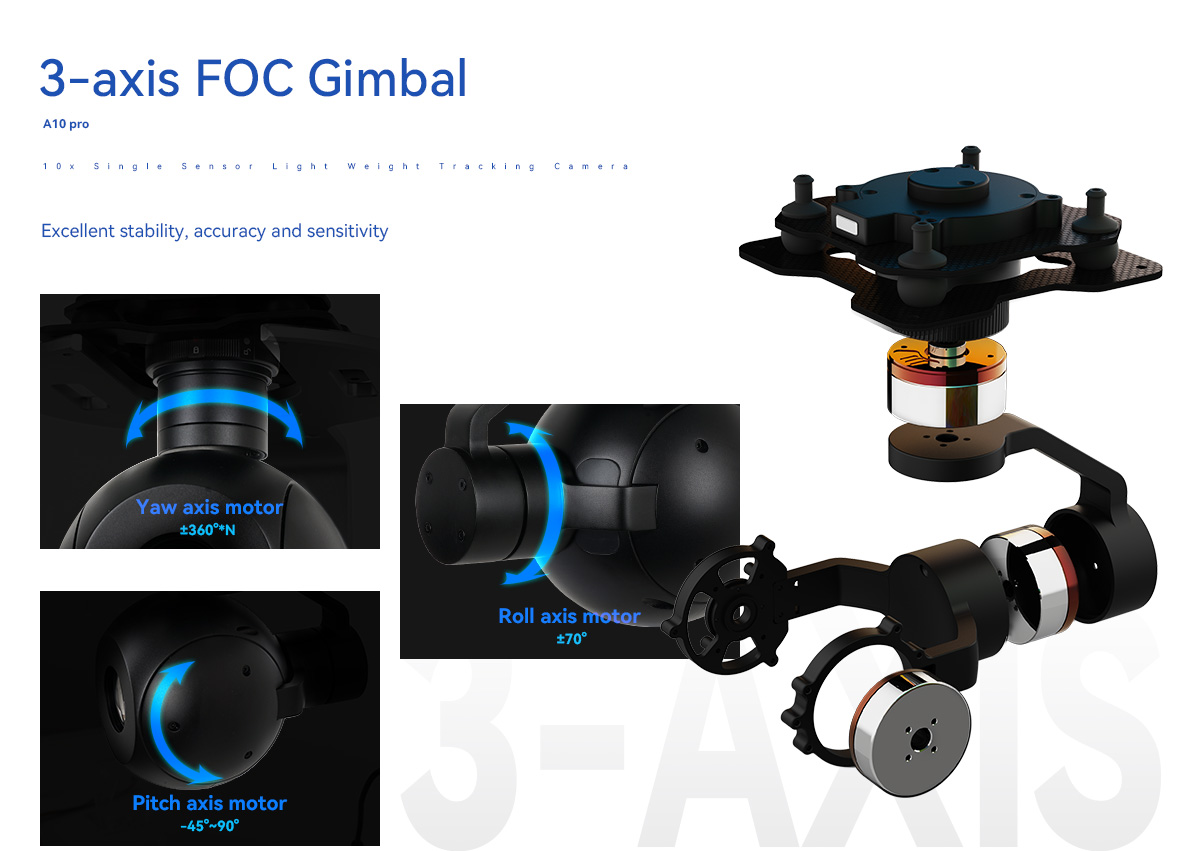

| Gimbal Spec | |
| Angle scope of structure design | Pitch/Tilt: ±120°, Roll: ±70°, Yaw/Pan: ±300° / ±360°*N (IP output version) |
| Angle scope of software design | Pitch/Tilt: -45°～115°, Yaw/Pan: ±290° / ±360°*N (IP output version) |
| Vibration angle | Pitch/Roll/Yaw: ±0.02° |
| One-key to center | √ |
| Camera Spec | |
| Imager Sensor | 1/2.8″ SONY CMOS Sensor |
| Total pixel | 2.48MP |
| Picture quality | Full HD 1080 (1920*1080) |

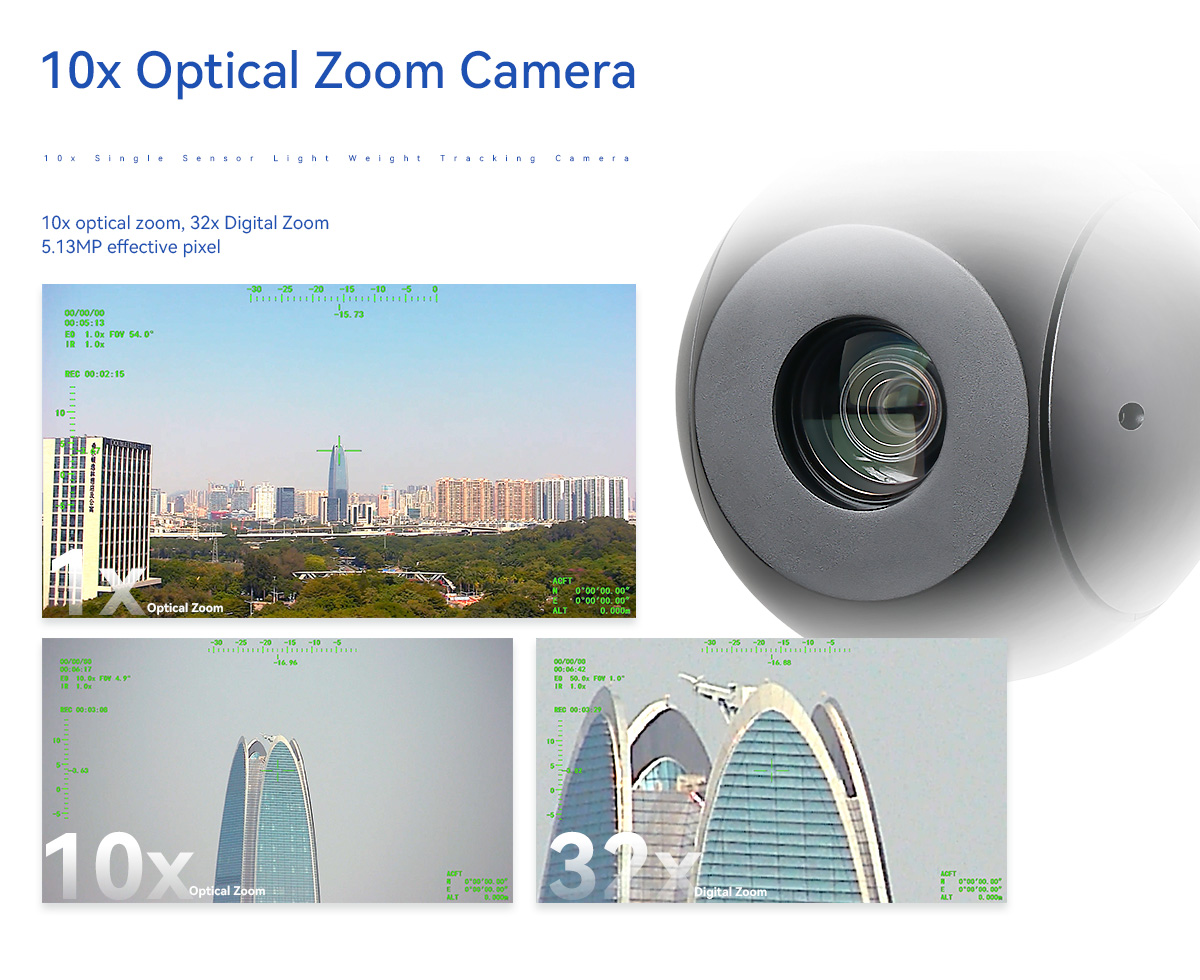

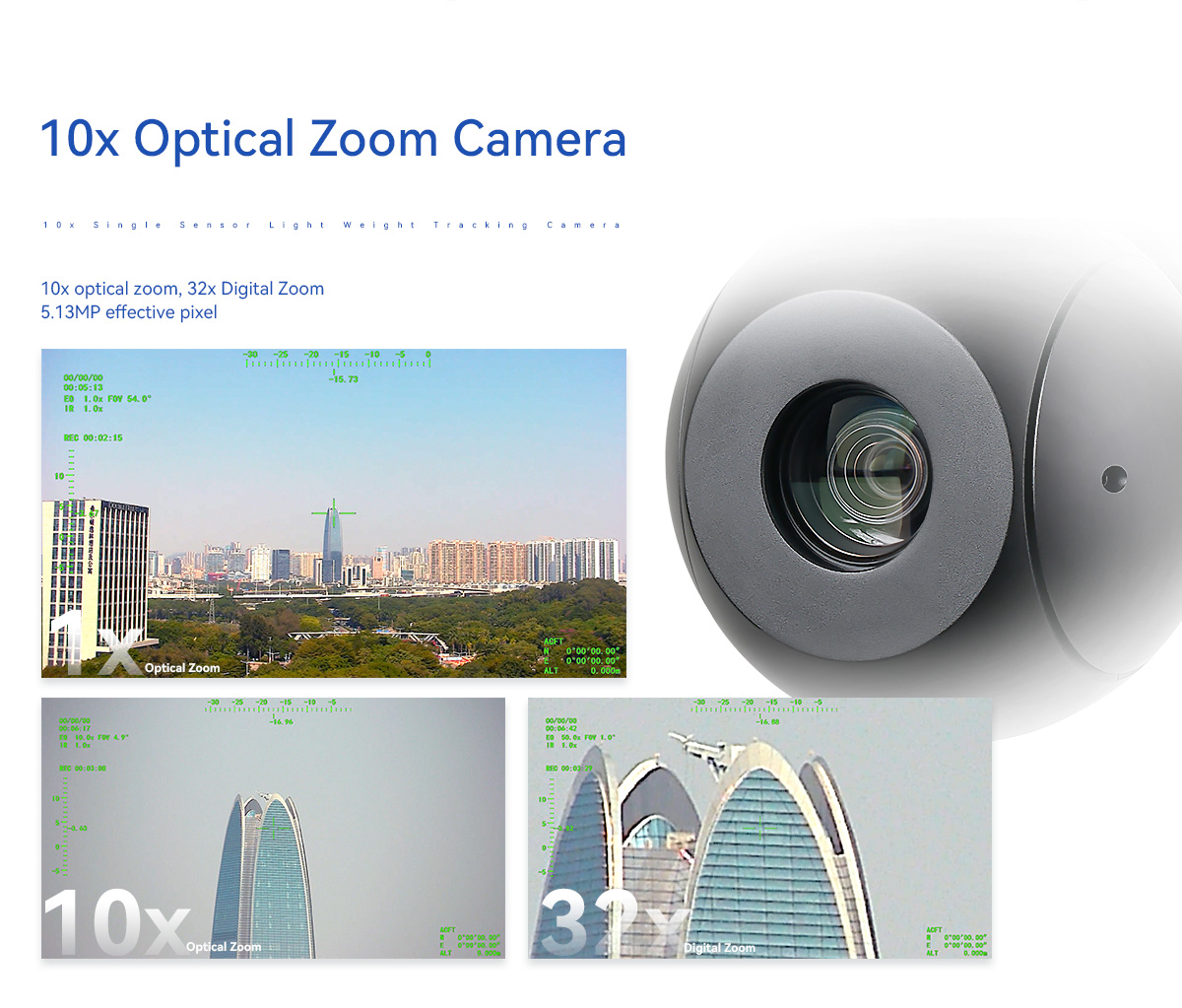

| Optical zoom | 10x, f = 4.7mm ~ 47mm, F1.7~F3.1 |
| Digital zoom | 32x |
| Angle of View (H) | 69.9°(Wide end) ~ 8.7° (Tele end) |
| Min target distance | 0.1 / 1.5 / 3.0 / 5.0 / 10.0 m |
| Min illumination | Color(1/30s, 72.0dB): 0.02 lux , BW(1/30s, 72.0dB): 0.005lux Color DSS(1/1s, 72.0dB): 0.002 lux , BW DSS(1/1s, 72.0dB): 0.0005 lux |
| Shutter speed | 1/1sec ~ 1/100,000 sec |
| White balance | Auto / One Push / Manual / Indoor / Outdoor |
| Focus | Auto / One Push / Manual |
| Iris | 0 ~ 20 steps |
| Exposure | Auto / Manual / Priority Mode (Shutter priority & aperture priority) |
| Sync system | Progressive Scan |
| Sync. System Internal | Internal |
| Backlight compensation | Yes |
| Auto ICR | Yes |
| Image stabilization | Yes |
| Defog | Yes |

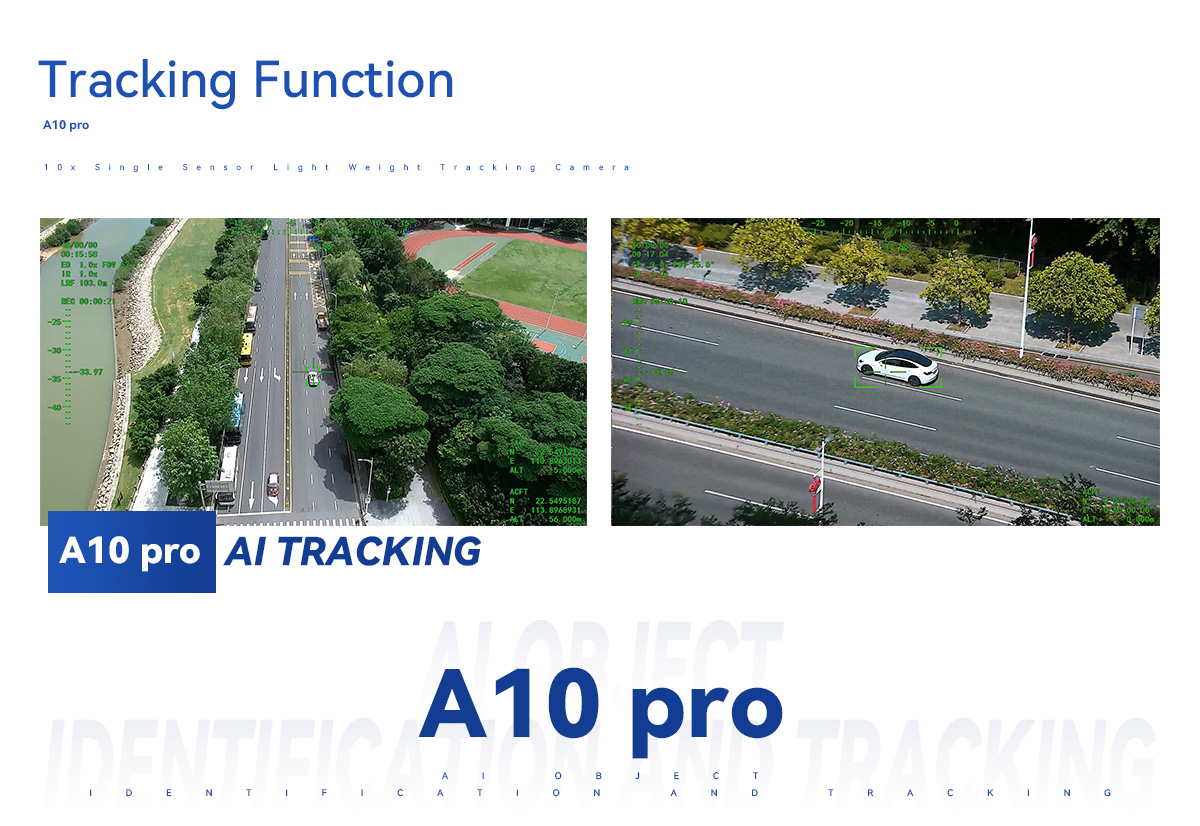

| EO Camera Object Tracking | |
| Update rate of deviation pixel | 30Hz |
| Output delay of deviation pixel | <30ms |
| Minimum object contrast | 5% |
| SNR | 4 |
| Minimum object size | 16*16 pixel |
| Maximum object size | 256*256 pixel |
| Tracking speed | ±48 pixel/frame |
| Object memory time | 100 frames |

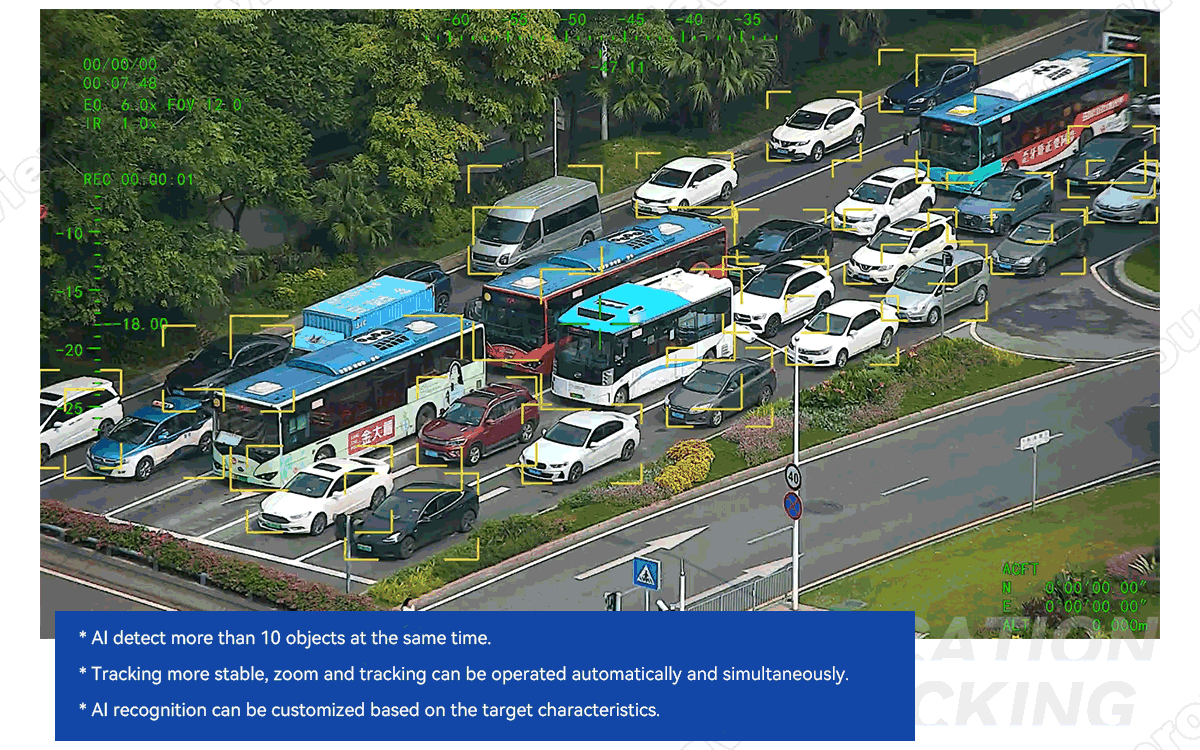

| EO Camera AI Performance | |
| Targets type | Car and human |
| Simultaneous detection quantity | ≥ 10 targets |
| Min contrast ratio | 5% |
| Min target size | 5×5 pixel |
| Car detection rate | ≥85% |
| False alarm rate | ≤10% |

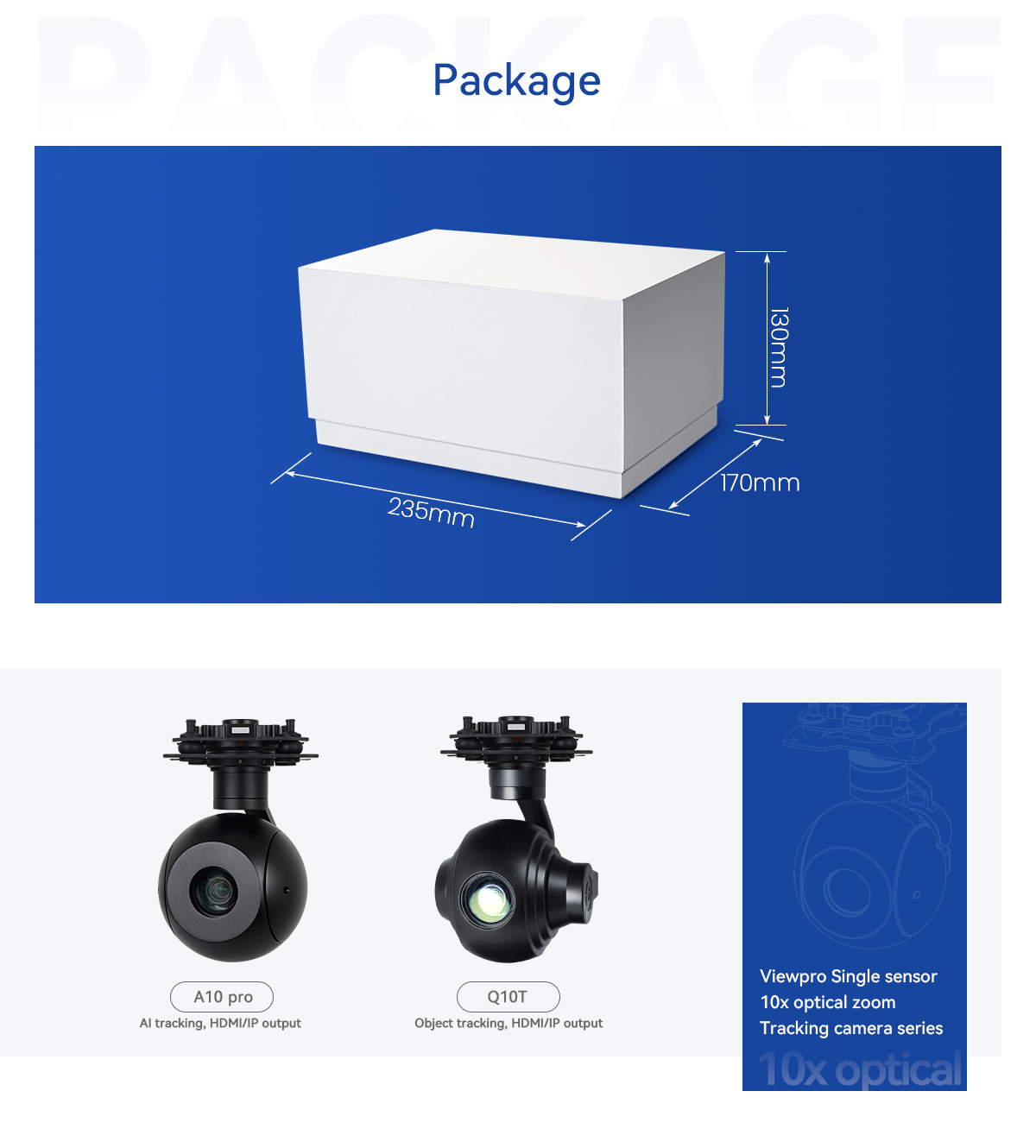

| Packing Information | |
| N.W. | 660g(Viewport version with Viewport) |

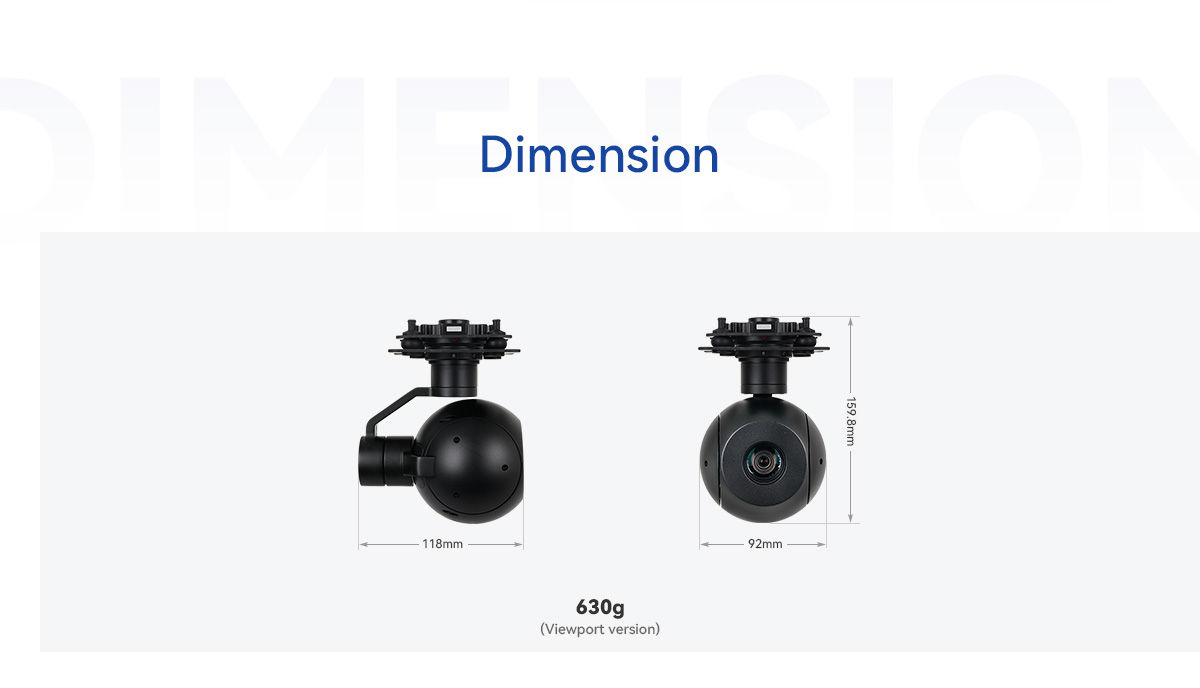

| Product meas. | 121.5*96*158.1mm / 121.5*96*163.8mm(Viewport Version) |
| Accessories | 1pc gimbal camera device, screws, USB to TTL cable / Hight quality box with foam cushion |
| G.W. | 1740g |

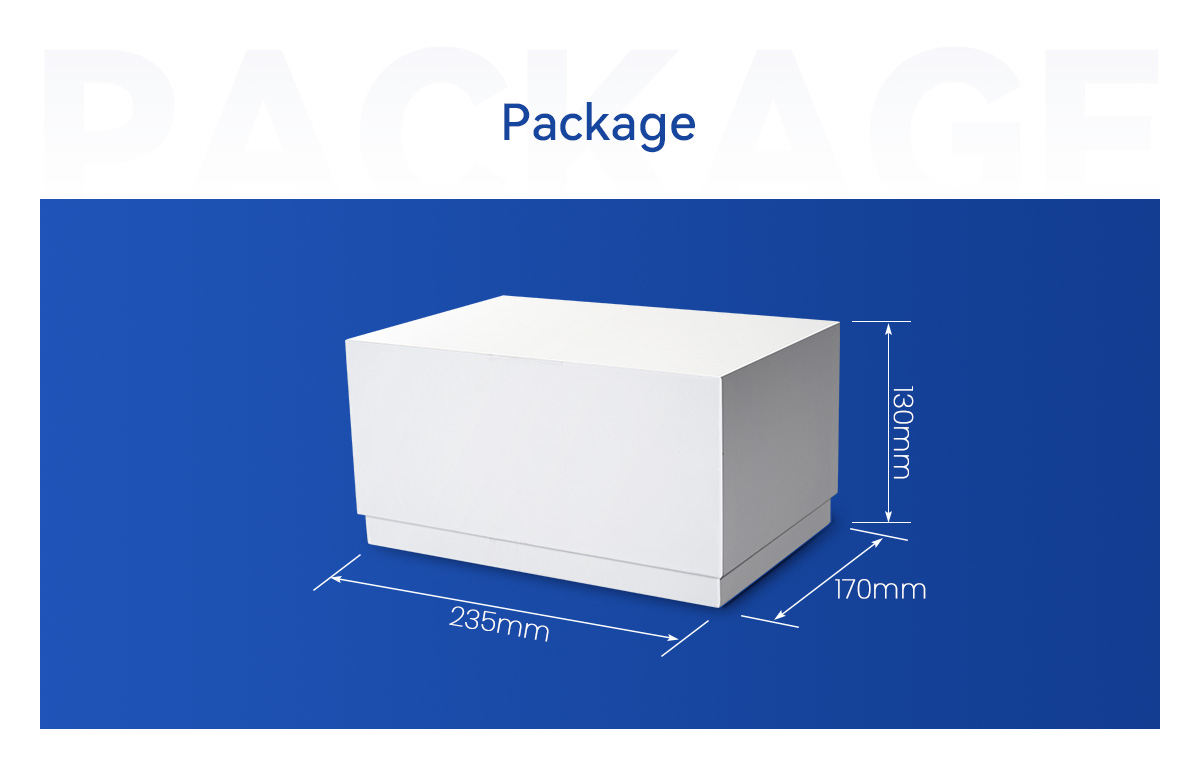

| Package meas. | 300*250*200mm |
For more details, please visit A10 Pro 10x Single Sensor Light Weight AI Tracking Camera
-
