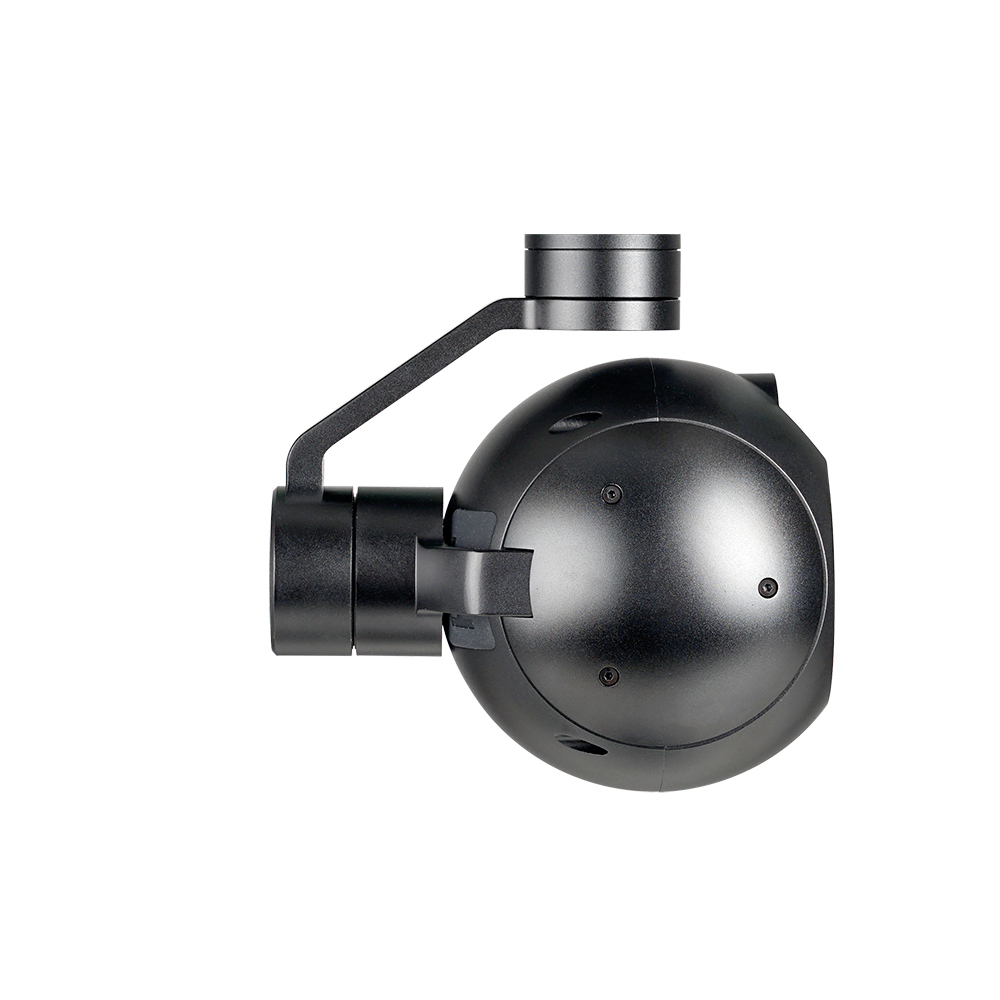

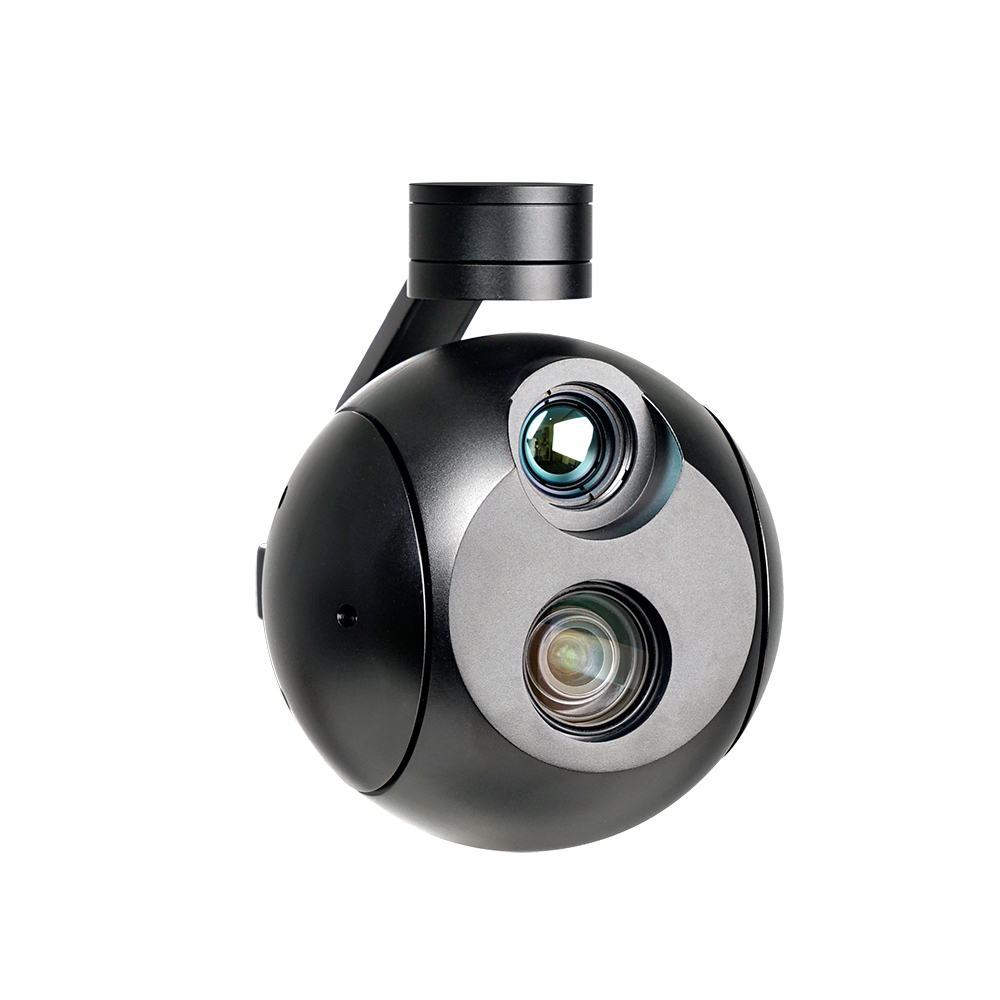

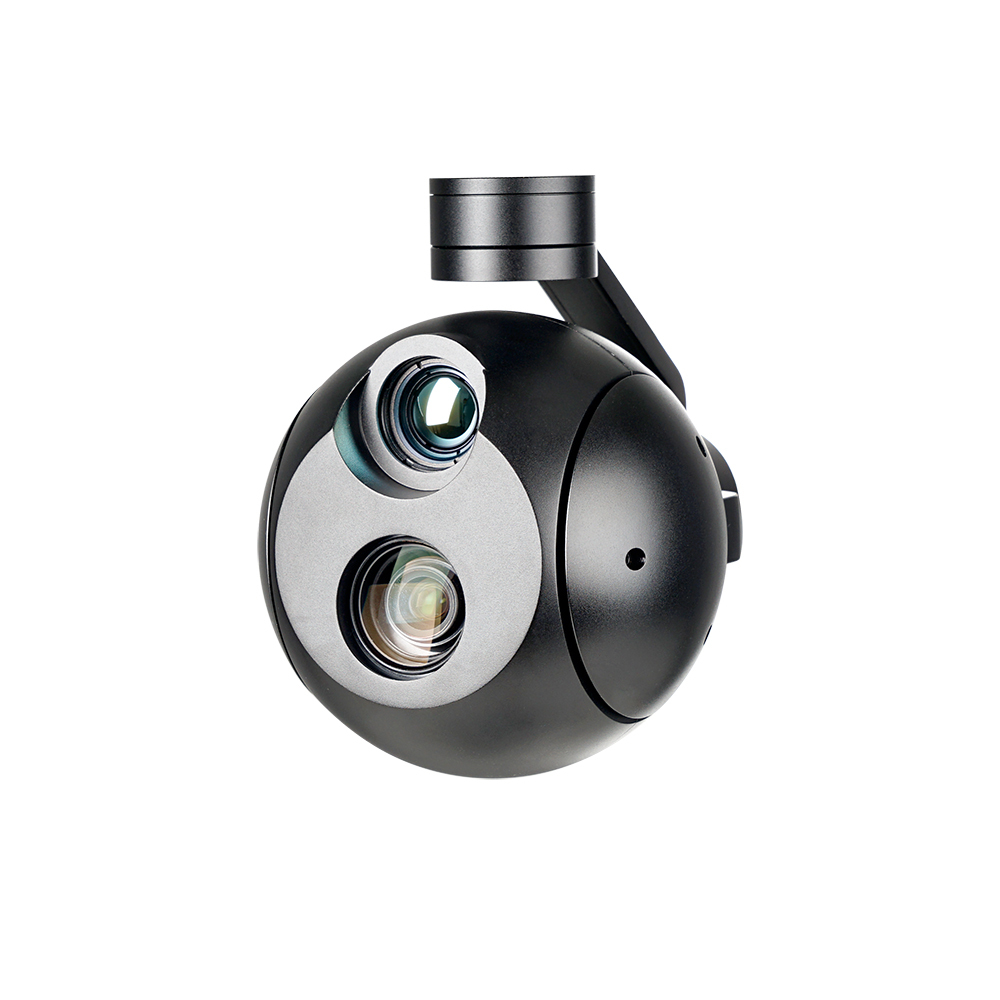

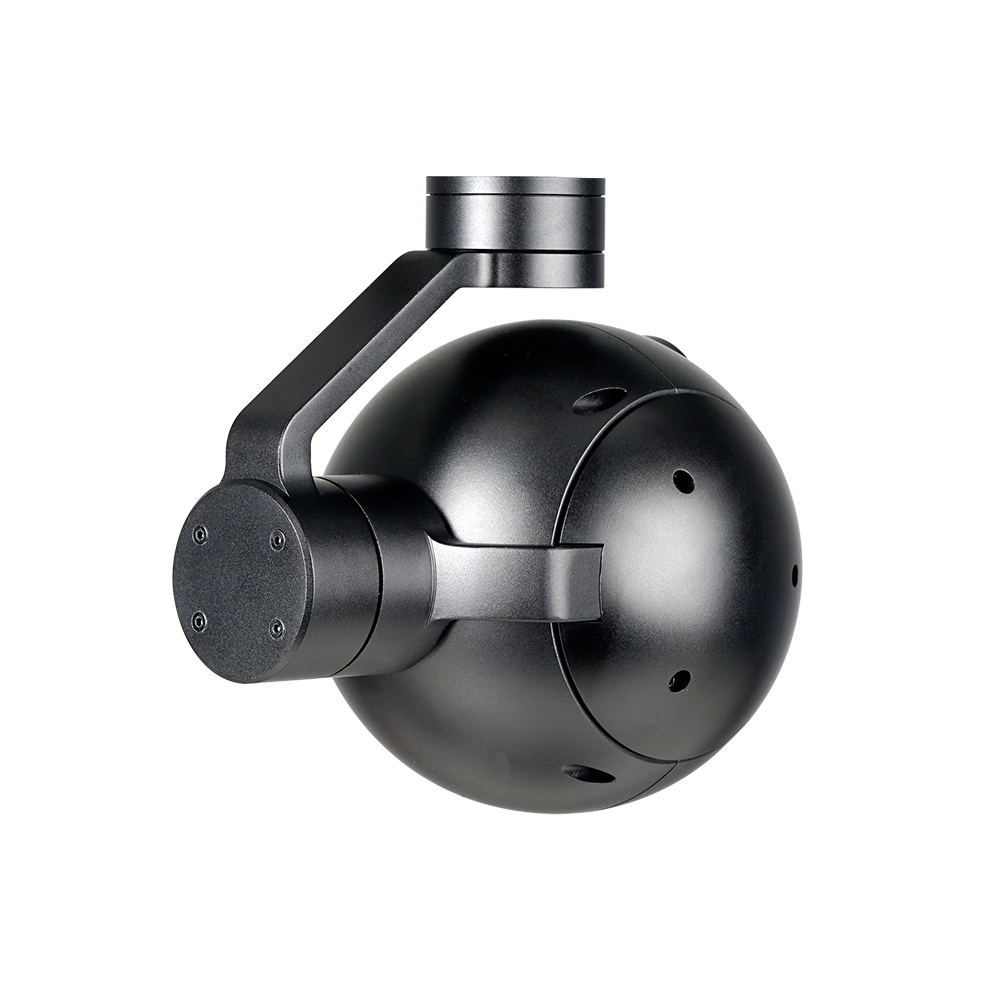

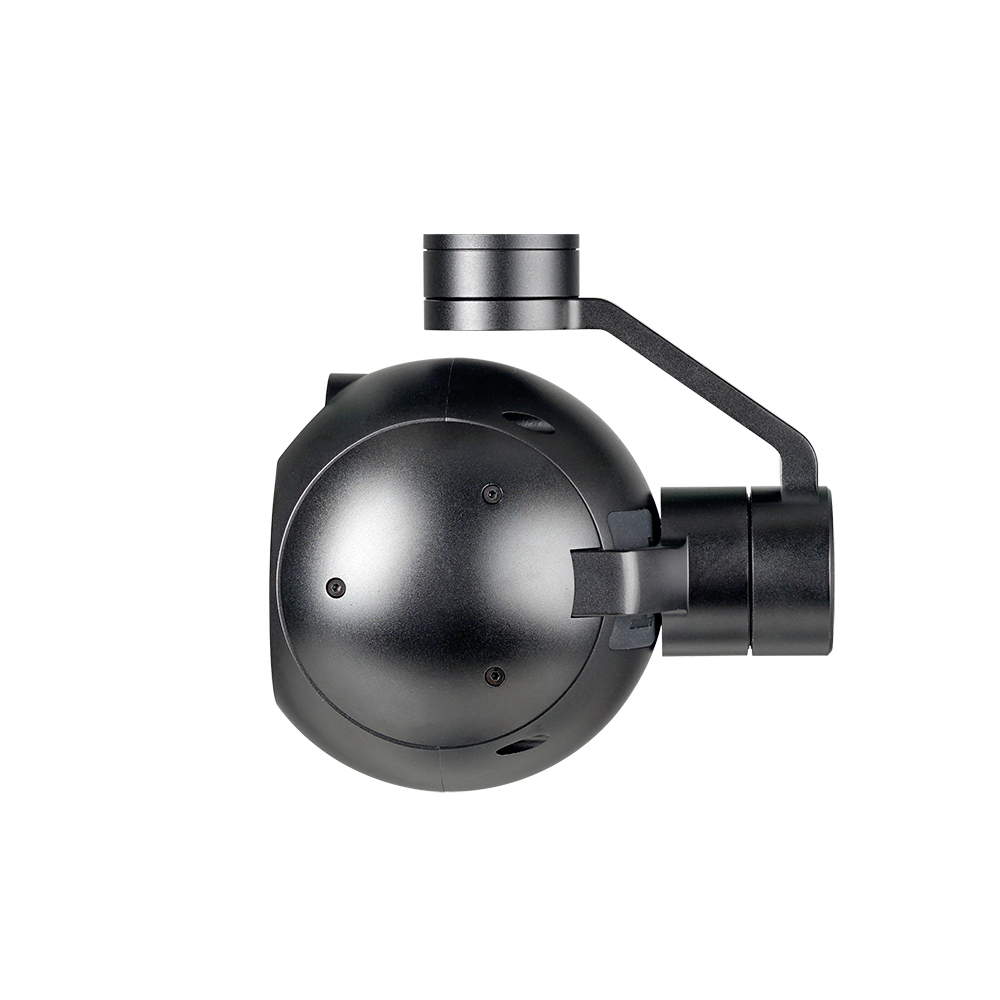

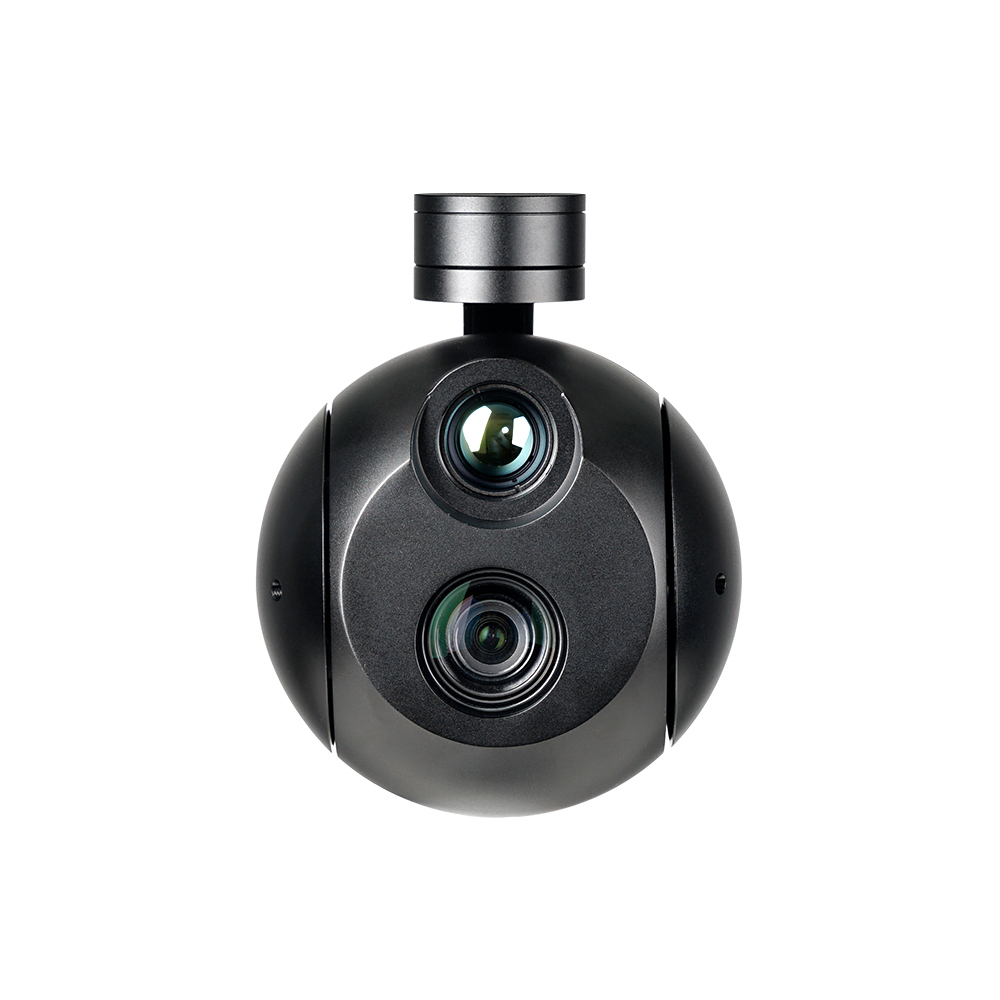

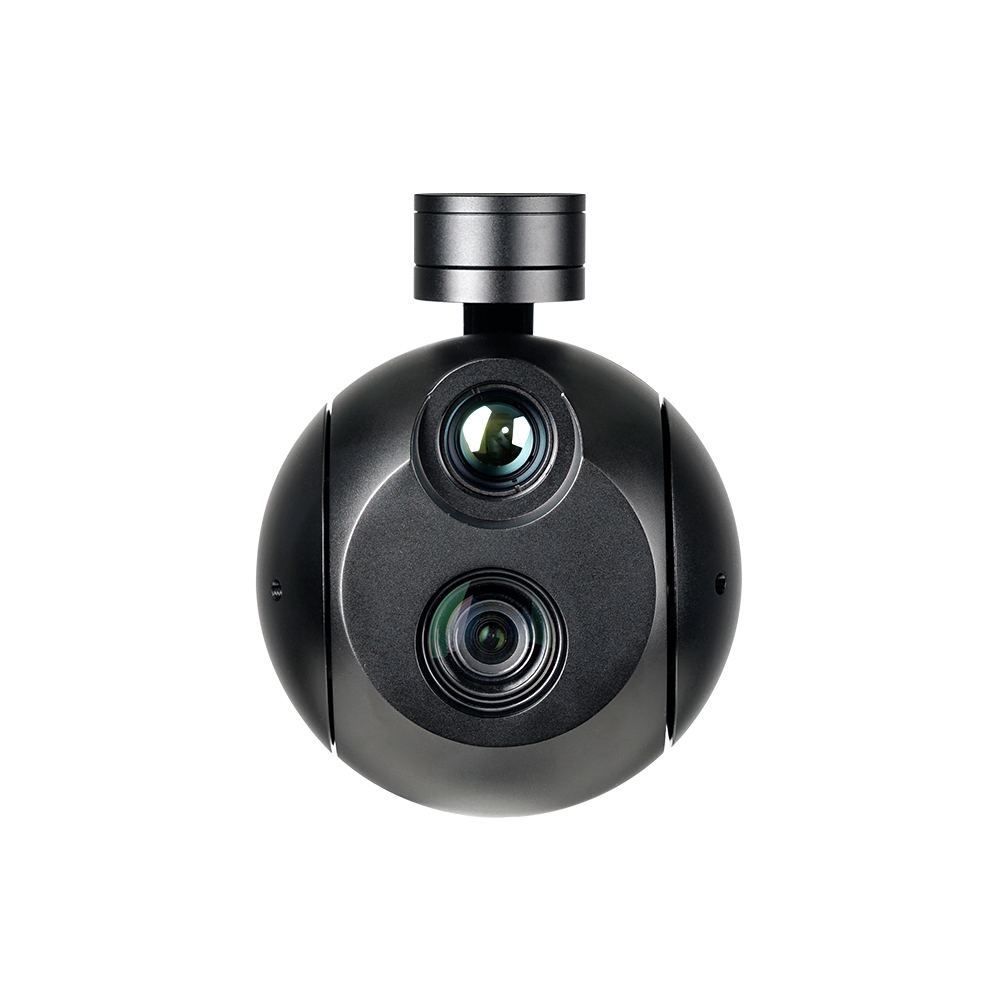

A10T Pro 10x Dual Sensor Light Weight AI Tracking Camera

Name: A10T Pro 10x Dual Sensor Light Weight AI Tracking Camera
Brand: Viewpro
Price: 4499 USD
Availability: InStock

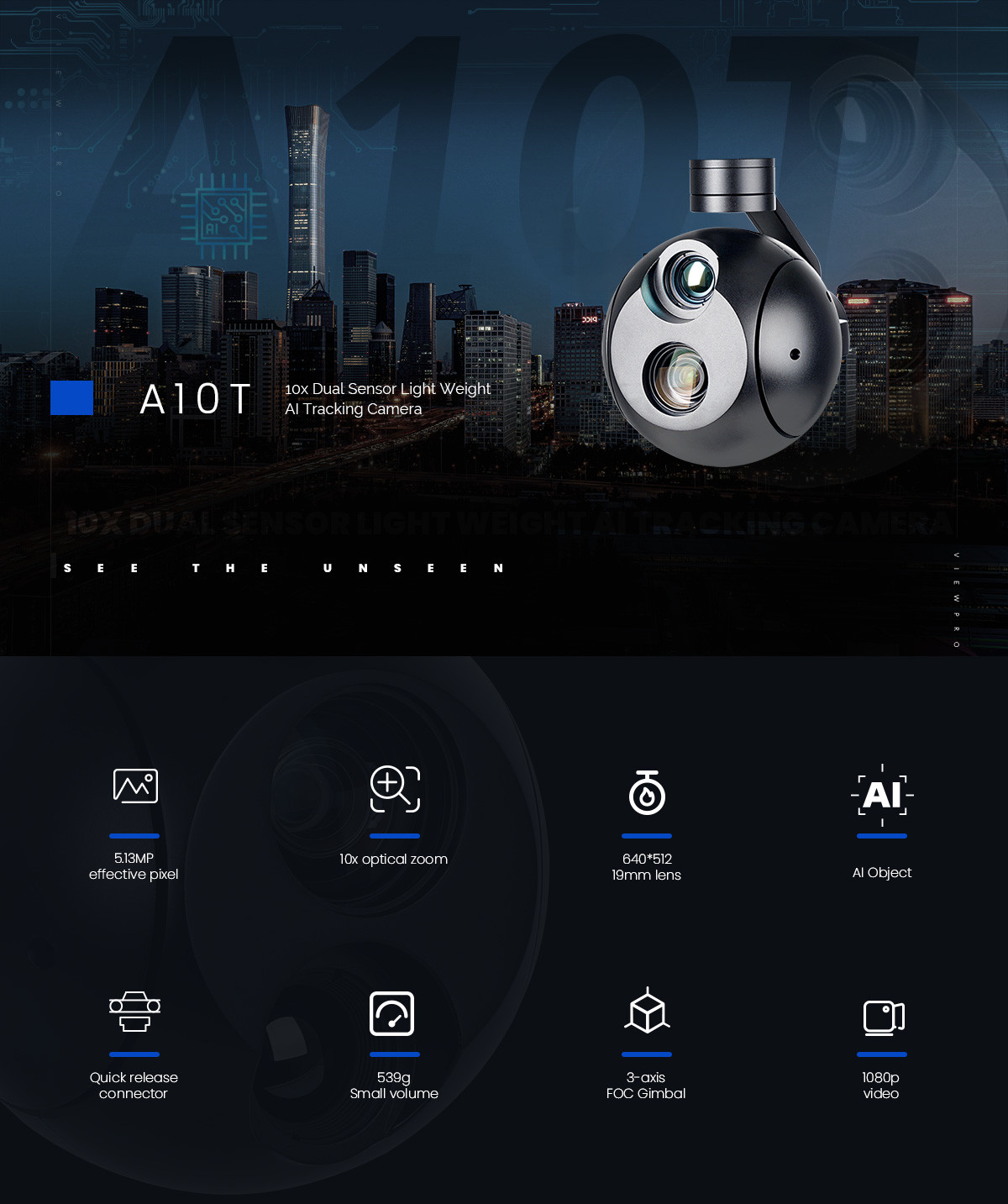

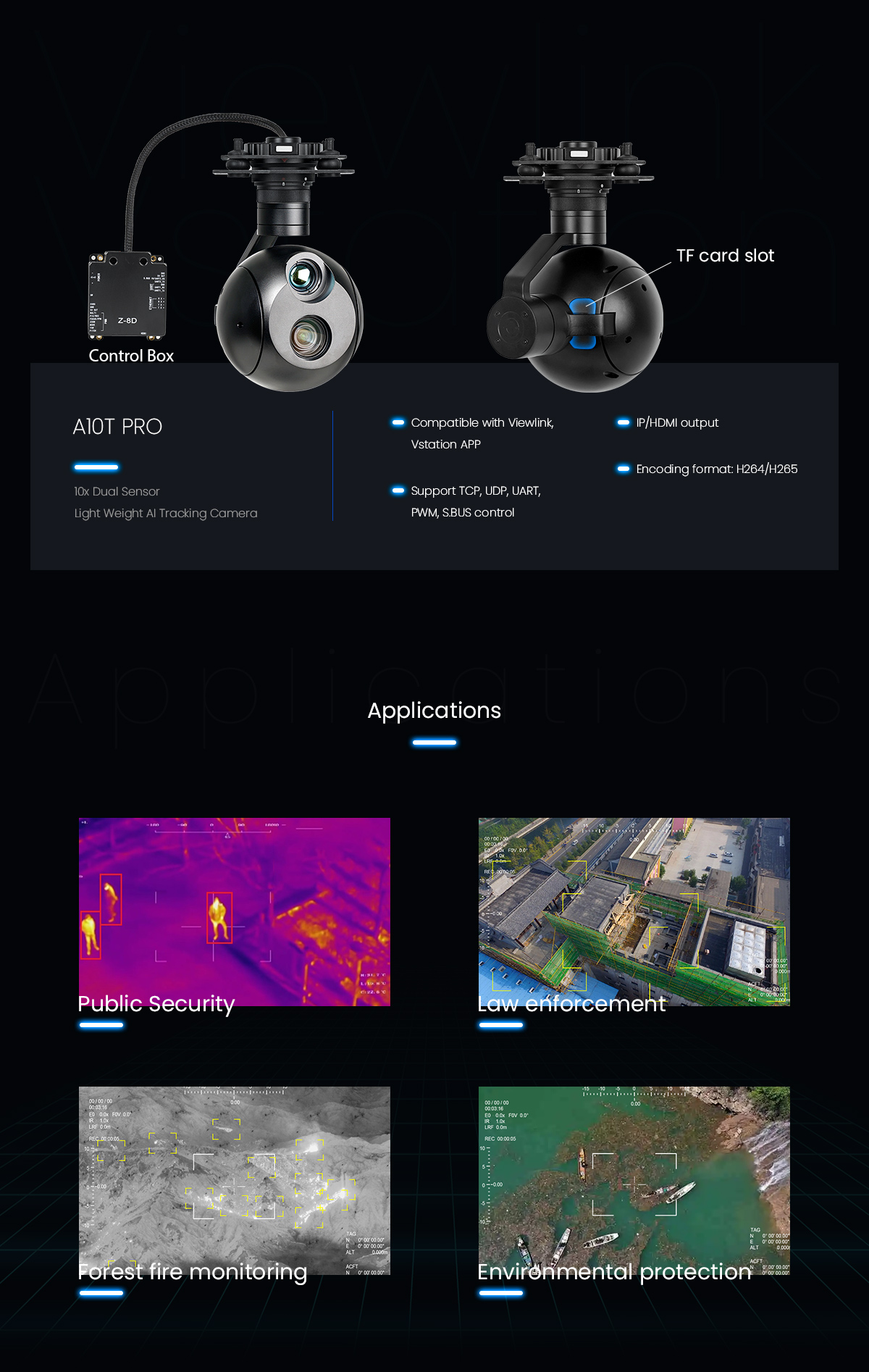

A10T Pro is a dual-sensor gimbal camera featuring 539g light net weight, small volume and compact structure, which integrates a 10x optical zoom camera and a 19mm lens 640*512 thermal camera.

Style

Standard Viewport version

A10T Pro 10x Dual Sensor Light Weight AI Tracking Camera

Product Introduction

A10T Pro is a dual-sensor gimbal camera featuring 539g light net weight, small volume and compact structure, which integrates a 10x optical zoom camera and a 19mm lens 640*512 thermal camera. It with 3-axis high-precision gimbal which has advantages of better metal texture, anti-interference and better heat dissipation. It is integrated with AI object identification and tracking module, which can realize car and human automatic recognition and tracking, It widely used in UAV industries of inspection, surveillance, search and rescue and other industrial applications.

Specification

A10T Pro AI Object Tracking Gimbal Camera Specification

Overall Specifications
N.W.	582g

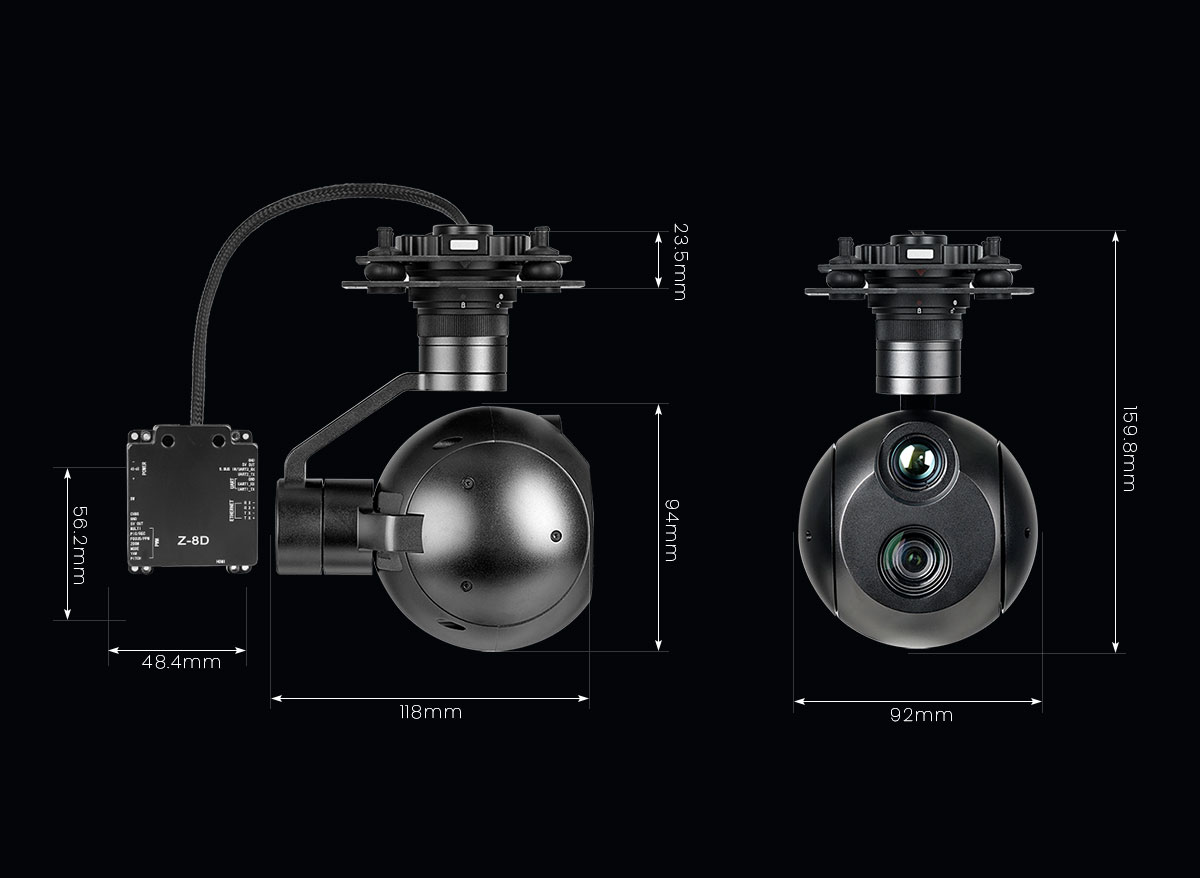

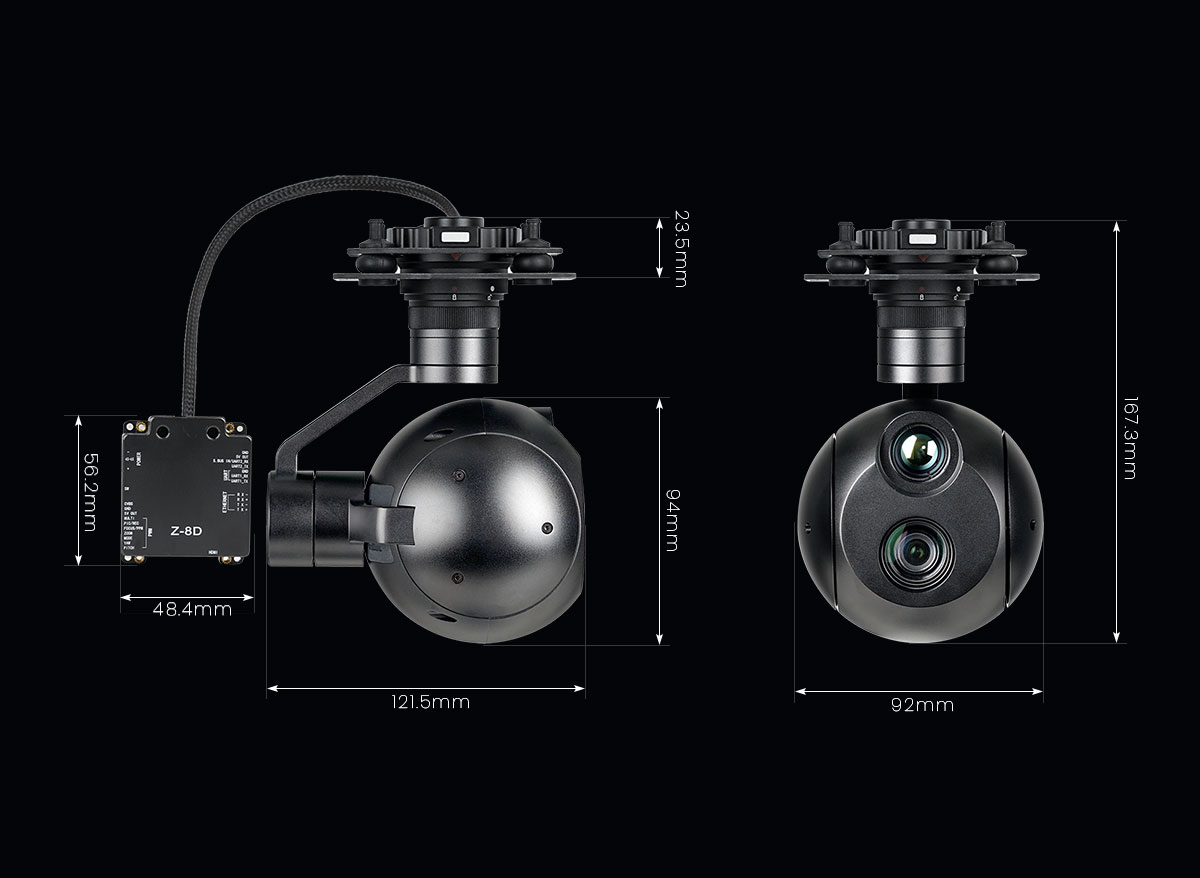

Product meas.	121.596157.7mm
Input voltage	14.8V~25.2V
Dynamic current	700~1250mA @ 16V
Power consumption	Average 11.2W, Max 20W
Working environment temp.	-20℃ ~ +50℃
IP rate	IP4X
Output	micro HDMI(1080P 30fps/60fps) / IP (RTSP/UDP 720p/1080p 30fps H264/H265)
Storage	TF card (Up to 256G,class 10, FAT32)
Picture in TF Card	JPG(1920*1080)
Video in TF Card	MP4(1080P@30fps)
Control method	PWM / S.BUS / UART (TTL) / TCP / UDP

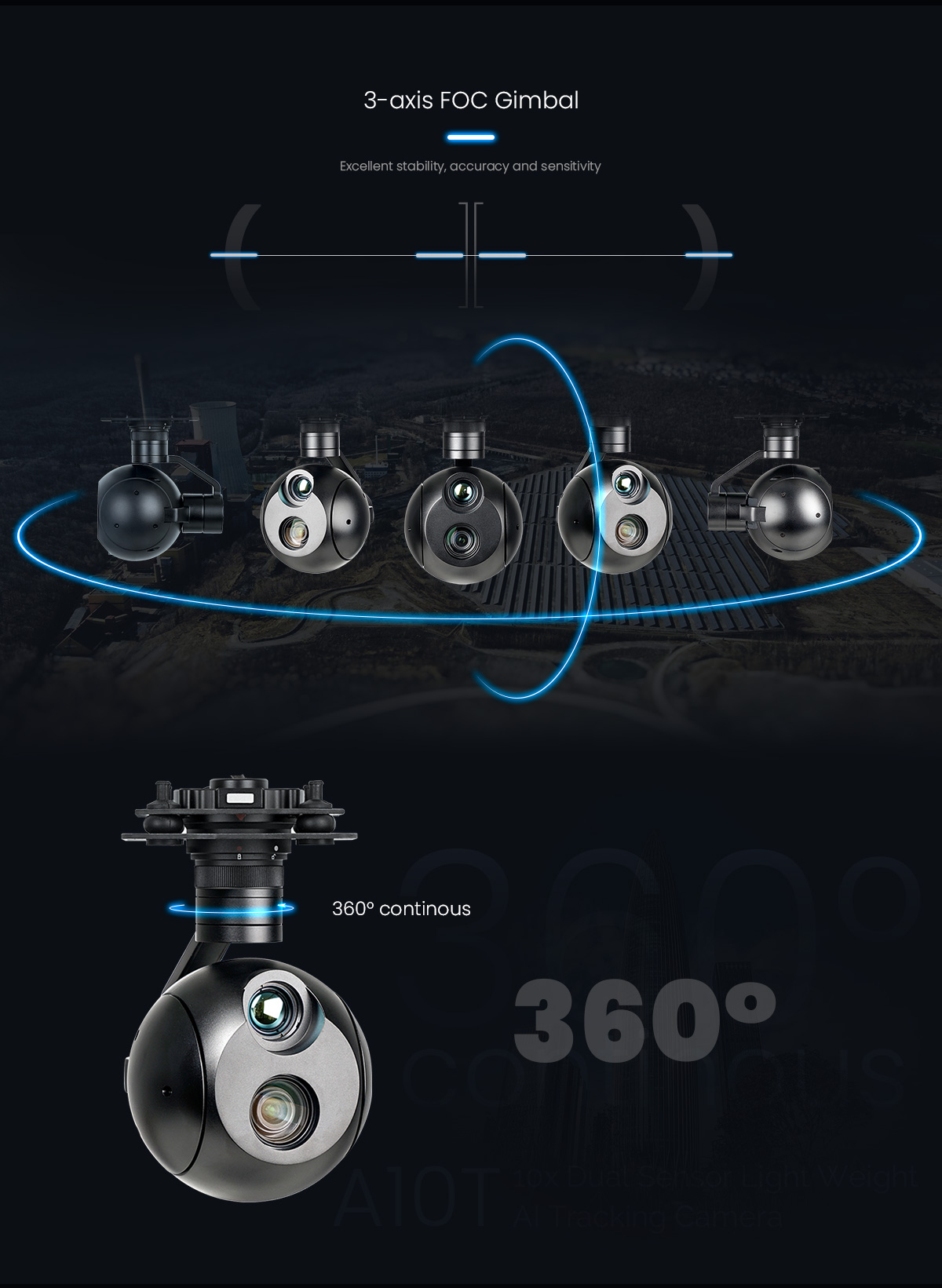

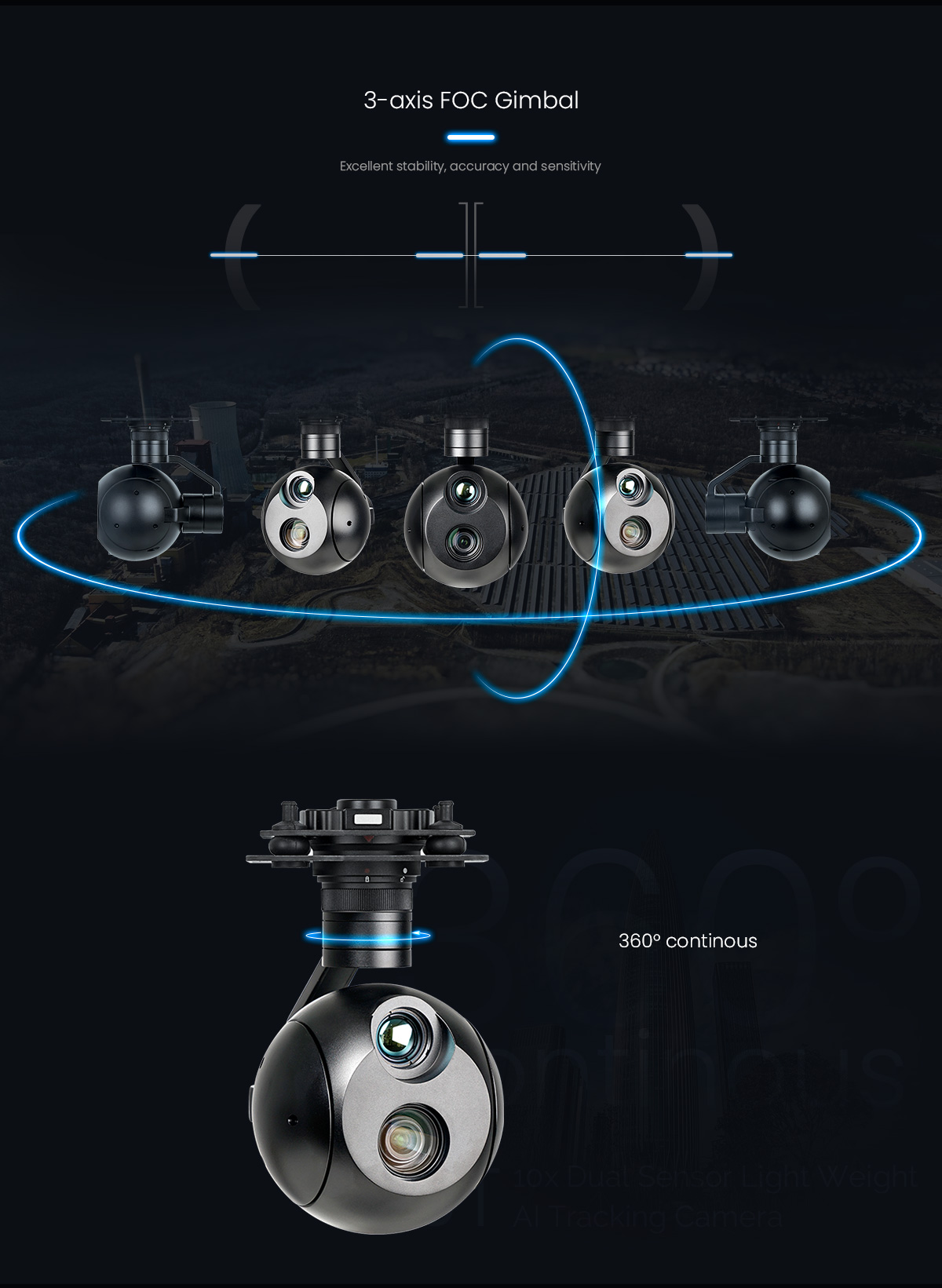

Gimbal Spec
Mechanical Range	Pitch/Tilt: -50°(Up)～135°(Down), Roll: ±70°, Yaw/Pan: ±300° / ±360°*N (IP output version)
Controllable Range	Pitch/Tilt: -45°～125°, Yaw/Pan: ±290° / ±360°*N (IP output version)
Vibration angle	Pitch/Roll/Yaw: ±0.02°
One-key to center	√

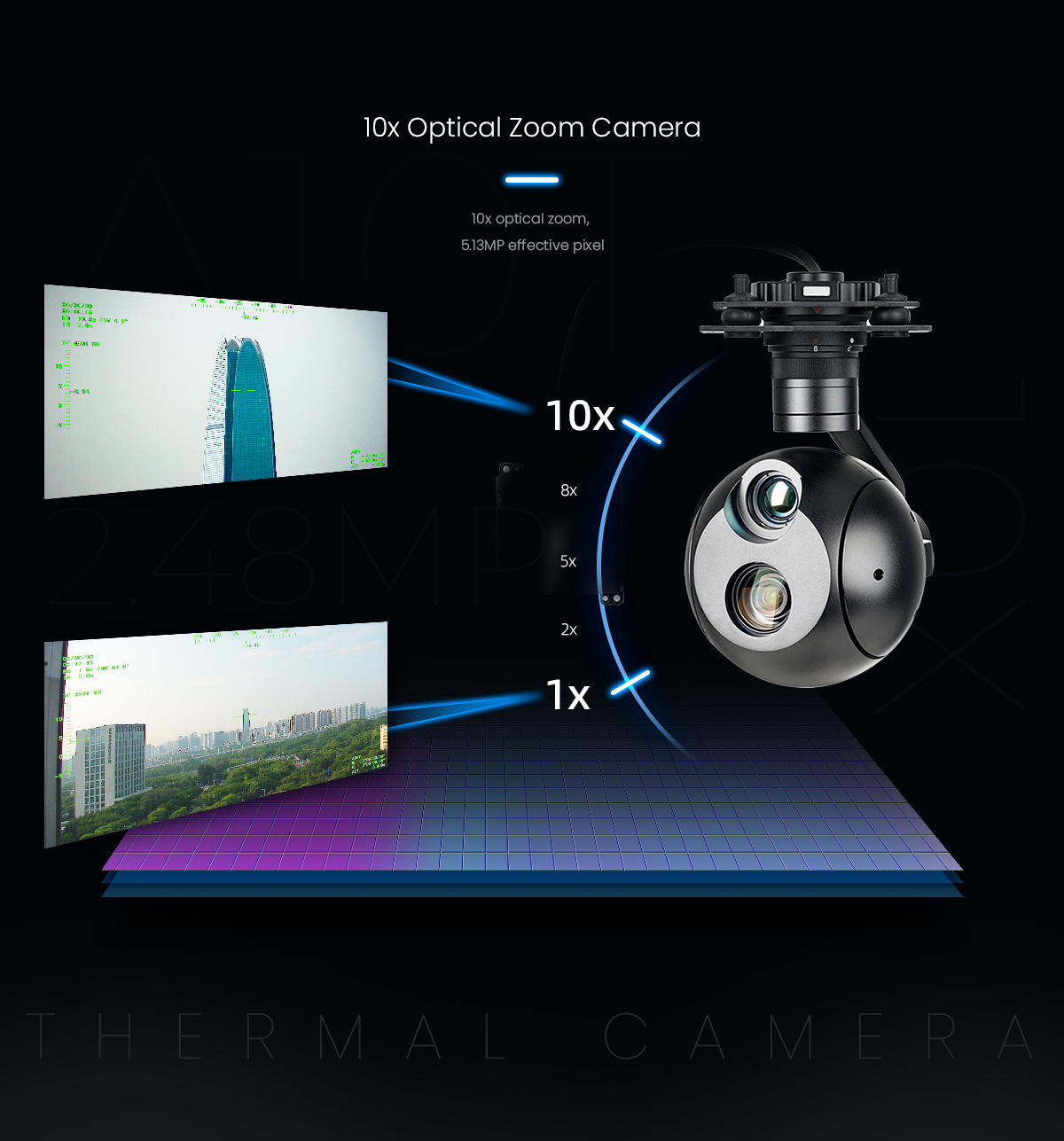

EO Camera Spec
Imager Sensor	1/2.8" SONY CMOS Sensor
Total pixel	5.13MP
Picture quality	Full HD 1080 (1920*1080)
Optical zoom	10x, f = 4.7mm ~ 47mm, F1.7~F3.1
Digital zoom	32x
Field of View (D, H, V)	Wide: 69.9° / 58.3° / 44.7°
Field of View (D, H, V)	Tele: 8.7° / 7.1° / 5.4°
Min target distance	0.1 / 1.5 / 3.0 / 5.0 / 10.0 m
Min illumination	Color(1/30s, 72.0dB): 0.02 lux , BW(1/30s, 72.0dB): 0.005lux Color DSS(1/1s, 72.0dB): 0.002 lux , BW DSS(1/1s, 72.0dB): 0.0005 lux
Min illumination
White balance	Auto / One Push / Manual / Indoor / Outdoor
Shutter speed	1/1sec ~ 1/100,000 sec
Focus	Auto / One Push / Manual
Exposure	Auto / Manual / Priority Mode (Shutter priority & aperture priority)
Backlight compensation	Yes
Auto ICR	Yes
Image stabilization	Yes
Defog	Yes

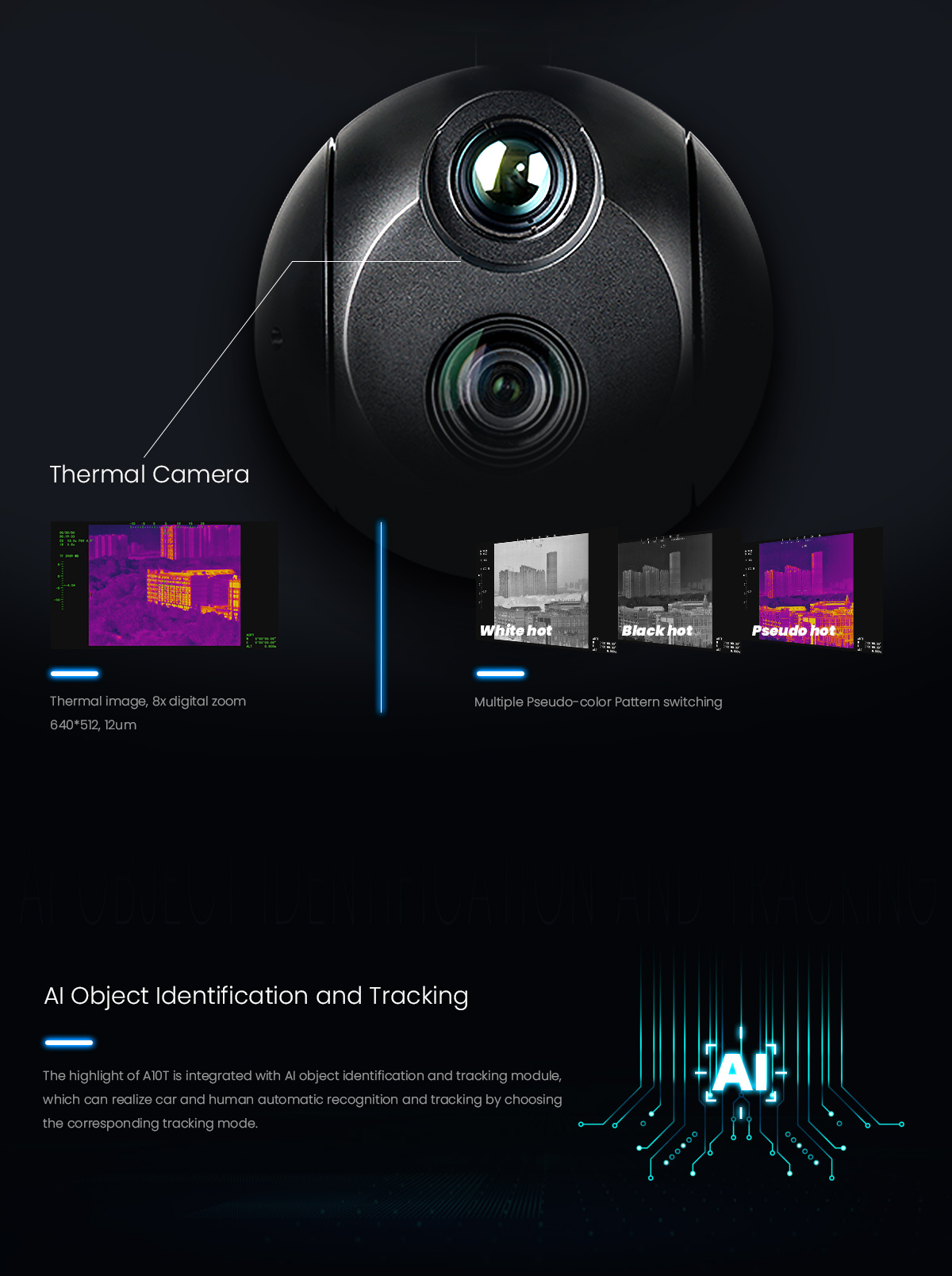

IR Thermal Imager Spec
Focus Length	19mm
Horizontal FOV	22.9°
Vertical FOV	18.4°
Diagonal FOV	29.0°
Detective Distance (Man: 1.8x0.5m)	792 meters
Recognize Distance (Man: 1.8x0.5m)	198 meters
Identification Distance (Man: 1.8x0.5m)	99 meters
Detective Distance (Car: 4.2x1.8m)	2428 meters
Recognize Distance (Car: 4.2x1.8m)	607 meters
Identification Distance (Car: 4.2x1.8m)	303 meters
Working mode	Uncooled VOx long wave (8μm~14μm) thermal imager
Detector pixel	640*512
Pixel size	12μm
Focusing method	Athermal prime lens
Emissivity correction	0~1
NETD	≤50mK@25℃, F#1.0
MRTD	≤400mK
Shutter	Yes
Color palette	white hot, black hot, pseudo color
Digital zoom	1x~8x
Radiometric function(optional)	Thermometry range optional：-20℃~+150℃, +100℃~+550℃
Radiometric function(optional)	Thermometry accuracy: ±3℃ or +3% of reading (whichever is greater) @ ambient temperature -20℃~60℃
EO / IR Camera Object Tracking
Update rate of deviation pixel	30Hz
Output delay of deviation pixel	<30ms
Minimum object contrast	5%
SNR	4
Minimum object size	16*16 pixel
Maximum object size	256*256 pixel
Tracking speed	±48 pixel/frame
Object memory time	100 frames

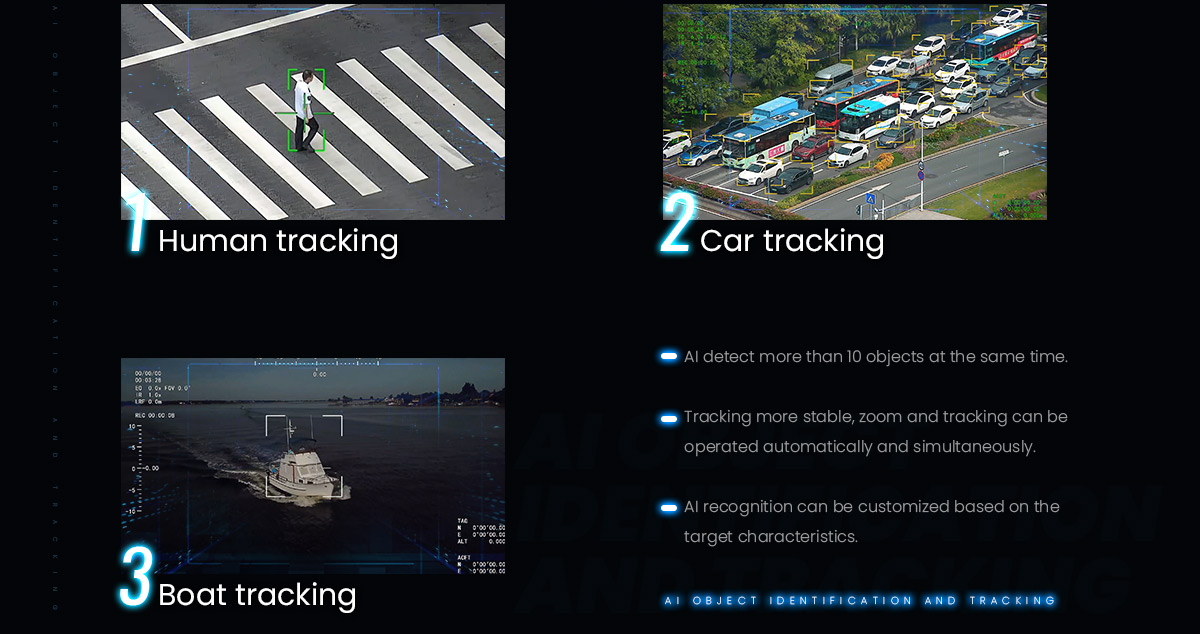

EO Camera AI Performance
Targets type	Car and human
Simultaneous detection quantity	≥ 10 targets
Min contrast ratio	5%
Min target size	5×5 pixel
Car detection rate	≥85%
False alarm rate	≤10%

For more details, please A10T Pro 10x Dual Sensor Light Weight AI Tracking Camera
