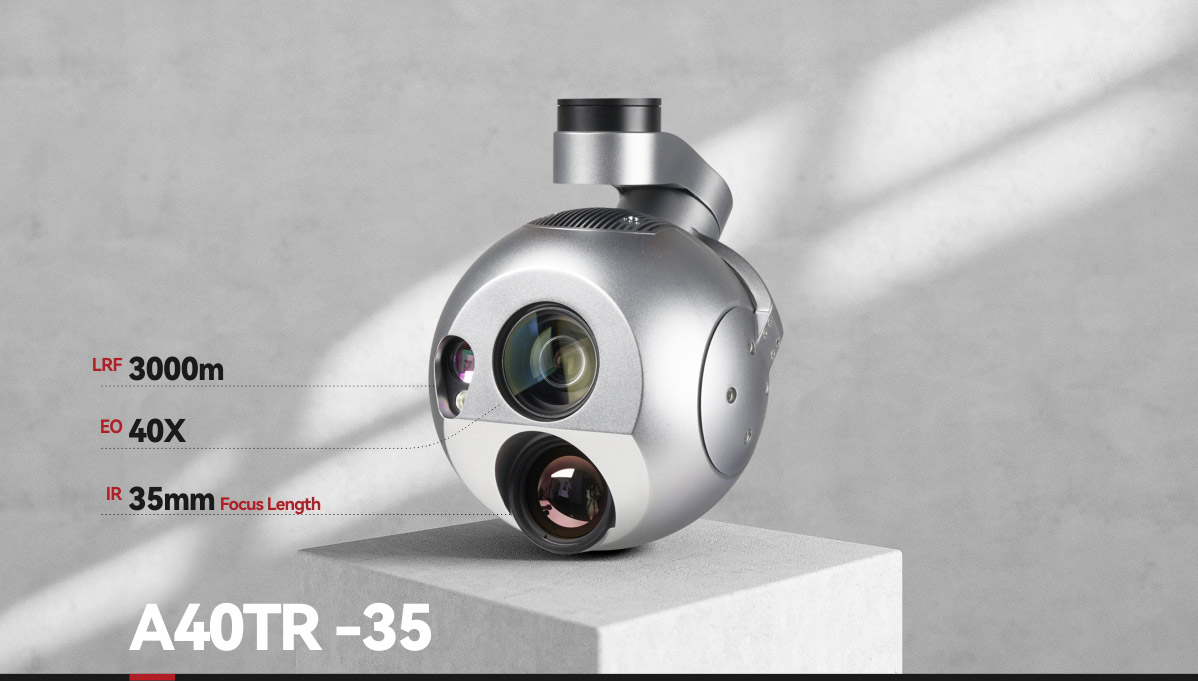

A40TR-35 40X Al autonomous-ldentificationand automatic Tracking Camera

Hardware Parameter
Working voltage 16V
Input voltage 4S ~ 6S
Output voltage 5V (connect with PWM)
Dynamic current 700~2000mA @ 16V
Working environment temp. -20℃ ~ +60℃
Output  micro HDMI(1080P 30fps/60fps) / IP (RTSP/UDP 720p/1080p 30fps)
Local-storage TF card (Up to 256G, class 10, FAT32 or ex FAT format)
Photo storage format JPG(1920*1080)
Video storage format MP4(1080P 30fps)
Network Read Card HTTP Read TF Card Online

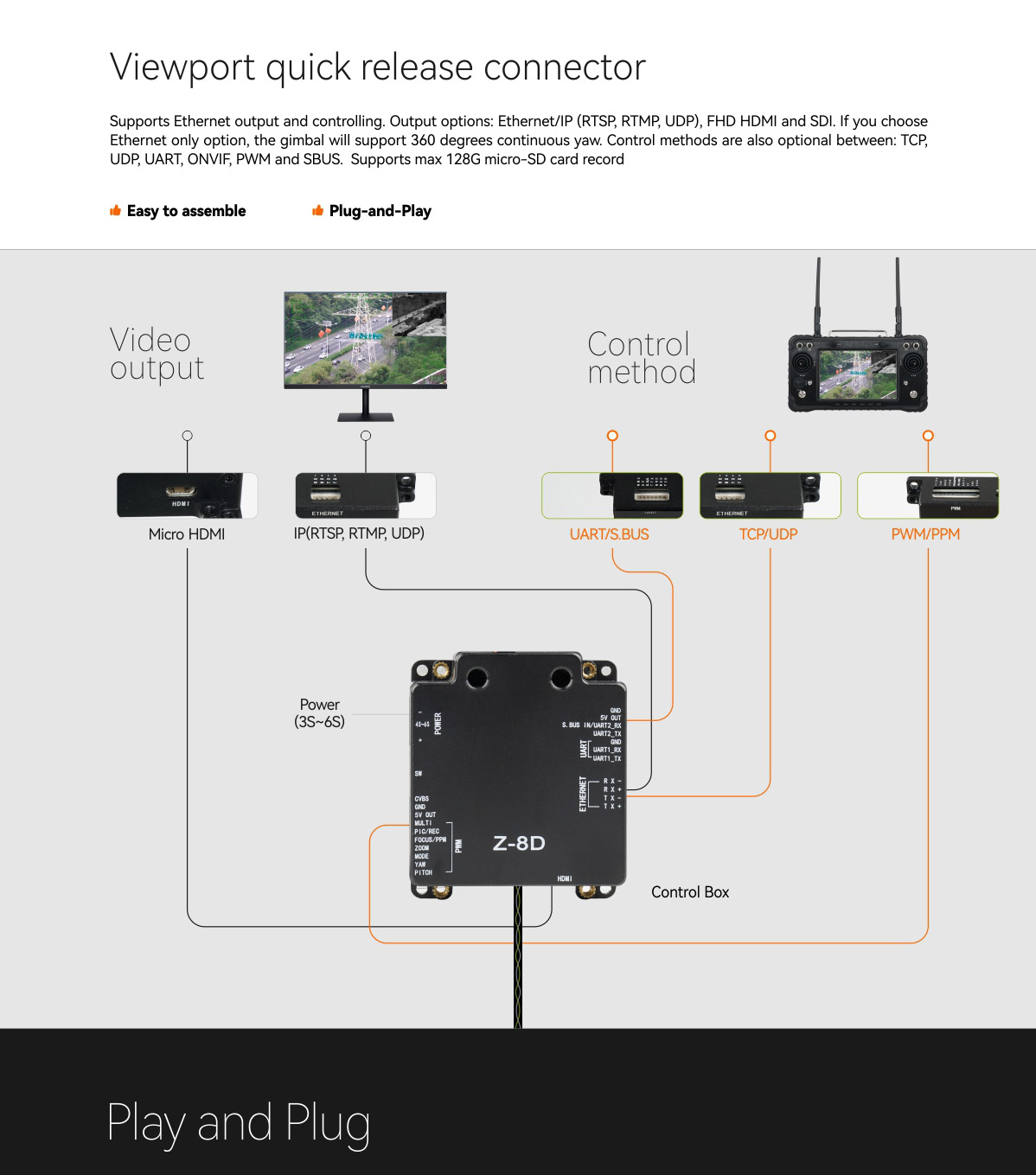

Control method PWM  / TTL / S.BUS / TCP(IP output) / UDP(IP output)
Geotagging Support, display time and GPS coordinate in picture exif
Gimbal Spec
Mechanical Range Pitch/Tilt:-115°~125°,   Roll: ±45°,    Yaw/Pan: ±300° / ±360°*N (IP output version)
Controllable Range Pitch/Tilt: -45°~120°,   Yaw/Pan: ±290° / ±360°*N (IP output version)
Vibration angle Pitch/Roll: ±0.02°, Yaw:±0.02°
One-key to center

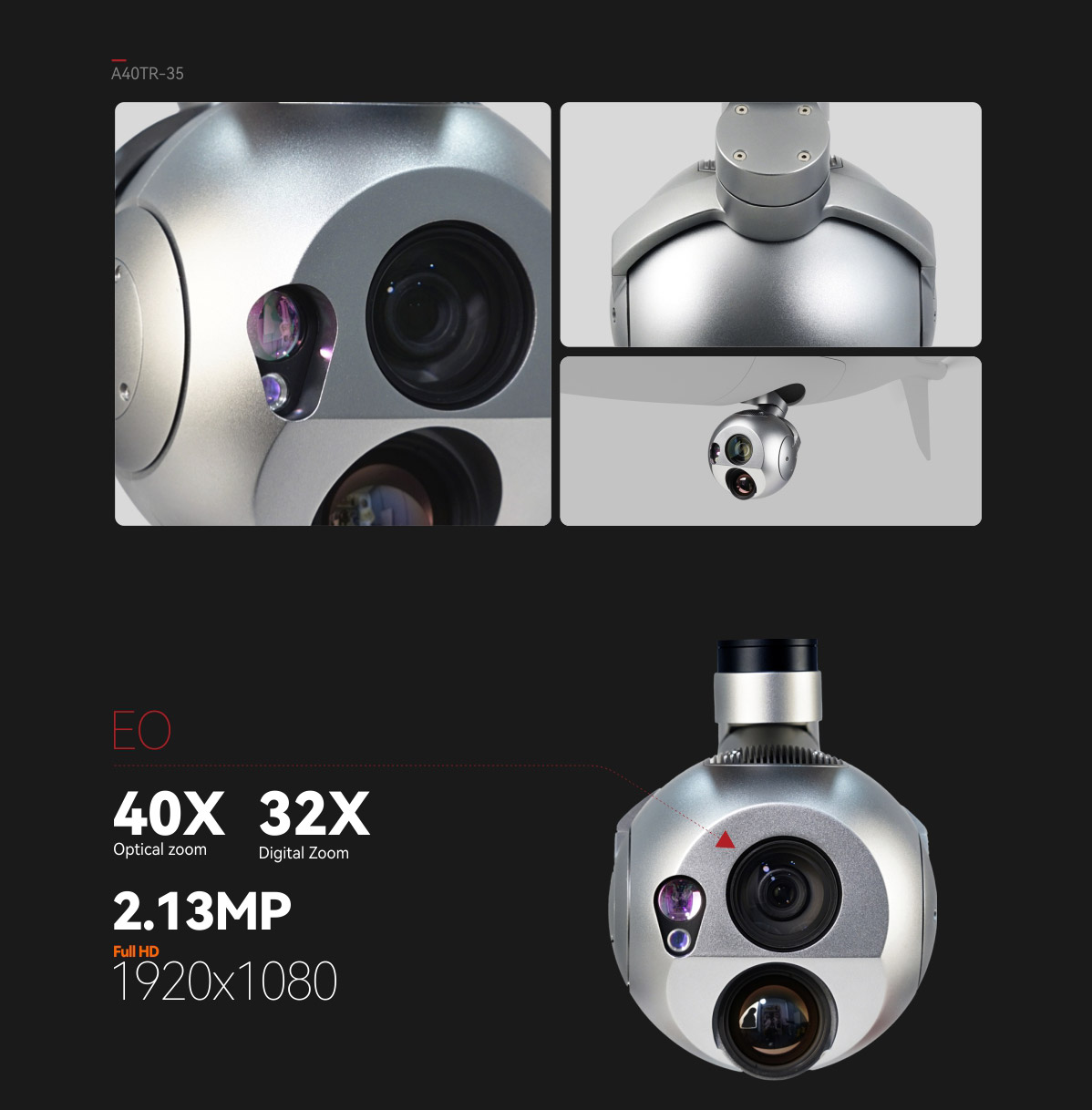

EO Camera spec
Imager Sensor 1/2.8" Sony  CMOS Sensor
Picture quality Full HD 1080 (1920*1080)
Effective pixel 2.13MP
Photo storage format JPG(1920*1080 / 1280*720)
Video storage format MP4  (1080P/720P 25fps/30fps)

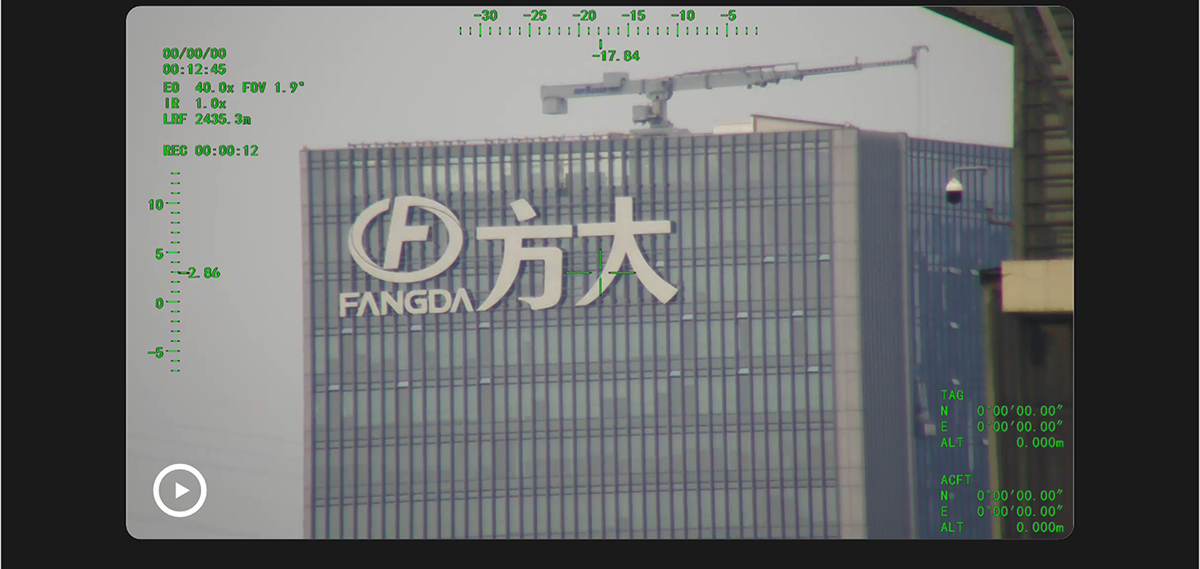

Lens optical zoom 40x, F=4.25~170mm
Digital zoom Off / MAX x2 ~ x32
Min object distance 0.1 / 1.5 / 3.0 / 5.0 / 10.0 m
Angle of View (D, H, V) Wide: 73.80° / 66.35° / 39.98°
  Tele: 2.16° / 1.90° / 1.11°
AF Mode Auto / One Push / Manual
Iris Close ~ F1.6
Shutter speed 1/1 ~ 1/30,000 sec
Sync system Internal
S/N ratio more than 50dB
Min illumination Color(1/30s, 79.5dB) : 0.01 lux , BW(1/30s, 79.5dB) : 0.002 lux
  Color DSS(1/1s, 79.5dB) : 0.001 lux , BW DSS(1/1s, 79.5dB) : 0.0002 lux
Exposure control Auto / Iris. Priority / Shut. Priority / Manual
Gain Control(AGC) 0 ~ 10 steps
White balance Auto / One Push / Manual / Indoor / Outdoor
Back Light   Off / BLC / HLC / WDR
Defog Off / Manual / Auto
OSD Yes

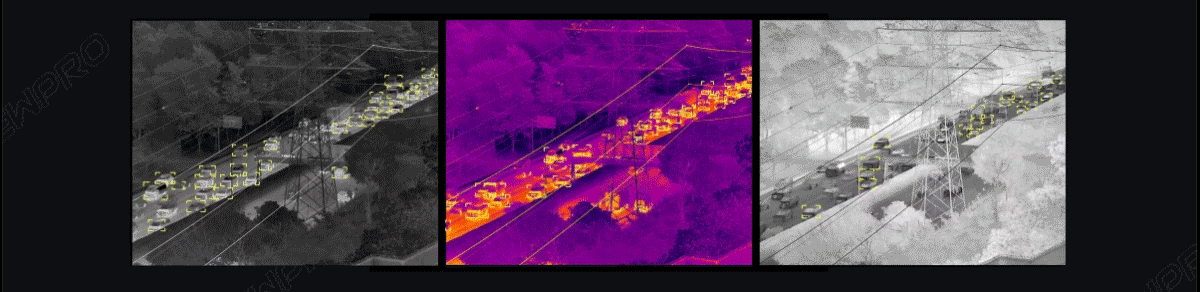

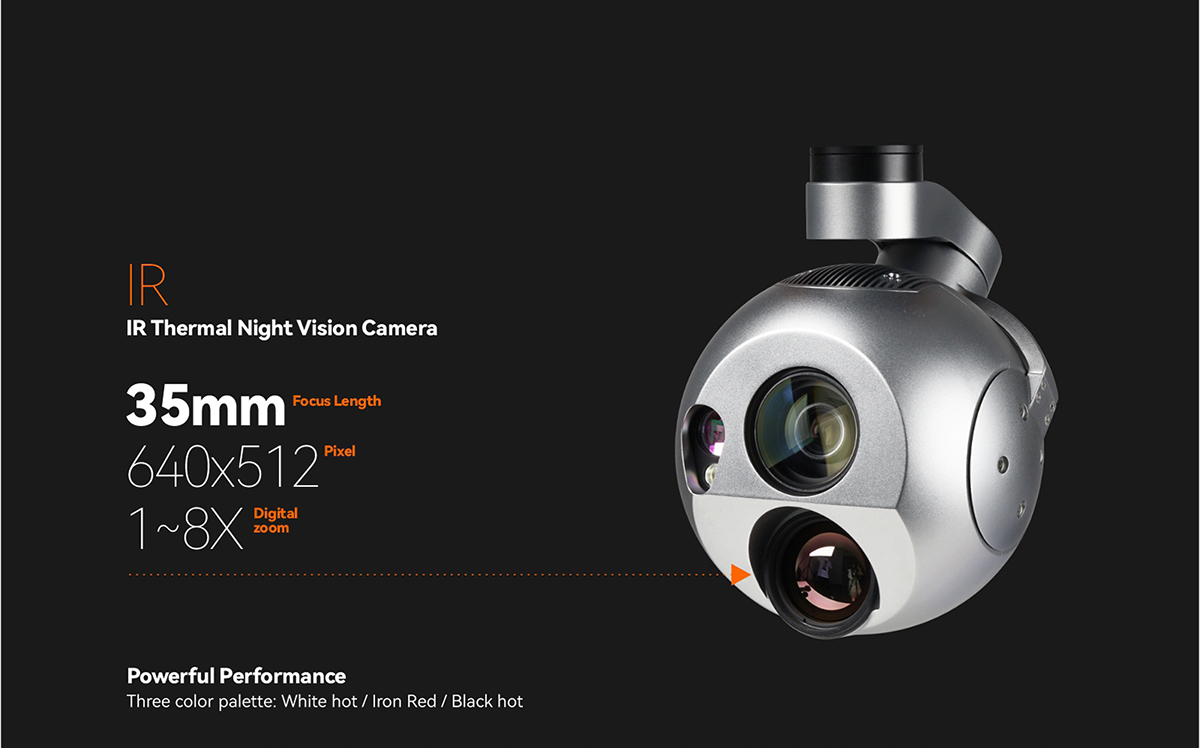

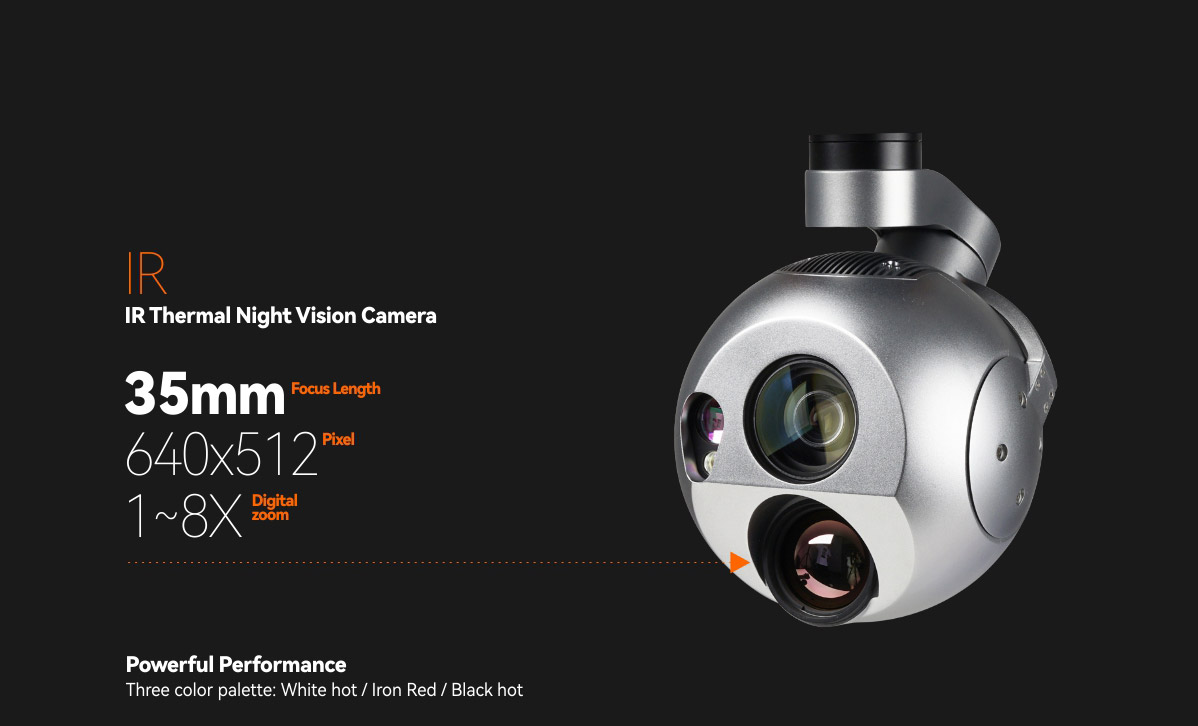

IR Thermal Imager Spec
Focus Length 35mm
Coating Film DLC
Horizontal FOV 12.5°
Vertical FOV 10.0°
Diagonal FOV 16.0°

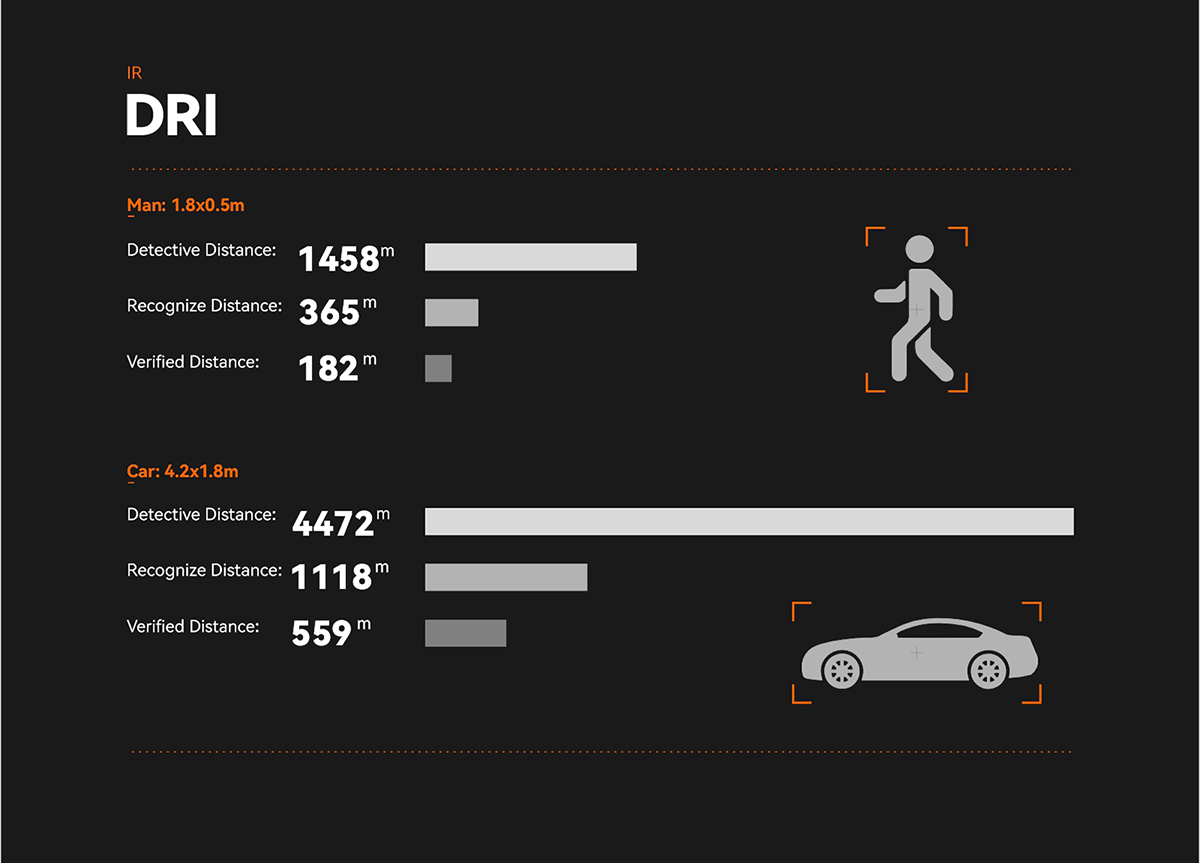

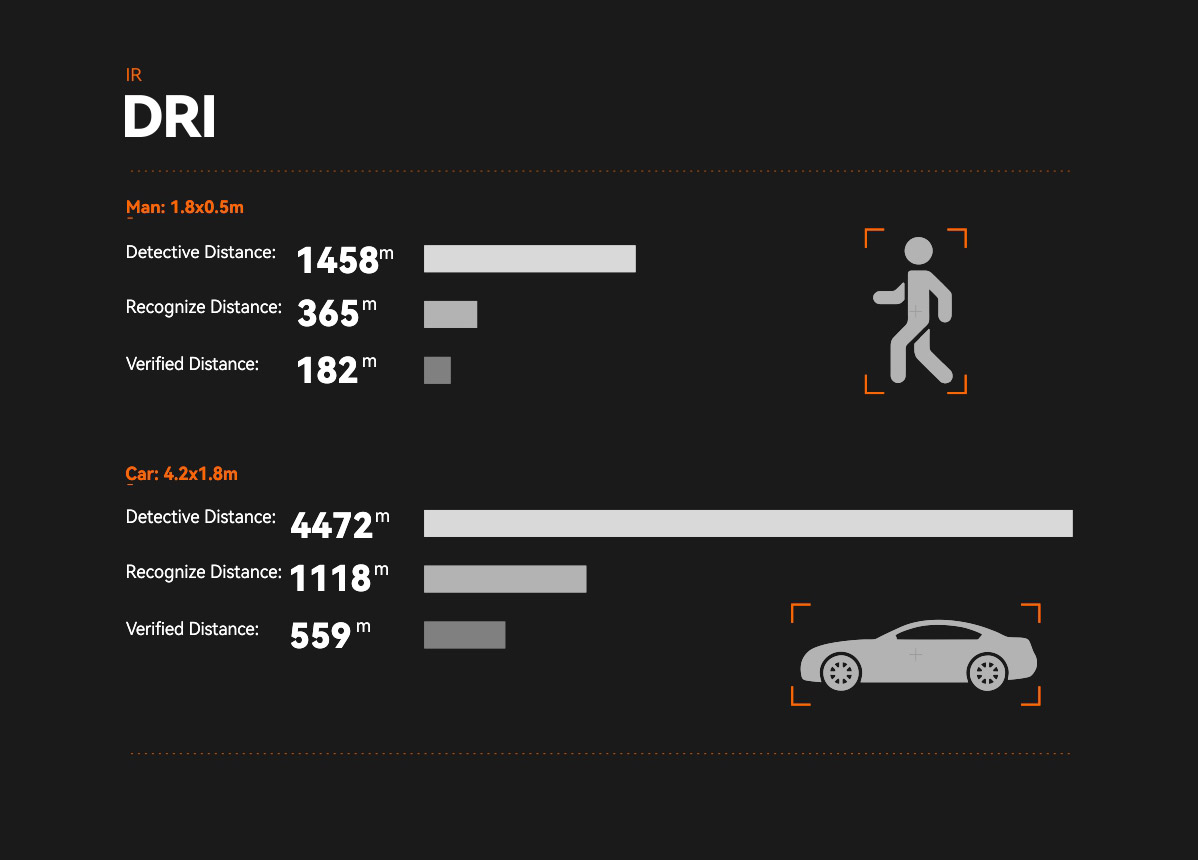

Detective Distance (Man: 1.8x0.5m) 1458 meters
Recognize Distance (Man: 1.8x0.5m) 365 meters
Verified Distance (Man: 1.8x0.5m) 182 meters
Detective Distance (Car: 4.2x1.8m) 4472 meters
Recognize Distance (Car: 4.2x1.8m) 1118 meters
Verified Distance (Car: 4.2x1.8m) 559 meters
Working mode Uncooled VOx long wave (8μm~14μm) thermal imager
Detector pixel 640*512
Pixel pitch 12μm
Focusing method Athermal prime lens
NETD ≤50mK@F.0 @25℃

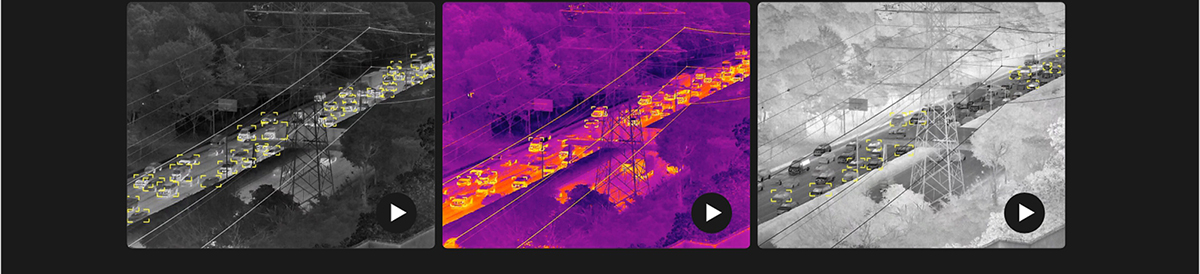

Color palette White, iron red, pseudo color
Digital zoom 1x ~ 8x
Sync correct time Yes
Radiometric function Optional (-20℃~+150℃, 0℃~+550℃)

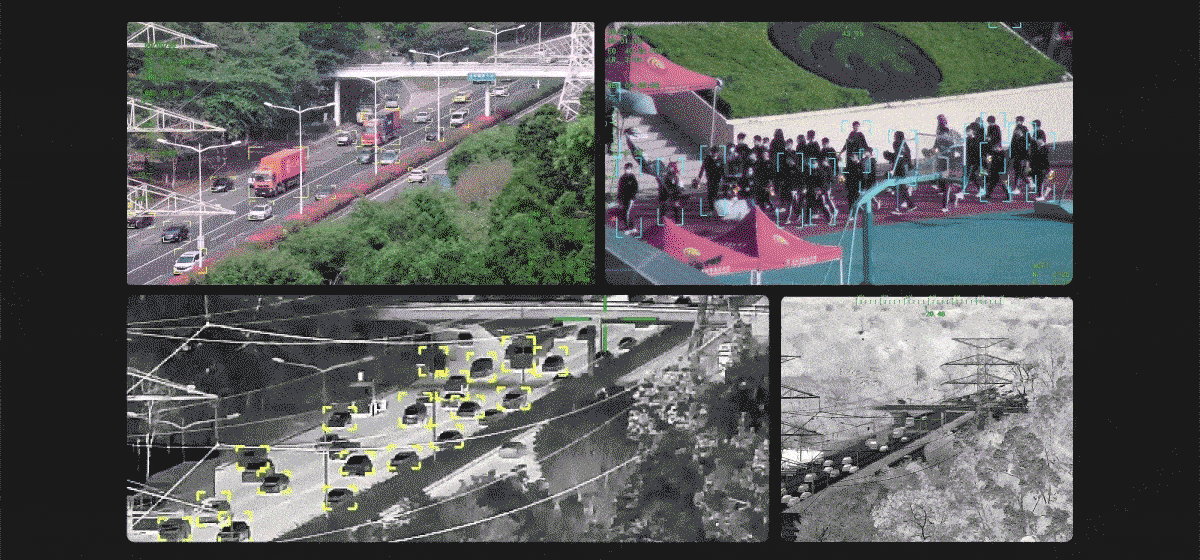

Camera Object Tracking
Update rate of deviation pixel 30Hz
Output delay of deviation pixel <30ms
Minimum object contrast 5%
SNR 4
Minimum object size 16*16 pixel
Maximum object size 256*256 pixel
Tracking speed ±48 pixel/frame
Object memory time 100 frames
AI auto-zoom Yes

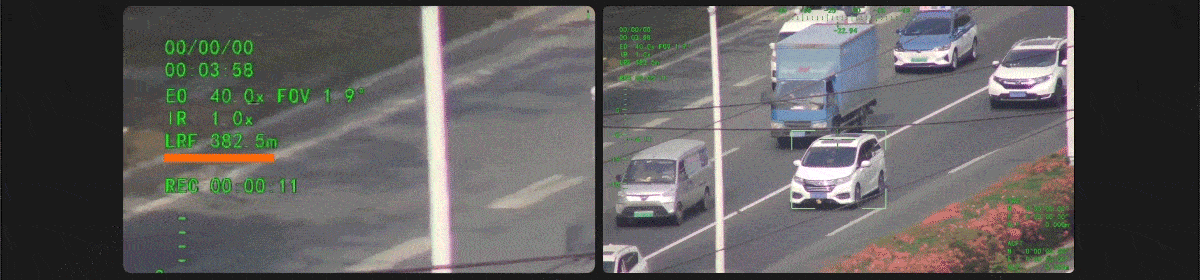

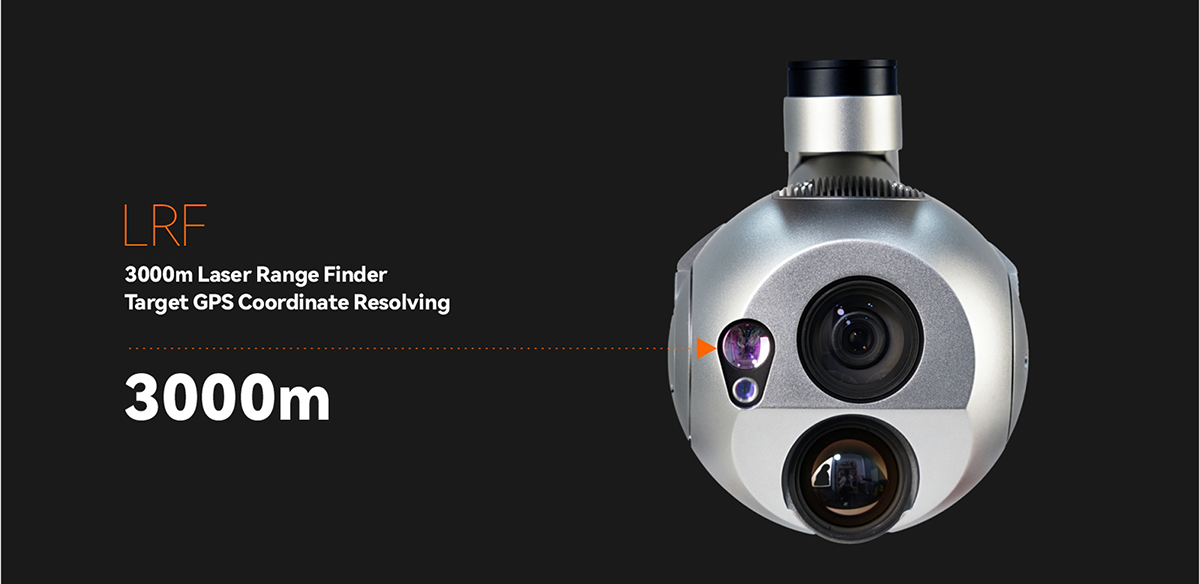

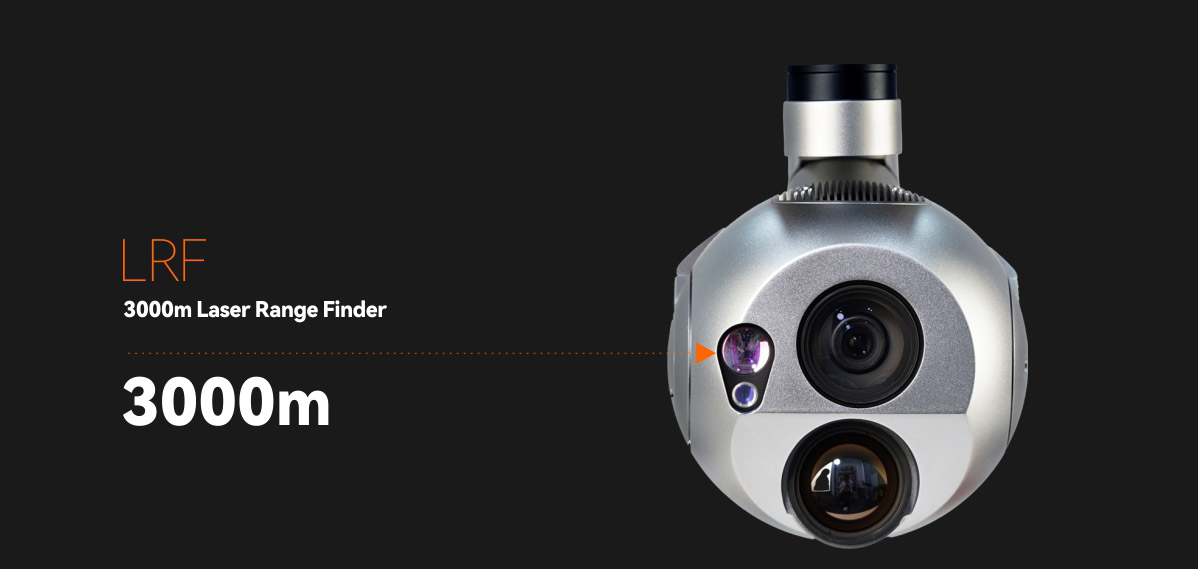

IR Laser Rangefinder
Range for car ≥ 3000m; for human ≥ 2000m
Minimum range 15m
Frequency 1~10Hz
Accuracy ±1m
Light Beam 1535±5nm pulse laser
Divergent Angle ~0.6 mrad

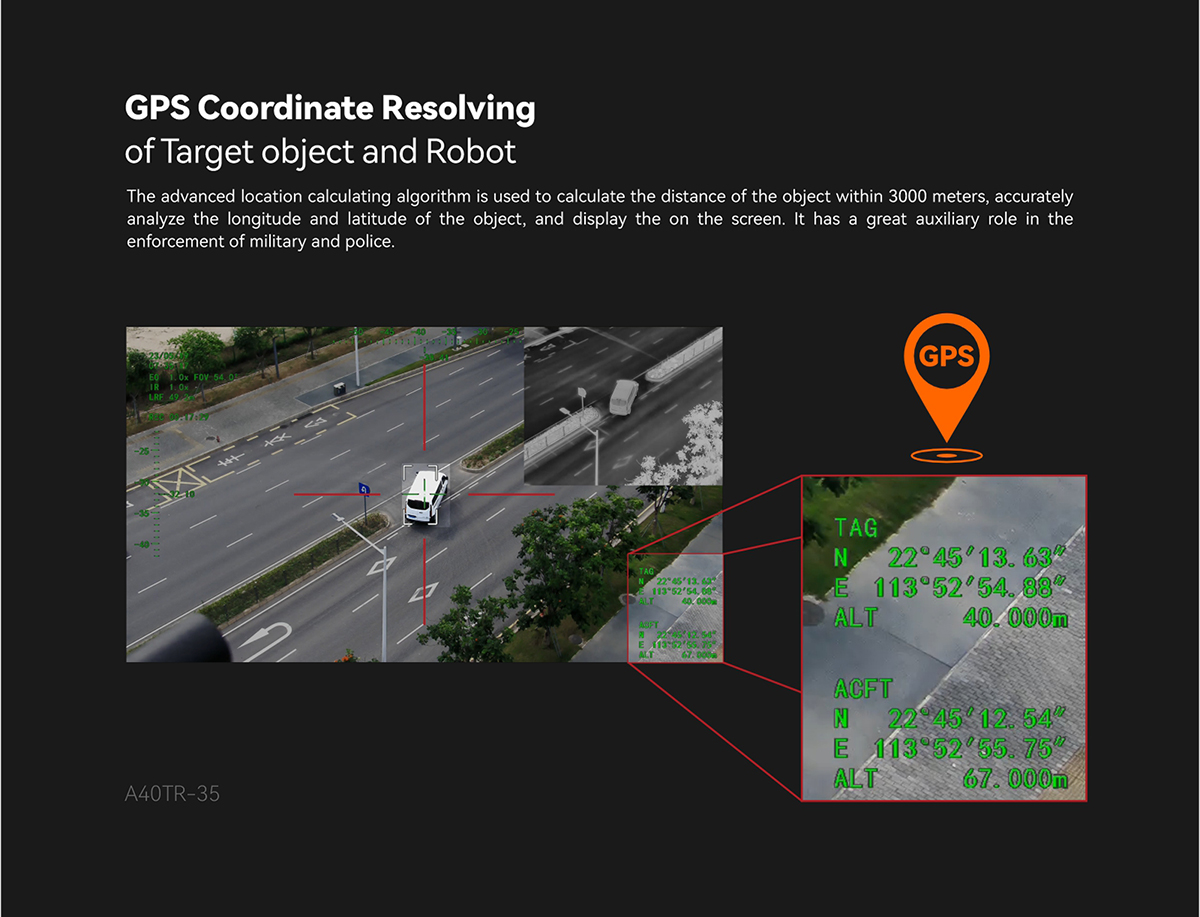

Location Resolving Latitude and longitude of target
Ranefinder Target distance measuring

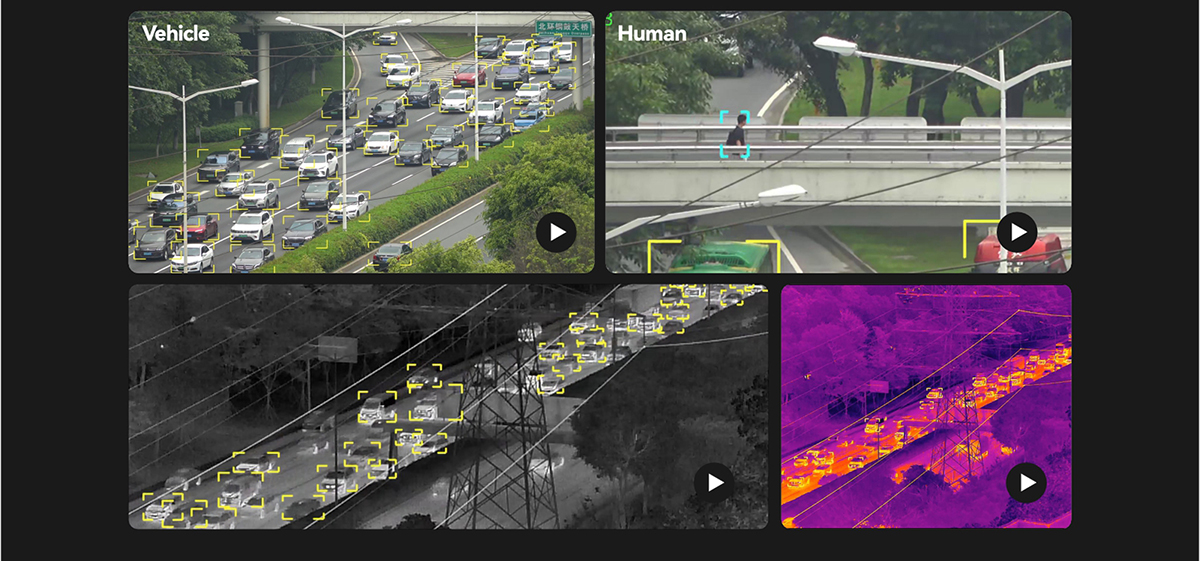

EO Camera AI Performance
Targets type Car and human
Simultaneous detection quantity ≥ 10 targets
Min contrast ratio 5%
Min target size 5×5 pixel
Car detection rate ≥85%
False alarm rate ≤10%

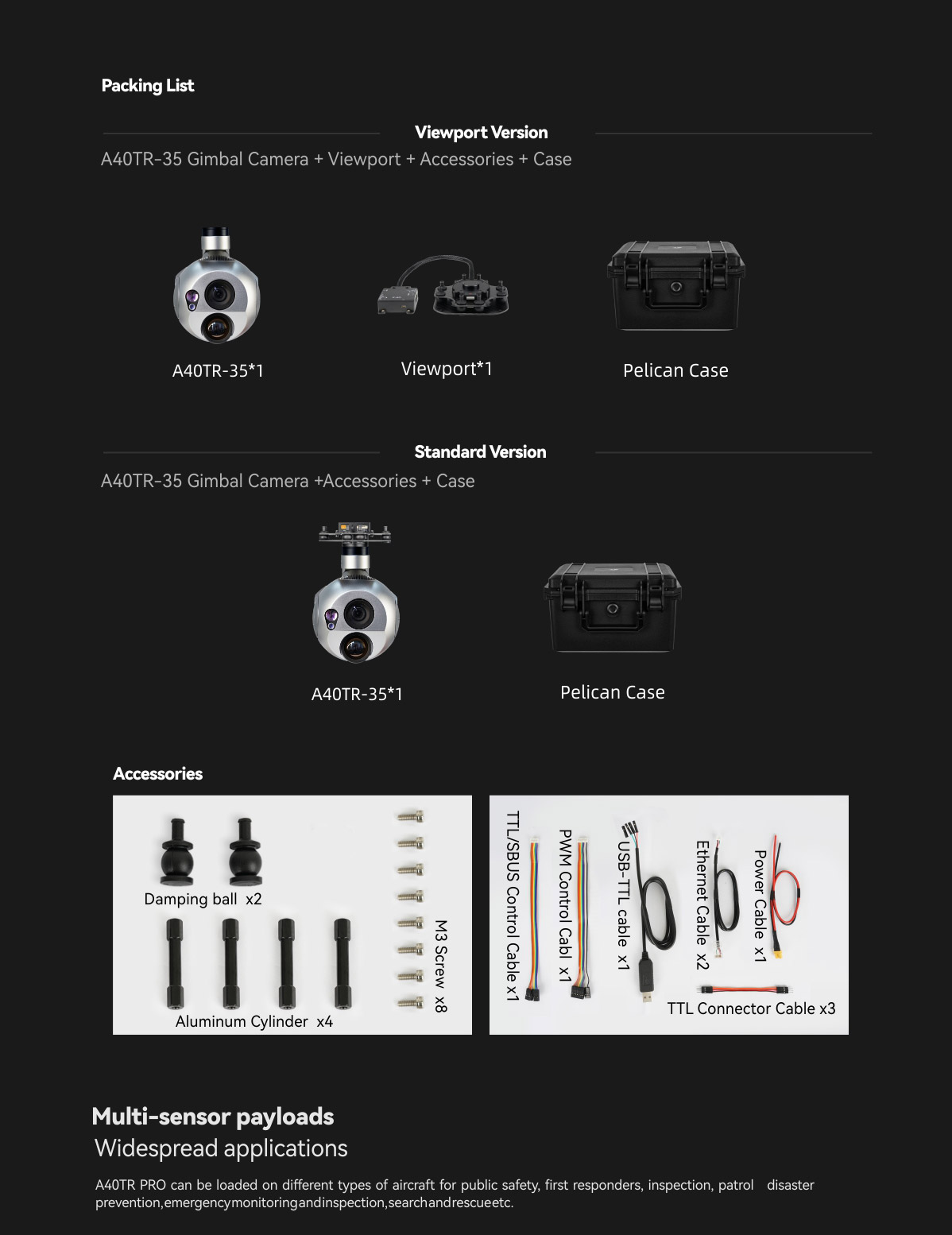

Packing Information
N.W. 1185±10g(Viewport version with Viewport)

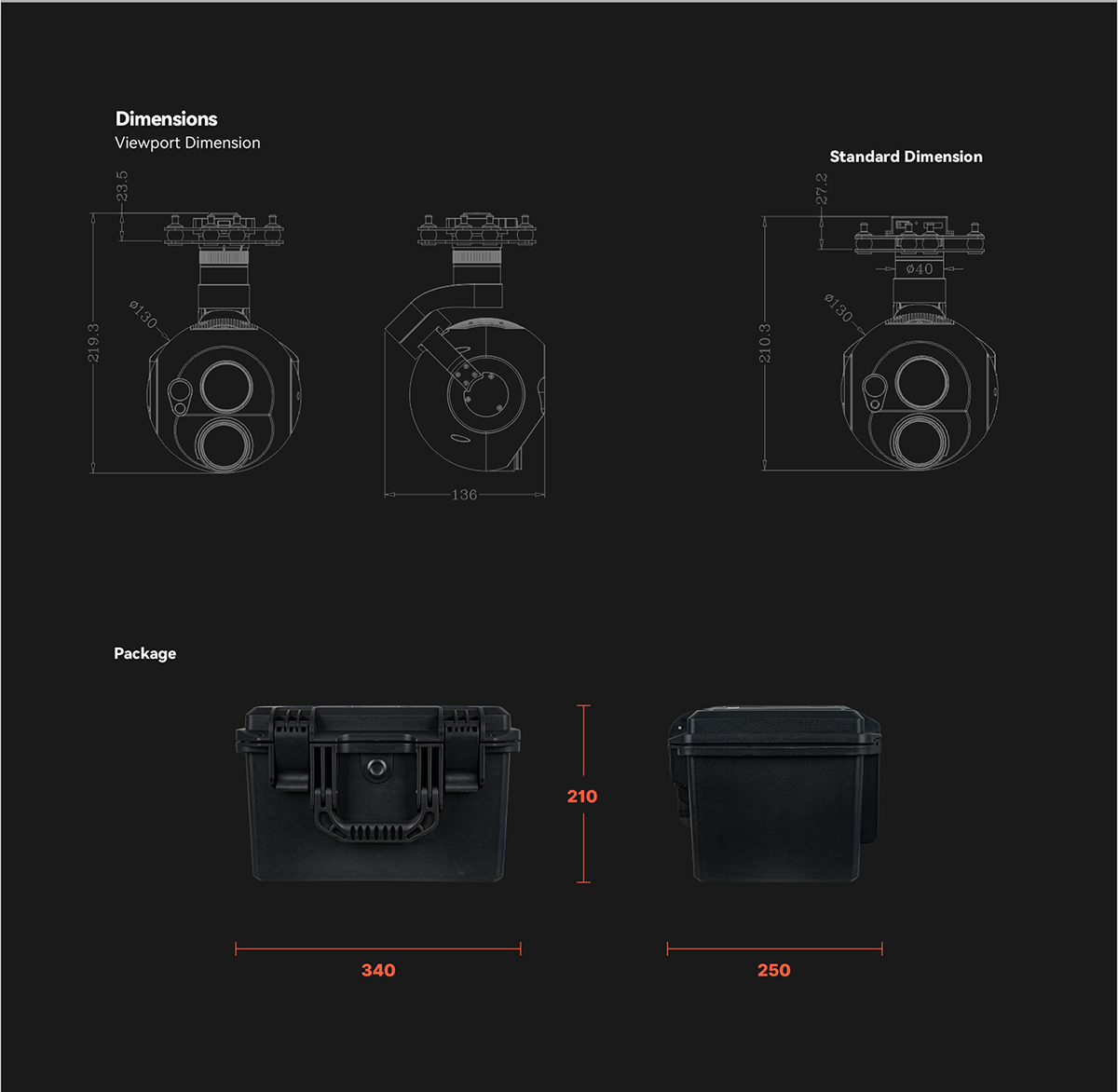

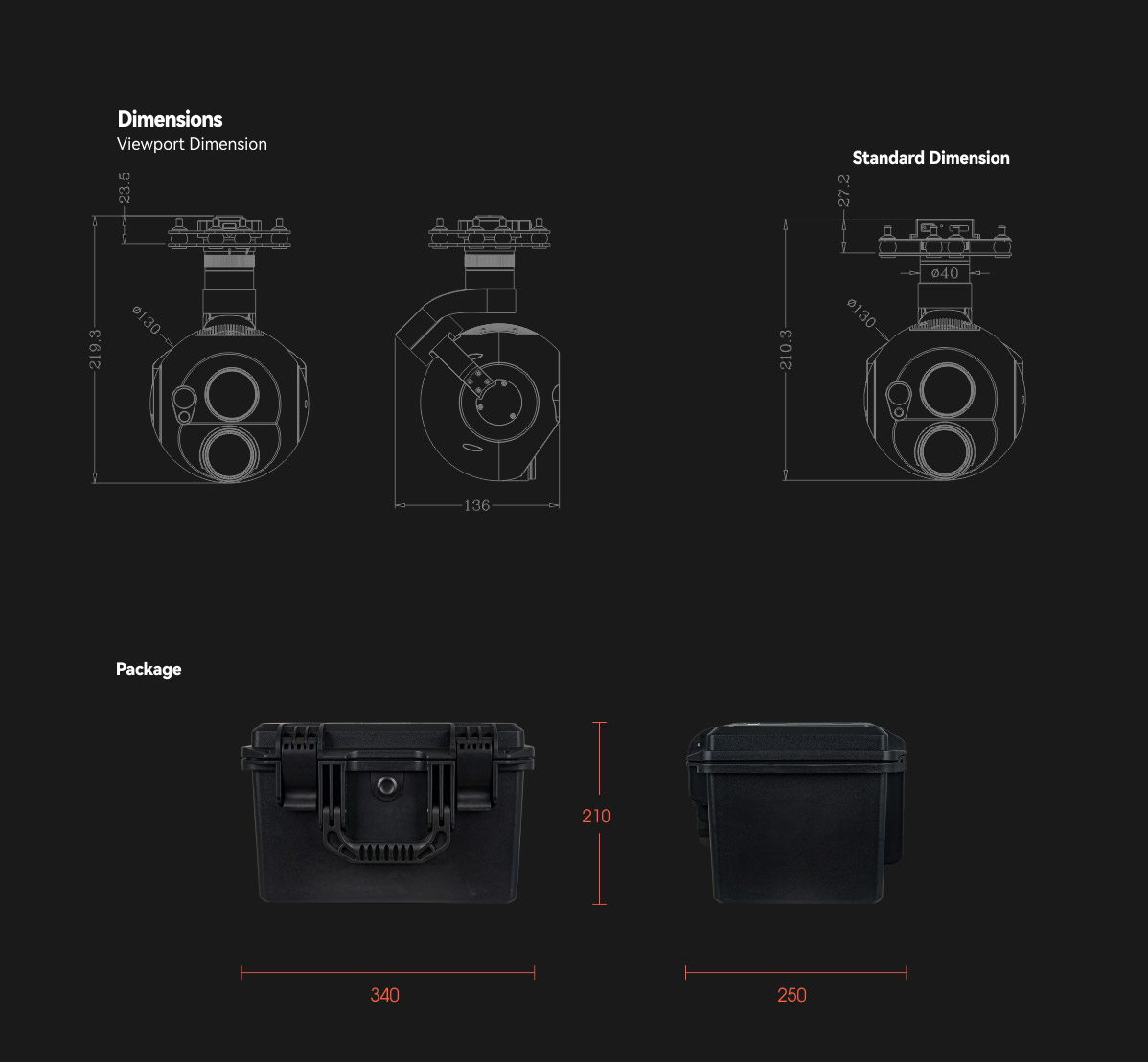

Product meas. 136*130*213.6mm / 136*130*219.3mm(Viewport Version)

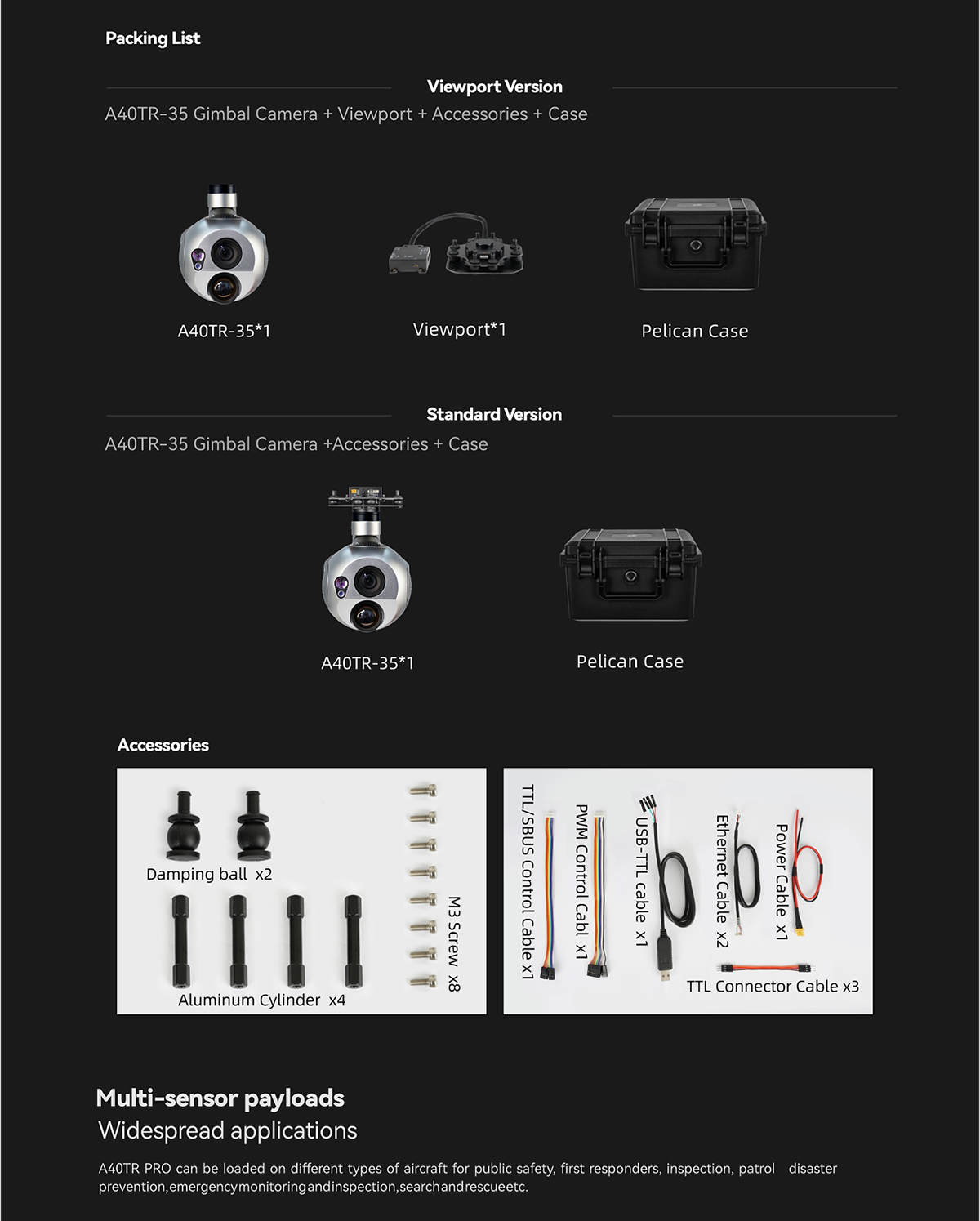

Accessories 1pc gimbal camera device, screws,  copper cylinders, damping balls, damping boards, 1pc USB to TTL cable / Hight quality plastic box with foam cushion
G.W. 3332g
Package meas. 350*300*250mm
