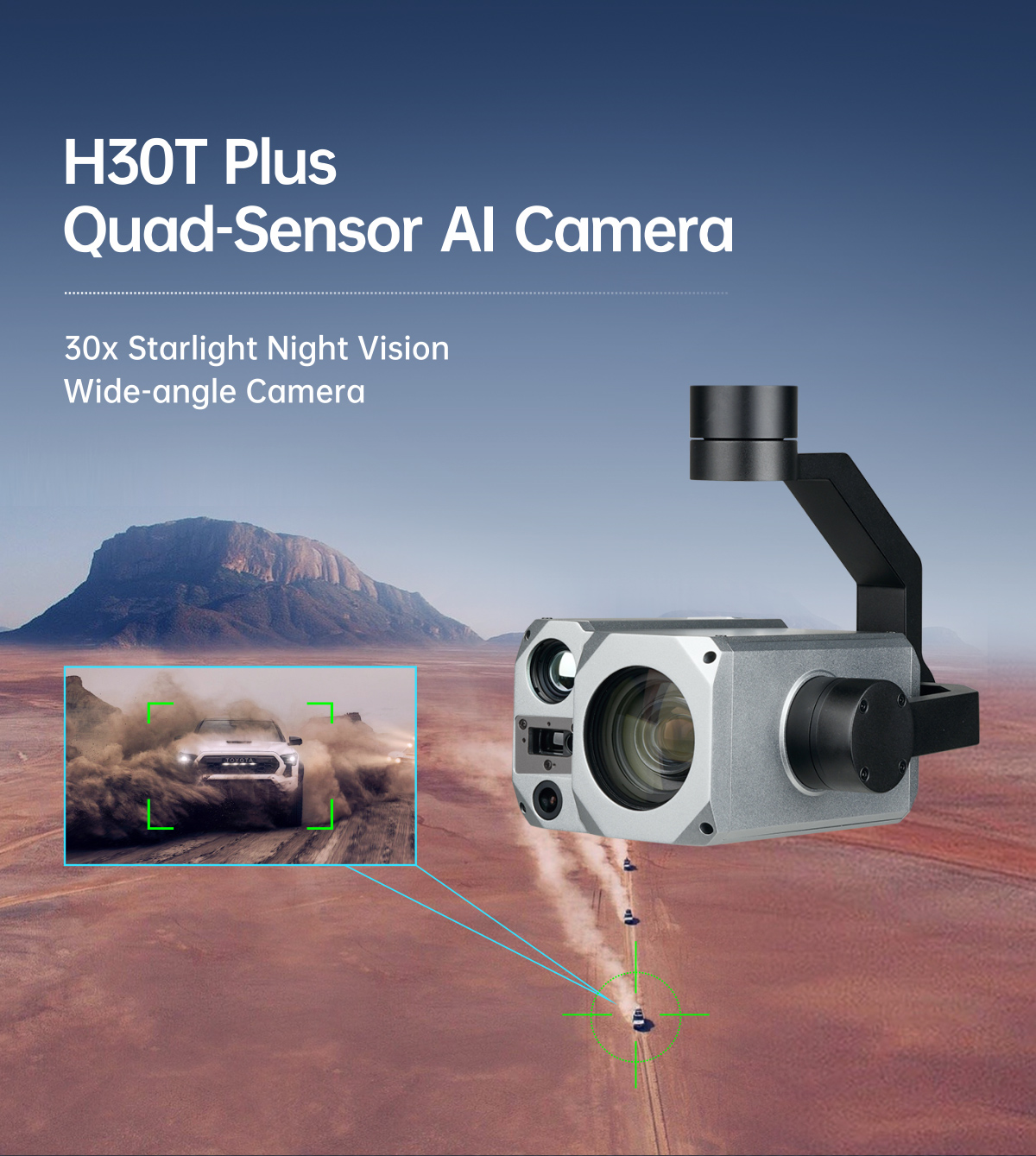

H30T Plus Quad-Sensor 30x Starlight Night Vision Wide-Angle AI Camera



Hardware Parameter
Working voltage 16V
Input voltage 4S ~ 6S
Output voltage 5V (connect with PWM)
Dynamic current 1100~2500mA @ 16V
Working environment temp. -20℃ ~ +60℃

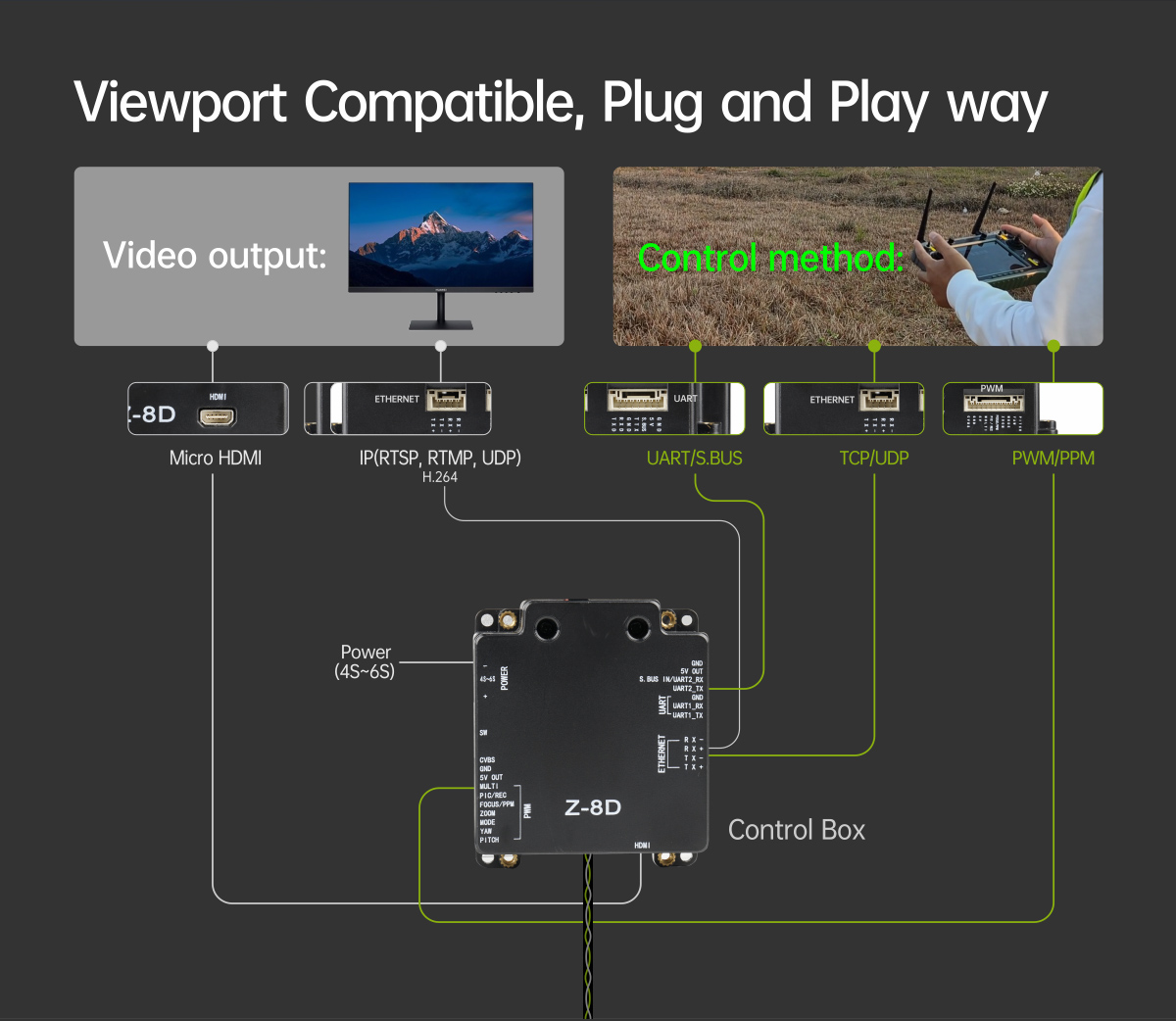

Output  micro HDMI(1080P 30fps/60fps) / IP (RTSP/UDP 720p/1080p 30fps)
Local-storage TF card (Up to 256G, class 10, FAT32 format)
Photo storage format JPG(1920*1080)
Video storage format MP4(1080P 30fps)

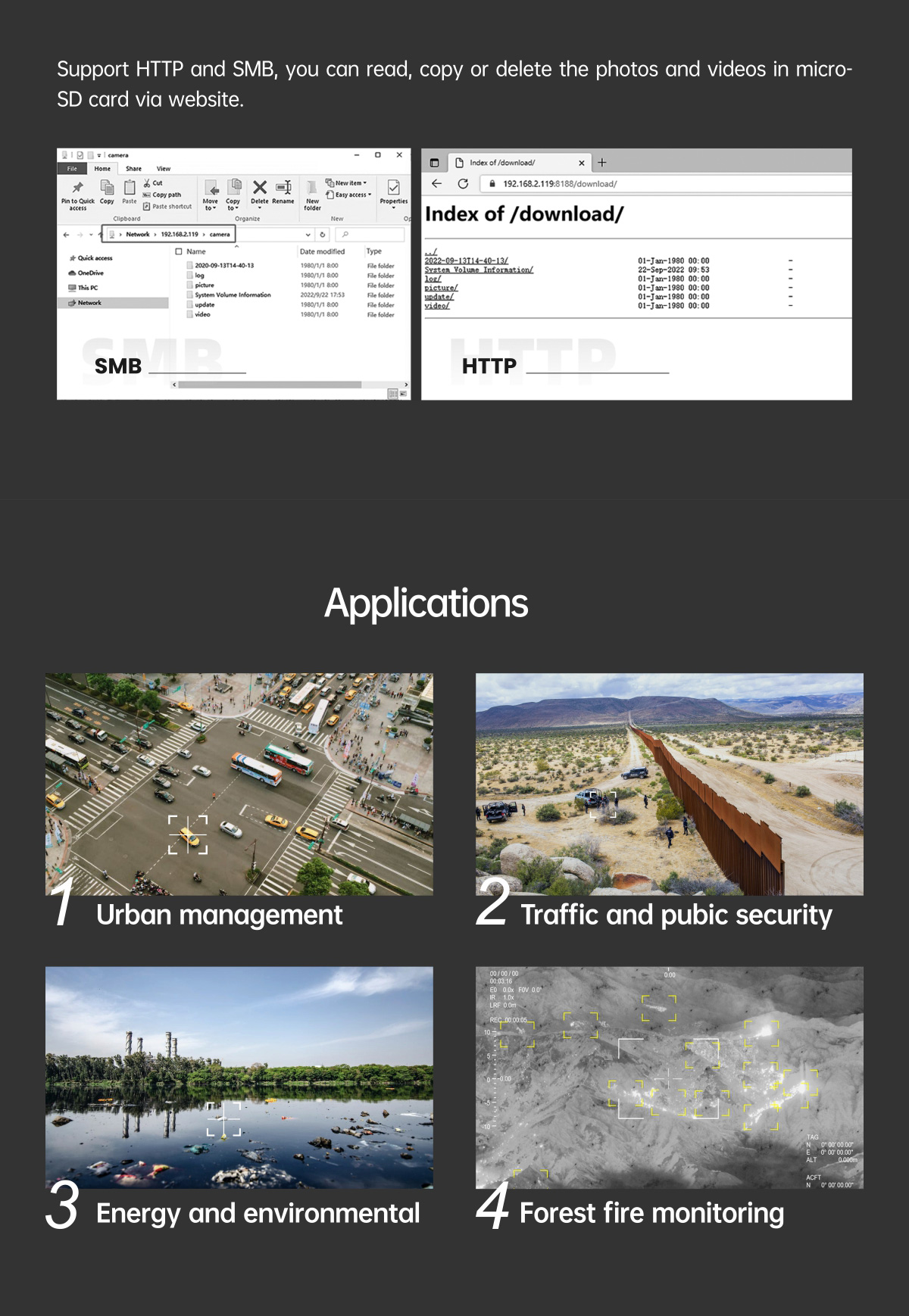

Card reading online HTTP read pictures

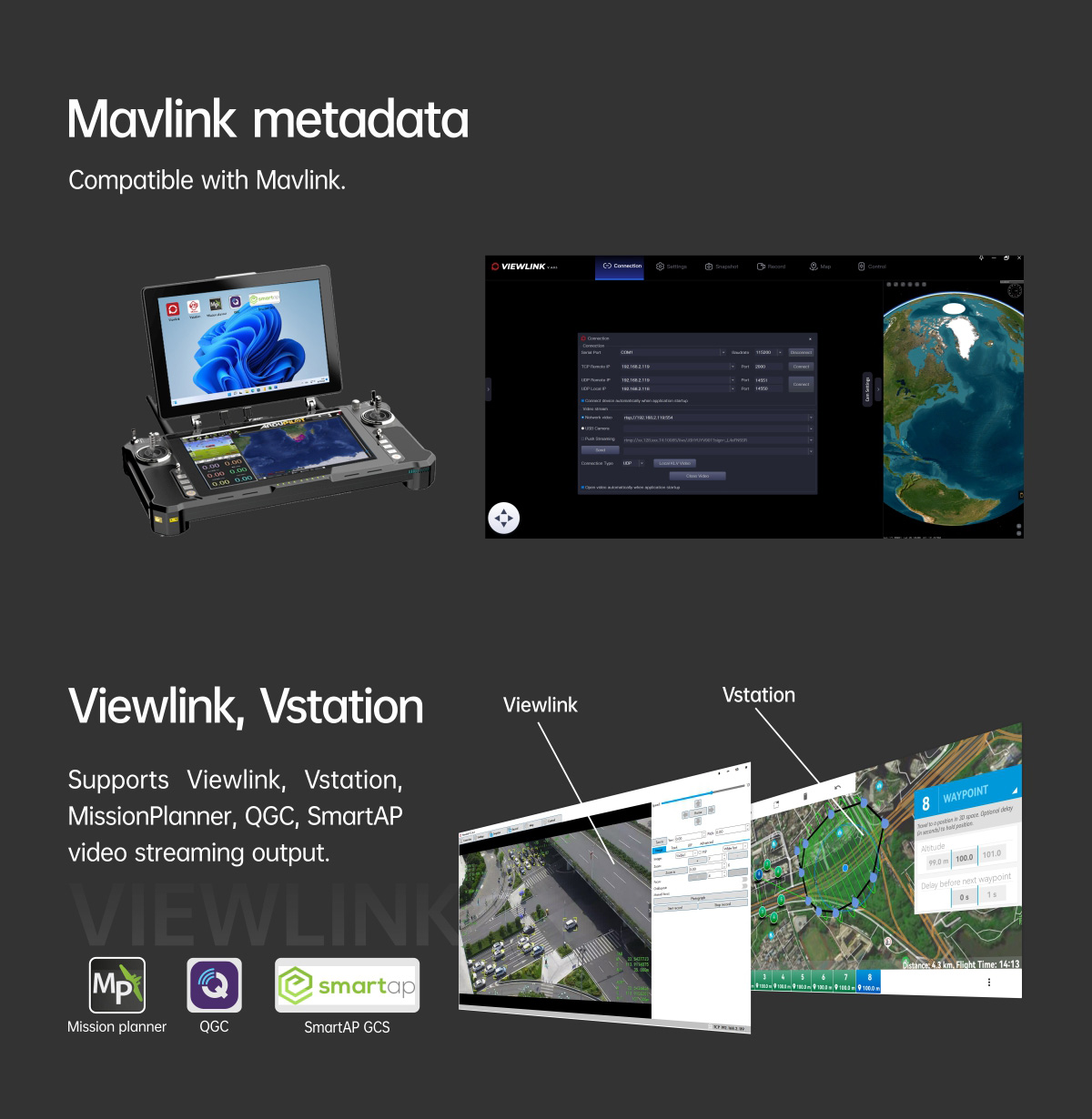

Control method PWM  / TTL / S.BUS / TCP(IP output version)/UDP(IP output version)
Geotagging Support, display time and GPS coordinate in picture exif

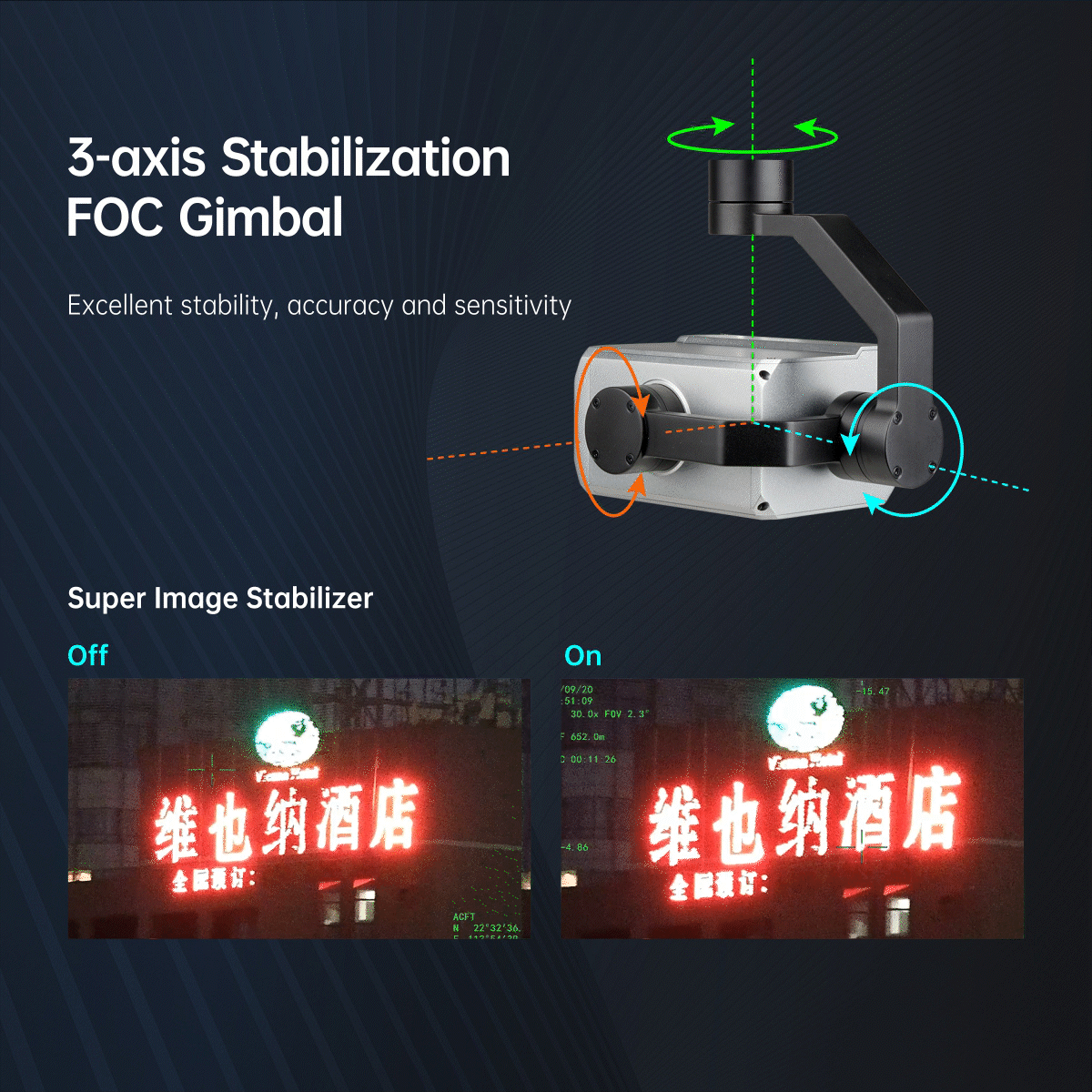

Gimbal Spec
Mechanical Range Pitch/Tilt:-110°~130°,   Roll: ±70°,  Yaw/Pan: ±300° / ±360°*N (IP output version)
Controllable Range Pitch/Tilt: -45°~125°,   Yaw/Pan: ±290° / ±360°*N (IP output version)
Vibration angle Pitch/Roll: ±0.02°, Yaw:±0.02°
One-key to center

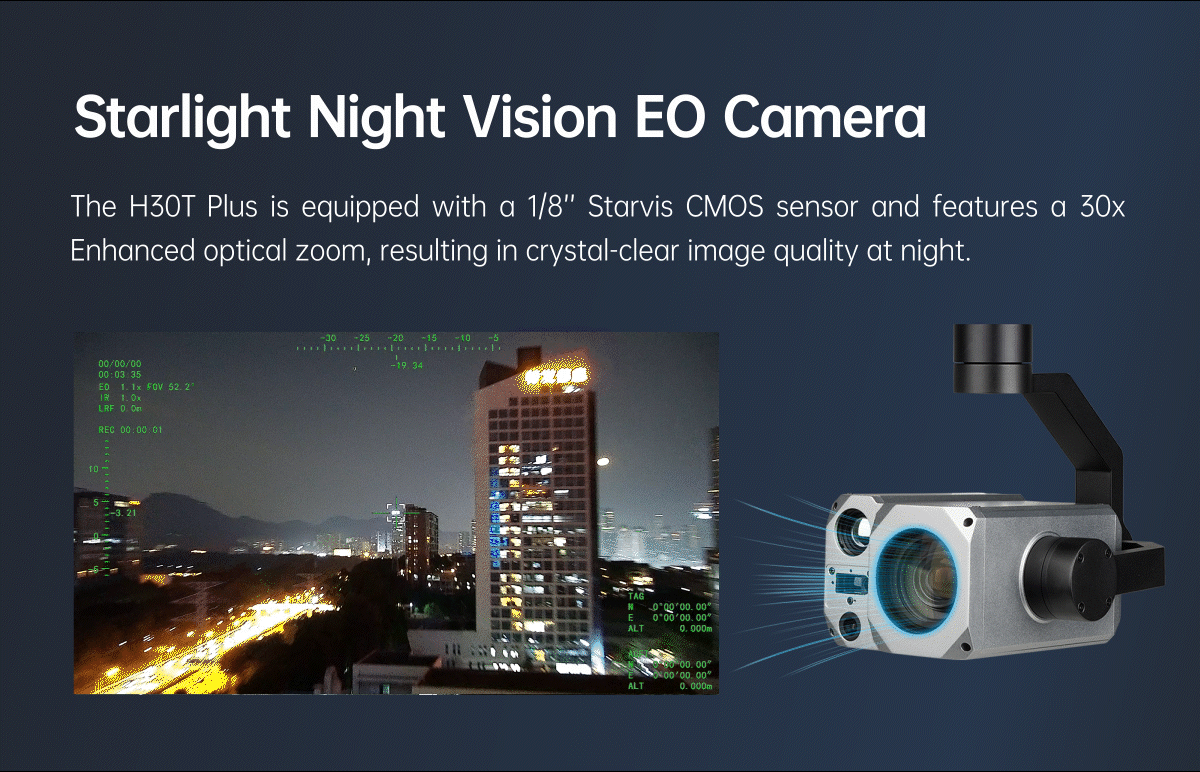

EO1 Camera spec
Imager Sensor 1/1.8 Type STARVIS CMOS Sensor

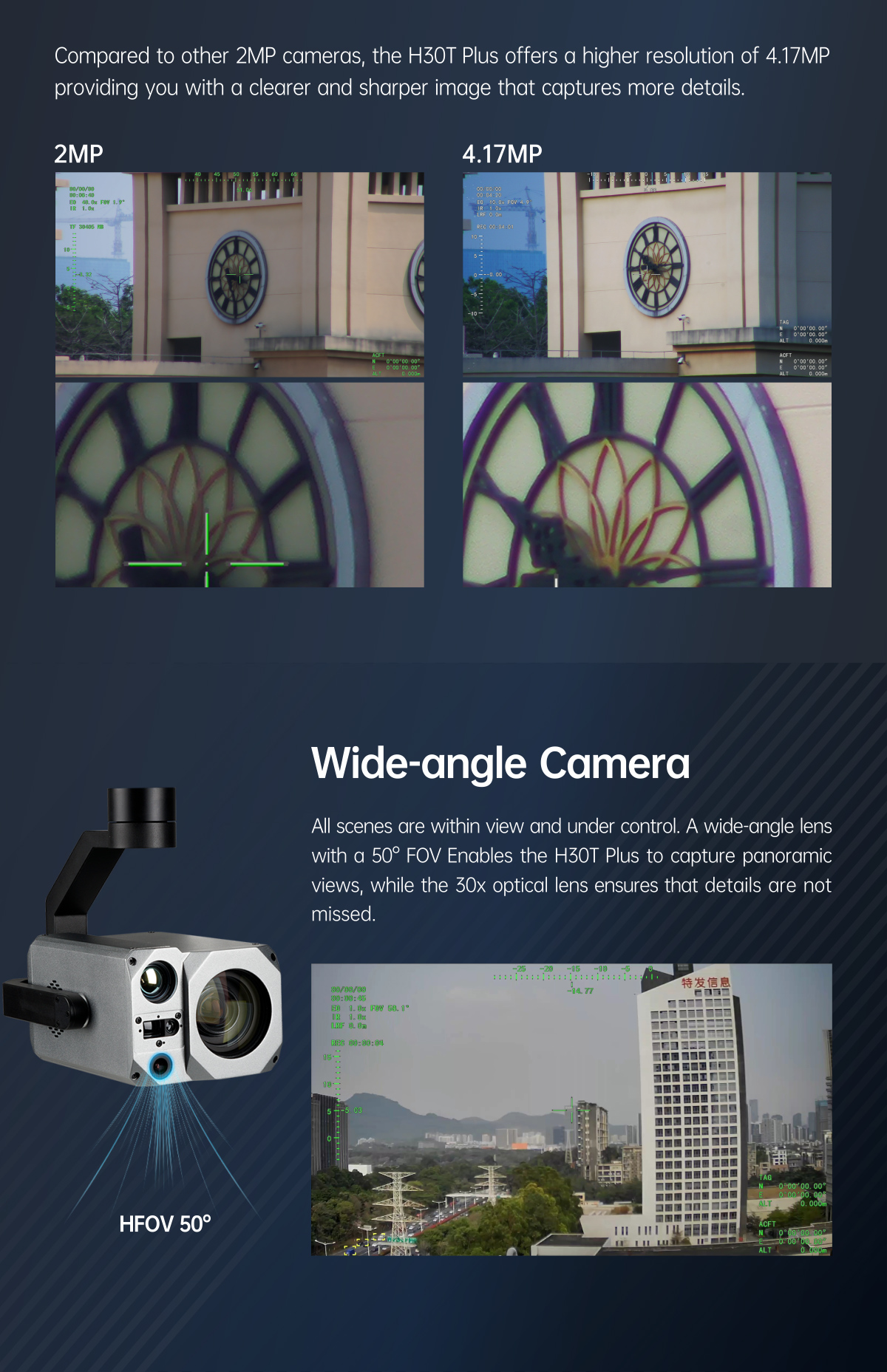

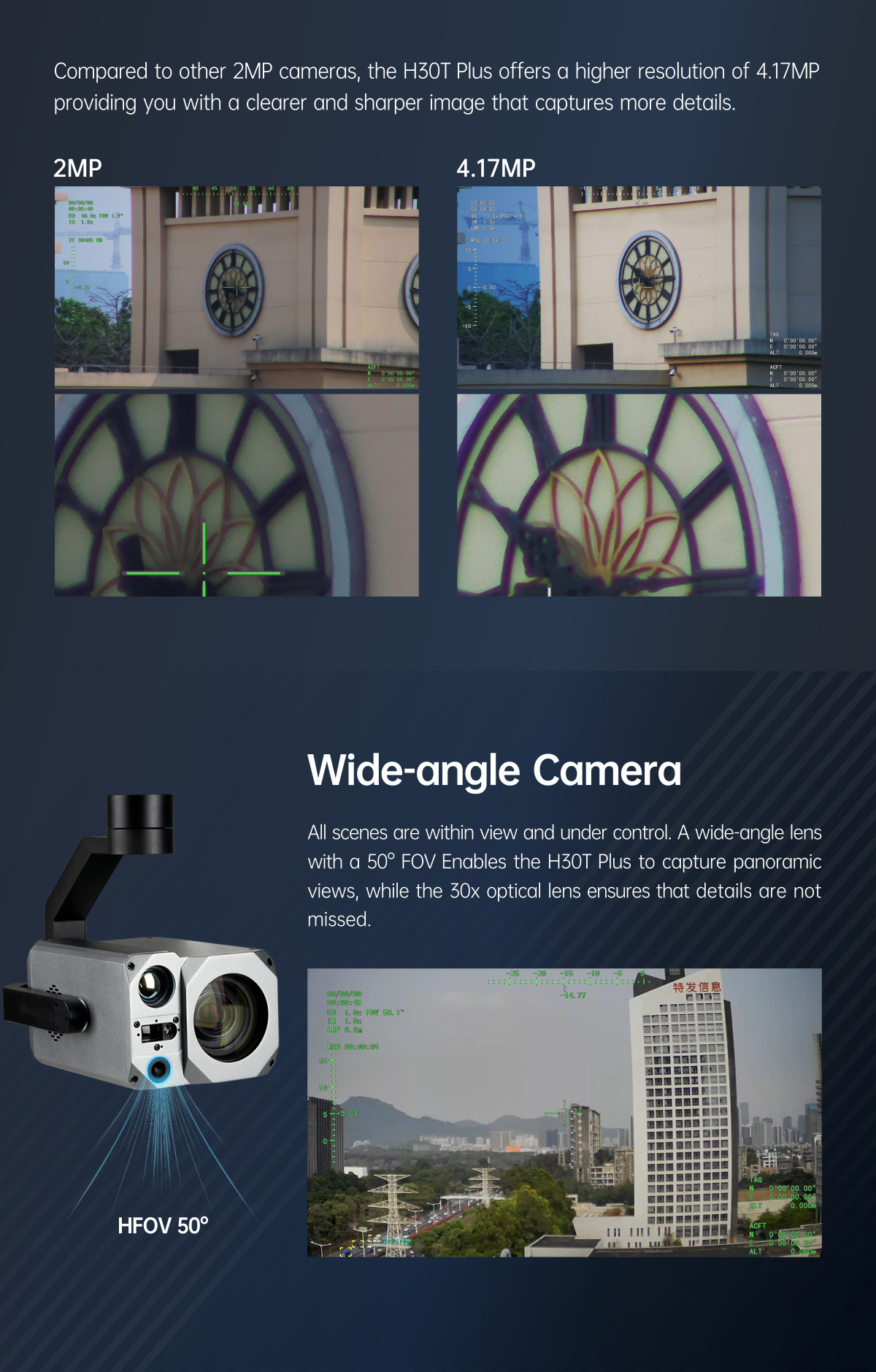

Picture quality 4.17MP
Lens optical zoom 30x, f=6.5~162.5mm, F1.6 to F4.8
Digital zoom 12x (max. 432x with StableZoom)
Min object distance 100 mm (Wide end), 1200 mm (Tele end)
Horizontal viewing angle 58.1°(wide end) ~ 2.3°(tele end)
Sync system Internal
Image S/N 50 dB (Weight On)
Min illumination In the case of ICR-Off
(Typical value) 0.009 lx (1/30 sec, 50%, High Sensitivity mode On)
0.09 lx (1/30 sec, 50%, High Sensitivity mode Off)
0.0012 lx (1/4 sec, 1/3 sec, 50%, High Sensitivity mode On)
0.012 lx (1/4 sec, 1/3 sec, 50%, High Sensitivity mode Off)
In the case of ICR-On
0.00008 lx (1/30 sec, 50%, High Sensitivity mode On)
0.00063 lx (1/30 sec, 50%, High Sensitivity mode Off)
0.000005 lx (1/4 sec, 1/3 sec, 30%, High Sensitivity mode On)
High Sensitivity mode On/Off  Off
Recommended illumination 100 lx to 100,000 lx
Gain Auto/Manual (0 to 50.0 dB (0 to 28 step))
Max. Gain Limit (10.7 to 50.0 dB (6 to 28 step))
White balance Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto)
Wide Dynamic Range Mode On/Off
Shutter speed 1/1 sec to 1/10000 sec (22 steps)
Backlight compensation On/Off Off
Image Stabilizer On/Off/Hold Off
ICR On/Off Off
Aperture control 16 steps
Noise Reduction On/Off (level 5 to 1 / Off, 6 steps)
Defog On/Off (low, mid, high)
OSD Yes

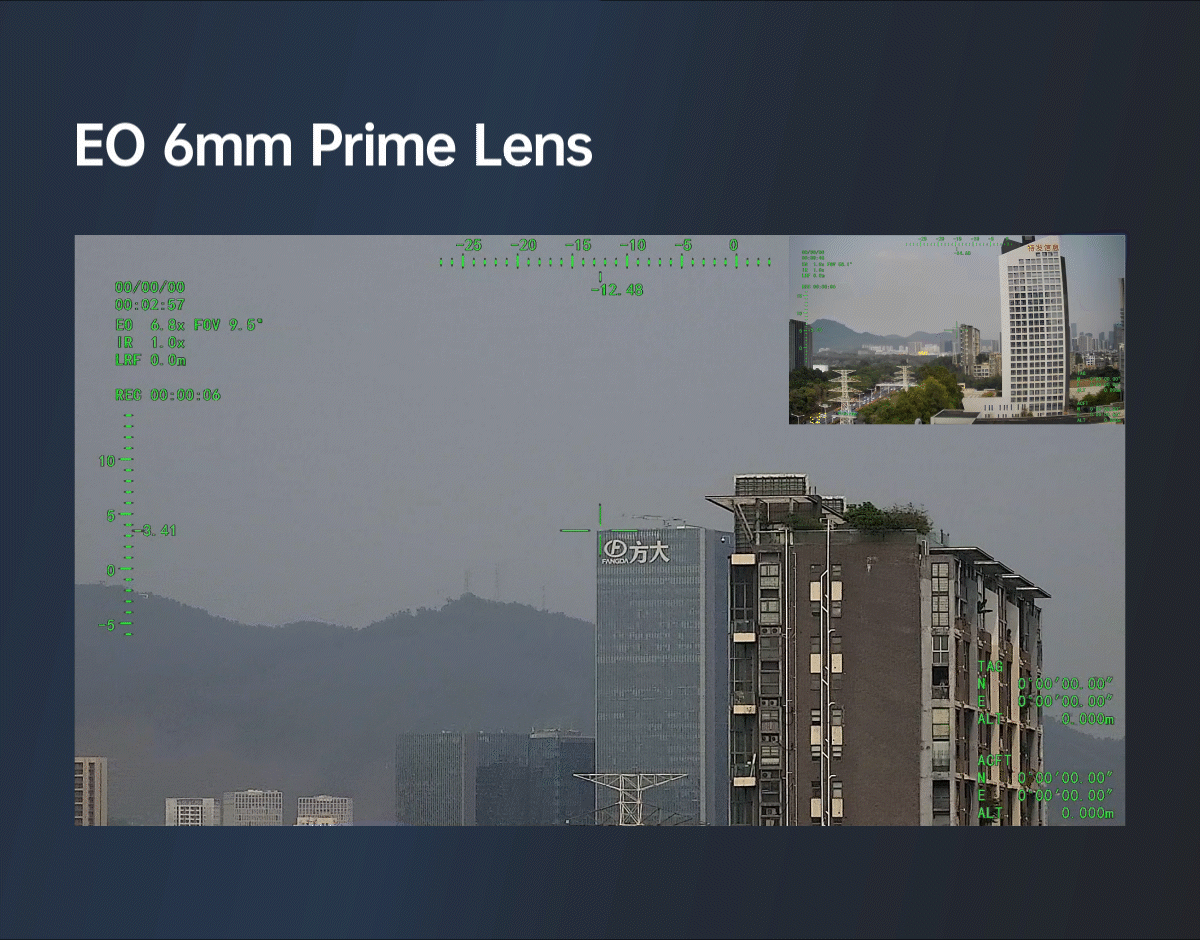

EO2 Camera spec
Imager Sensor 1/2.9" CMOS Sensor
Image pixel 2MP
Picture quality Full HD 1080 (1920*1080)
Lens Focus Length 6mm
Angle of View (D,H,V) FOV:D 60°    H 50°    V 28°

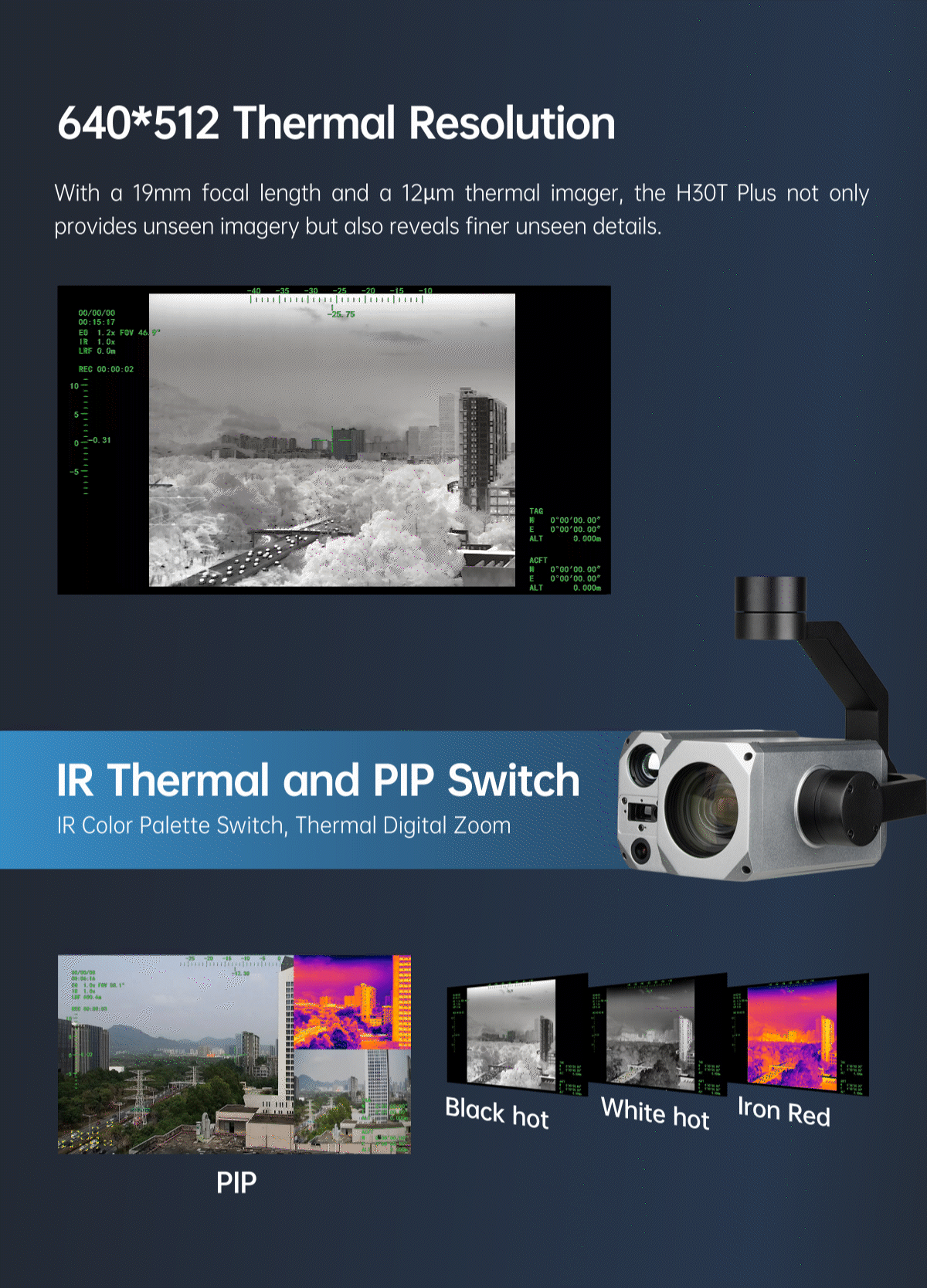

IR Thermal Imager Spec
Focus Length 19mm
Horizontal FOV 22.9°
Vertical FOV 18.4°
Diagonal FOV 29.0°
Detective Distance (Man: 1.8x0.5m) 792 meters
Recognize Distance (Man: 1.8x0.5m) 198 meters
Verified Distance (Man: 1.8x0.5m) 99 meters
Detective Distance (Car: 4.2x1.8m) 2428 meters
Recognize Distance (Car: 4.2x1.8m) 607 meters
Verified Distance (Car: 4.2x1.8m) 303 meters
Working mode Uncooled VOx long wave (8μm~14μm) thermal imager
Detector pixel 640*512
Pixel size 12μm
Focusing method Athermal prime lens
NETD ≤50mK@25℃, F#1.0 (<=40mk  Optional)
Color palette White, iron red, pseudo color
Digital zoom 1x ~ 8x
Sync correct time Yes

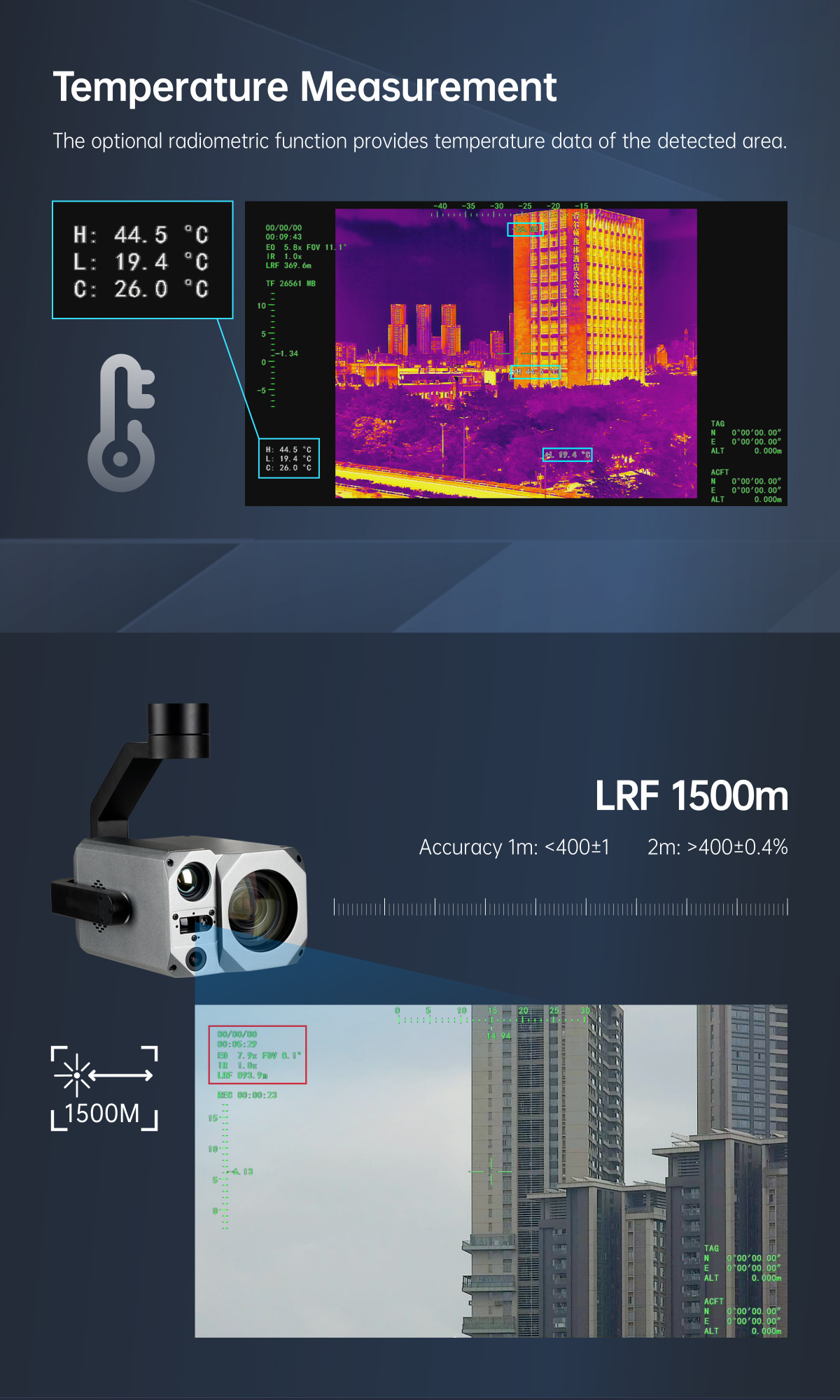

Radiometric function Optional (-20℃~+150℃, +100℃~+550℃)

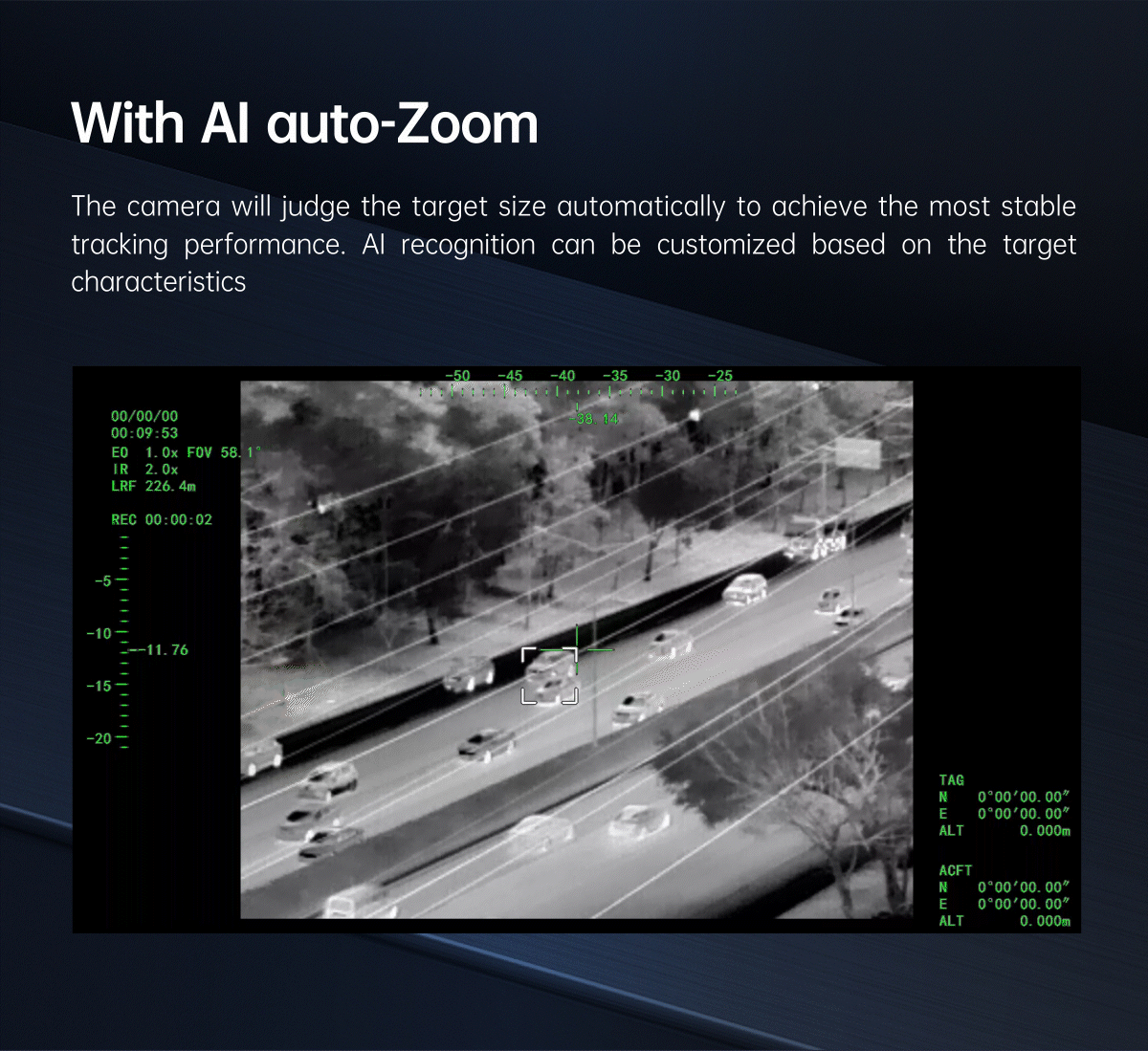

EO/IR Camera Object Tracking
Update rate of deviation pixel 30Hz
Output delay of deviation pixel <30ms
Minimum object contrast 5%
SNR 4
Minimum object size 16*16 pixel
Maximum object size 256*256 pixel
Tracking speed ±48 pixel/frame
Object memory time 100 frames
IR Laser Rangefinder
Range 5~1500 meters
Accuracy 1m: <400±1        2m: >400±0.4%
Light Beam 905nm pulse laser
Divergent Angle 12 mrad
Laser pulse frequency 0.1--1Hz
Location Resolving Latitude and longitude of target
Ranefinder Target distance measuring

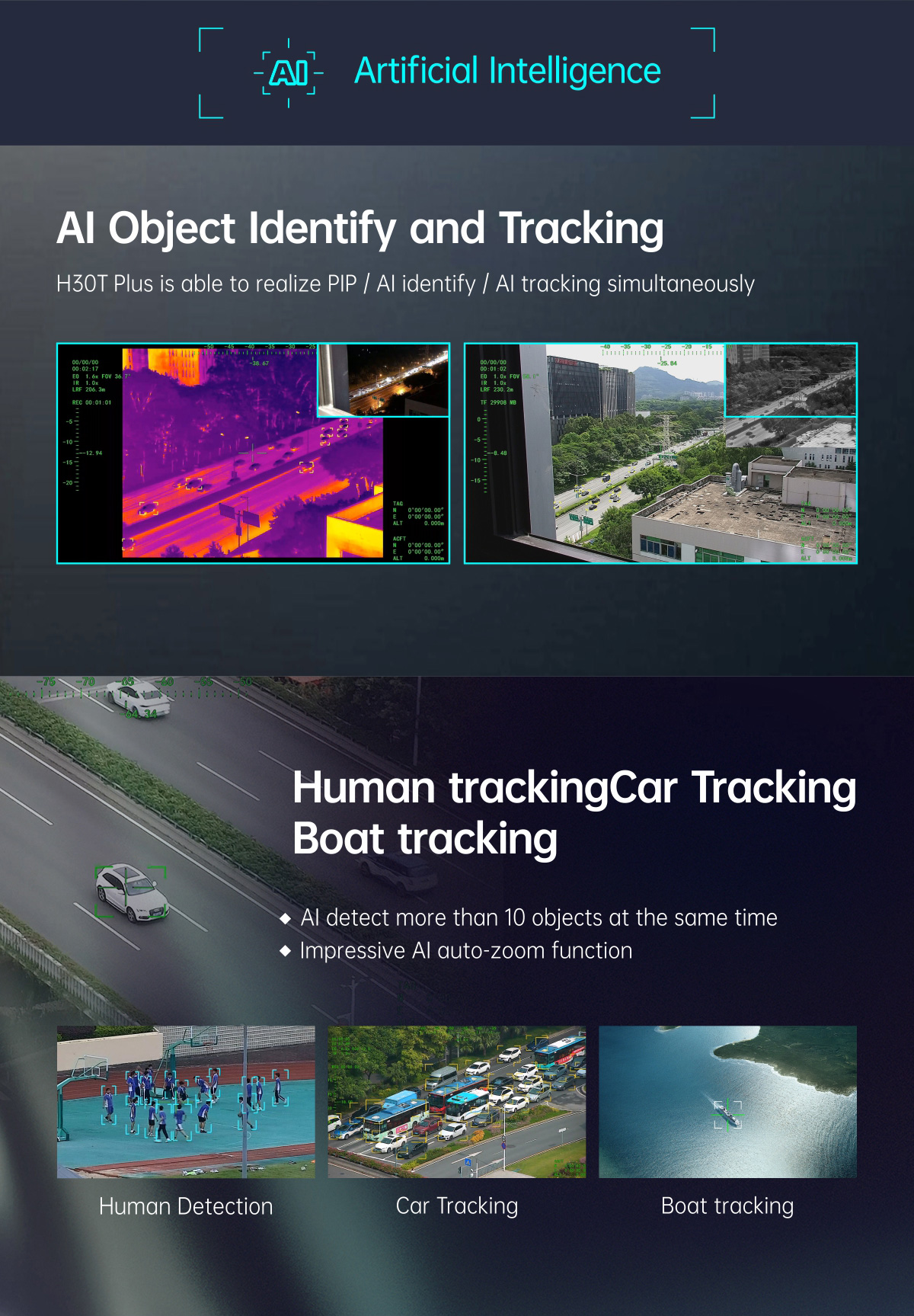

EO Camera AI Performance
Targets type Car and human
Simultaneous detection quantity ≥ 10 targets
Min contrast ratio 5%
Min target size 5×5 pixel
Car detection rate ≥85%
False alarm rate ≤10%
Packing Information
N.W. 1030±10g(Viewport version with Viewport)
Product meas. 178.3*136.5*200.6mm / 178.3*136.5*206.3mm(Viewport version with Viewport)

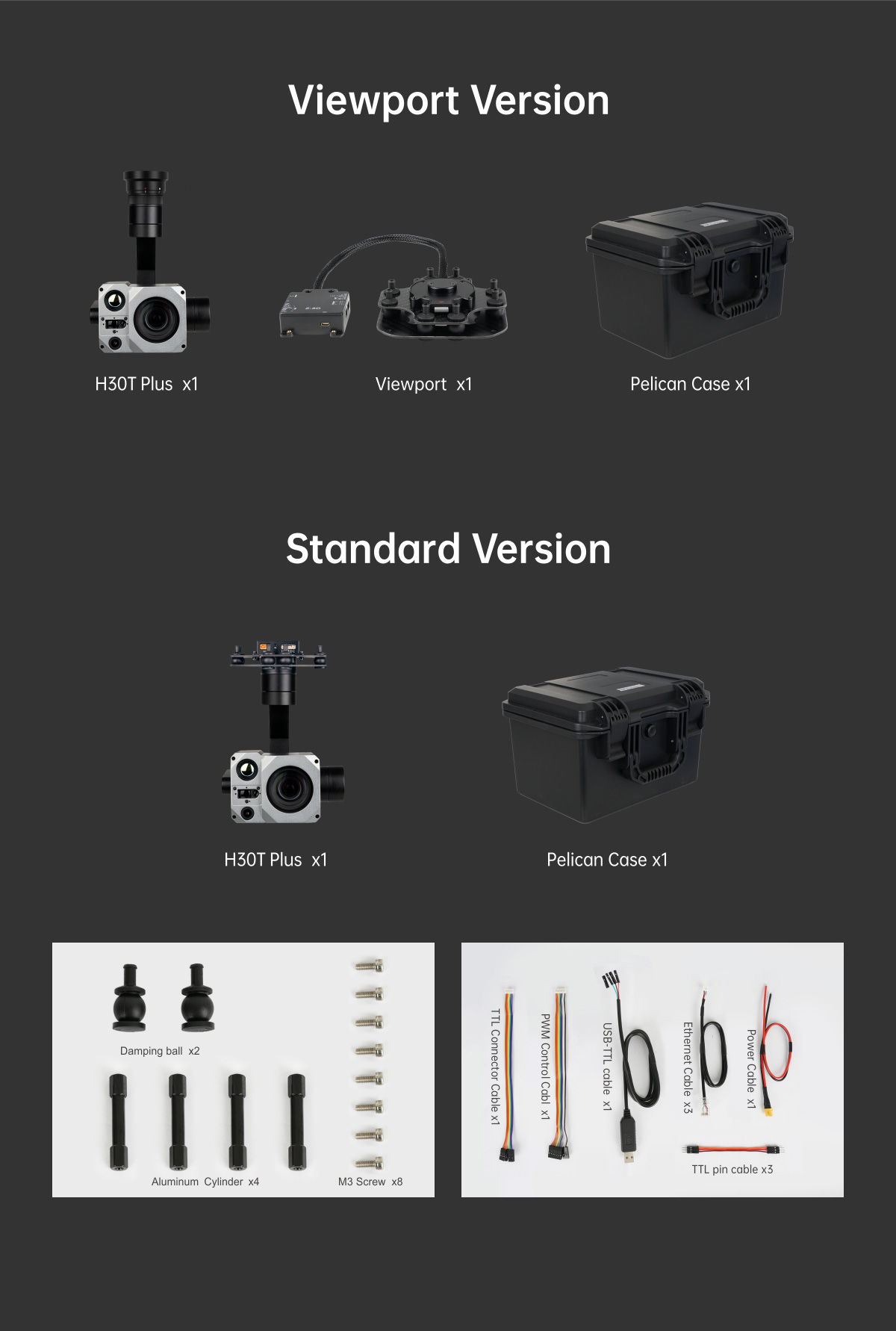

Accessories 1pc gimbal camera device, screws,  copper cylinders, damping balls, damping boards, 1pc USB to TTL cable / Hight quality plastic box with foam cushion
G.W. 2750g

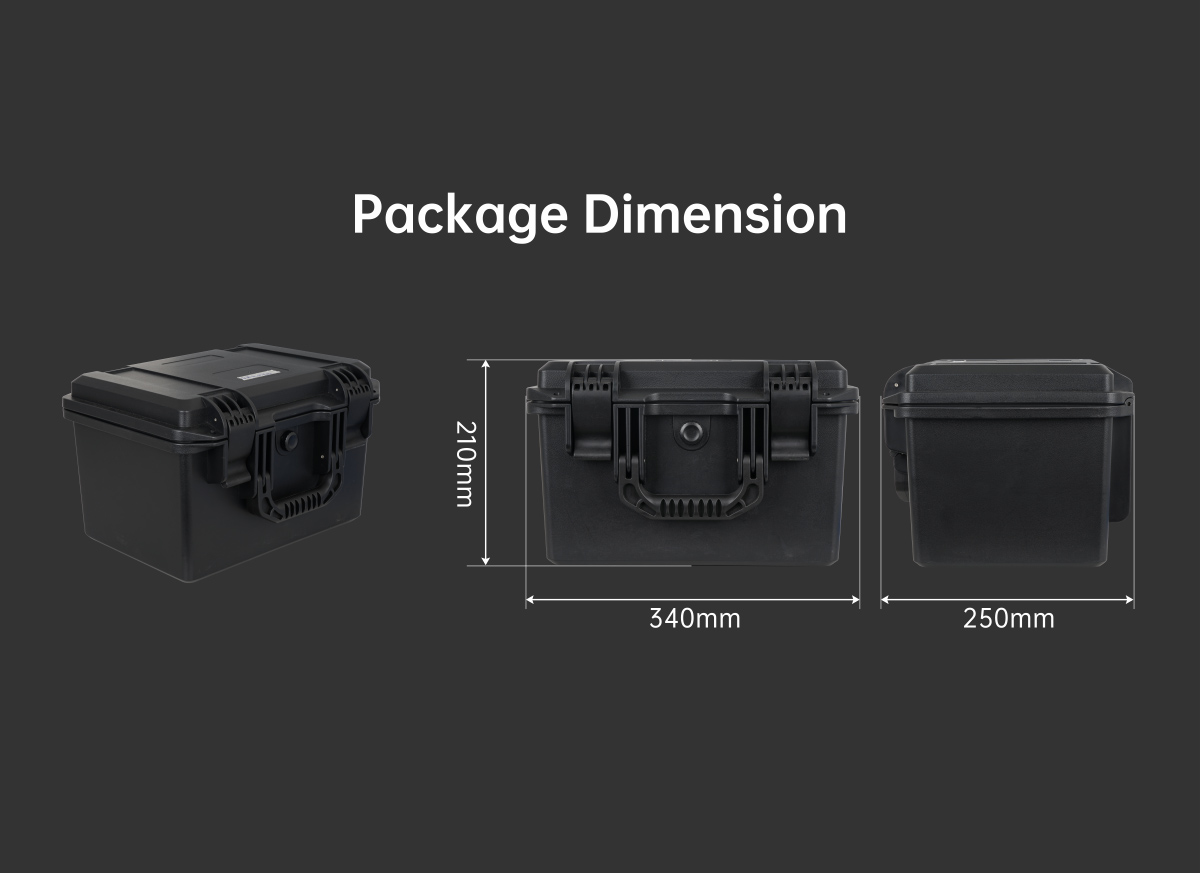

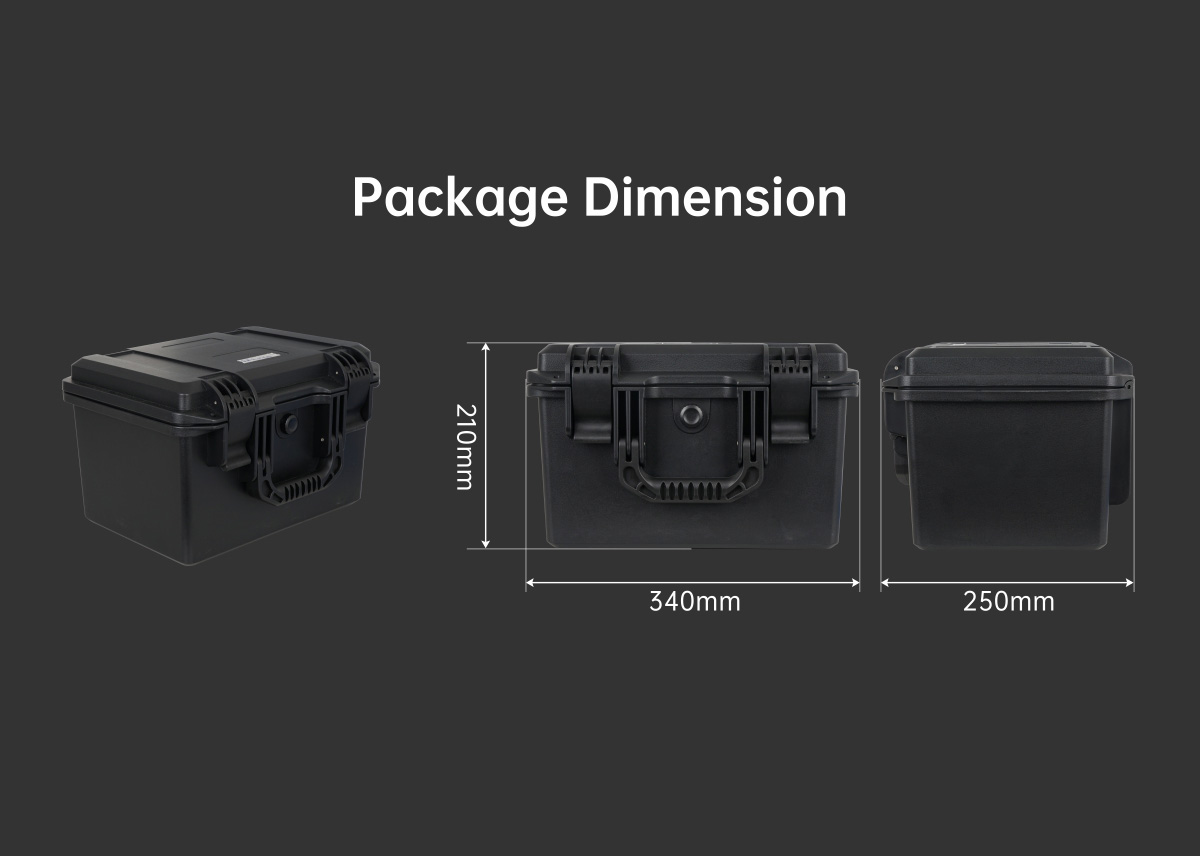

Package meas. 350*300*250mm
