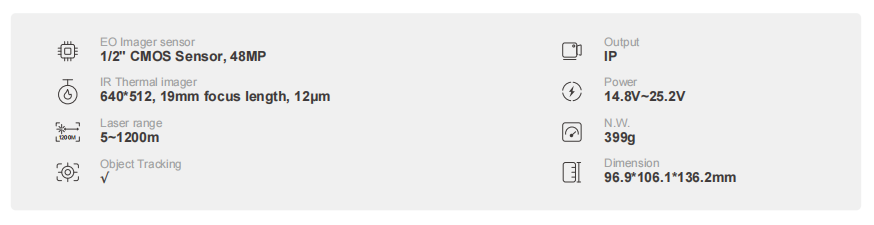

| Overall Specifications | |
| N.W. | 399g |
| Product meas. | 106.1*96.9*136.2mm |
| Input Voltage | 14.8V~25.2V |
| Dynamic current | 750~2000mA @ 16V |
| Power consumption | Average 12W, Max 32W |
| Working environment temp. | -20℃~+50℃ |
| IP rate | IP4X |
| Output | IP (RTSP/UDP 4K/1080p/720p@30fps H264/H265) |
| Storage | TF card (Up to 256G,class 10, FAT32) |
| Picture in TF Card | JPG(EO supports 4K/48M, selectable by mode; IR supports 640x512) |
| Video in TF Card | MP4(EO supports 4K/1080P/720P; IR supports 640x512) |
| Control method | PWM / S.BUS / UART (TTL) / TCP / UDP |
| Gimbal Spec | |
| Mechanical Range | Pitch/Tilt: -60°(Up)～140°(Down), Roll: ±50°, Yaw/Pan: ±360°*N |
| Controllable Range | Pitch/Tilt: -45°～120°, Yaw/Pan: ±360°*N |
| Vibration angle | Pitch/Roll/Yaw: ±0.02° |
| One-key to center | √ |
| Wide angle EO Camera Spec | |
| Imager Sensor | 1/2" CMOS (H:6.4mm, V:4.8mm, D:8.0mm) |
| Pixel size | 0.80 µm (H) ×0.80 µm (V) |
| Resolution | 48MP(8000*6000) |
| EFL | 4.49mm |
| Equivalent focal length | 24.29mm |
| Aperture | F2.8 |
| Field of View | D:84° H:70.2° V:54.9° |
| Min illumination | Color 0.1 lux |
| Optical distortion | 2.50% |
| Optical zoom EO Camera Spec | |
| Imager Sensor | 1/2 inch CMOS (H:6.4mm, V:4.8mm, D:8.0mm) |
| Pixel size | 0.80 µm (H) ×0.80 µm (V) |
| Resolution | 48MP(8000*6000) |
| EFL | 15.3~49.7mm±5% |
| Equivalent focal length | 82.77-268.88mm, Aperture F3.7(W)~F4.6(T) |
| Field of View | D: 28.3°(W)~8.9°(T) H: 23.2°(W)~7.2°(T) V: 17.6°(W)~5.4°(T) |
| Min illumination | Color 5 lux |
| Optical distortion | 1.6%(Wide)~1.4% (Tele)， @∅8mm |
| IR Thermal Imager Spec | |
| Focus Length | 19mm |
| Horizontal FOV | 22.9° |
| Vertical FOV | 18.4° |
| Diagonal FOV | 29.0° |
| Detective Distance (Man: 1.8x0.5m) | 792 meters |
| Recognize Distance (Man: 1.8x0.5m) | 198 meters |
| Identification Distance (Man: 1.8x0.5m) | 99 meters |
| Detective Distance (Car: 4.2x1.8m) | 2428 meters |
| Recognize Distance (Car: 4.2x1.8m) | 607 meters |
| Identification Distance (Car: 4.2x1.8m) | 303 meters |
| Working mode | Uncooled VOx long wave (8μm~14μm) thermal imager |
| Detector pixel | 640*512 |
| Pixel size | 12μm |
| Focusing method | Athermal prime lens |
| NETD | ≤50mK@25℃, F#1.0 |
| Color palette | White hot,black hot,Iron red |
| Digital zoom | 1x~8x |
| Radiometric function(Optional) | Thermometry range optional：-20℃~+150℃, +100℃~+550℃ |
| Thermometry accuracy: ±3℃ or +3% of reading (whichever is greater) @ ambient temperature -20℃~60℃ | |
| Laser Rangefinder | |
| Range | 5~1200 meters |
| Accuracy | ±1m |
| Light Beam | 905nm pulse laser |
| Divergent Angle | ~6 mrad |
| Laser pulse frequency | 1~4Hz |
| Eye safety level | Class1 |
| Working power | ≤2W |
| Rangefinder | Measure the distance between the object at the center of screen and the laser rangefinder |
| Camera Object Tracking | |
| Update rate of deviation pixel | 30Hz |
| Output delay of deviation pixel | <30ms |
| Minimum object contrast | 5% |
| Minimum signal-to-noise ratio | 4 |
| Minimum object size | 16*16 pixel |
| Maximum object size | 256*256 pixel |
| Tracking speed (Car) | ±48 pixel/frame |
| Object memory time | 100 frames |
| Camera AI Performance | |
| Targets type | Car and human |
| Simultaneous detection quantity | ≥ 10 targets |
| Min contrast ratio | 5% |
| Min target size | 5×5 pixel |
| Car detection rate | ≥85% |
| False alarm rate | ≤10% |
