Product Introduction
Specification

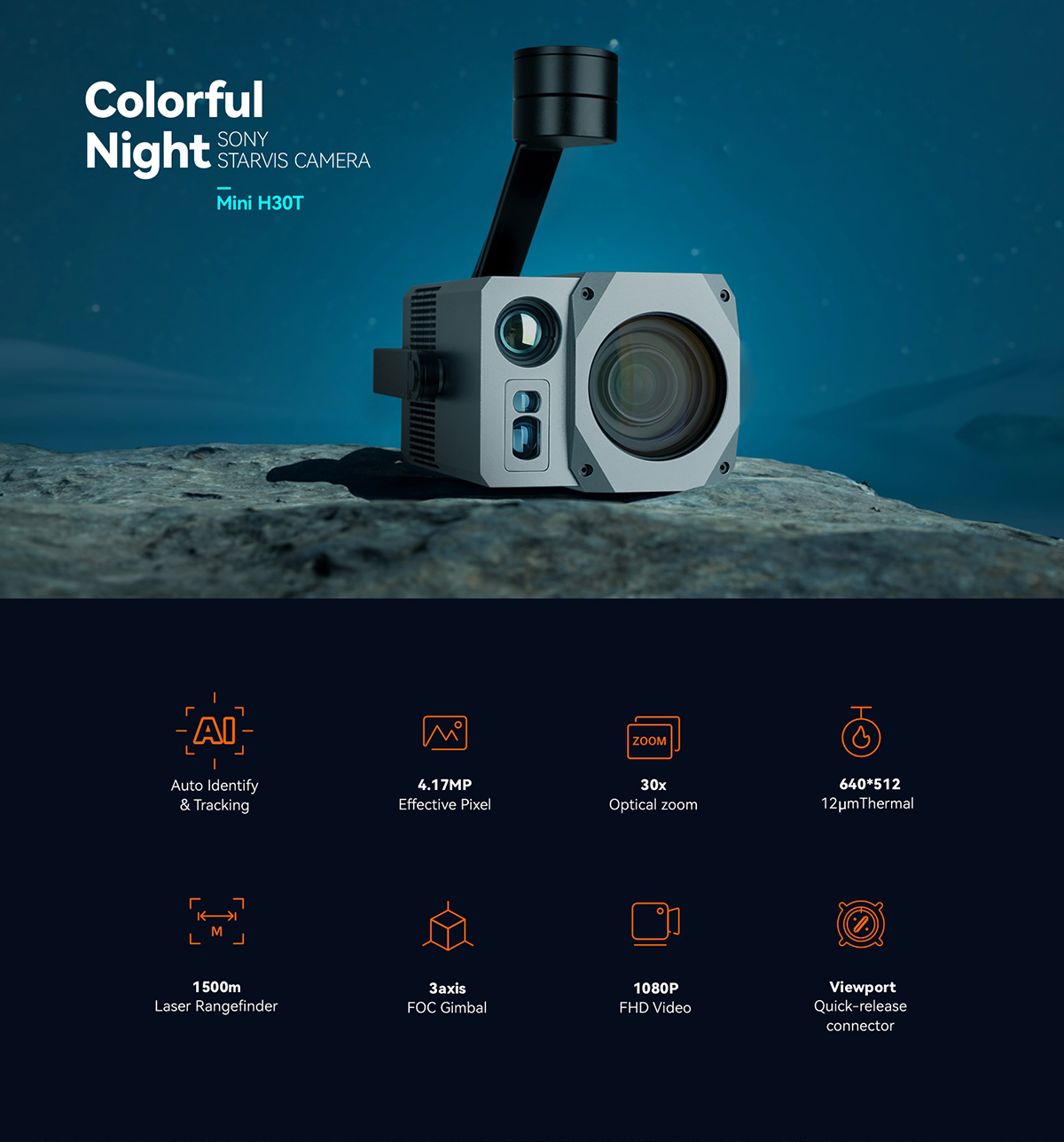

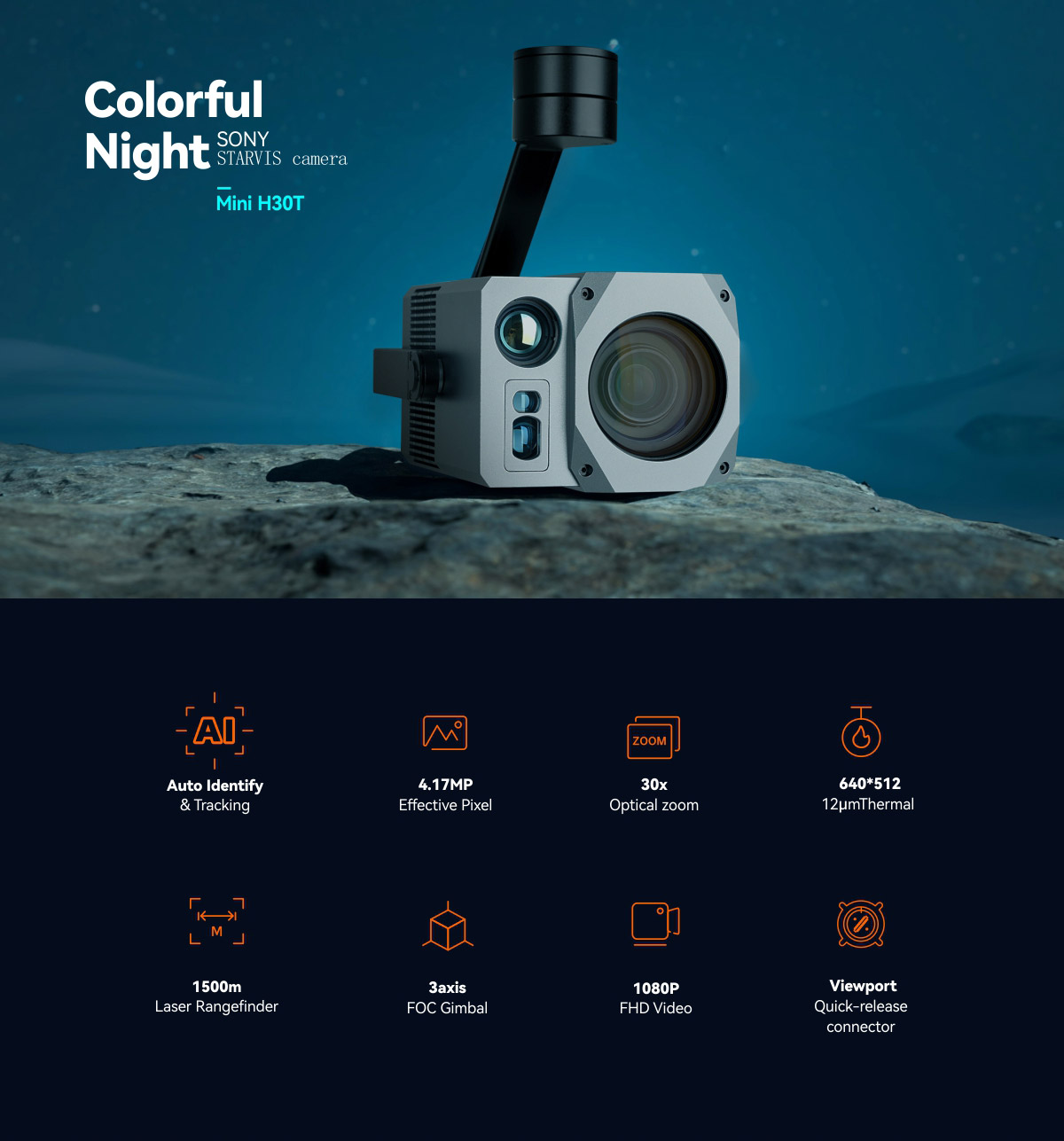

Mini H30T Specification
| Overall Specifications | |
| N.W. | 986g |

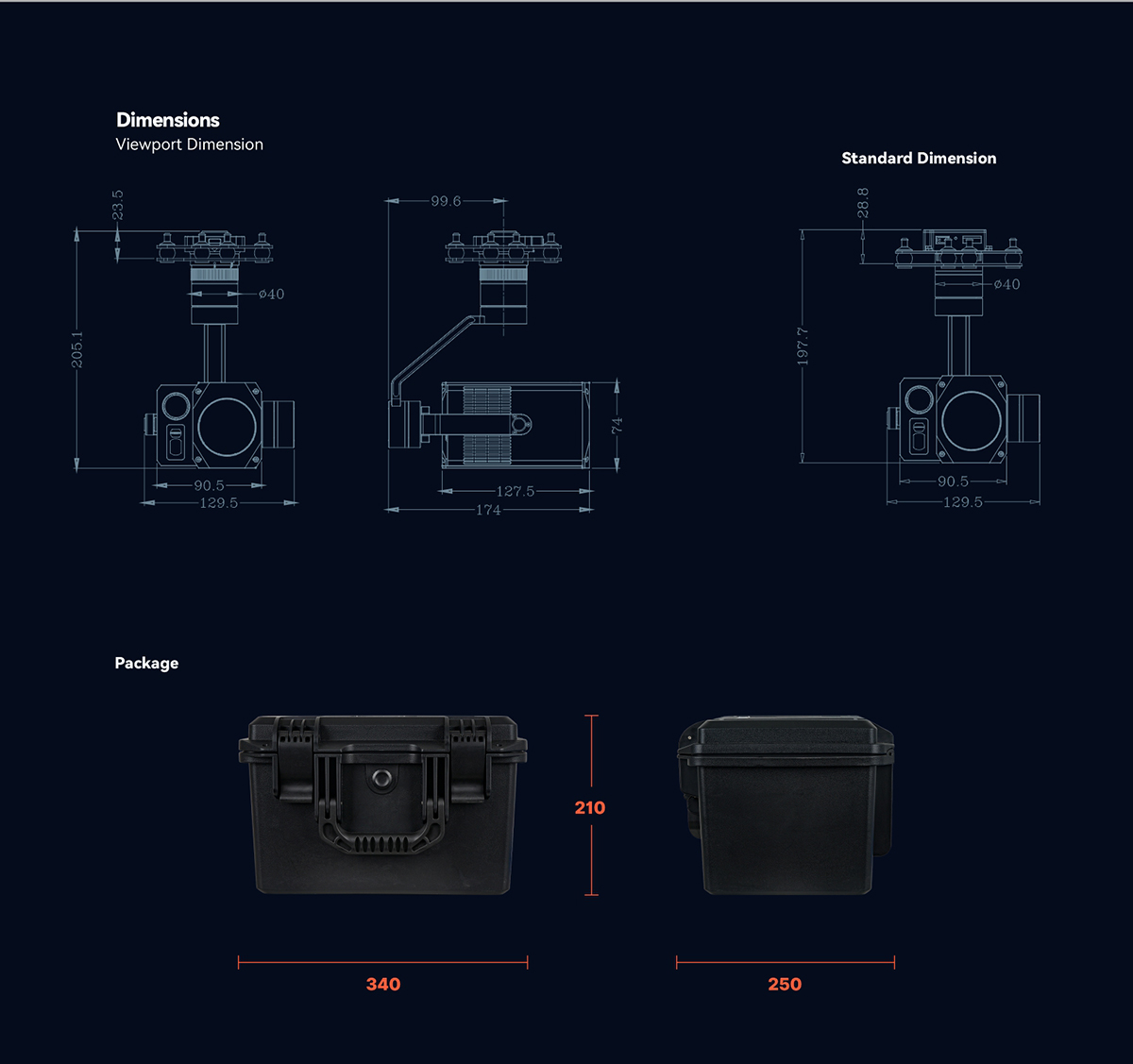

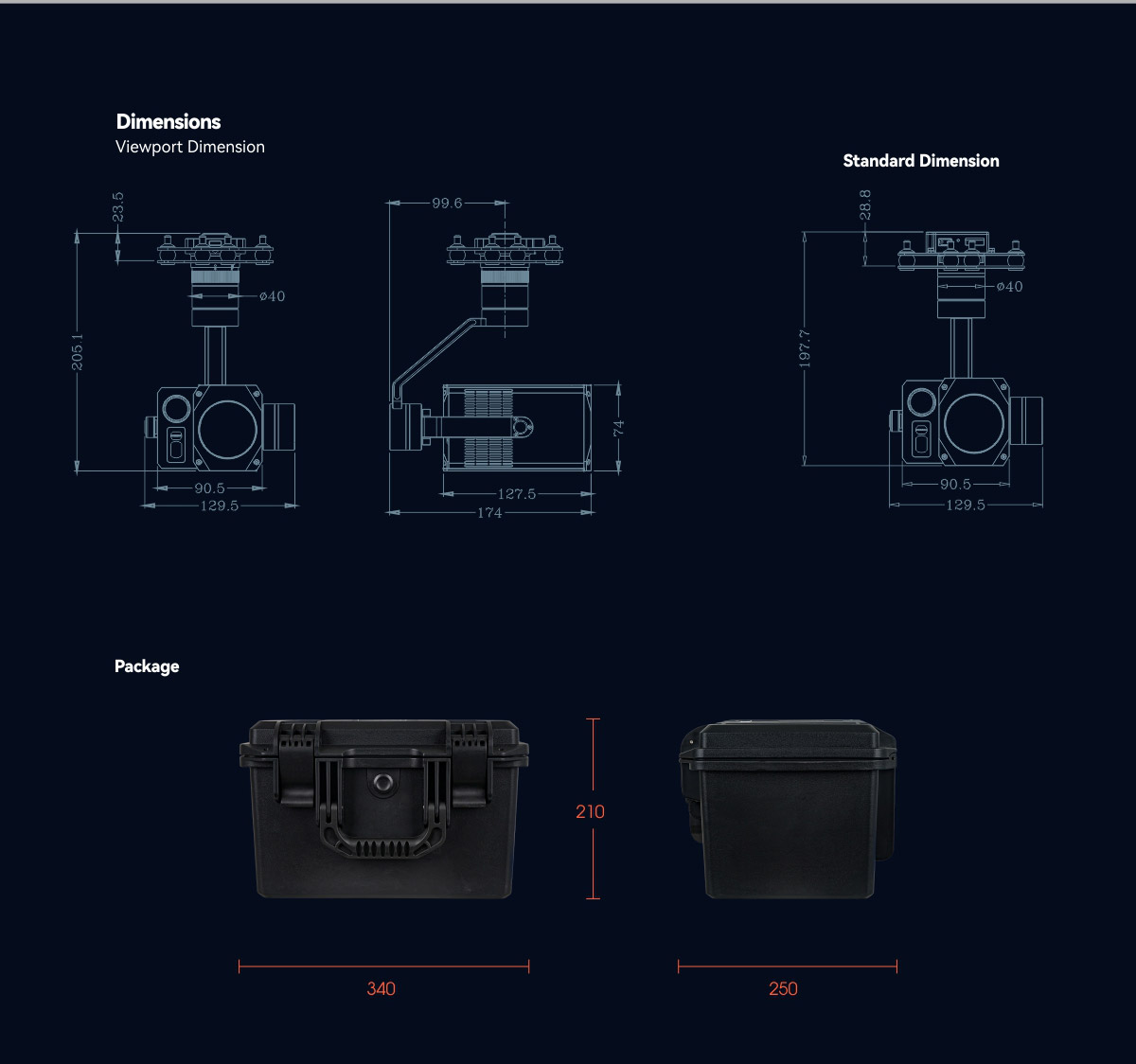

| Product meas. | 174*129.5*195.5mm |
| Input voltage | 14.8V~25.2V |
| Dynamic current | 850~1500mA @ 16V |
| Power consumption | Average 13.6W, Max 24W |
| Working environment temp. | -20℃ ~ +50℃ |
| IP rate | IP4X |

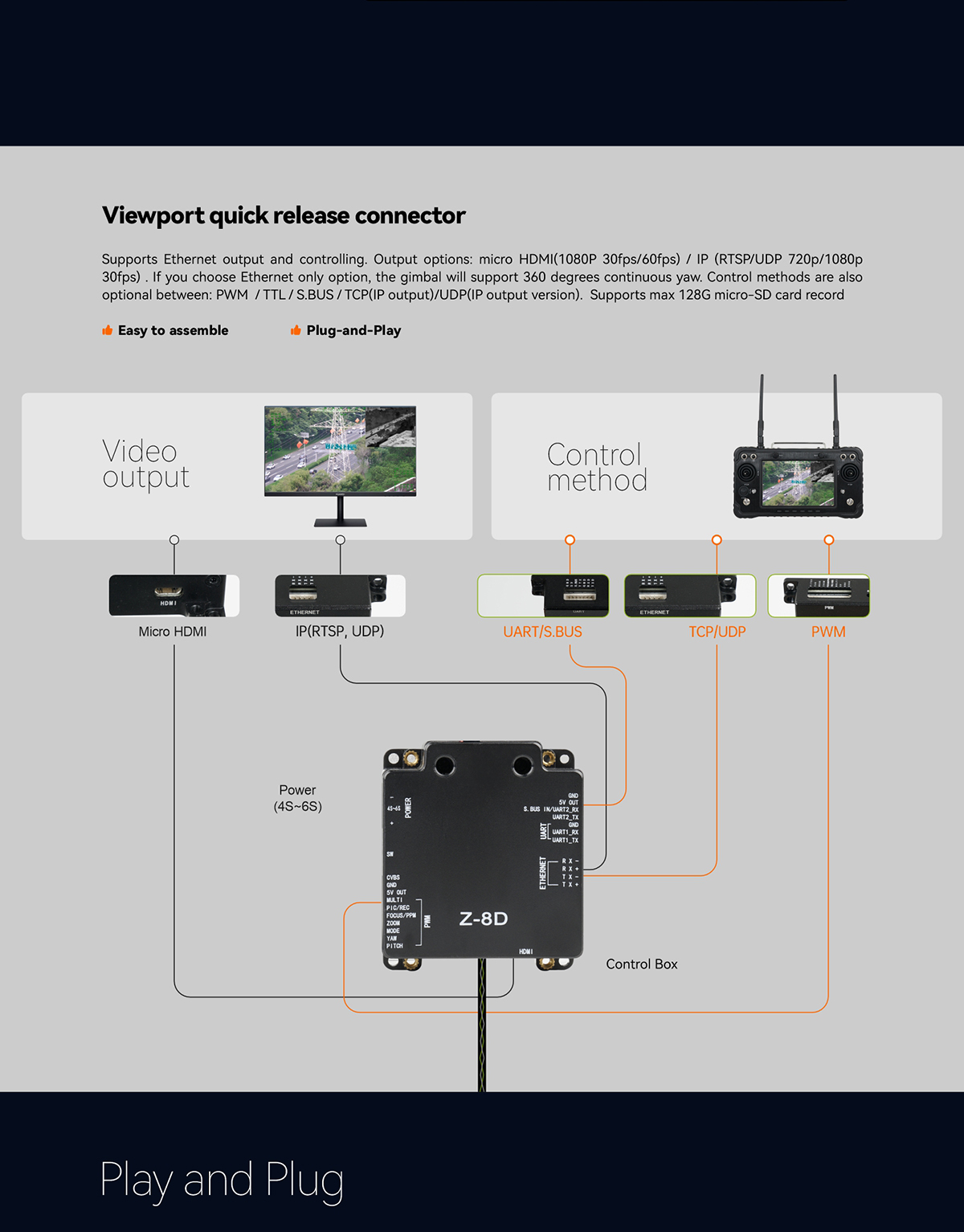

| Output (optional) | Micro HDMI(1080P 30fps/60fps) / IP (RTSP/UDP 720p/1080p 30fps H264/H265) |
| Storage | TF card (Up to 256G, class 10, FAT32 format) |
| Picture in TF Card | JPG(1920*1080) |
| Video in TF Card | MP4(1080P@30fps) |
| Control method | PWM / S.BUS / UART (TTL) / TCP / UDP |

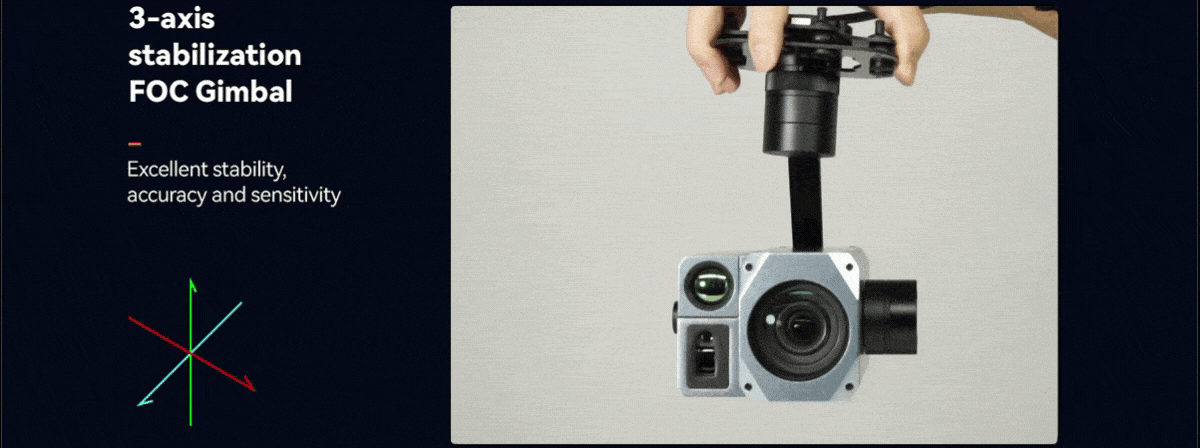

| Gimbal Spec | |
| Mechanical Range | Pitch/Tilt:-40°(Up)～100°(Down), Roll: ±70°, Yaw/Pan: ±300° / ±360°*N (IP output version) |
| Controllable Range | Pitch/Tilt: -35°～95°, Yaw/Pan: ±290° / ±360°*N (IP output version) |
| Vibration angle | Pitch/Roll/Yaw: ±0.02° |
| One-key to center | √ |
| EO Camera spec | |
| Imager Sensor | 1/1.8 Type STARVIS CMOS Sensor |
| Picture quality | 4.17MP |
| Lens optical zoom | 30x, f=6.5~162.5mm, F1.6 to F4.8 |
| Digital zoom | 12x (max. 432x with StableZoom) |
| Min object distance | 100 mm (Wide end), 1200 mm (Tele end) |
| Horizontal viewing angle | 58.1°(wide end) ~ 2.3°(tele end) |
| Image S/N | 50 dB (Weight On) |

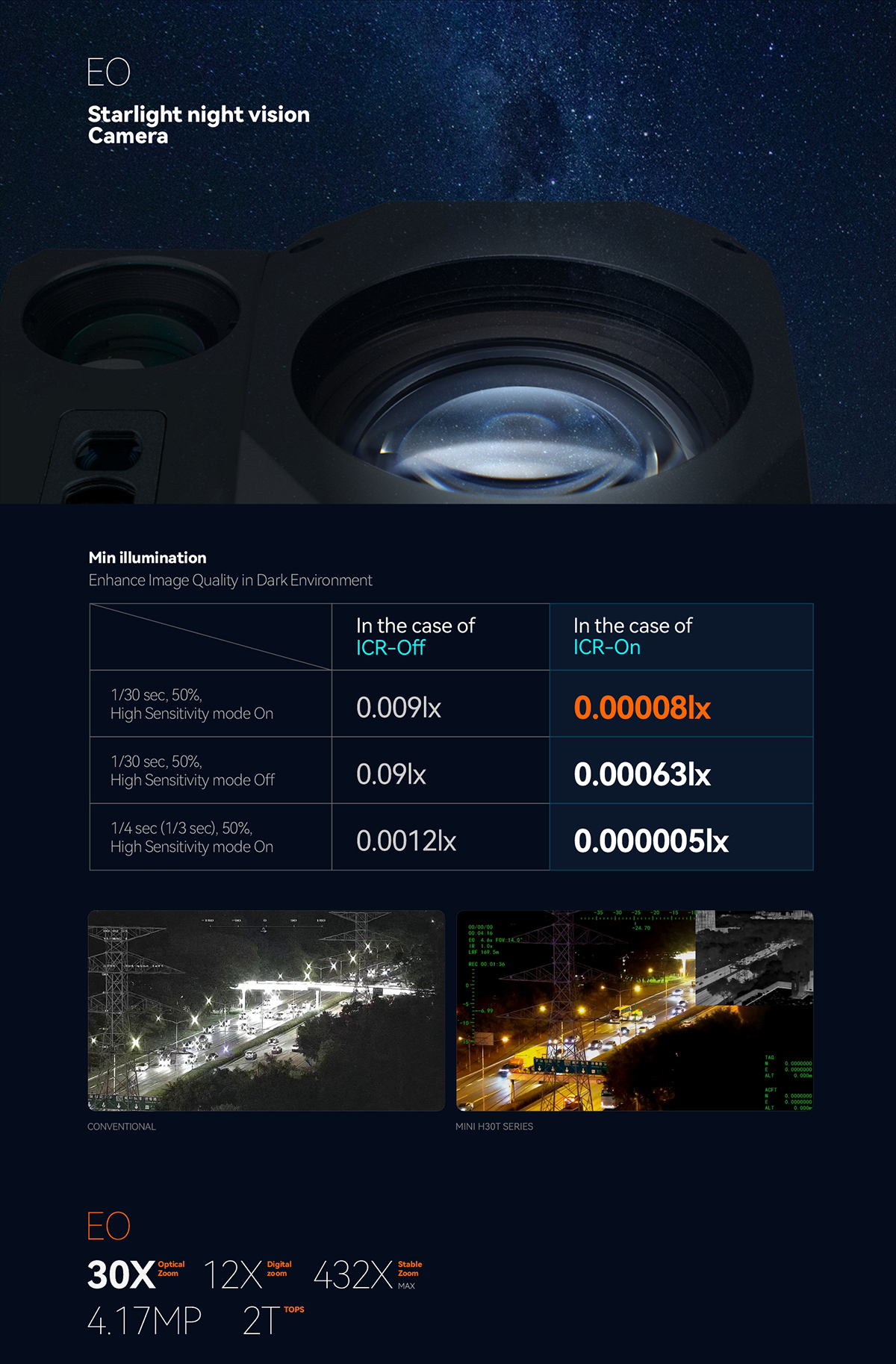

| Min illumination | In the case of ICR-Off (Typical value) 0.009 lx (1/30 sec, 50%, High Sensitivity mode On) 0.09 lx (1/30 sec, 50%, High Sensitivity mode Off) 0.0012 lx (1/4 sec, 1/3 sec, 50%, High Sensitivity mode On) 0.012 lx (1/4 sec, 1/3 sec, 50%, High Sensitivity mode Off) In the case of ICR-On 0.00008 lx (1/30 sec, 50%, High Sensitivity mode On) 0.00063 lx (1/30 sec, 50%, High Sensitivity mode Off) 0.000005 lx (1/4 sec, 1/3 sec, 30%, High Sensitivity mode On) |
| Recommended illumination | 100 lx to 100,000 lx |
| Gain | Auto/Manual (0 to 50.0 dB (0 to 28 step)) Max. Gain Limit (10.7 to 50.0 dB (6 to 28 step)) |
| White balance | Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto) |
| Wide Dynamic Range Mode | On/Off |
| Shutter speed | 1/1 sec to 1/10000 sec (22 steps) |
| Backlight compensation On/Off | Off |
| Image Stabilizer On/Off/Hold | Off |
| ICR On/Off | Off |
| Noise Reduction | On/Off |
| Defog | On/Off (low, mid, high) |

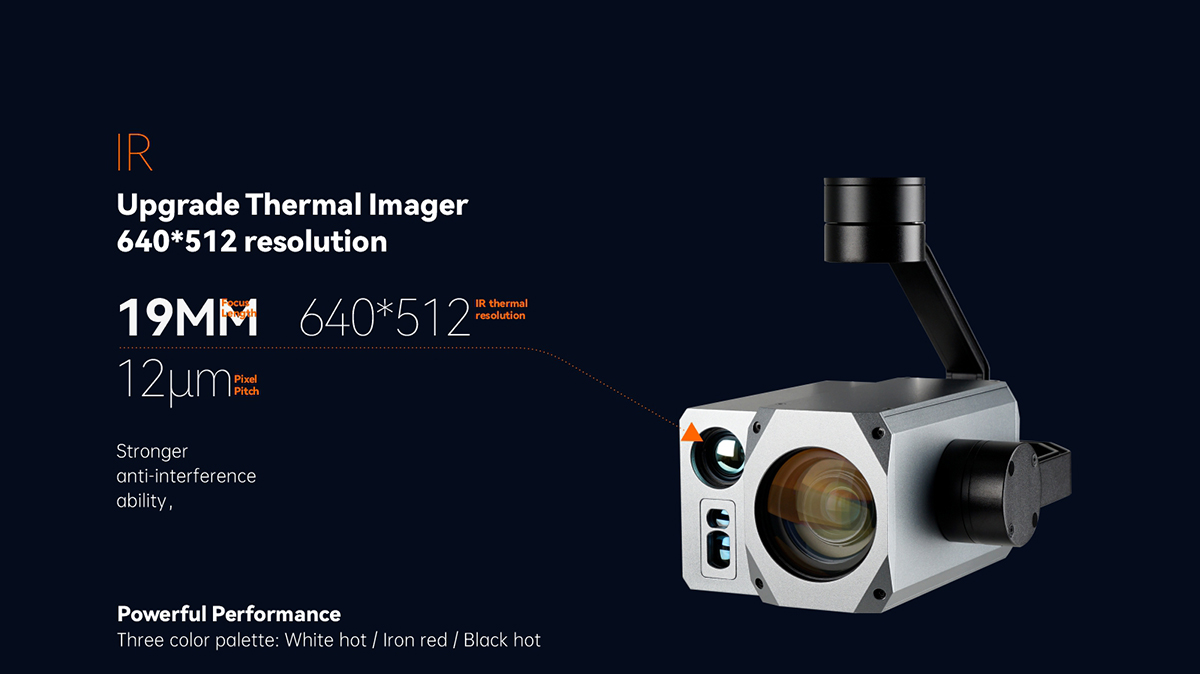

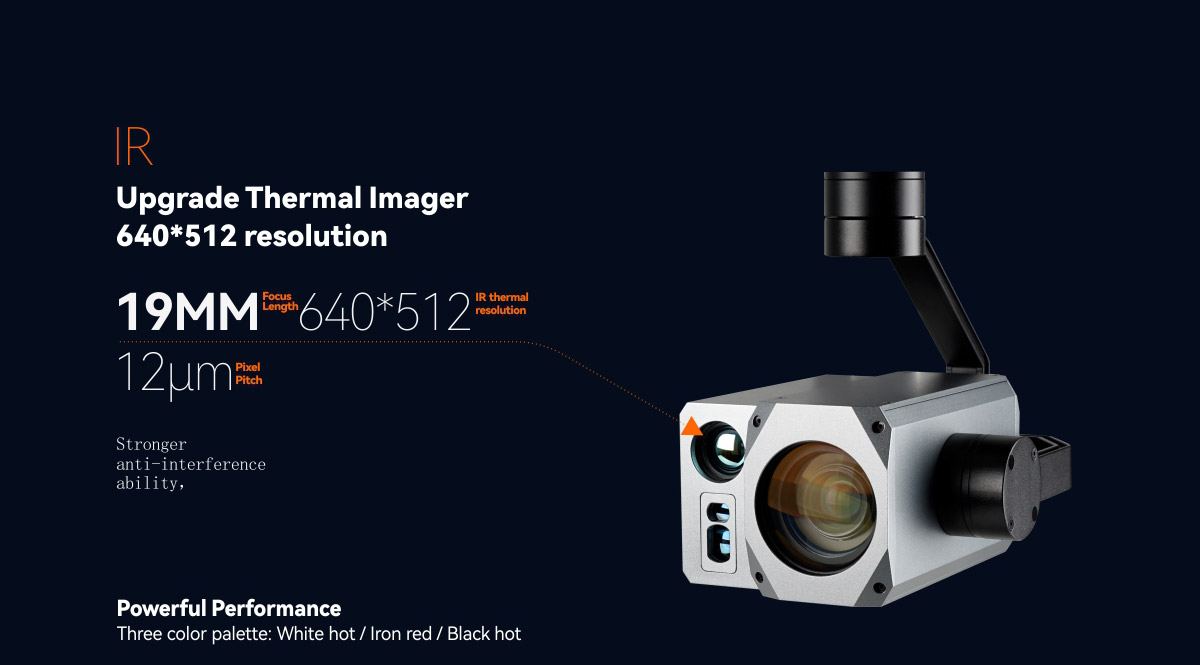

| IR Thermal Imager Spec | |
| Focus Length | 19mm |
| Horizontal FOV | 22.9° |
| Vertical FOV | 18.4° |
| Diagonal FOV | 29.0° |

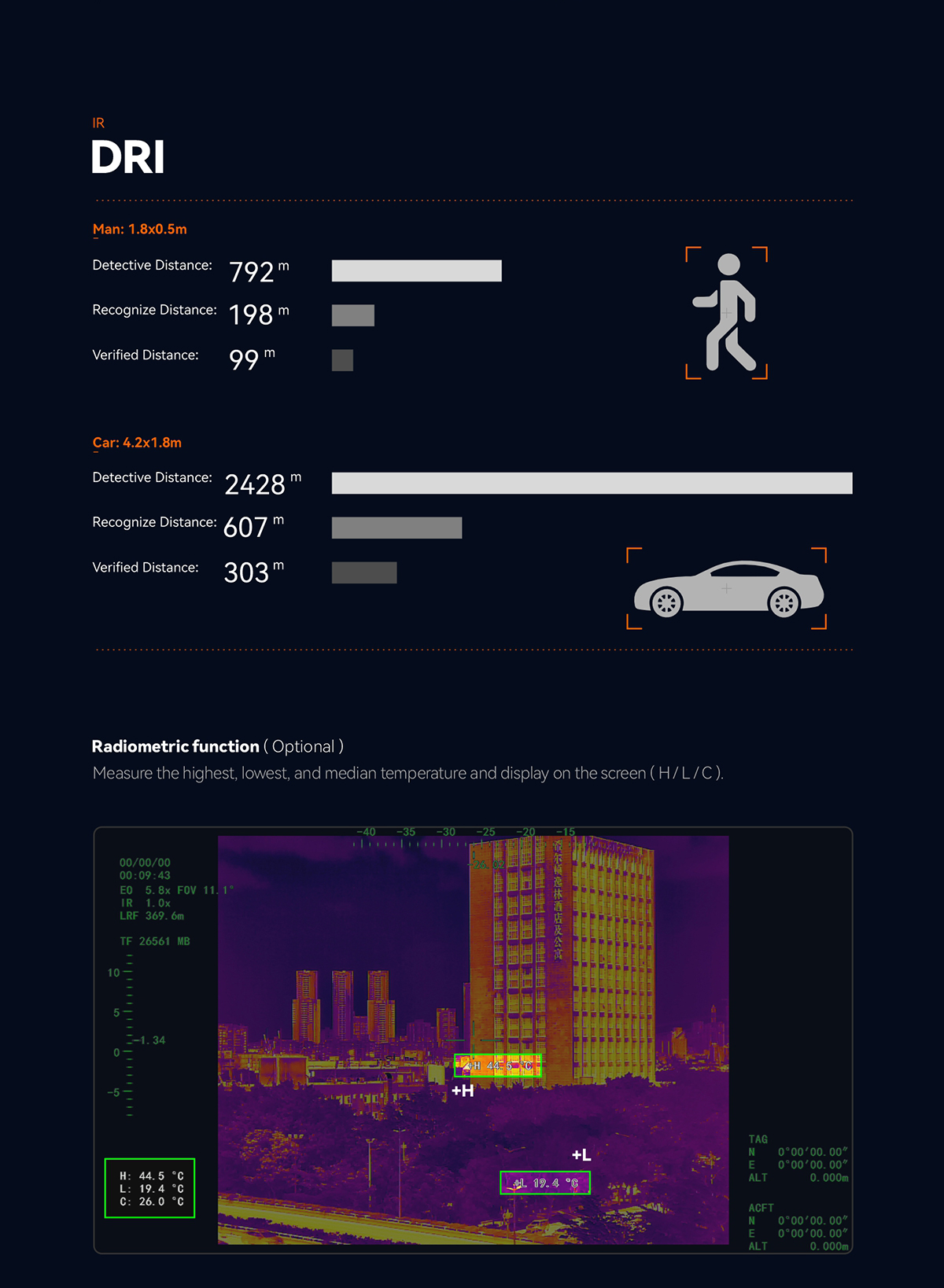

| Detective Distance (Man: 1.8x0.5m) | 792 meters |
| Recognize Distance (Man: 1.8x0.5m) | 198 meters |
| Identification Distance (Man: 1.8x0.5m) | 99 meters |
| Detective Distance (Car: 4.2x1.8m) | 2428 meters |
| Recognize Distance (Car: 4.2x1.8m) | 607 meters |
| Identification Distance (Car: 4.2x1.8m) | 303 meters |
| Working mode | Uncooled VOx long wave (8μm~14μm) thermal imager |
| Detector pixel | 640*512 |
| Pixel size | 12μm |
| Focusing method | Athermal prime lens |
| NETD | ≤50mK@F1.0 @25℃ |

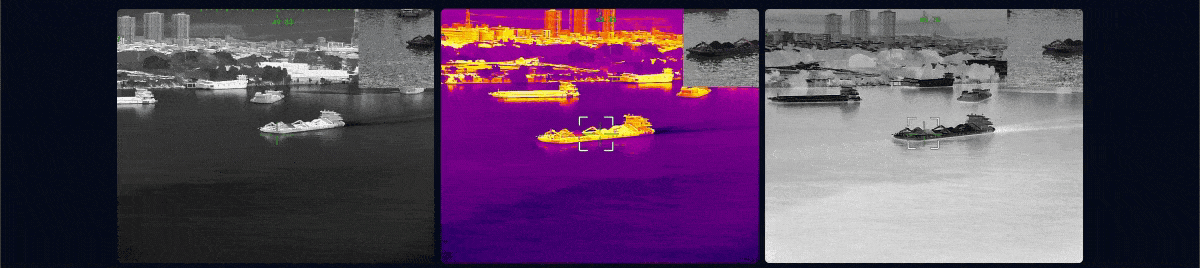

| Color palette | White hot, black hot, Iron red |
| Digital zoom | 1x ~ 8x |
| Radiometric function(optional) | Thermometry range optional：-20℃~+150℃, 0℃~+550℃ |
| Thermometry accuracy: ±3℃ or +3%(take larger value)@23℃±3℃, Thermometry range 5m | |

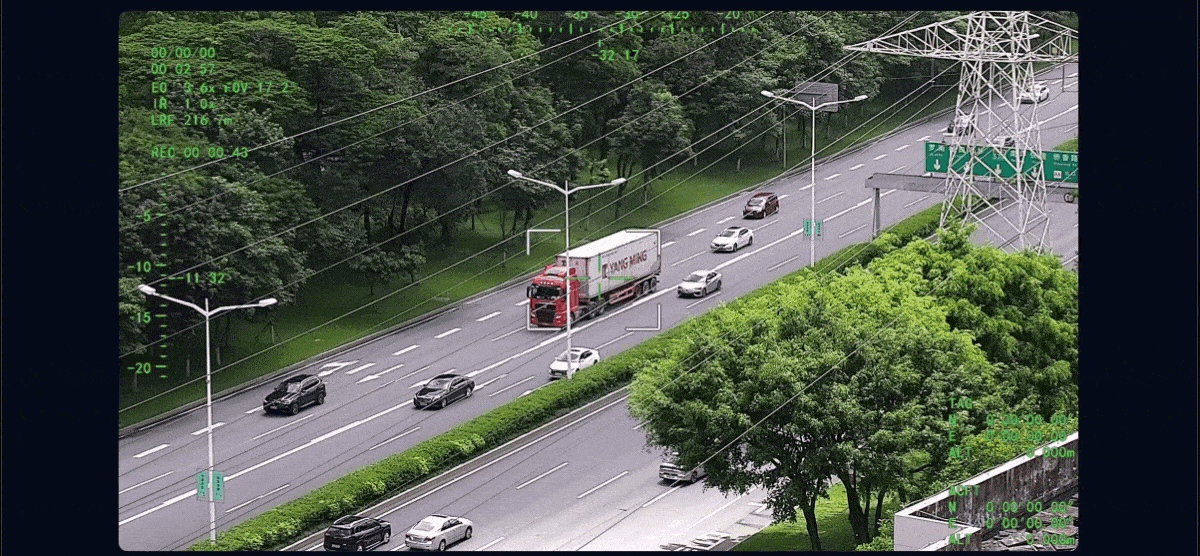

| EO/IR Camera Object Tracking | |
| Update rate of deviation pixel | 30Hz |
| Output delay of deviation pixel | <30ms |
| Minimum object contrast | 5% |
| SNR | 4 |
| Minimum object size | 16*16 pixel |
| Maximum object size | 256*256 pixel |
| Tracking speed | ±48 pixel/frame |
| Object memory time | 100 frames |

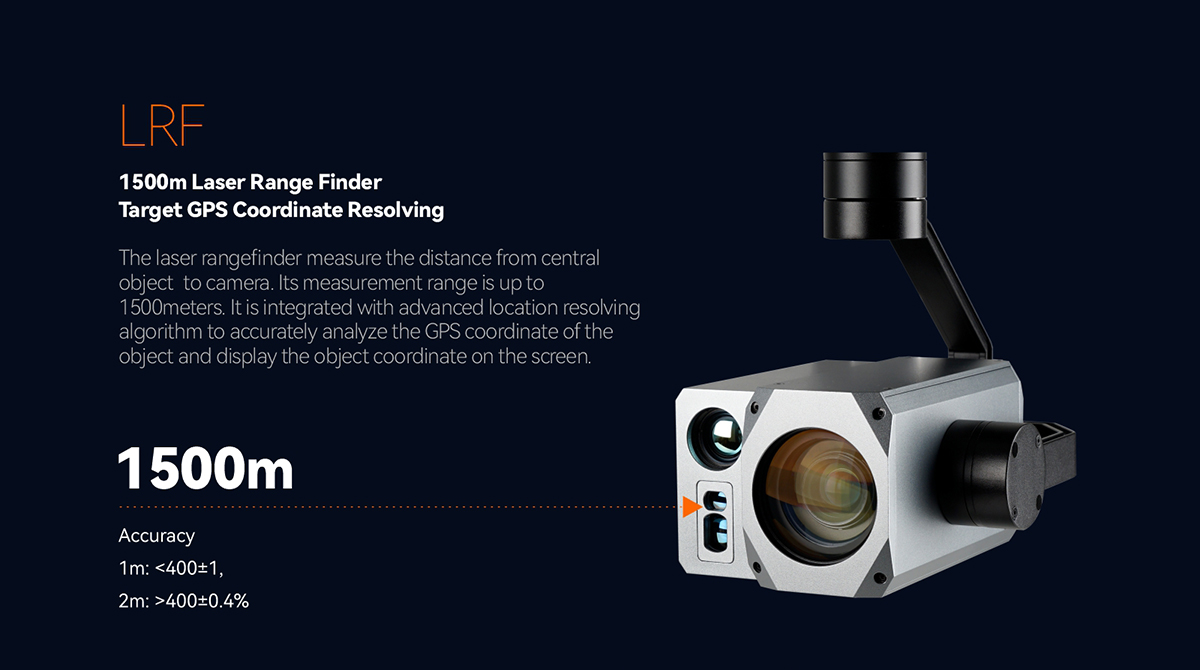

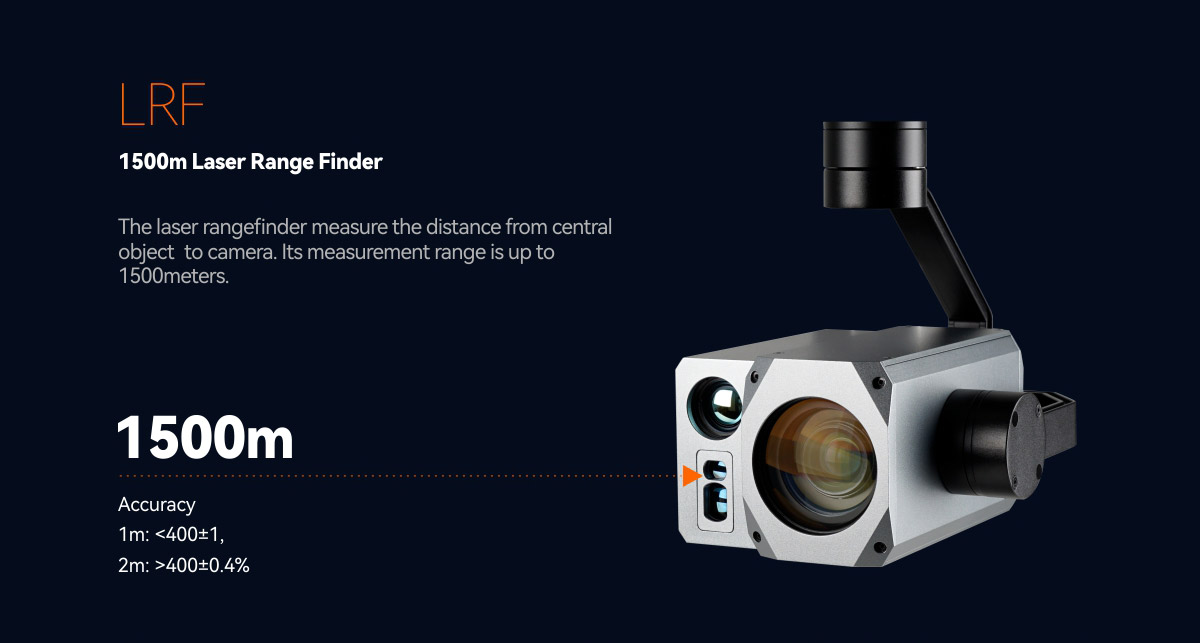

| Laser Rangefinder | |
| Range | 5~1500 meters |
| Accuracy | ±0.5m |
| Light Beam | 905nm pulse laser |
| Divergent Angle | ~6 mrad |
| Laser pulse frequency | 1~20Hz(5~40m); 1~4Hz(40~1200m) |
| Eye safety level | Class 3R ( IEC 60825-1 ) |
| Location Resolving | Latitude and longitude of target |
| Ranefinder | Measure the distance between the object at the center of screen and the laser rangefinder |

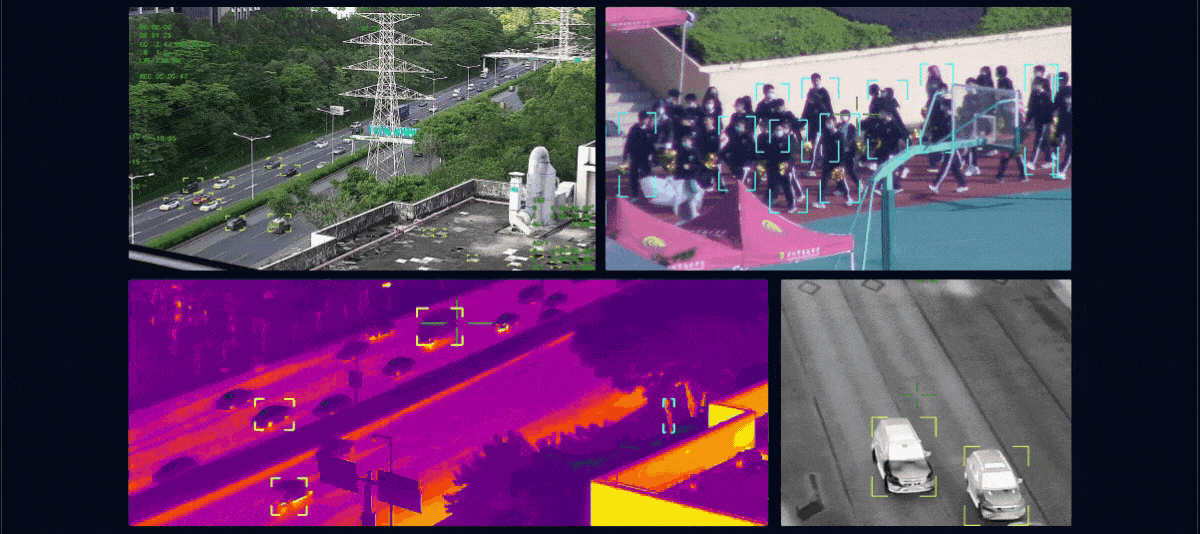

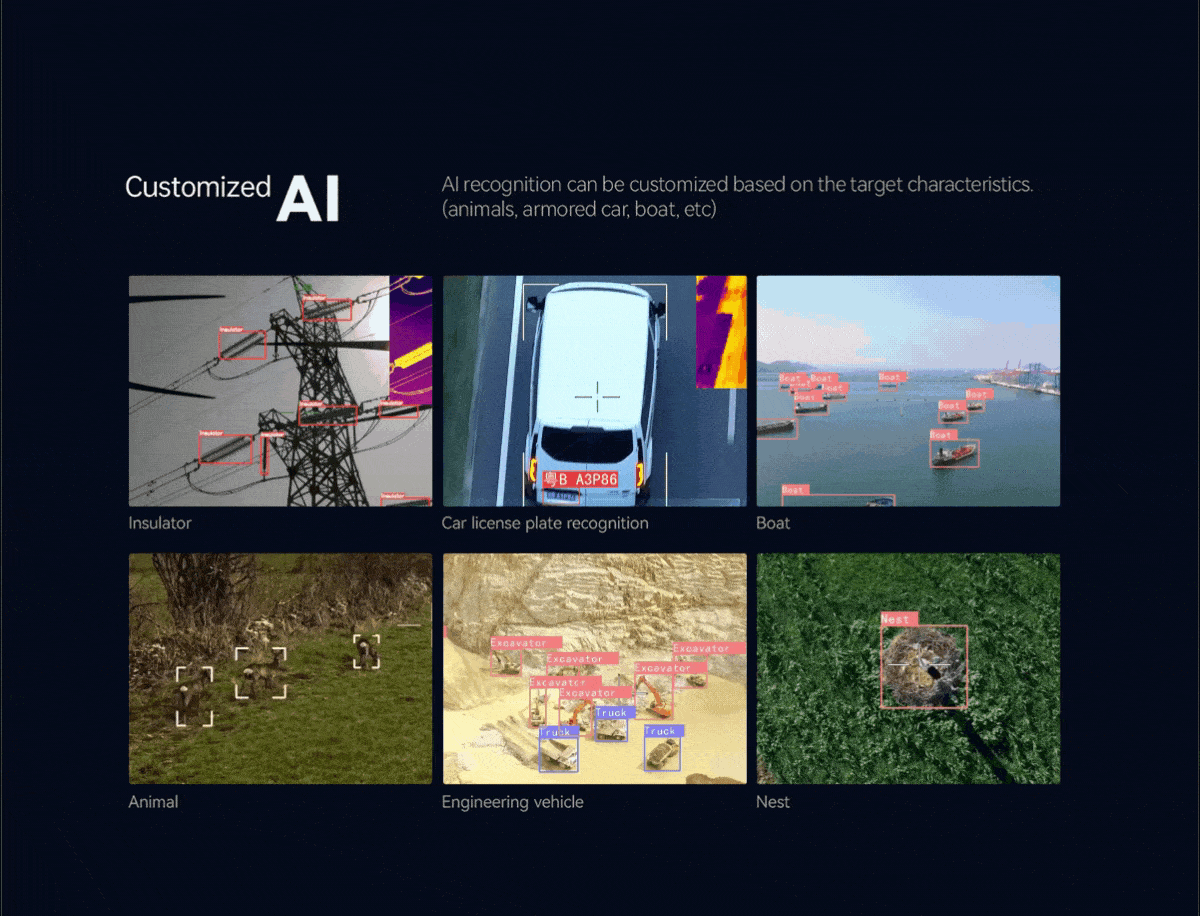

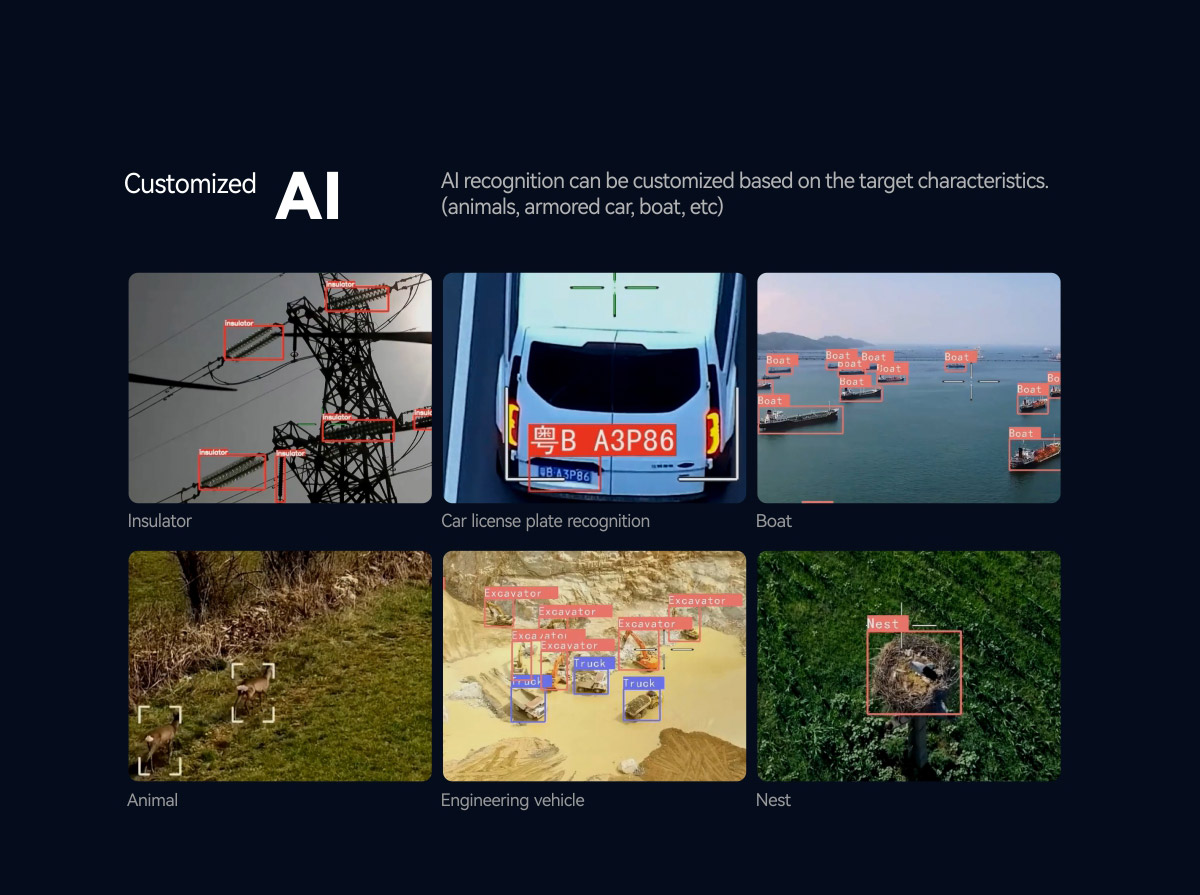

| EO Camera AI Performance | |
| TOPS | 1T |
| Targets type | Car and human |
| Simultaneous detection quantity | ≥ 10 targets |
| Min contrast ratio | 5% |
| Min target size | 5×5 pixel |
| Car detection rate | ≥85% |
| False alarm rate | ≤10% |
| Advanced Features | |

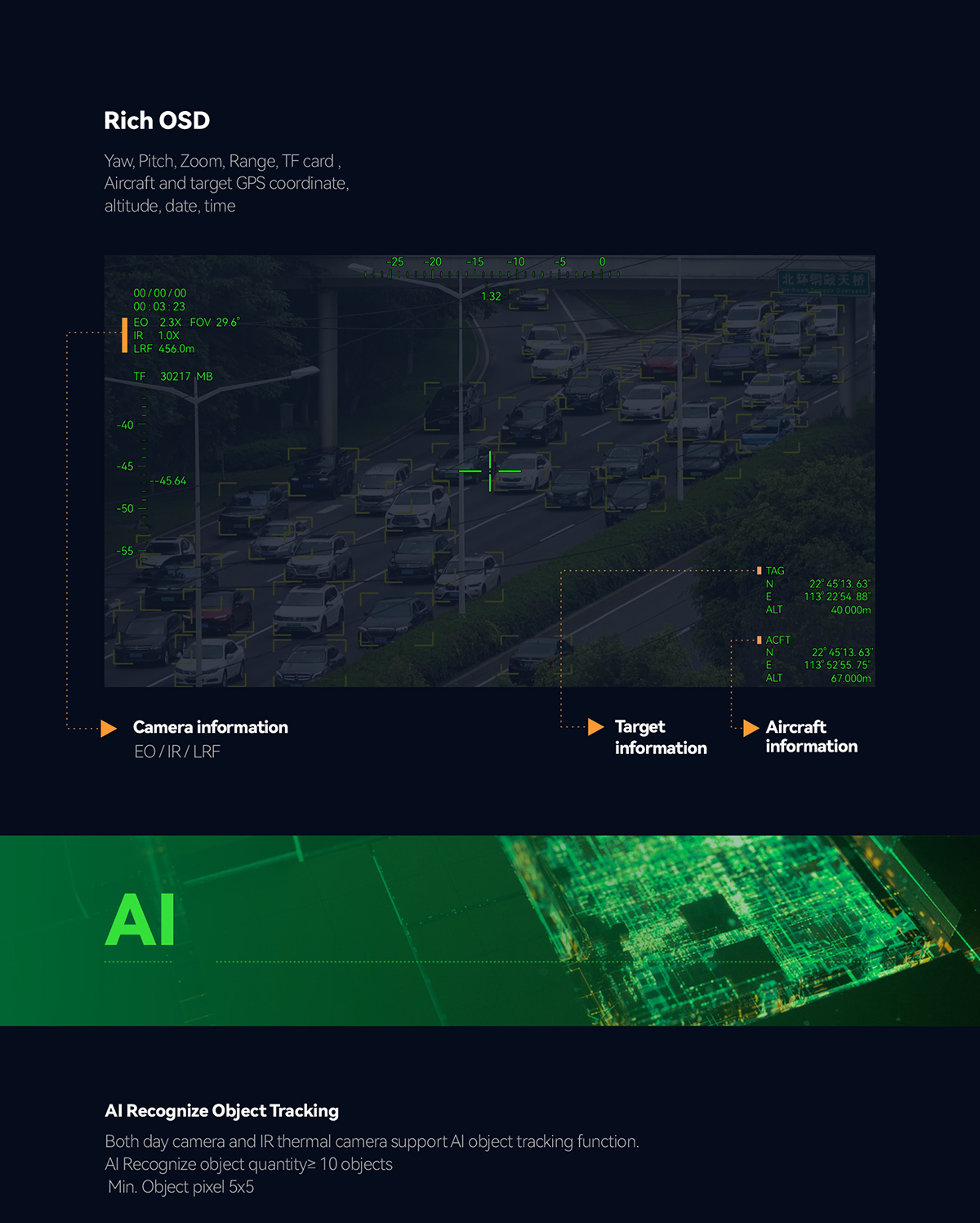

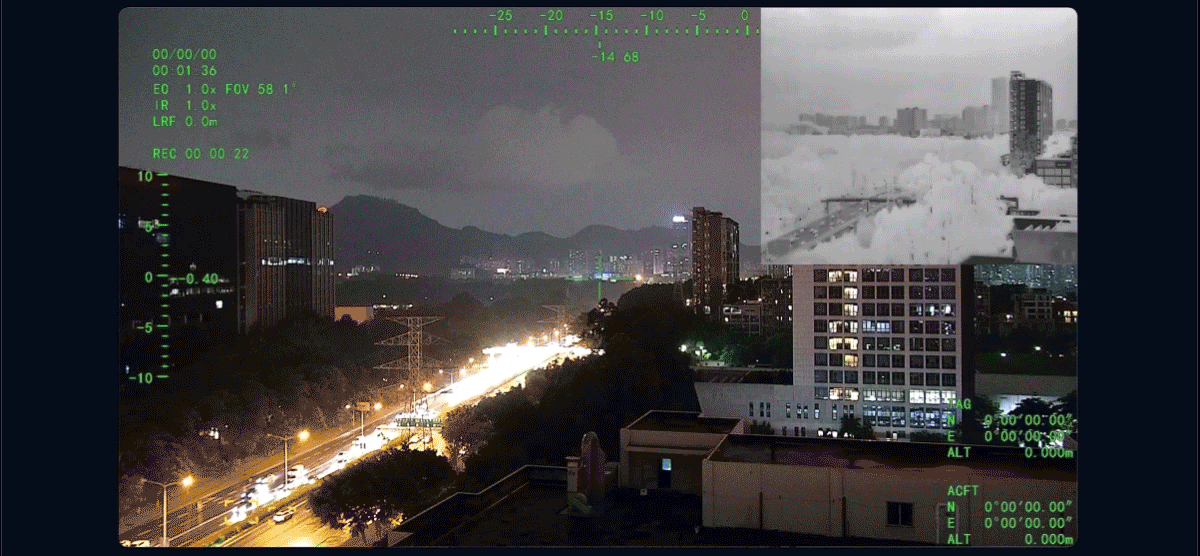

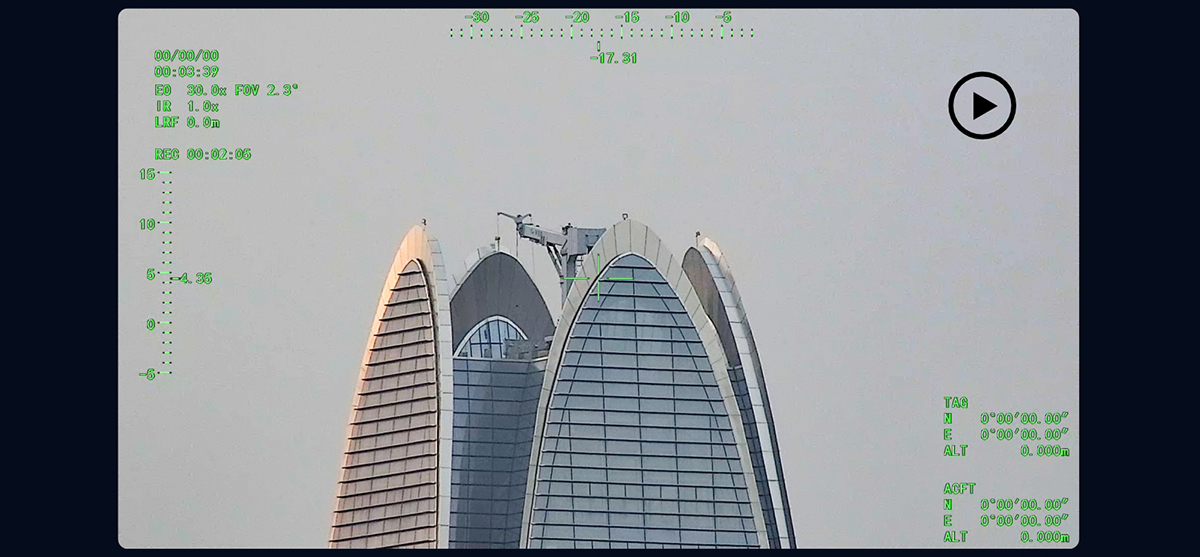

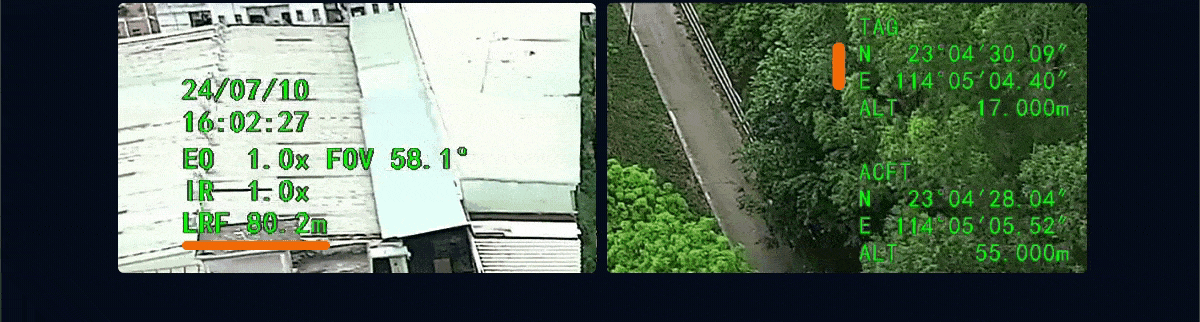

| OSD | Display the gimbal’s yaw and pitch angle, magnification, ranging value, card recording duration, aircraft GPS and altitude, target ranging point GPS and altitude, date and time |
| Geotagging | Display time and GPS coordinate in picture exif |

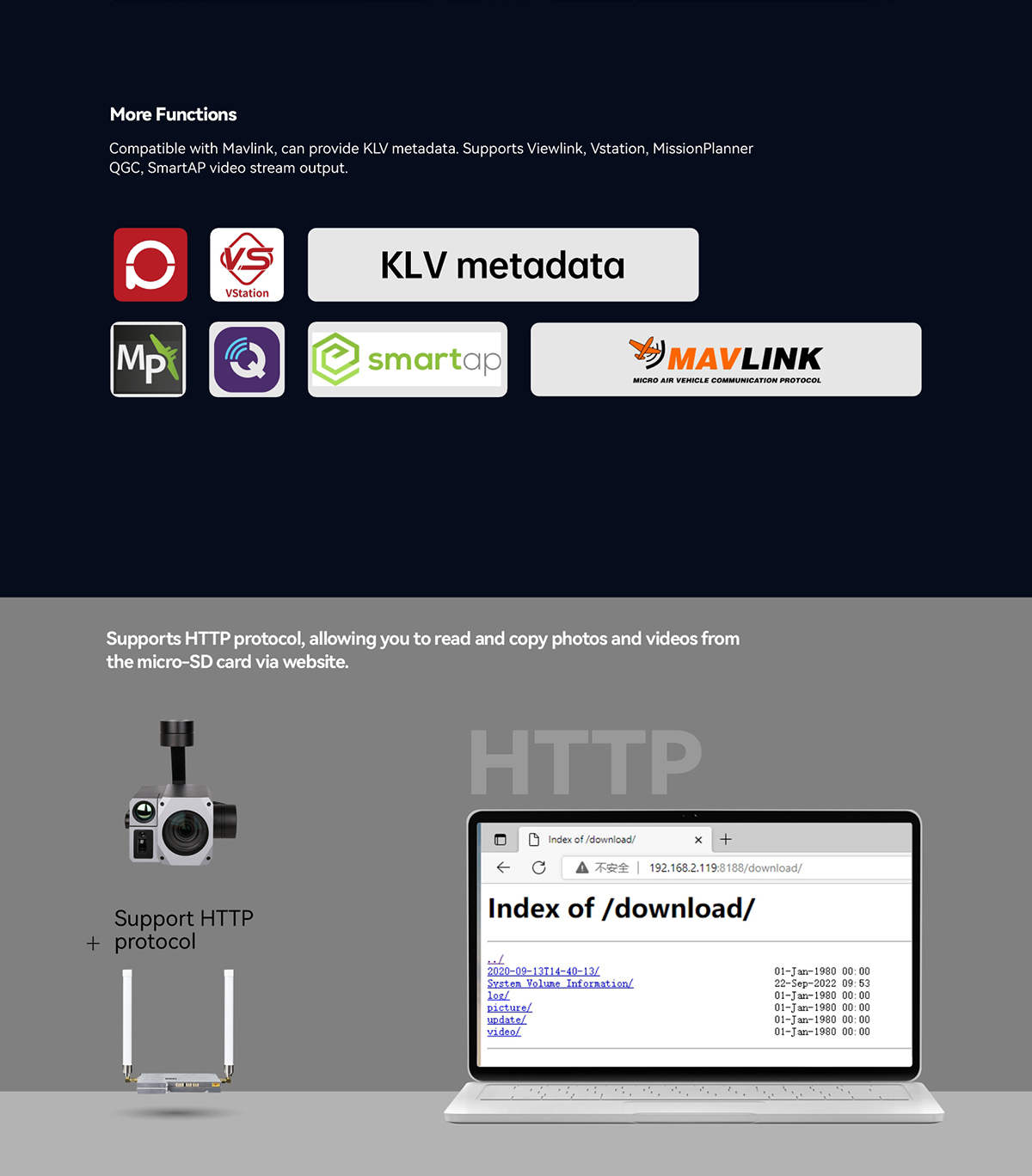

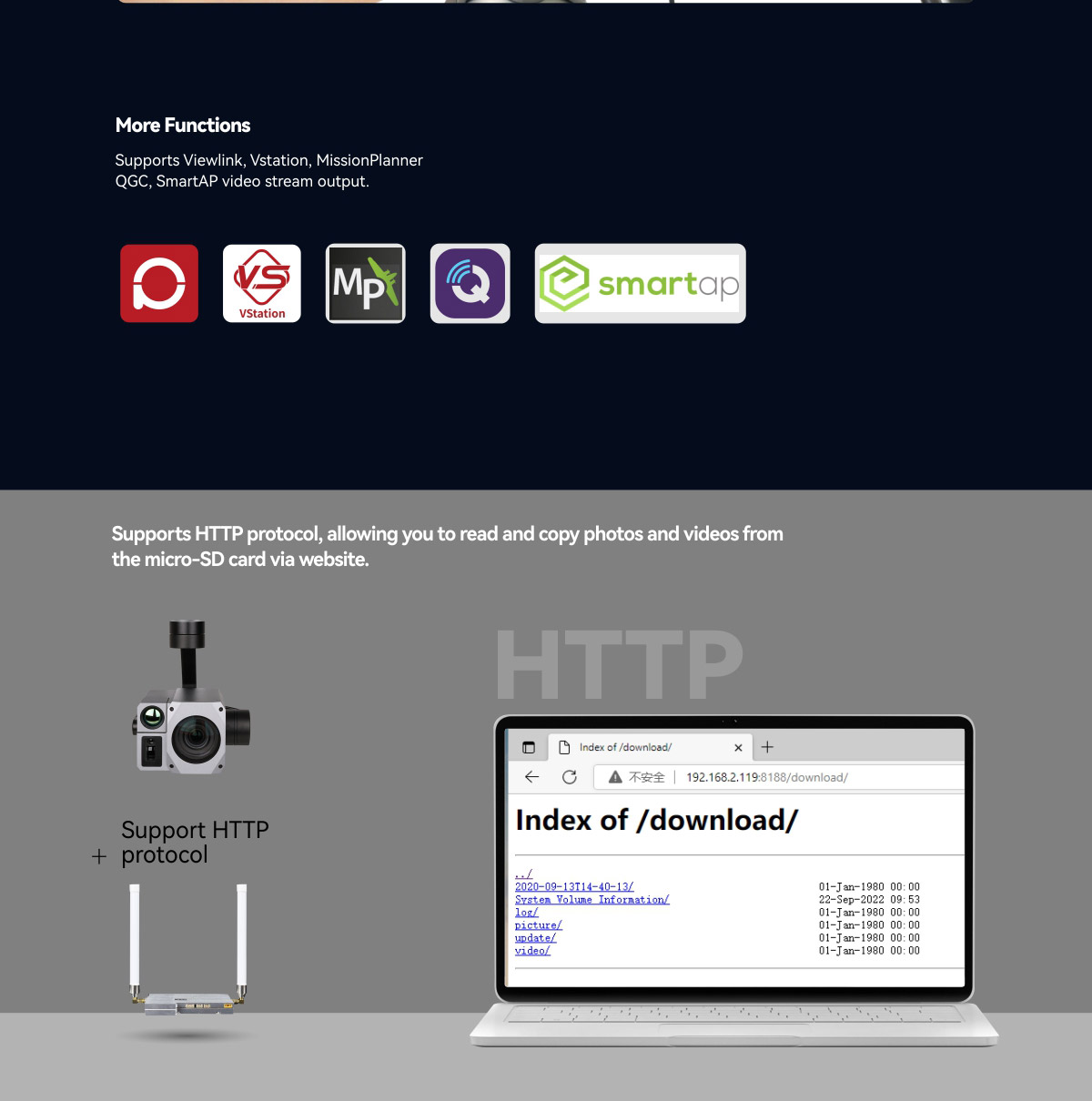

| Card reading online | HTTP read pictures or videos |
| KLV (UDP) | Card recording or Viewlink video playback |

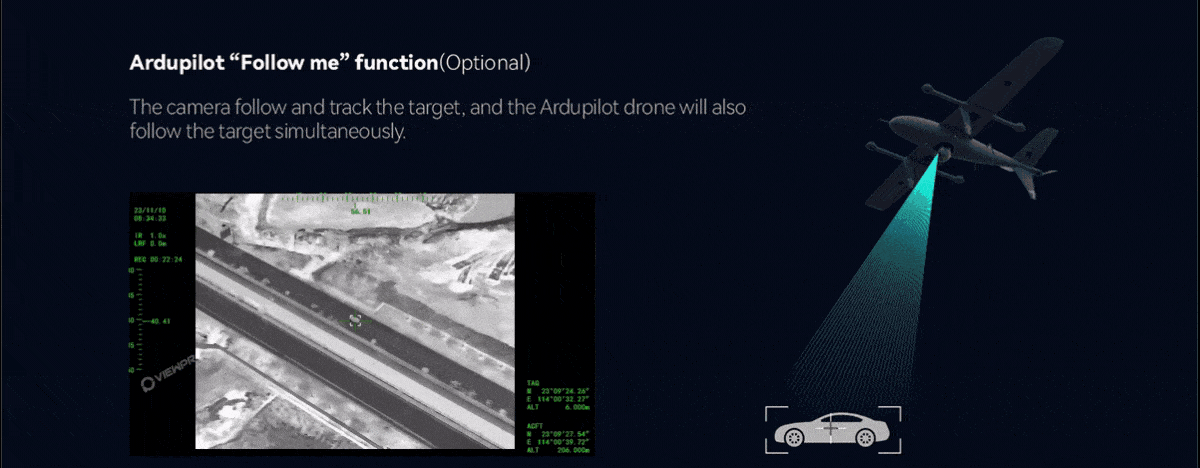

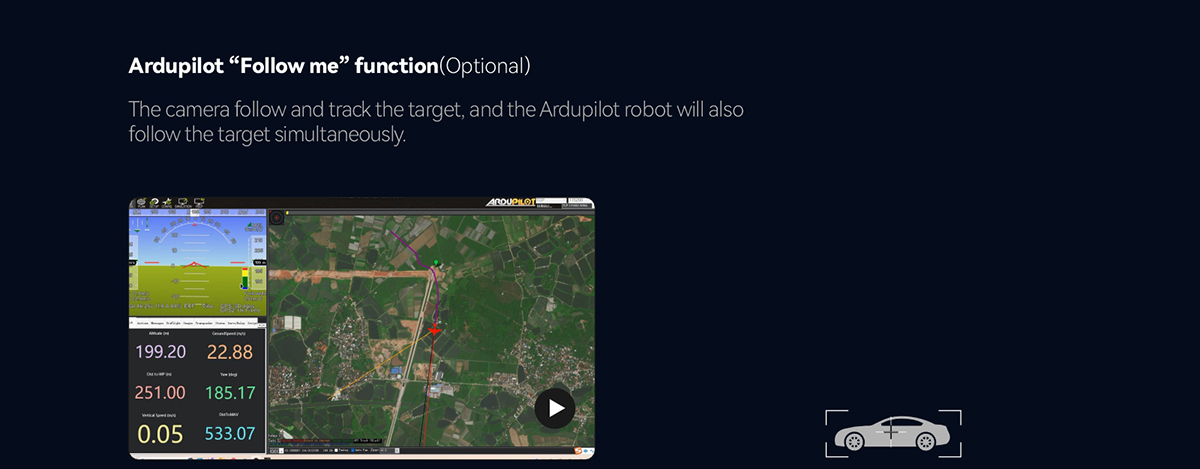

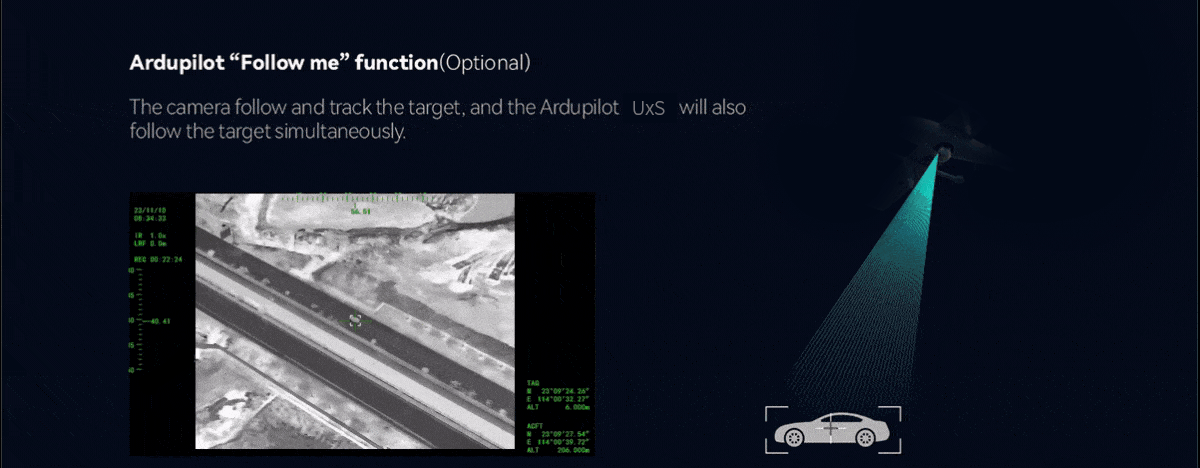

| ArduPilot / PX4 | Support(Mavlink protocol ) Optional: Support Ardupilot Follow me feature |
| Video switching | EO+IR /IR+EO /EO /IR |
| Dual video stream output (optional) | Support(EO and IR two stream output, notes: unable to record once the dual video stream output activated) |
For more details, please visit Mini H30T Colorful Night SONY Starvs Camera Auto Identify & Tracking
-
