Product Introduction
Specification

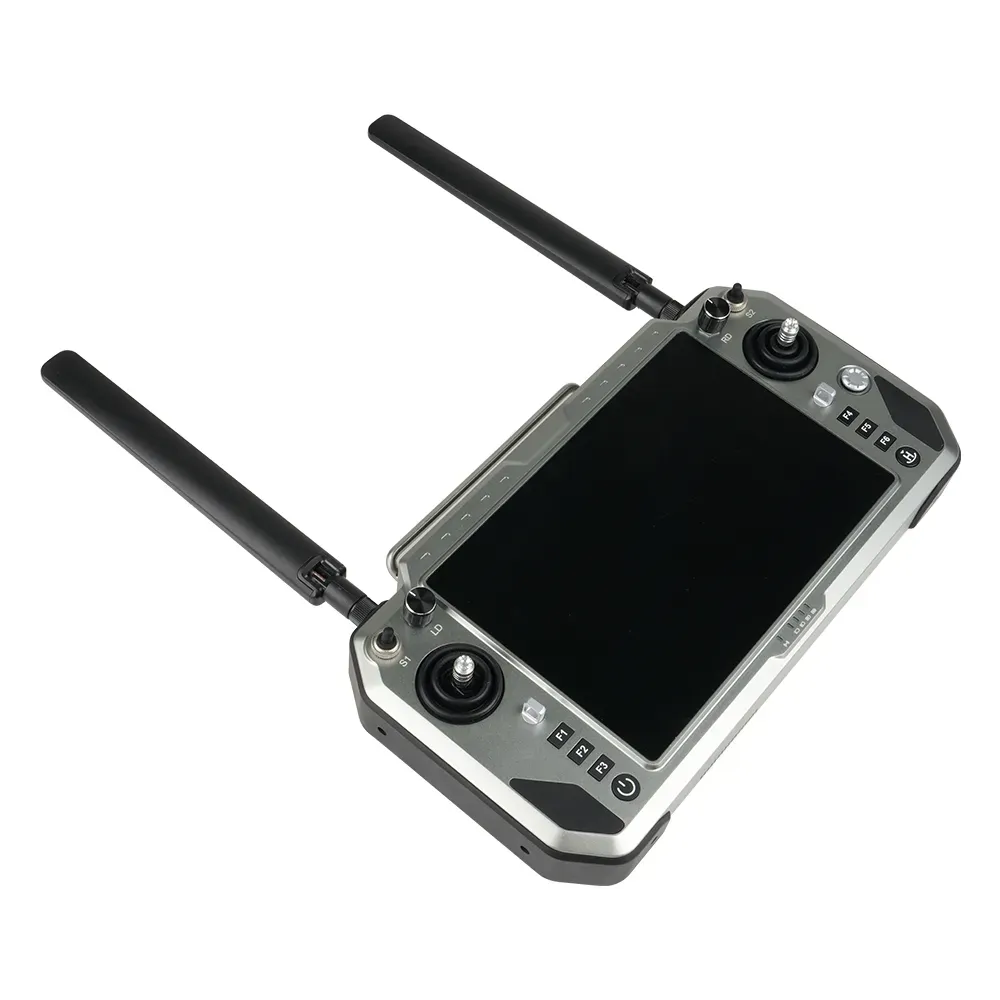

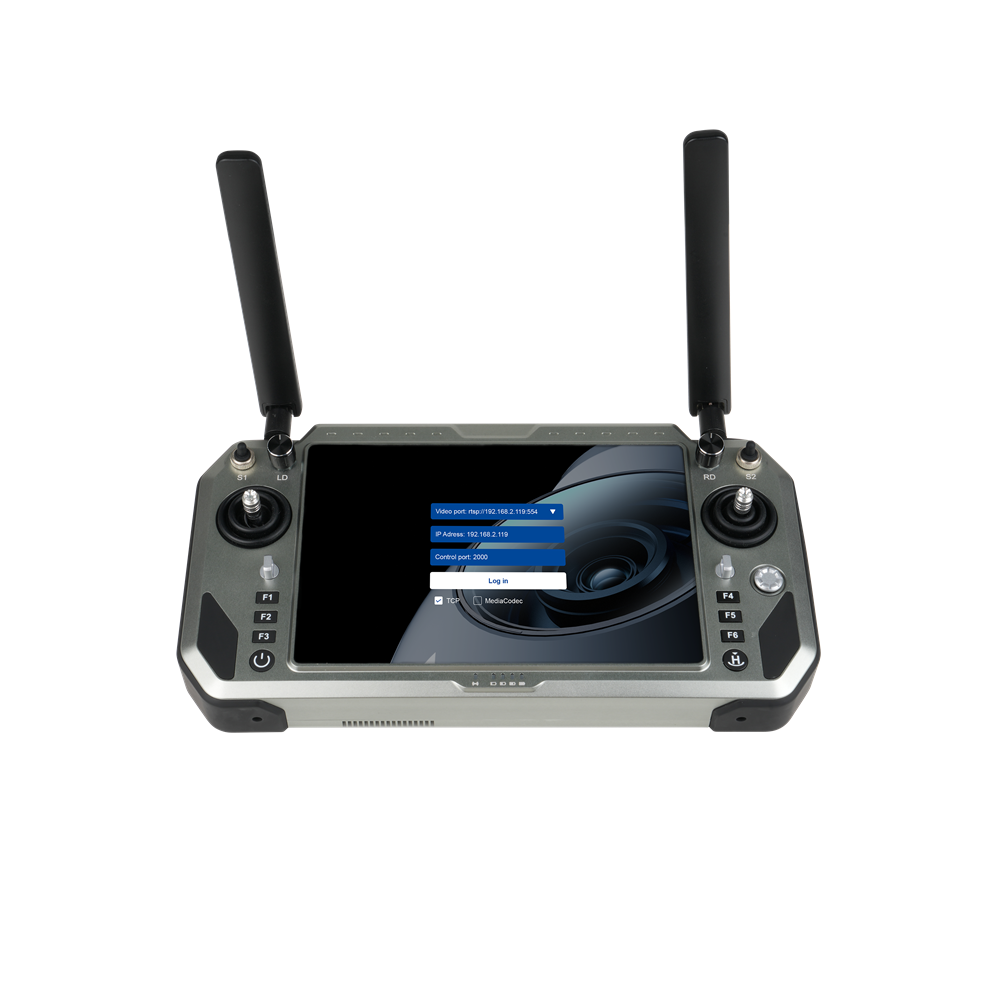

MX25 PRO Ground Control Station Specification
|
Handhold Ground Station Specification |
|
|
Processor |
RK3588 |
|
System |
Android 13 |
|
Memory |
4GB |
|
Storage |
64G |
|
Transmission Range |
25 KM |
|

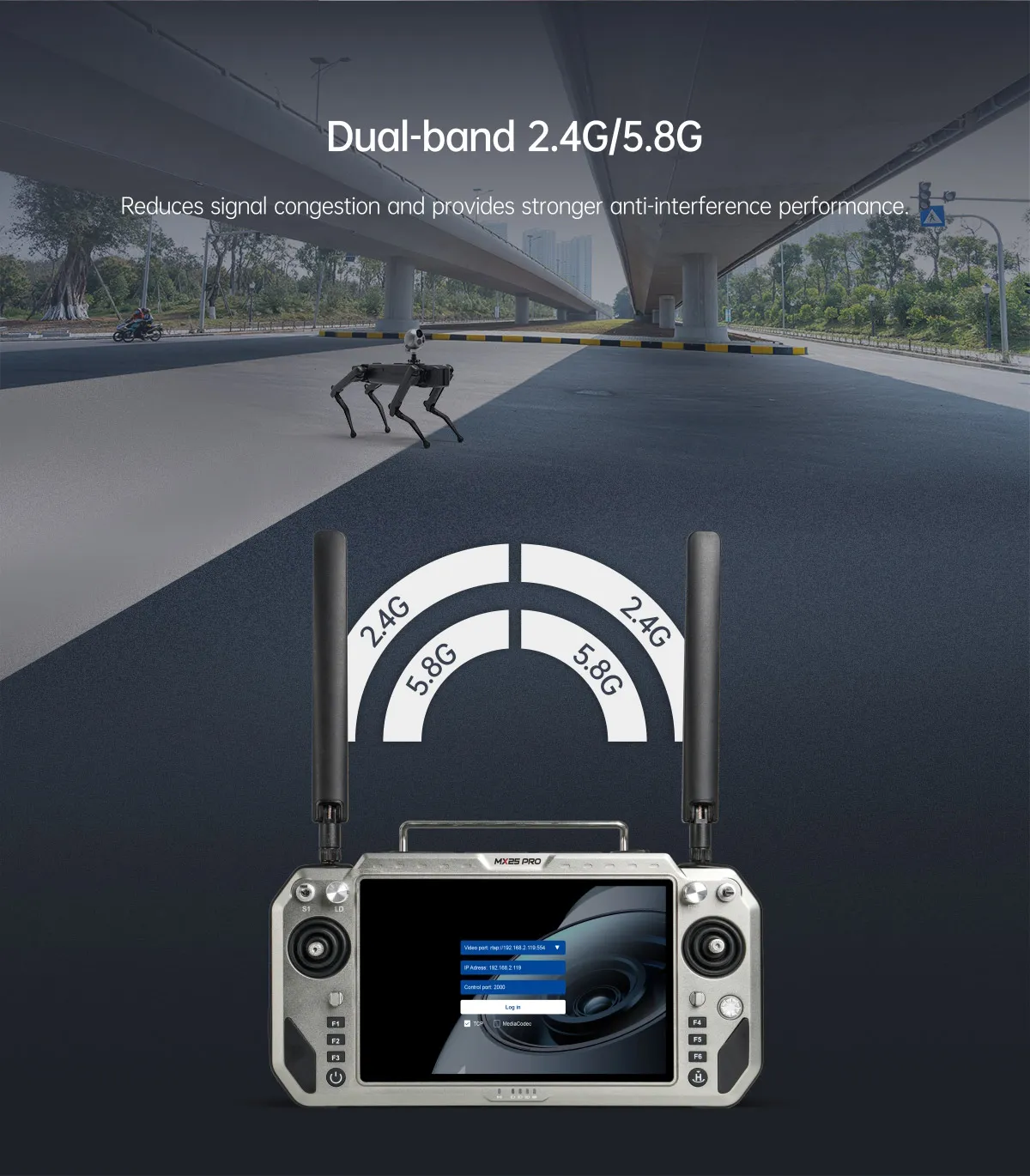

Frequency |
2.4/5.8GGHz |
|

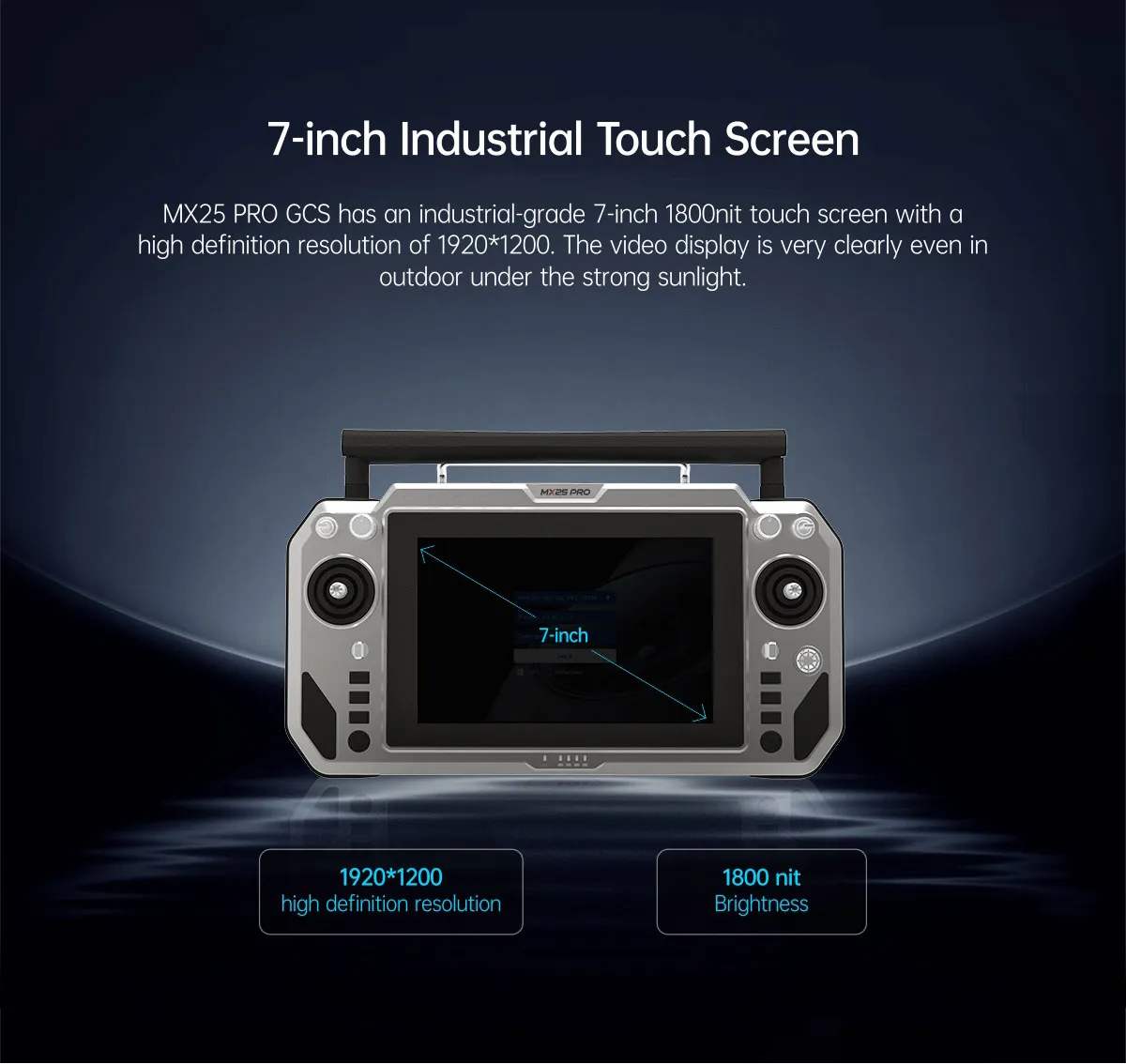

Screen |
7 inch capacitive touch screen |
|
Resolution |
1920*1200 |
|
Battery Endurance |
Max 8 Hours |
|
Battery |
10000mAh |
|
Transmission Range |
15 KM |
|
Frequency |
2.4/5.8GGHz |
|
Receiver sensitivity |
23dBM@CE/FCC |
|
Battery Endurance |
5~8 Hours |
|
Battery |
10000mAh |
|
Signal Bandwidth |
20Mbps |
|

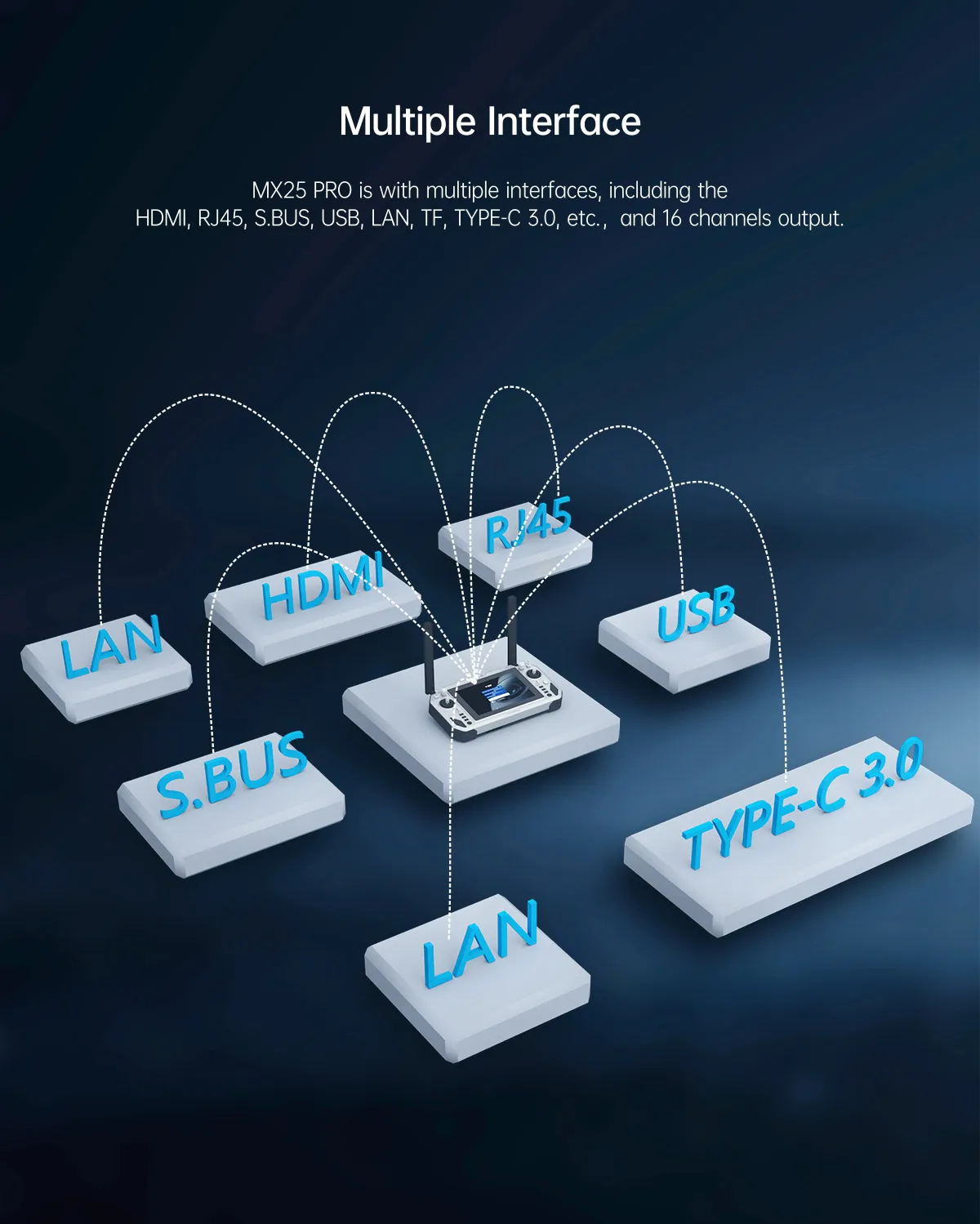

Ports |
LAN*1, TYPE-C 3.0*1, OTG*1, TF*1 |
|
TYPE-C 3.0 |
For battery charging |
|
Ethernet |
RJ45 |
|
HDMI |
Micro HDMI, for video input |
|
Micro USB |
For debug or upgrade, support OTG |
|
Pair/Reset |
For pairing and reset |
|
LED |
To indicate pairing status and transmission status |
|
S.Bus |
RC output |
|
Remote control |
2 * joystick, 2 * wheel, 2 * knob, 4 * button |
|
Communication |
WIFI/GPS 2.4GHz on the controller side |
|
Material |
Aluminum alloy |
|
Weight (Total) |
1644g |
|

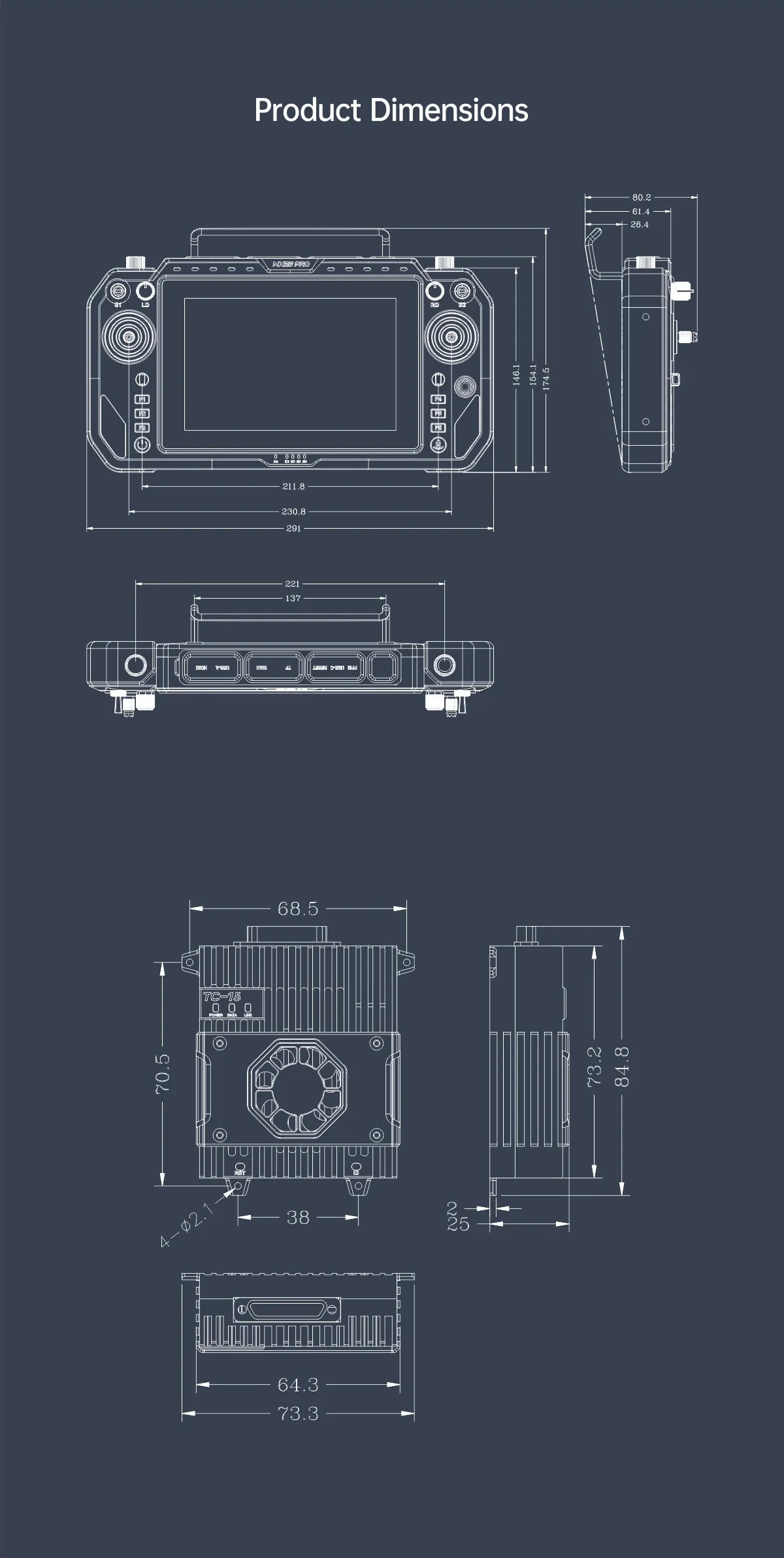

Dimension |
291*174.5*80mm |
|
Operating temperature |
-10°C - 65°C |
|
Air Unit |
|
|
Weight |
65g (Air End) |
|
Size |
76.4*59*15mm |
|
Port |
HDMI*1, RJ45*1, SBUS*1, TYPE-C*1, TF*1 |
|
RC output |
16 Channel |
|
Voltage /Current |
8V-22V, 12V/300mA |
|
Power Consumption |
< 4W |
|
Serial port baud rate |
115200 |
|
Operating temperature |
-10°C - 65°C |
For more details, please visit MX25 PRO Integrated 25km Video & Data Transmission 7-inch Ground Control Station Anti-interference
-
