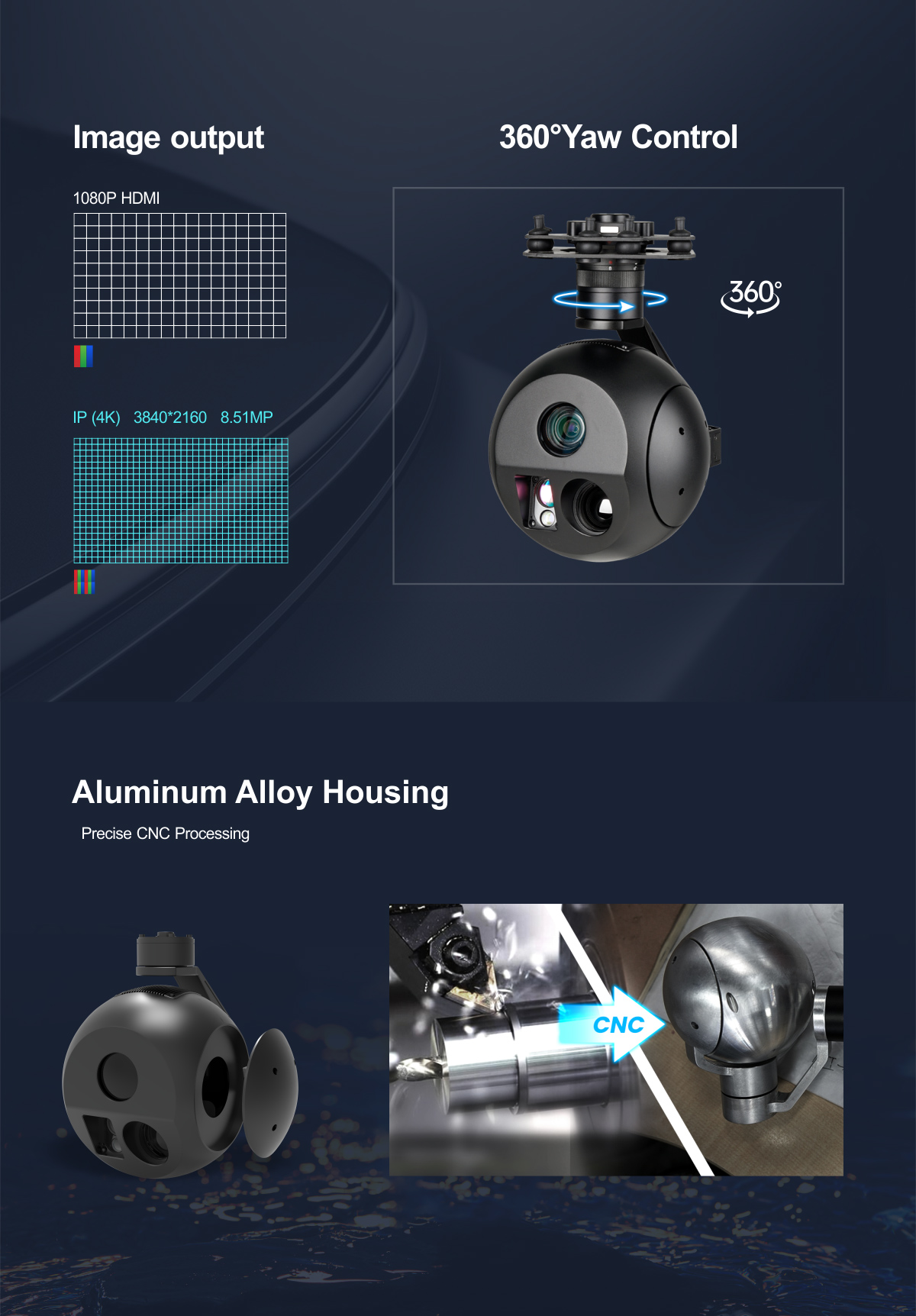

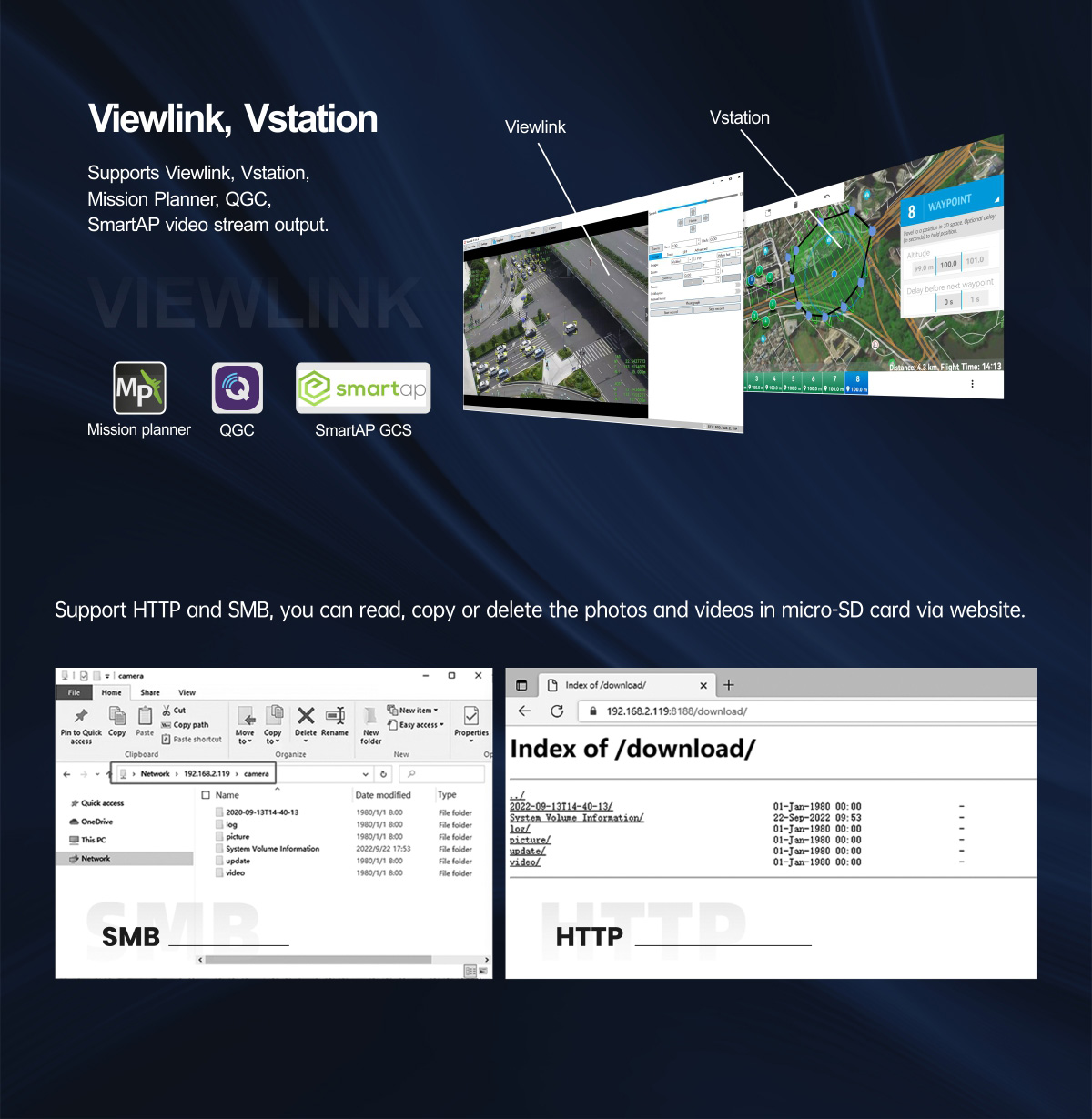

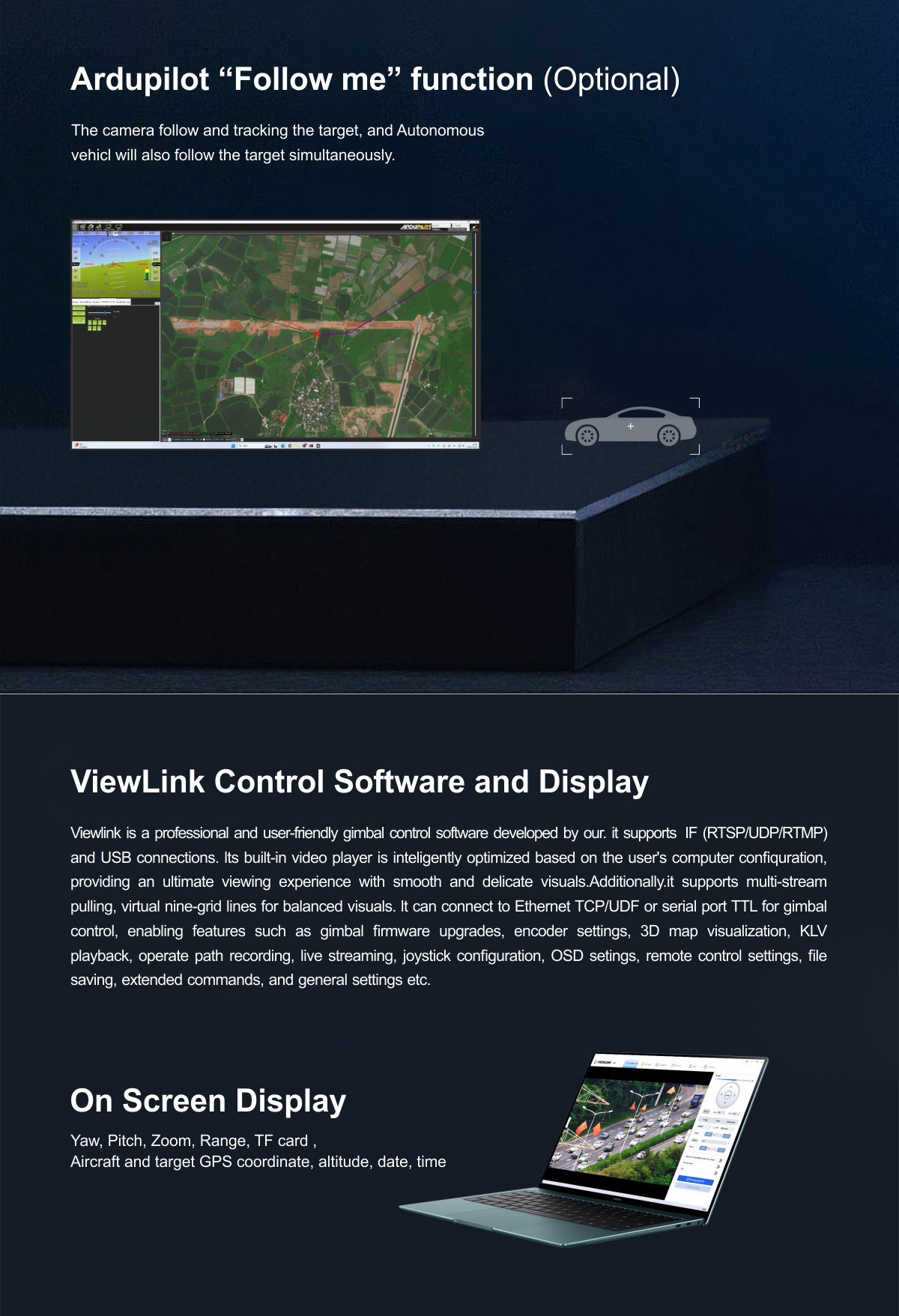

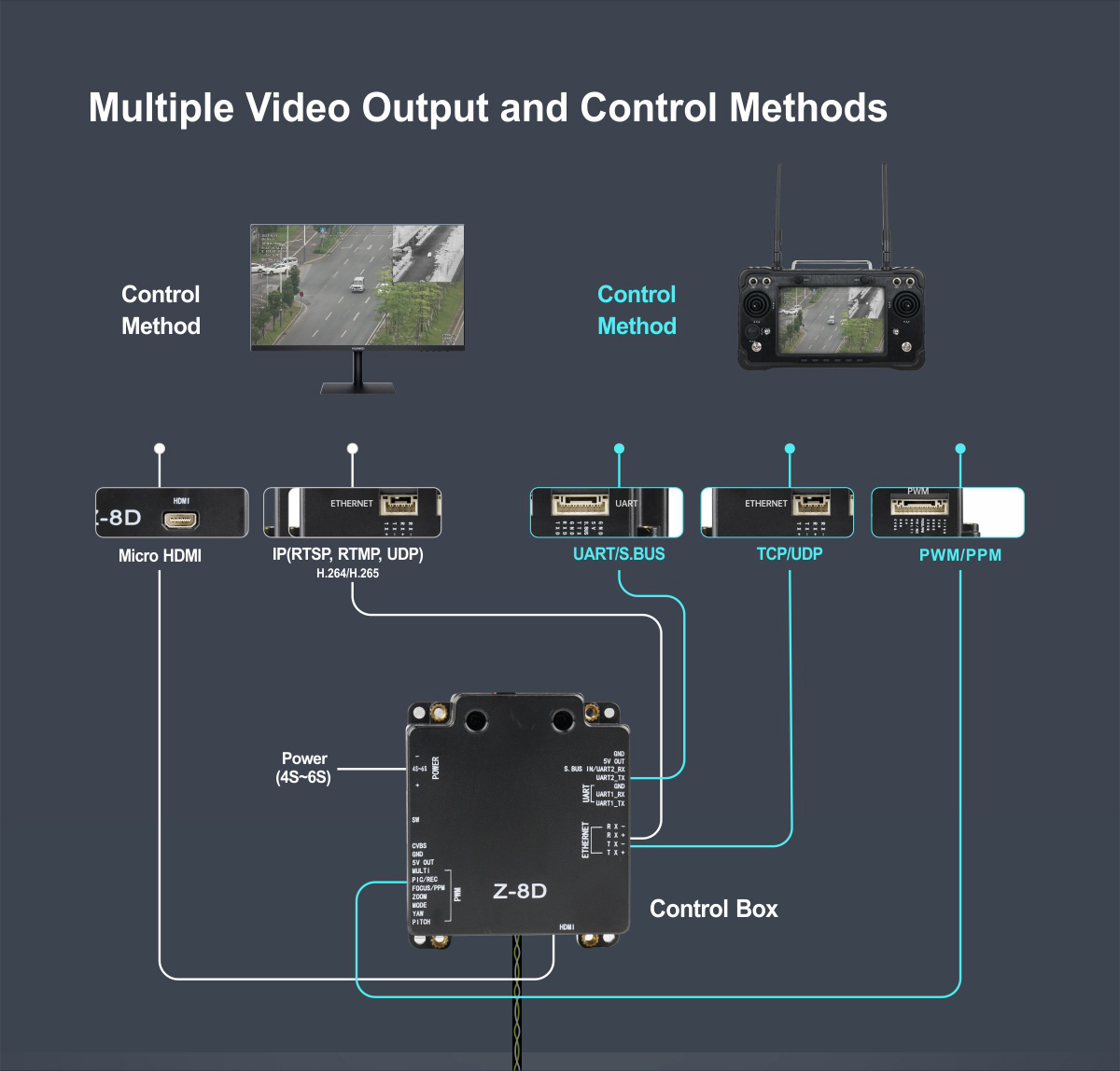

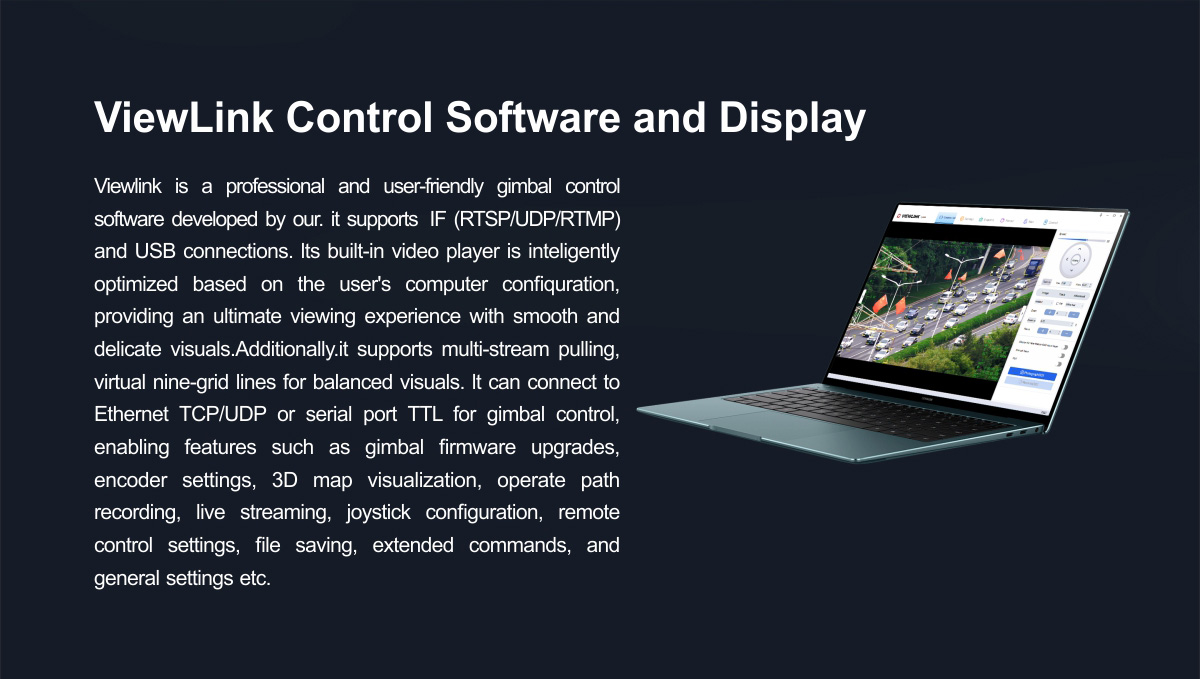

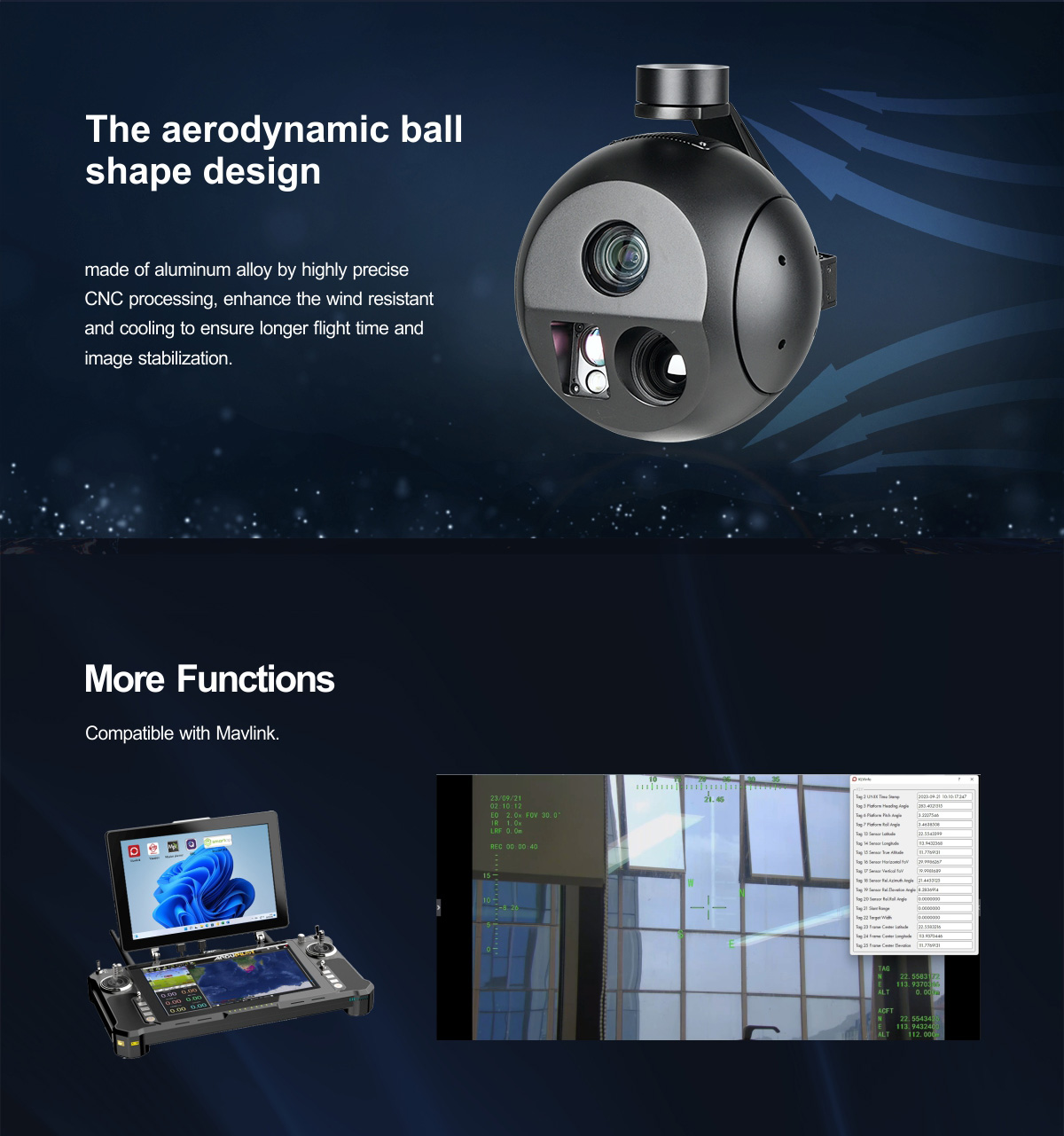

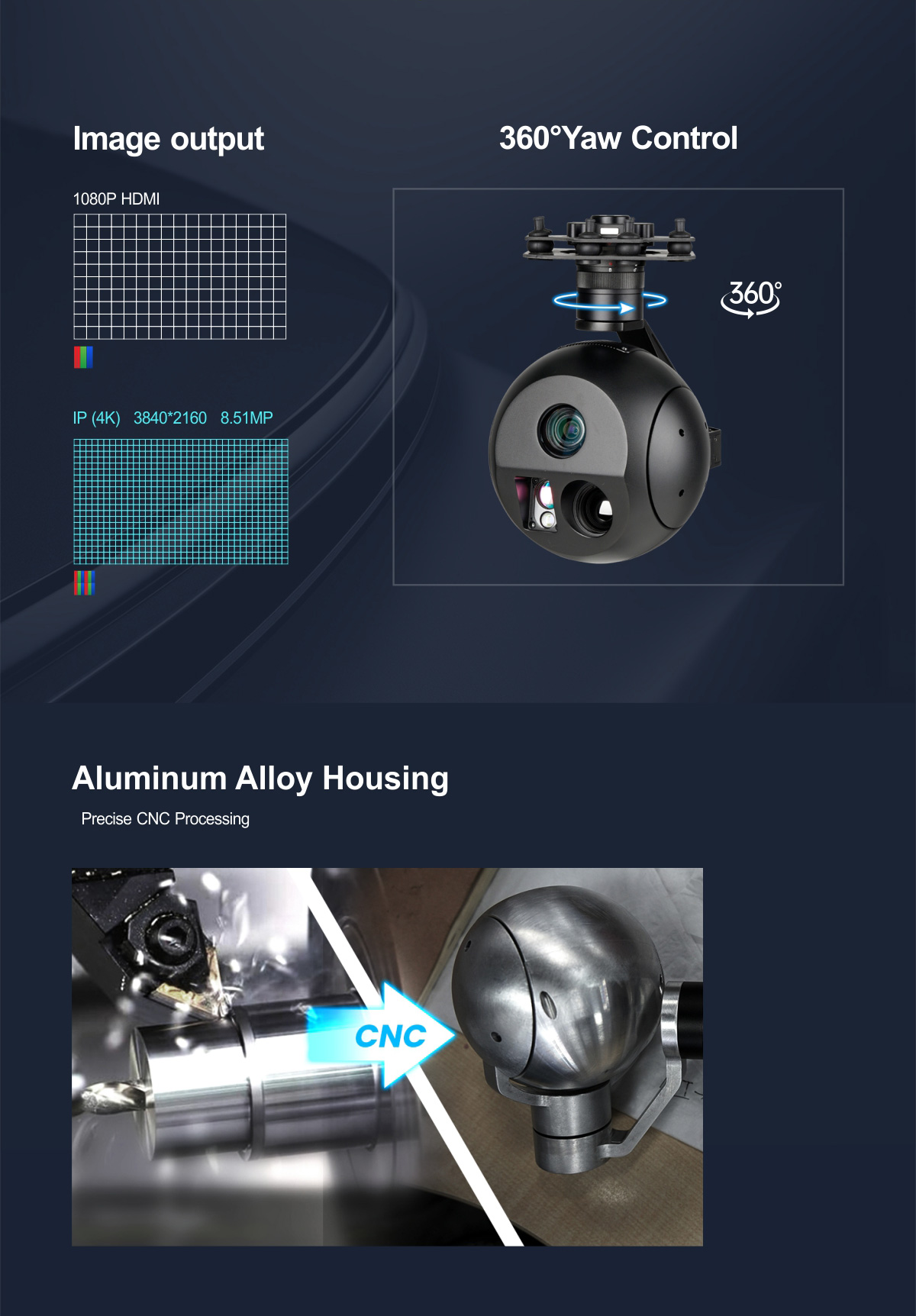

| Hardware Parameter | |
| Working voltage | 16V |
| Input voltage | 4S ~ 6S (14.8V~25.2V) |
| Output voltage | 5V (connect with PWM) |
| Dynamic current | 800~1500mA @16V |
| Power consumption | Average 12.8W, Max 24W |
| Working environment temp. | -20℃ ~ +50℃ |
| Output (optional) | Micro HDMI(1080P 30fps) / IP (RTSP/UDP 720p/1080p/4K 25fps/30fps H264/H265) |
| Local-storage | SD card (Up to 512G,class 10, FAT32 format) |
| Picture storage format in TF card | JPG (4K:3840*2160) |
| Video storage format in TF card | 1.MP4 (4K:3840*2160) Note:Output 720P/1080P; 2.MP4 (1080P:1920*1080) Note:Output 4K; Video output and video storage cannot be 4K at the same time |
| Control method | PWM / SBUS / TTL / TCP / UDP |
| Gimbal Spec | |
| Mechanical Range | Pitch/Tilt: -60°～123°, Roll: ±70°, Yaw/Pan: ±300° / ±360°*N (IP output version) |
| Controllable Range | Pitch/Tilt: -45°～120°, Yaw/Pan: ±290° / ±360°*N (IP output version) |
| Vibration angle | Pitch/Roll/Yaw: ±0.02° |
| One-key to center | √ |
| EO Camera Spec | |

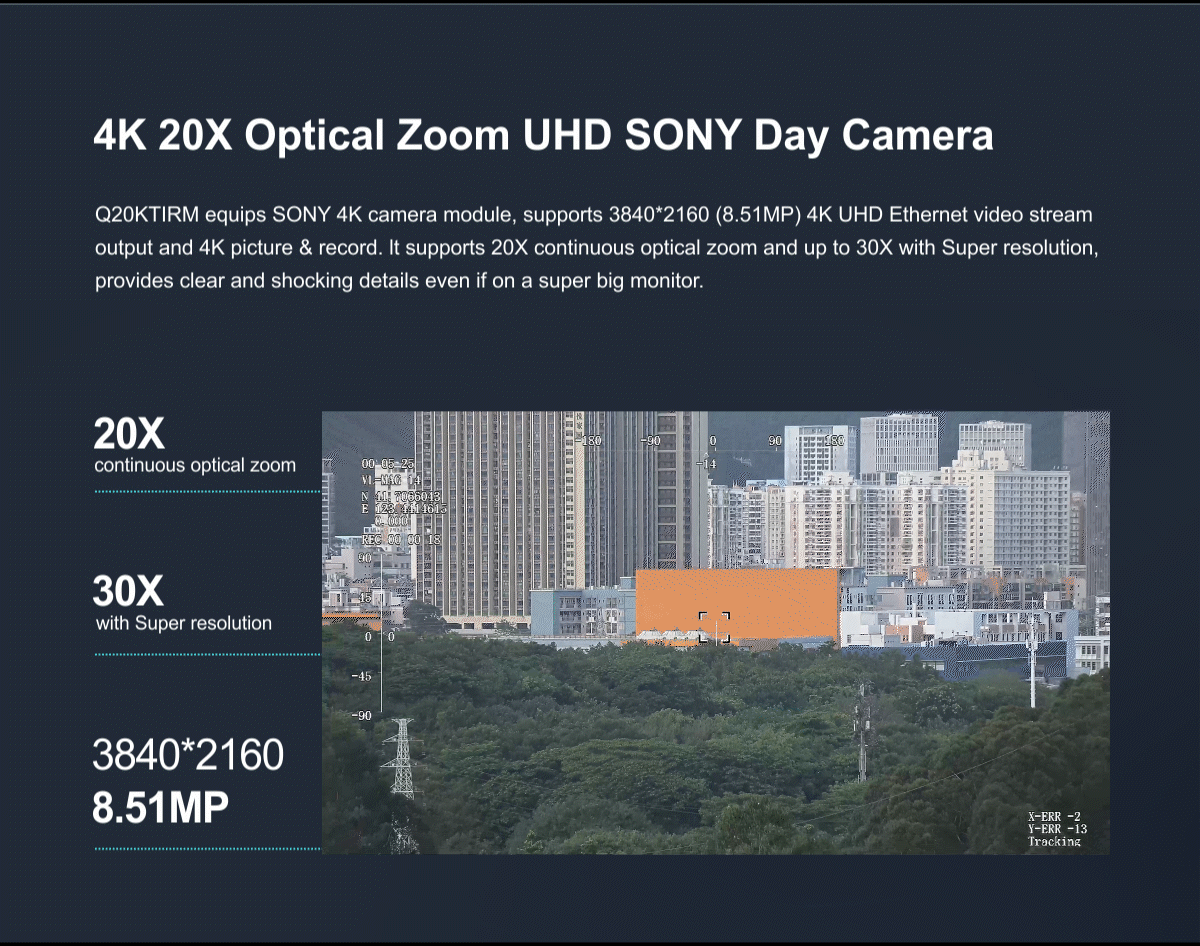

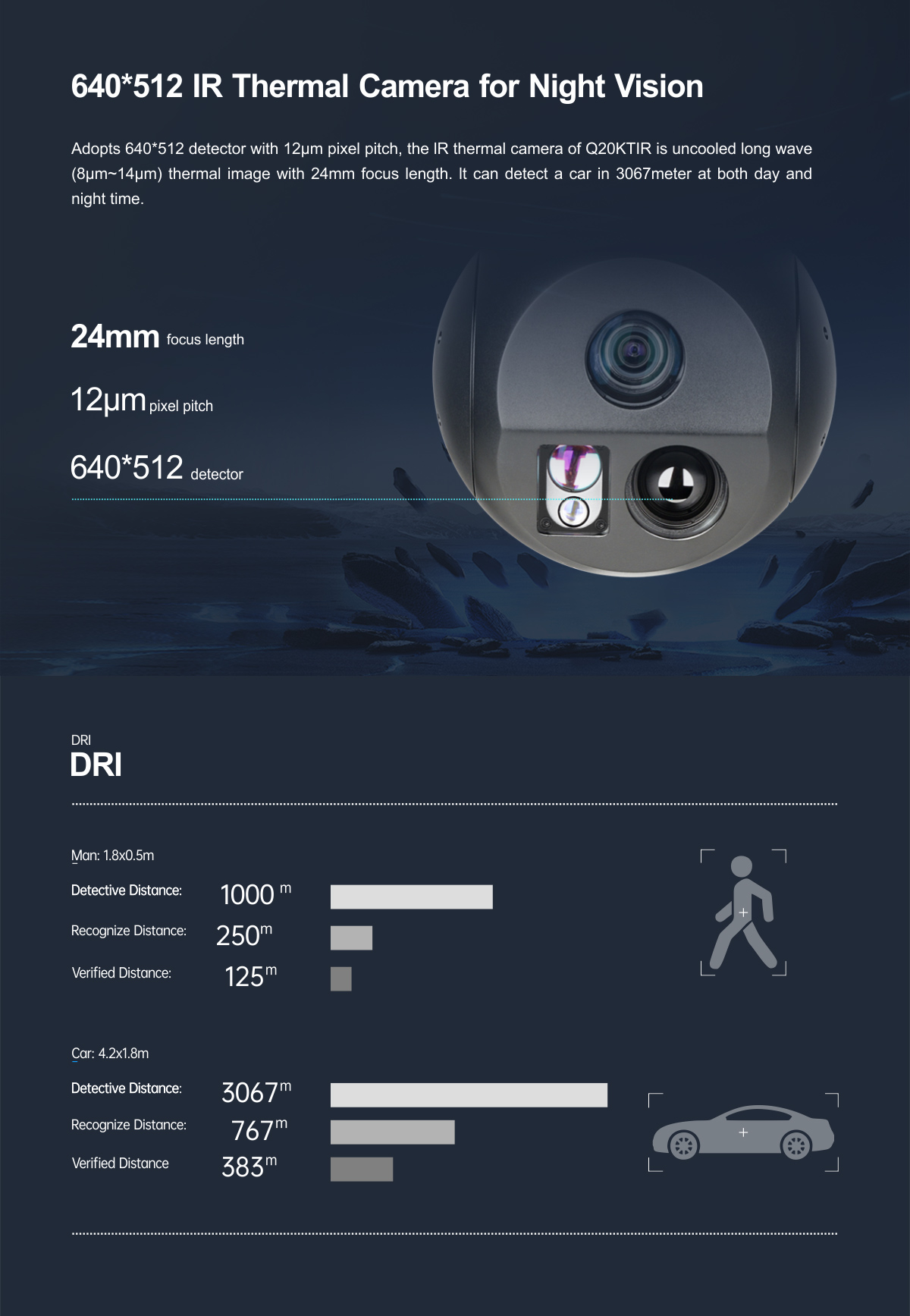

| Imager Sensor | SONY 1/2.5" "Exmor R" CMOS |
| Total pixel | 8.51MP |
| Optical zoom | 20x, F2.0 to F3.8,f = 4.4 mm (Wide), 88.4 mm (Tele), up to 30x with Super Resolution |
| Digital zoom | 12x (240x with optical zoom) |
| Min. working distance | 80 mm (Wide end), 800 mm (Tele end) |
| Angle of view ( H,V ) | H: 70.2°(Wide end) ~ 4.1°(Tele end) |
| V: 43.1°(Wide end) ~ 2.3°(Tele end) | |
| S/N ratio | 50dB |
| Recommended illumination | 100 to 100000 lux |
| Min illumination | 1.6 lux (1/30 sec, 50%, ICR off, High Sensitivity mode Off ) 0.4 lux (1/30 sec, 50%, ICR Off, High Sensitivity mode On) 0.21 lux (50%, ICR off, Slow Shutter 1/4s, High sensitivity off) 0.06 lux (50%, ICR off, Slow shutter 1/4s, High sensitivity on) |
| Back light compensation | On/Off |
| Gain | Auto |
| White balance | Auto/Manual |
| Electronic shutter speed | 1/1 to 1/10000 sec. (22 steps) |
| Noise reduction | On/Off (level 5 to 1/ Off, 6 steps) |
| Defog mode | On/Off (Low, Mid, High) |
| Focus | Auto/Manual/One-time automatic focus |
| Focus speed | 2s |
| Image rotation | 180°, Horizontal/Vertical mirror image |
| IR Thermal Imager Spec | |
| Focus Length | 24mm |
| Horizontal FOV | 18.2° |
| Vertical FOV | 14.6° |
| Diagonal FOV | 23.2° |
| Detective Distance (Man: 1.8x0.5m) | 1000 meters |
| Recognize Distance (Man: 1.8x0.5m) | 250 meters |
| Verified Distance (Man: 1.8x0.5m) | 125 meters |
| Detective Distance (Car: 4.2x1.8m) | 3067 meters |
| Recognize Distance (Car: 4.2x1.8m) | 767 meters |
| Verified Distance (Car: 4.2x1.8m) | 383 meters |
| Working mode | Uncooled long wave (8μm~14μm) thermal imager |
| Detector pixel | 640*512 |
| Pixel pitch | 12μm |
| Focusing method | Athermal prime lens |
| Emissivity correction | 0.01~1 |
| NETD | ≤50mK (@25℃) |
| MRTD | ≤550mK (@characteristic frequency) |
| Image enhancement | Auto adjust image brightness and contrast ratio |

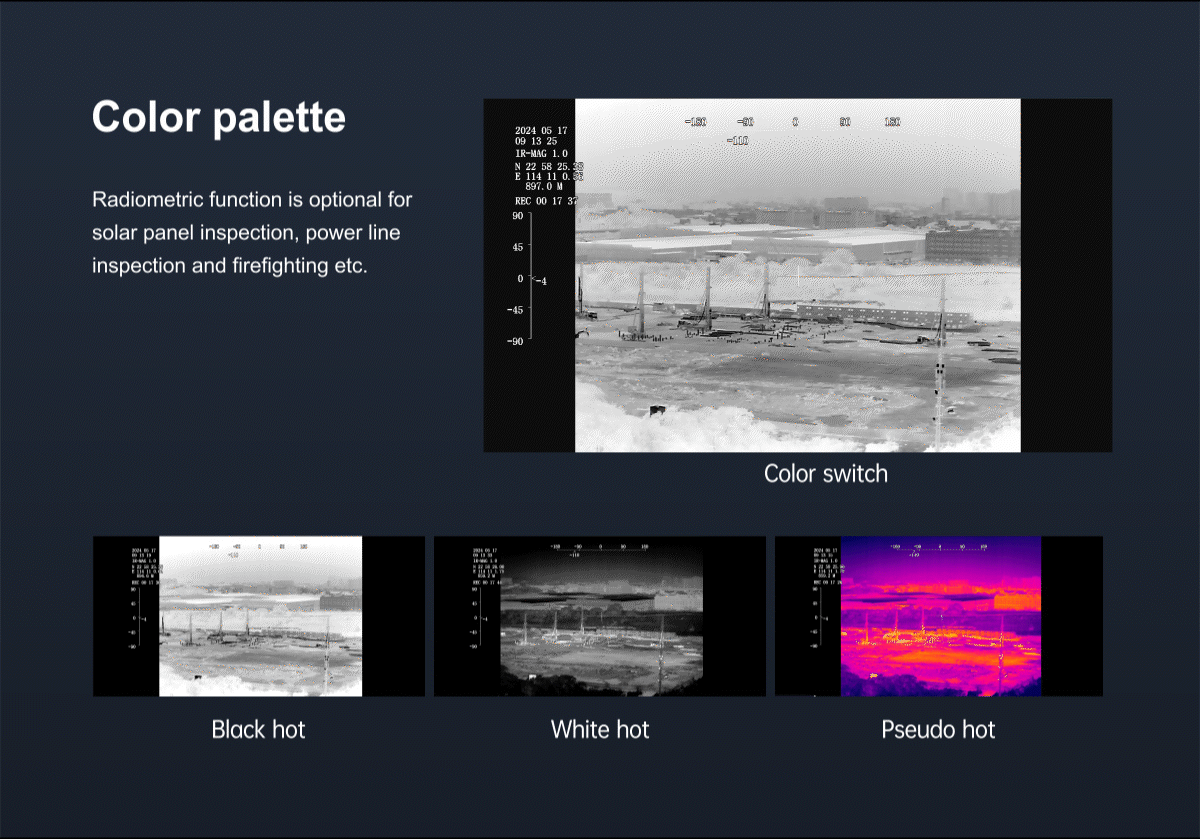

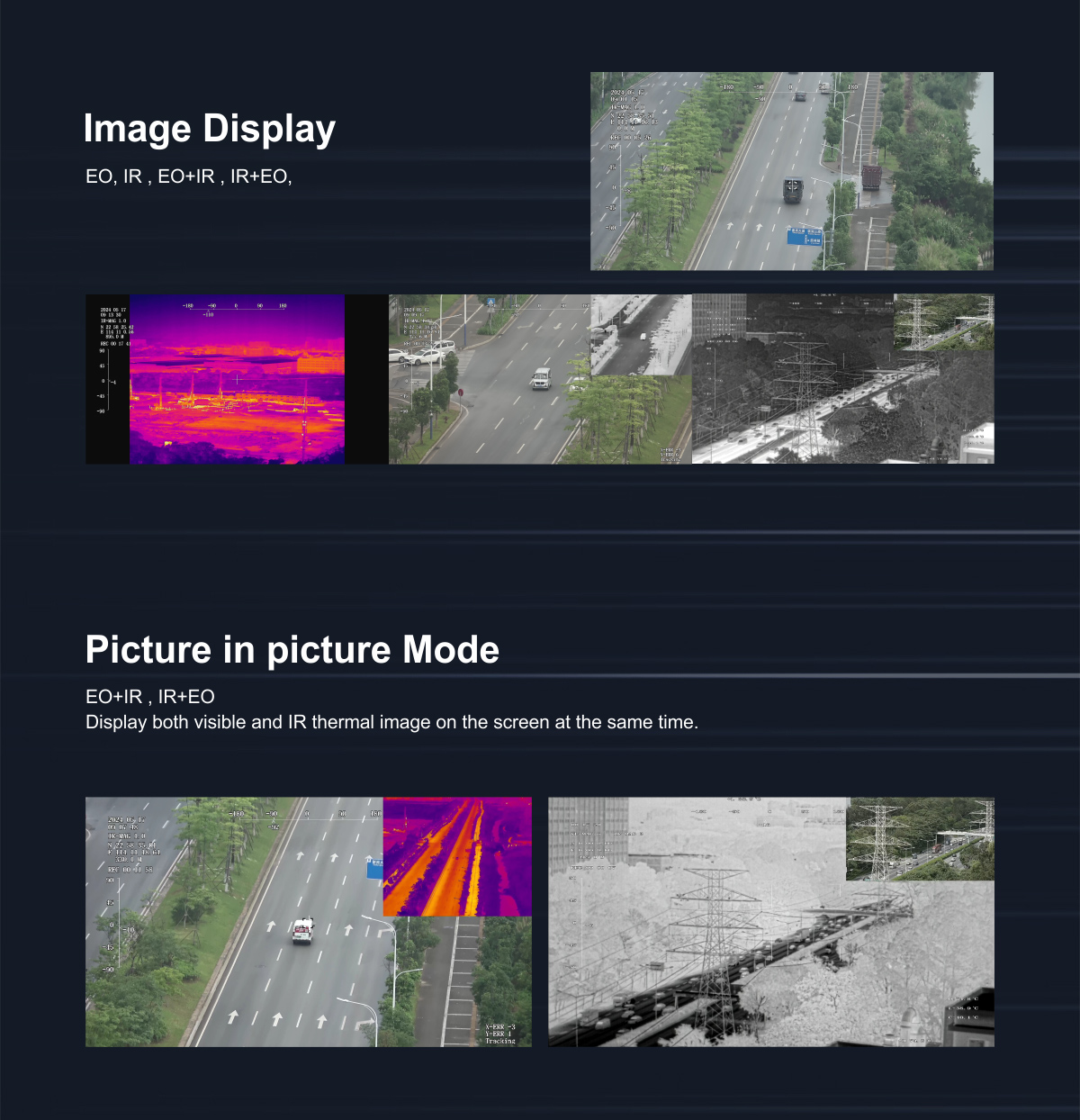

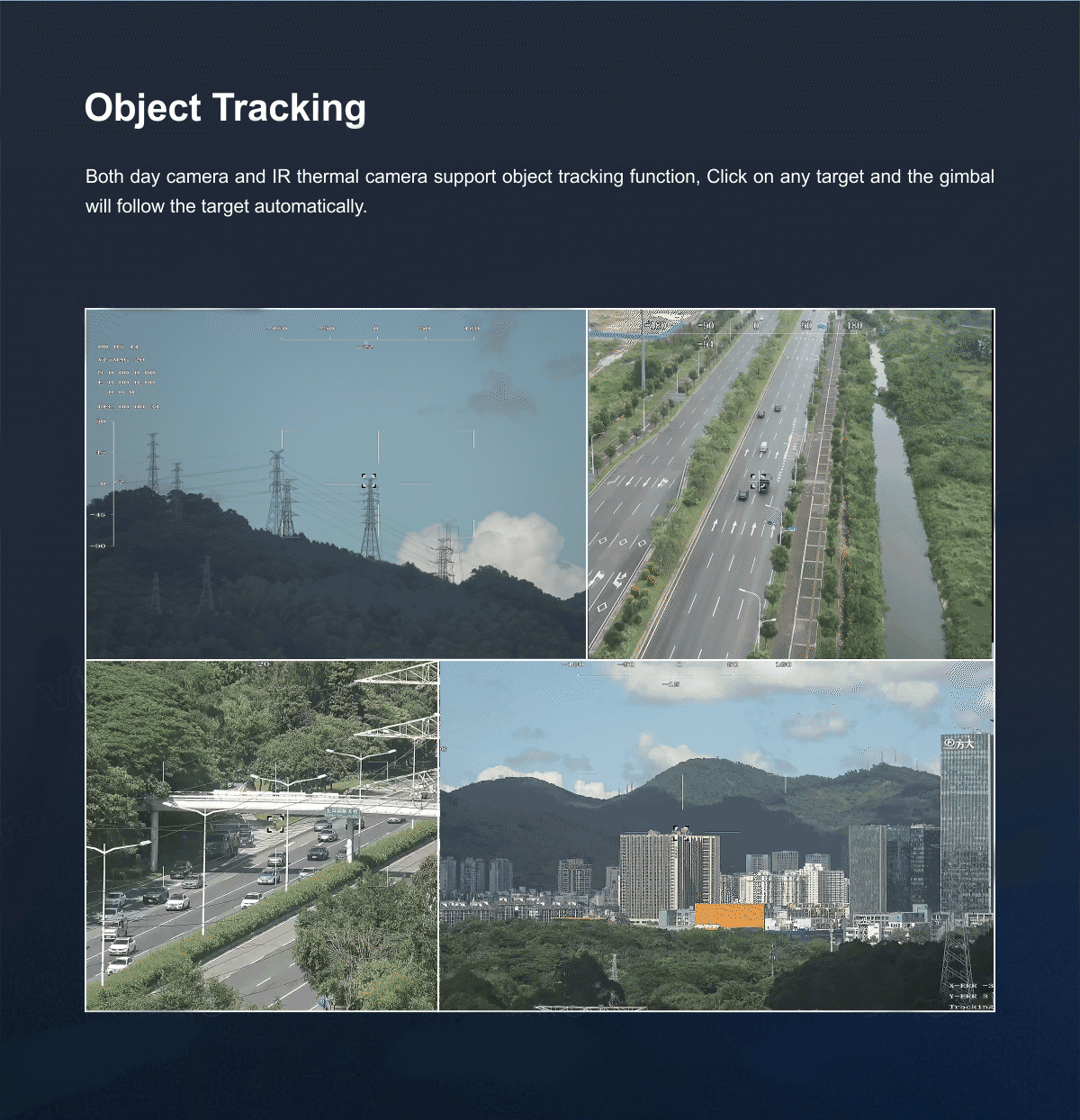

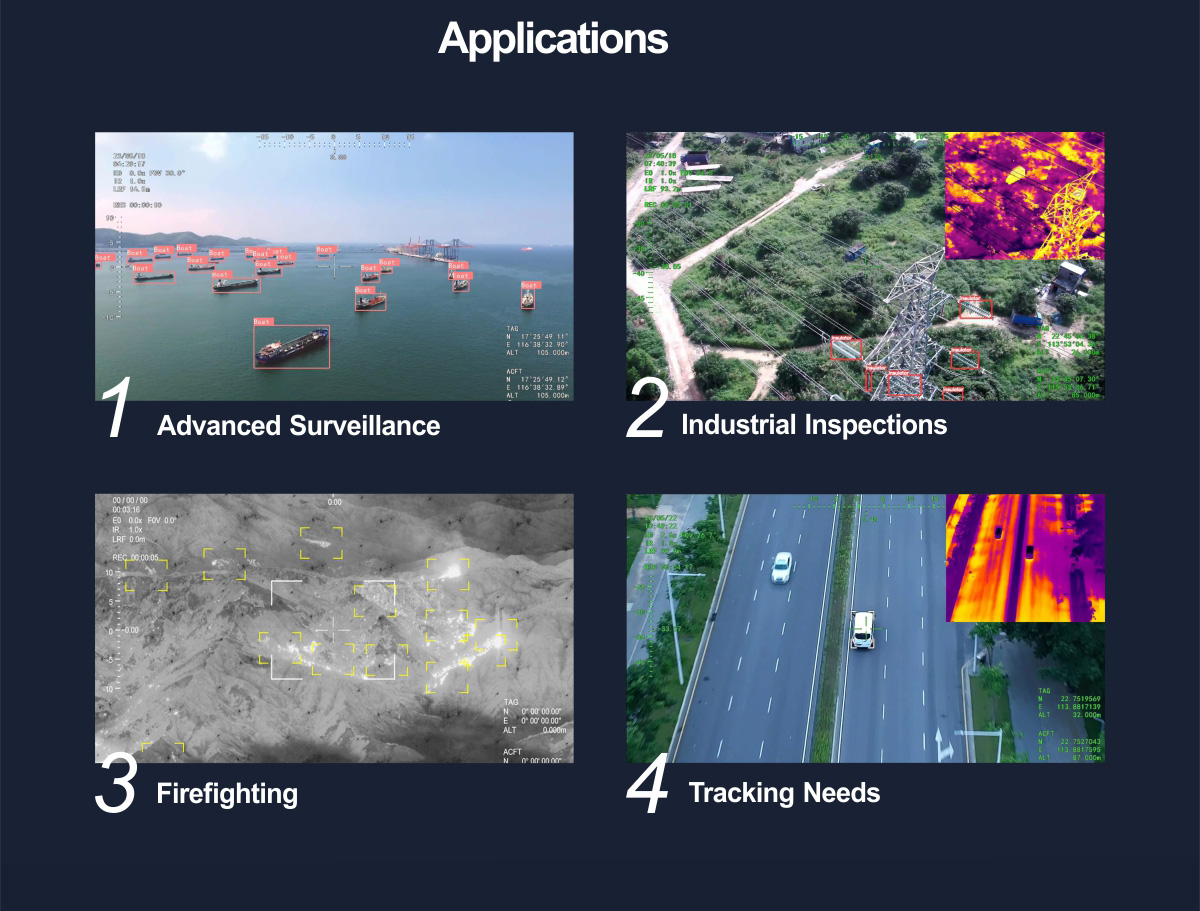

| Color palette | white hot, black hot, pseudo color |
| Auto Non-uniform correction | Yes (no shutter) |
| Digital zoom | 1x ~ 4x |
| Thermometry type | Not support |
| IR / EO Camera Object Tracking | |
| Update rate of deviation pixel | 50Hz |
| Output delay of deviation pixel | 5ms |
| Minimum object contrast | 5% |
| SNR | 4 |
| Minimum object size | 32*32 pixel |
| Maximum object size | 128*128 pixel |
| Tracking speed | ±48 pixel/frame |
| Object memory time | 100 frames (4s) |
| The mean square root values of pulse noise in the object position | < 0.5 pixel |
| IR Laser Rangefinder | |

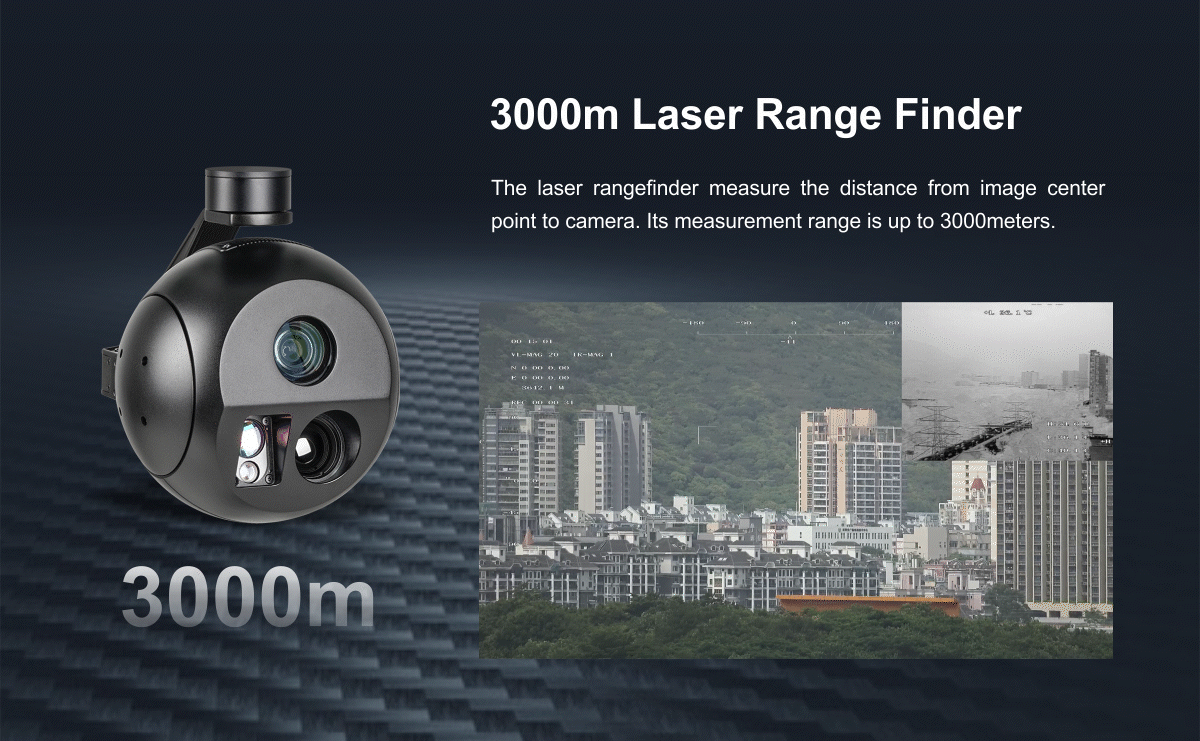

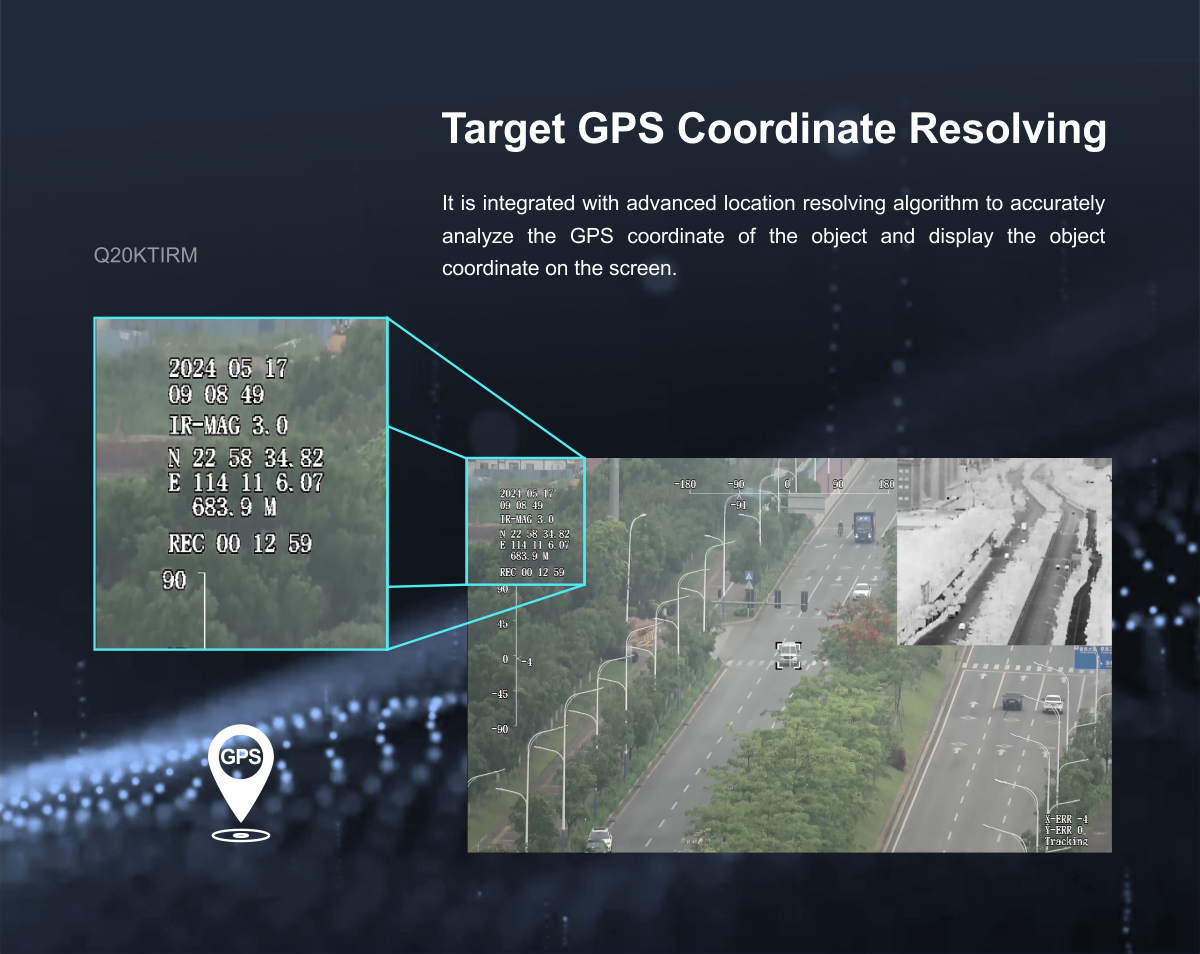

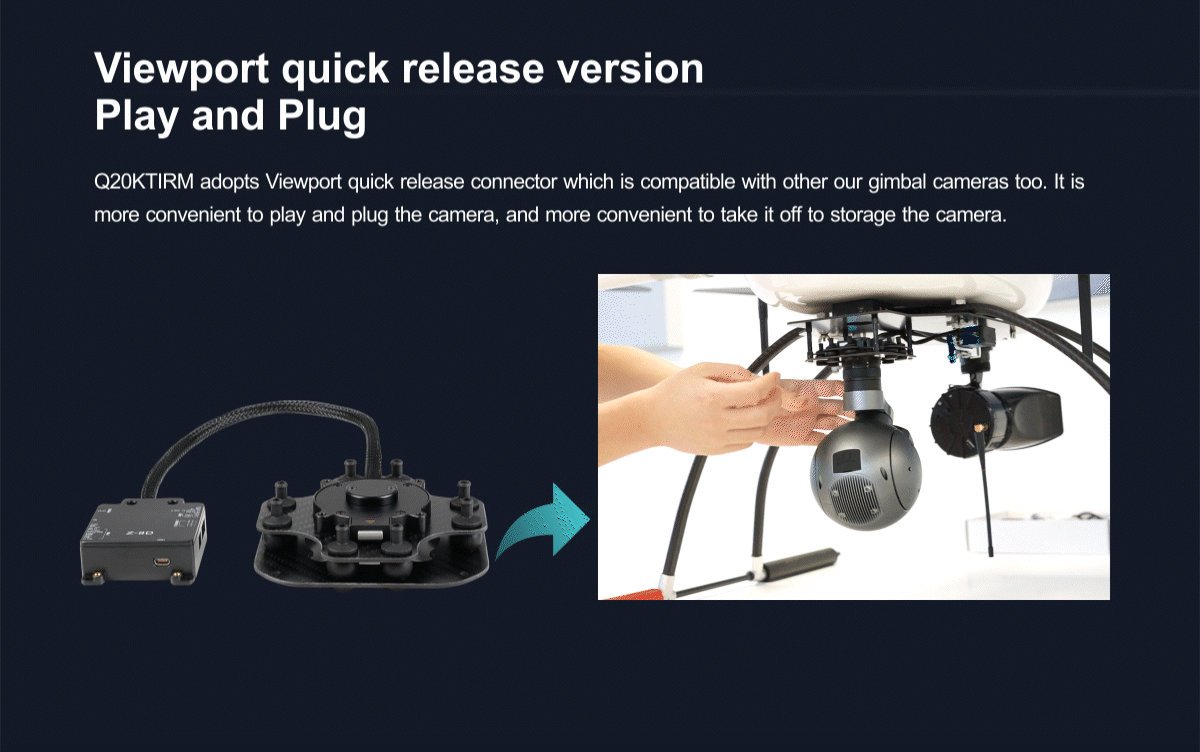

| Range | for car ≥ 3000m; for human ≥ 2000m |
| Minimum range | 15m |
| Frequency | 1~10Hz |
| Accuracy | ±1m |
| Light Beam | 1535±5nm pulse laser |
| Divergent Angle | ~0.6 mrad |
| Location Resolving | Latitude and longitude of target |
| Ranefinder | Measure the distance between the object at the center of screen and the laser rangefinder |
| Packing Information | |
| N.W. | 1300±10g(Viewport version with Viewport) |

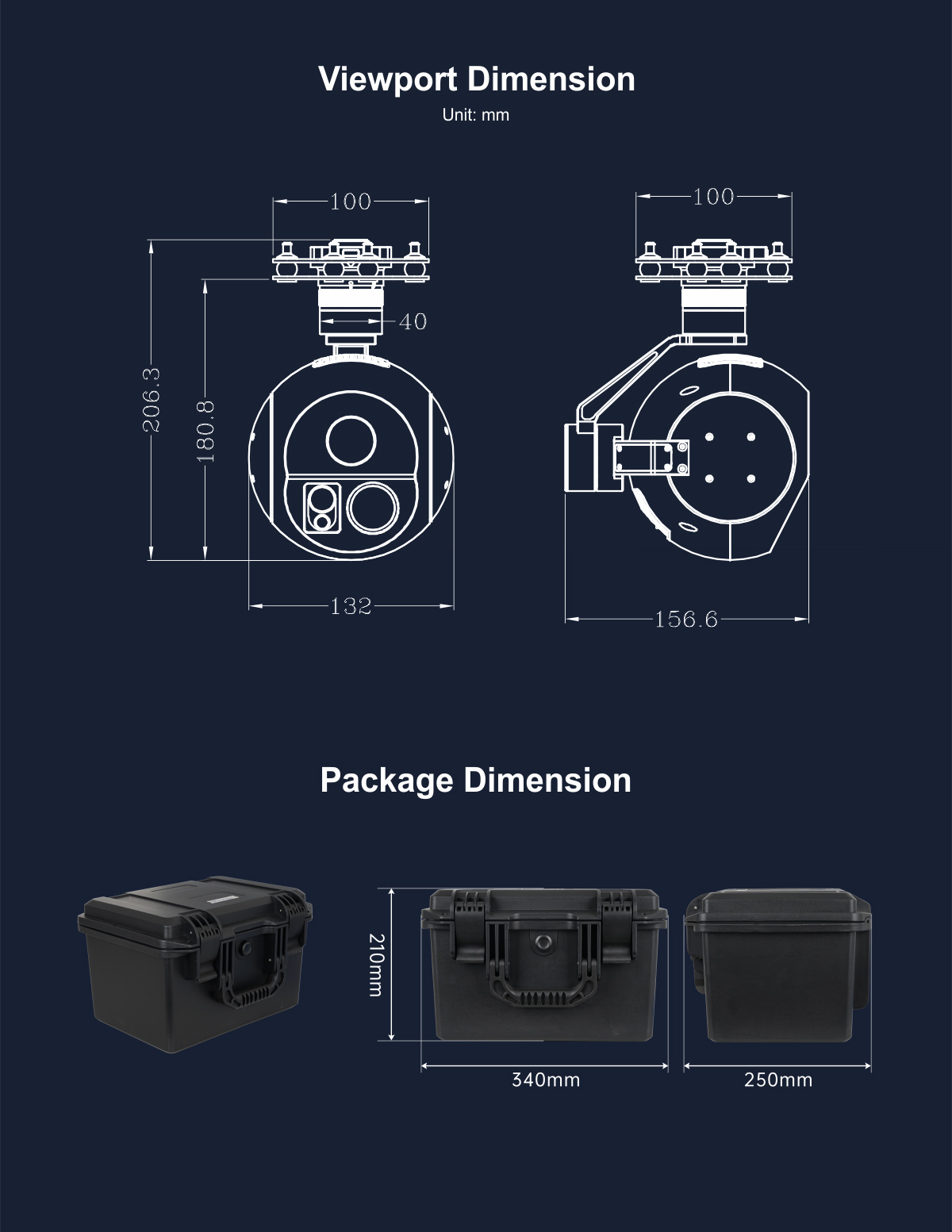

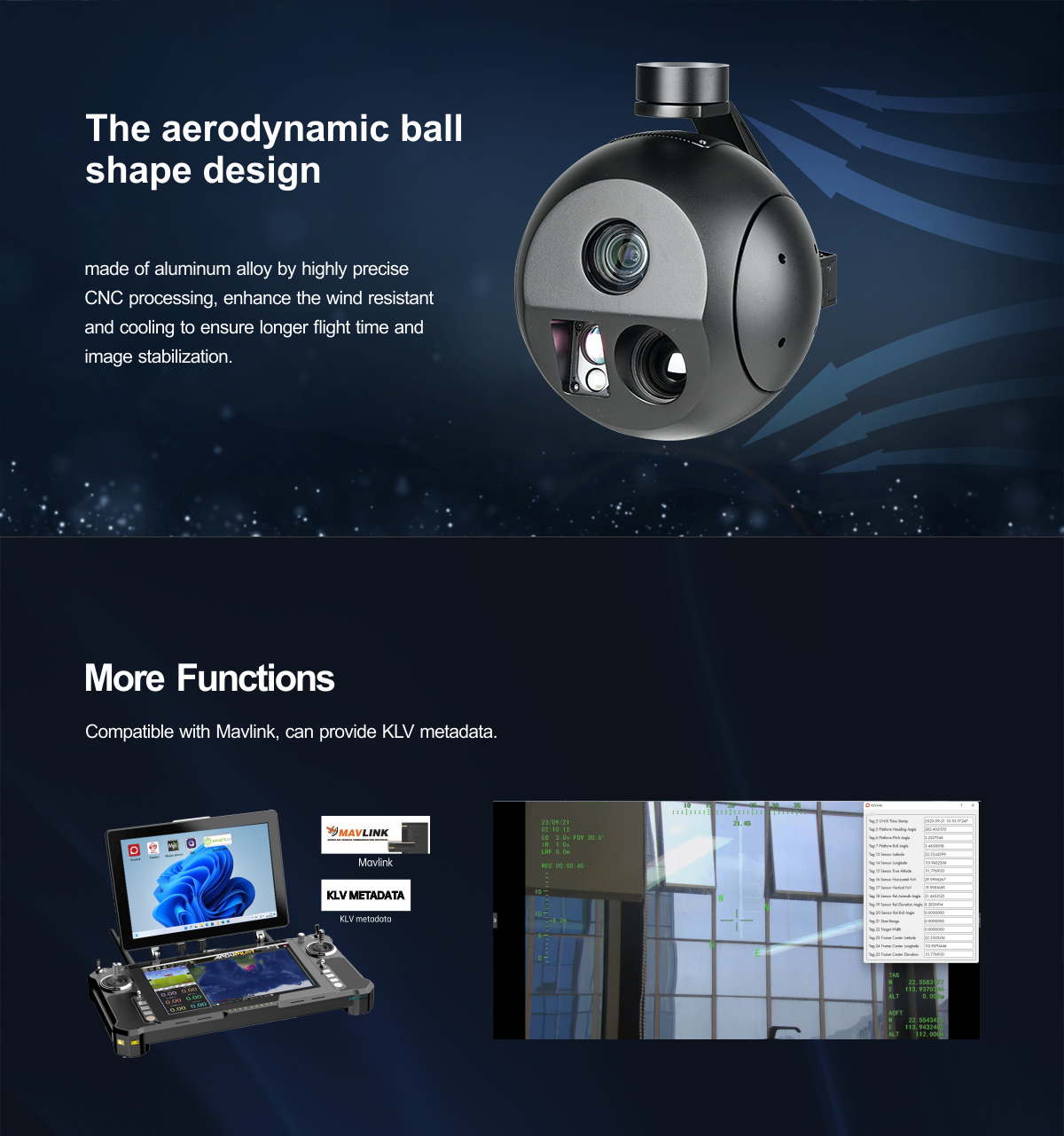

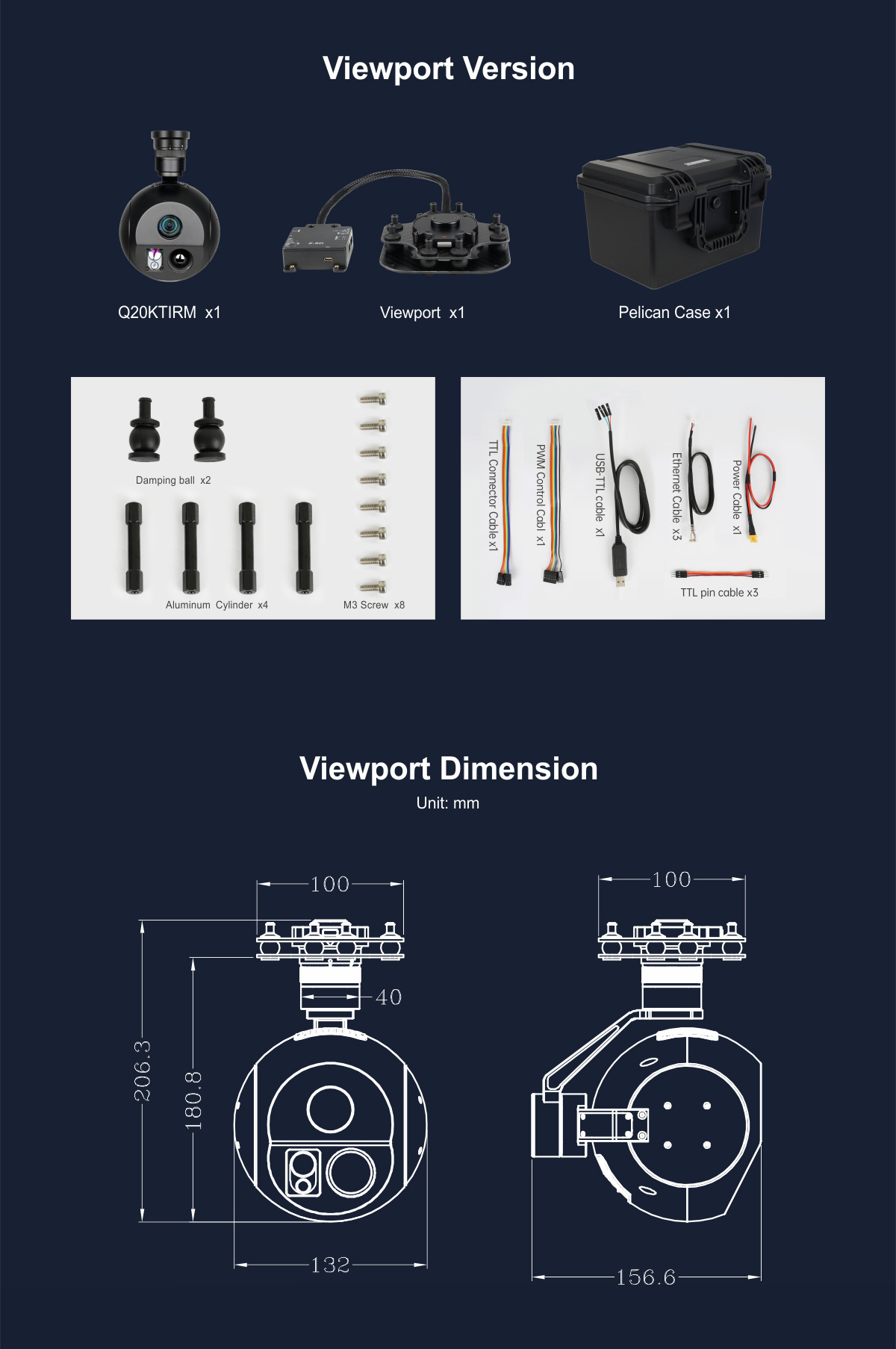

| Product meas. | 156.6*132*200.6mm /156.6*132*206.3mm(Viewport version with Viewport) |

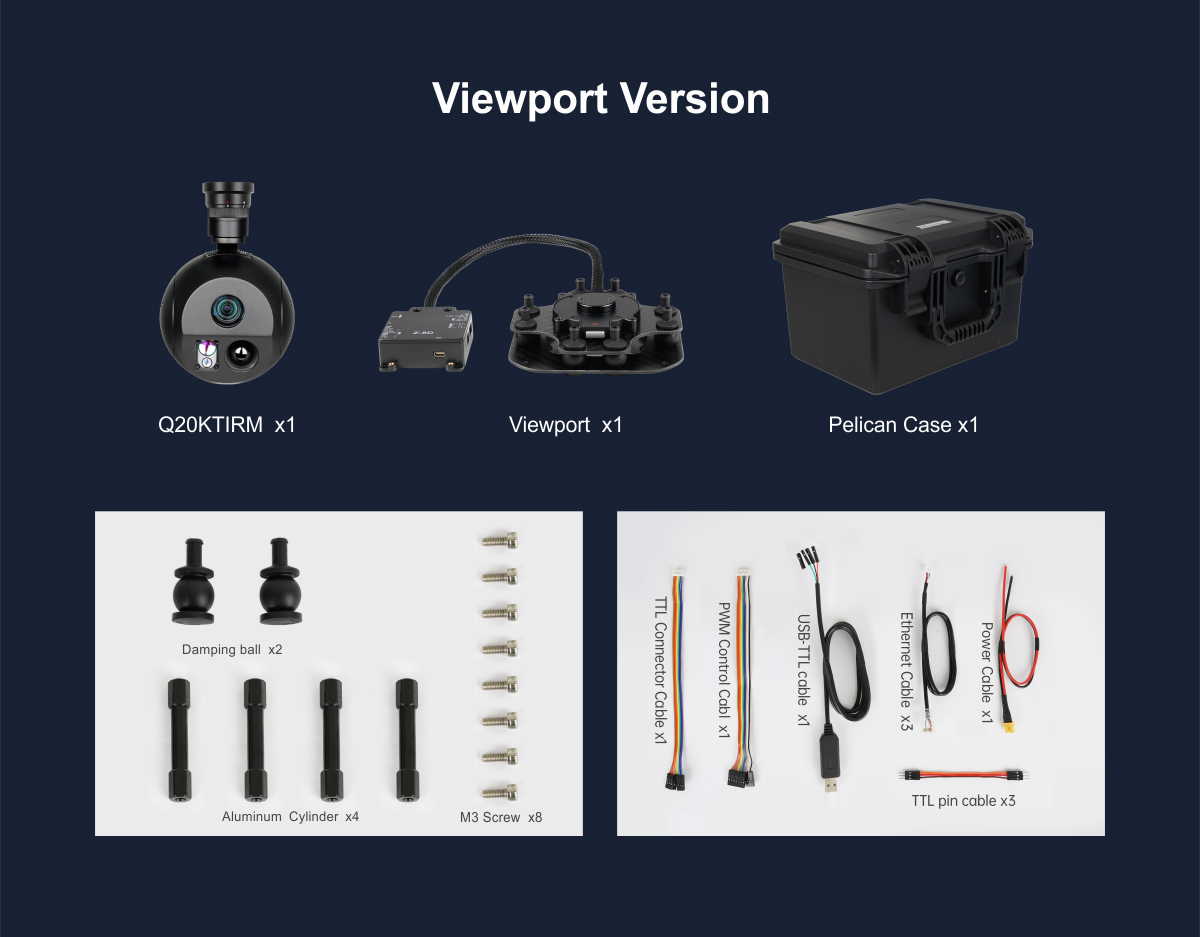

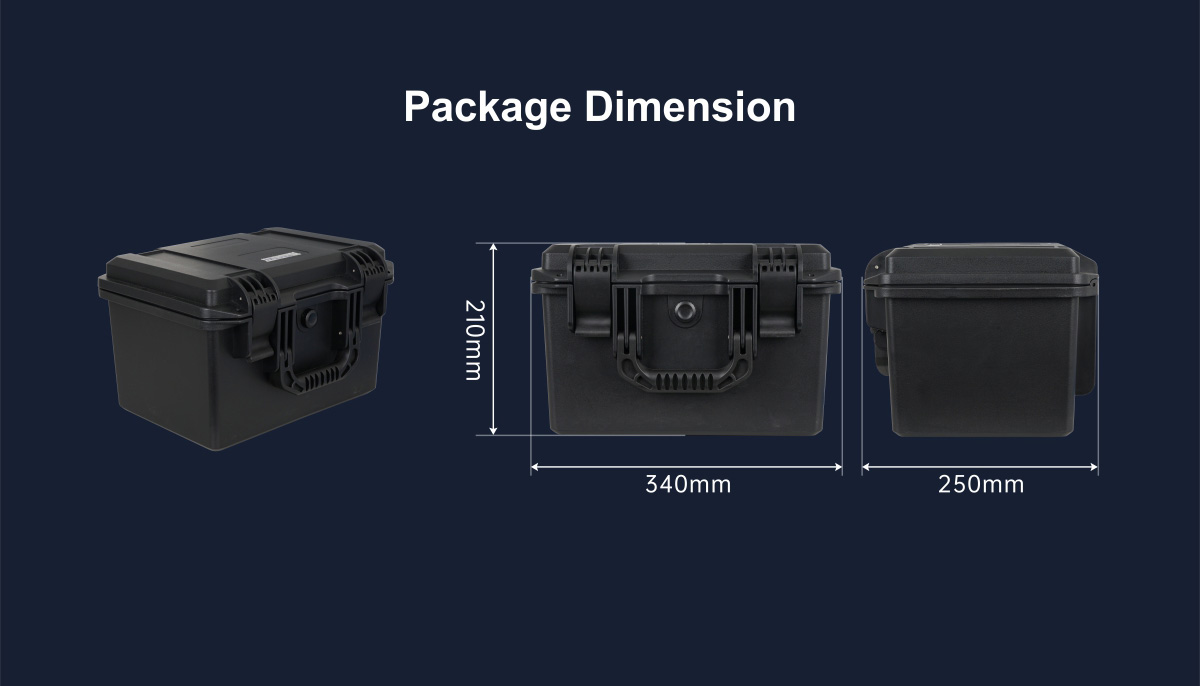

| Accessories | 1pc gimbal camera device, screws, copper cylinders, damping balls, damping boards / Hight quality plastic box with foam cushion |
| G.W. | 3027g |
| Package meas. | 350*300*250mm |
