Product Introduction
Specification

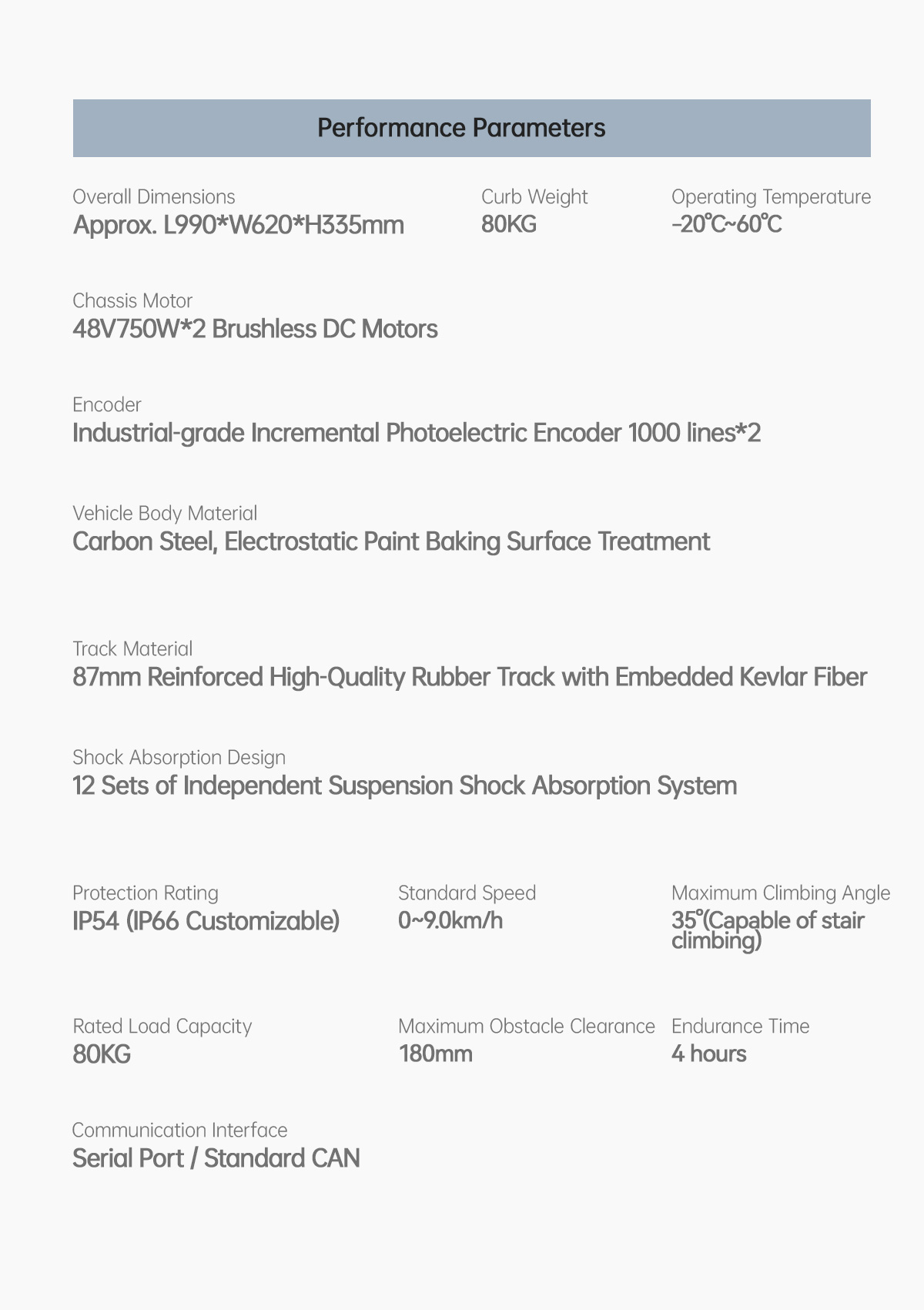

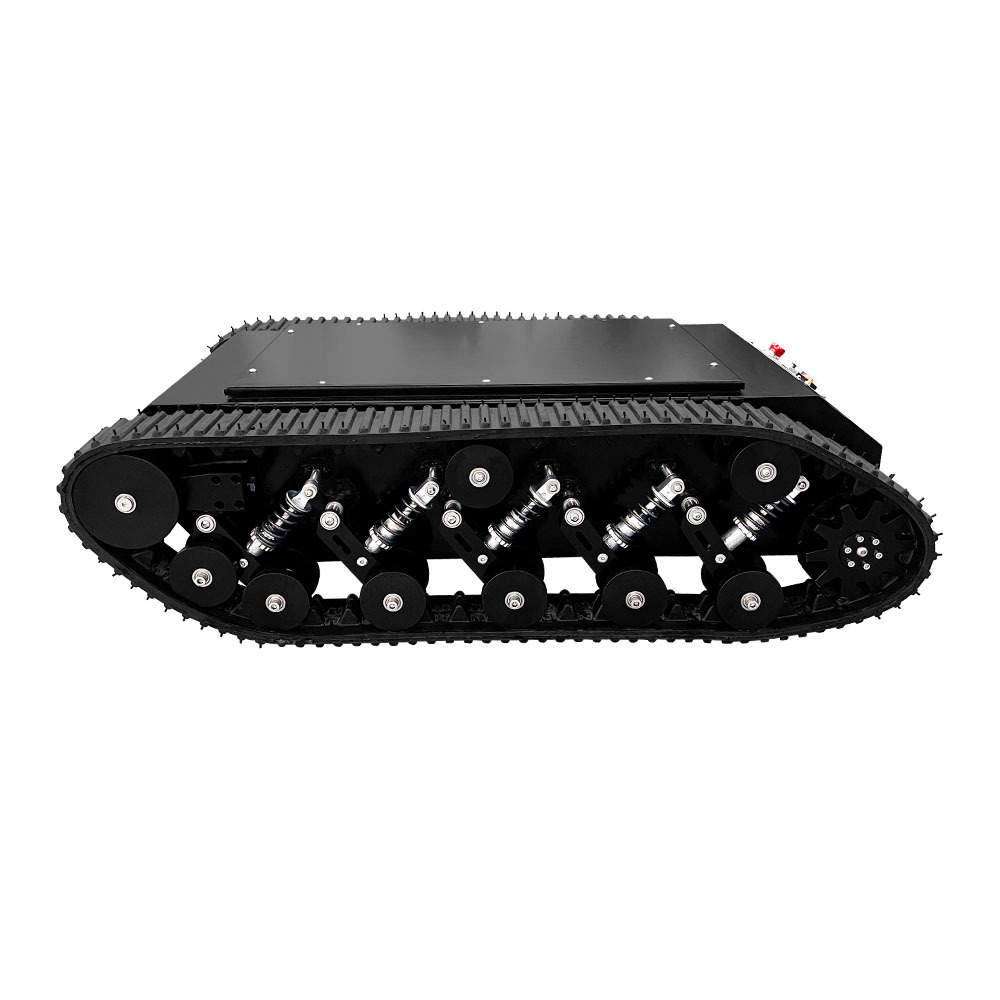

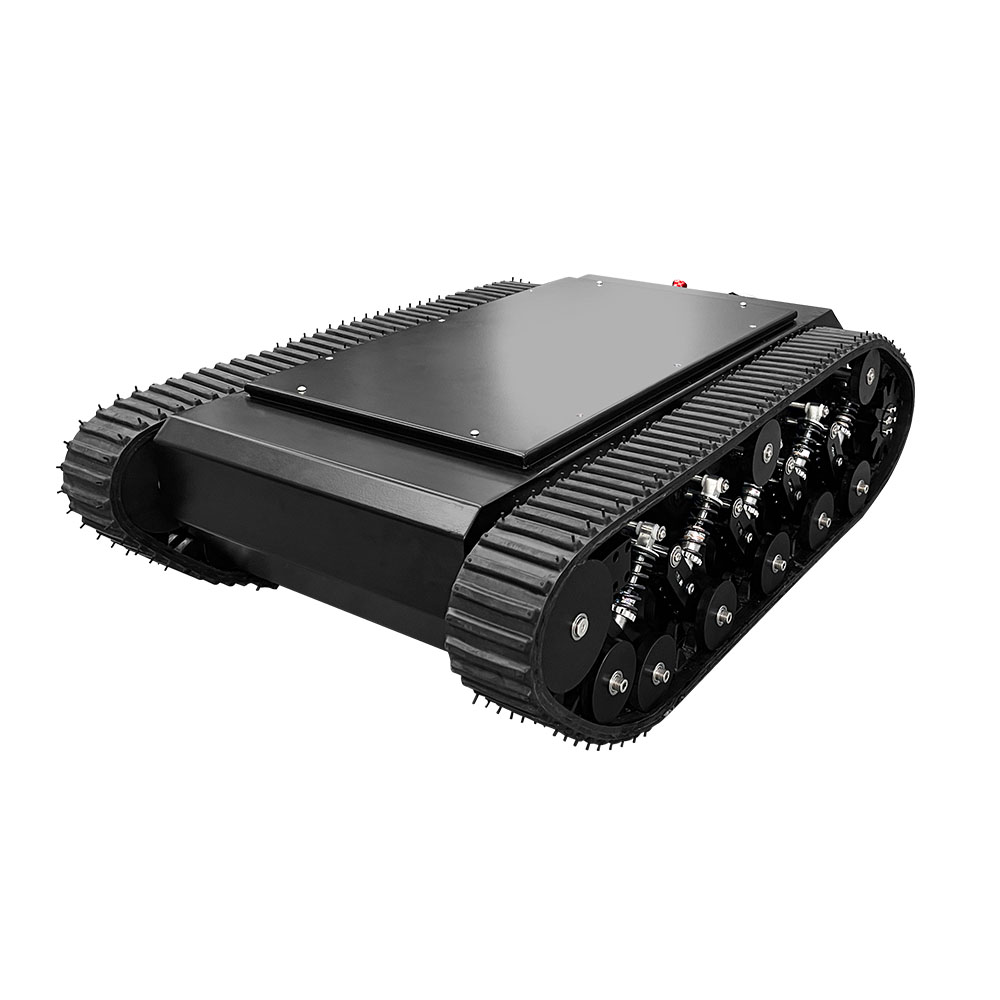

Heavy-Duty Tracked Moblie Chassis UGV Tracks TK990 Specification
| Chasis Parameters | ||
| Dimension(LWH) | 990*620*335mm | |
| Net Weight | 80KGS | |
| Max Load | 80KGS | |
| Speed | 0-9KM/H (adjustable) | |
| Motors | 48V 750W*2 Brushless DC Motors | |
| Encoder | Industrial-grade Incremental Photoelectric Encoder 1000 lines*2 | |
| Vehicle Body Material | Carbon Steel, Electrostatic Paint Baking Surface Treatment | |
| Track Material | 87mm (wide) Rubber Track with Embedded Kevlar Fiber Tensile Layer | |
| Shock Absorption Structure | 12 sets of independent suspension shock absorbers | |

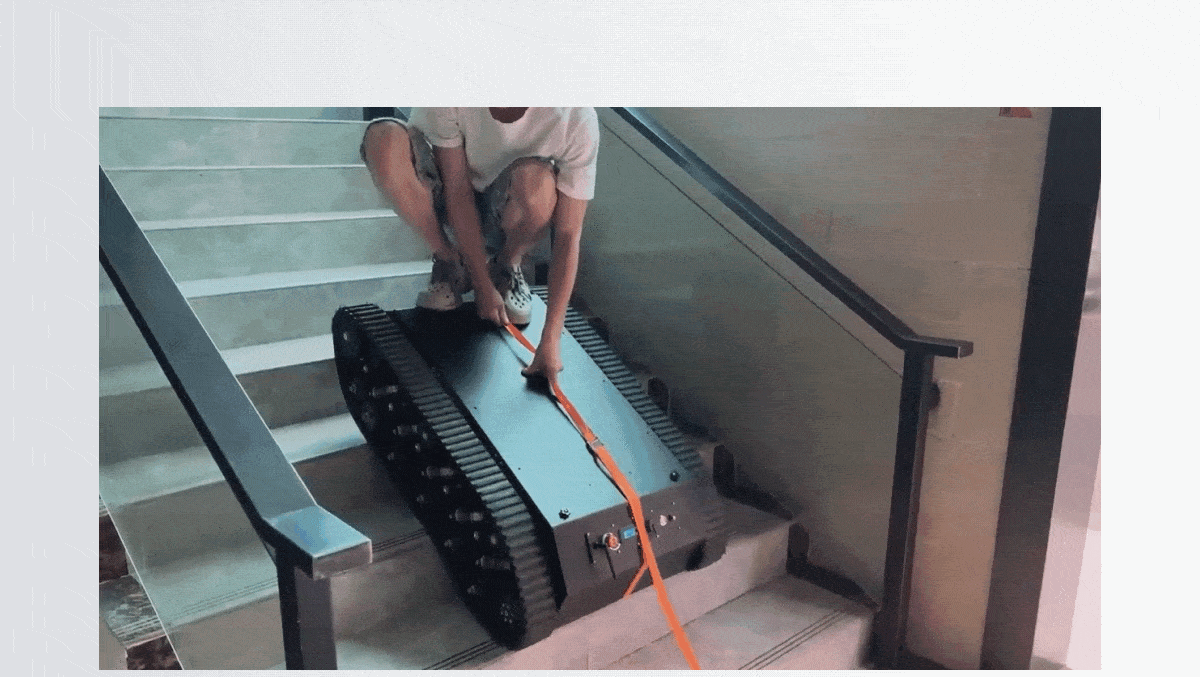

| Max Climb Angle | 35° | |

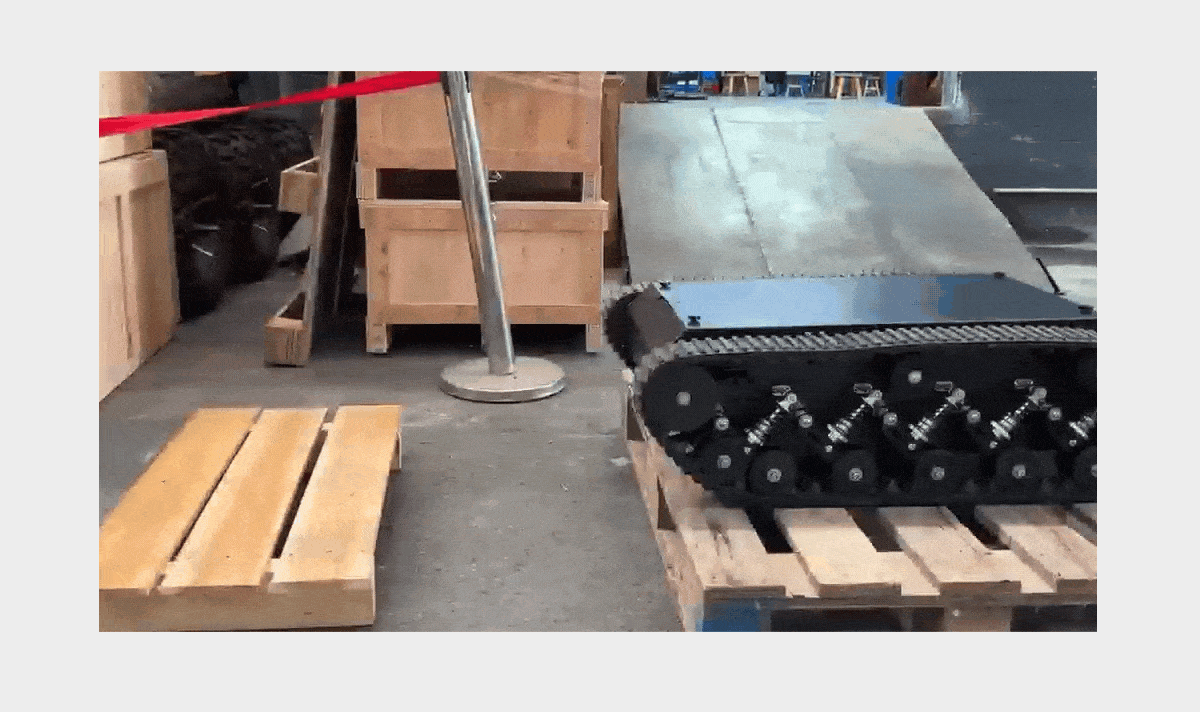

| Obstacle Clearance Height | 18cm | |
| Trench Clearance Width | / | |
| Fording Depth | 20cm | |
| Endurance | 4Hrs | |
| IP Grade | IP54 (support customize IP66) | |
| Opertion Environment | -20℃~60℃ | |
| Control System | ||
| Remote Control | Frequency | 2.4Ghz |
| Movements Control | Forward / backward / left / right movement and in-place spinning | |
| Control Distance | LOS 200m data | |
| Main Board | Controlling | Open-loop control & PID closed-loop control. Supports host computer commands, sending vehicle data (linear and angular velocity) |
| Interface | Serial port, CAN (open protocol) | |

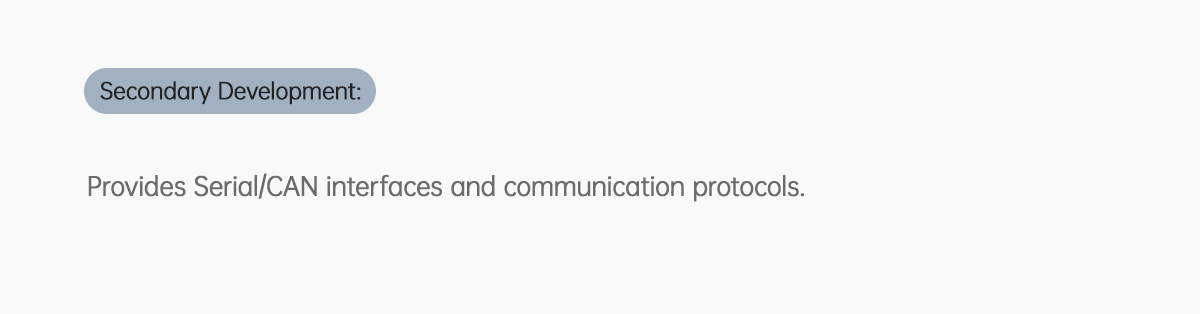

| Secondary Development | Provides Serial/CAN interfaces and communication protocols. | |
| Power System | ||

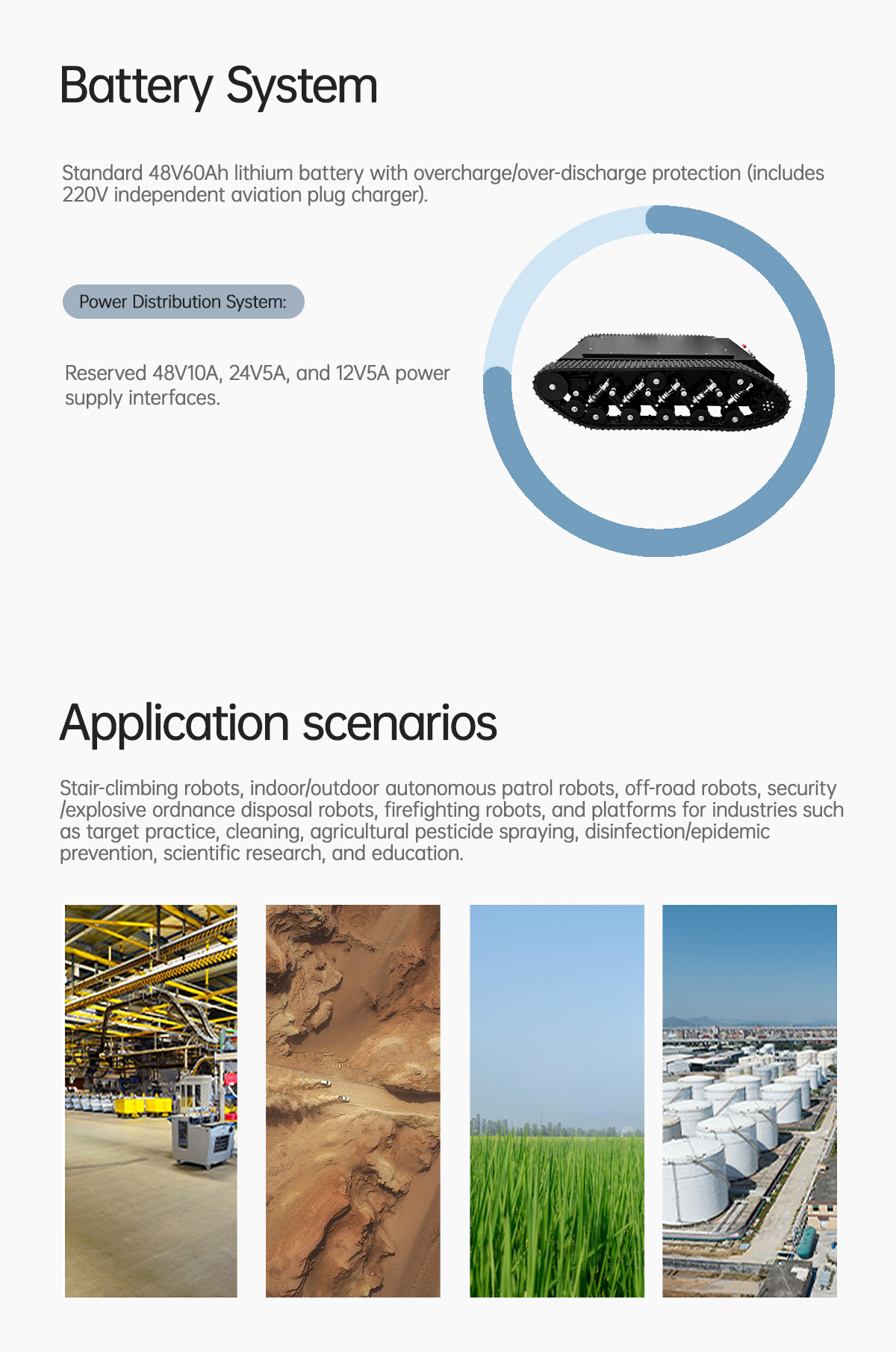

| Battery | 48V 60Ah (Lithium battery) | |
| Power Distribution System | Reserve 48V10A, 24V5A, 12V5Aconnectors | |
| Charging Method | AC 220V independent aviation plug charger | |
For more details, please visit Heavy-Duty Tracked Moblie Chassis UGV Tracks TK990
-
