Product Introduction
Specification
U2 Specification
| Hardware Parameter | |
| Working voltage | 12~16V |
| Dynamic current | 200~700mA @ 12V |
| Power consumption | Average 2.4W, Max 8.4W |
| Working environment temp. | -20℃~+50℃ |
| Output | IP (RTSP 1080p 30fps H264) |
| Control method | TTL / TCP |
| Gimbal Spec | |
| Controllable Range | Pitch/Tilt: -30°～115°, Yaw/Pan: ±145° |
| Stability precision | 0.2mrad |
| Maximum angular velocity | ≥30°/S |
| One-key to center | √ |
| EO Camera Spec 1 | |
| Resolution | 1920*1080 @30fps |
| Focus Length | 2.4mm |
| Angle of View | 98.5°*66.3° |
| EO Camera Spec 2 | |
| Resolution | 1920*1080 @30fps |
| Focus Length | 10.36mm |
| Angle of View | 30°*17.1° |
| Hybrid Zoom | 12.5x (Equivalent optical zoom 4.2x, digital zoom 3x ) |
| EO Camera Object Tracking | |
| Minimum object contrast | 5% |
| Minimum object size | 16*16 pixel |
| Maximum object size | 128*128 pixel |
| Tracking speed（Man） | ±32 pixel/frame |
| Tracking speed (Car) | ±48 pixel/frame |
| Object memory time | 100 frames |
| Packing Information | |
| N.W. | ≤80g |
| Product meas. | 39*39*81.1mm |
| Accessories | UART and power connector, Ethernet cable, USB to TTL cable / Hight quality box with foam cushion |

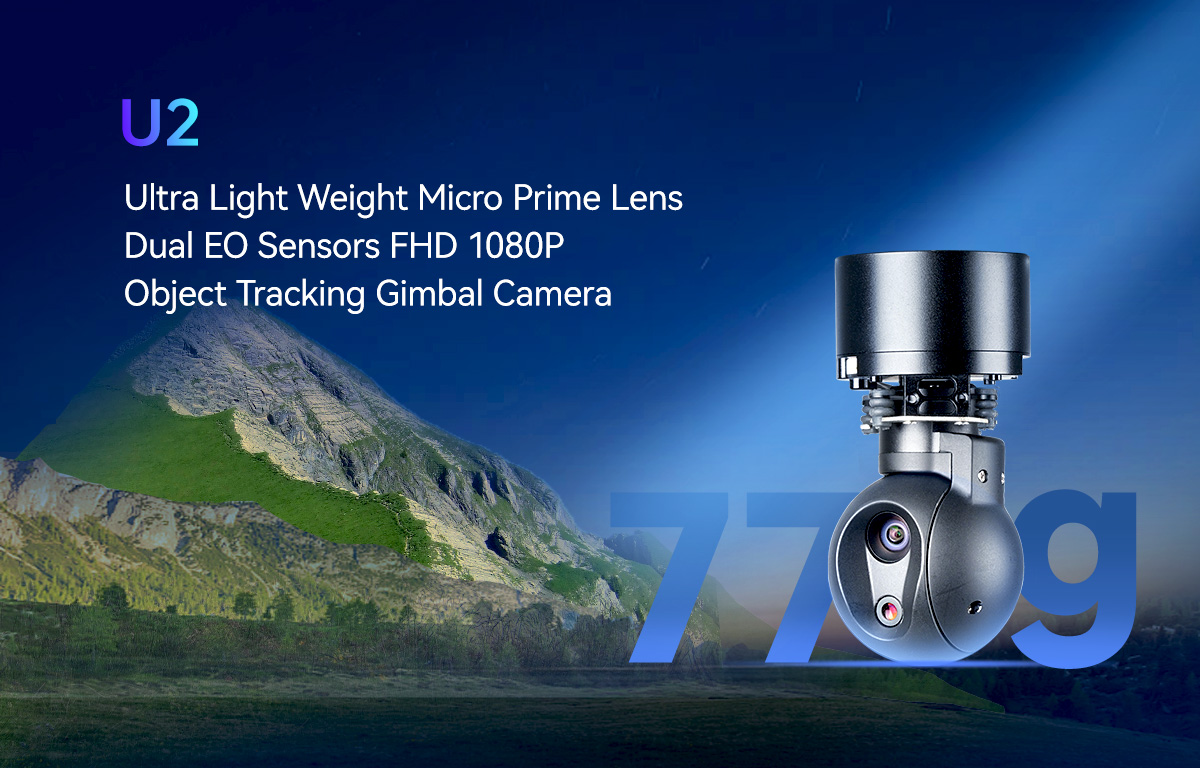

For more details, please visit U2 Ultra Light Weight Micro Prime LensDual EO Sensors FHD 1080P Object Tracking Gimbal Camera
-
